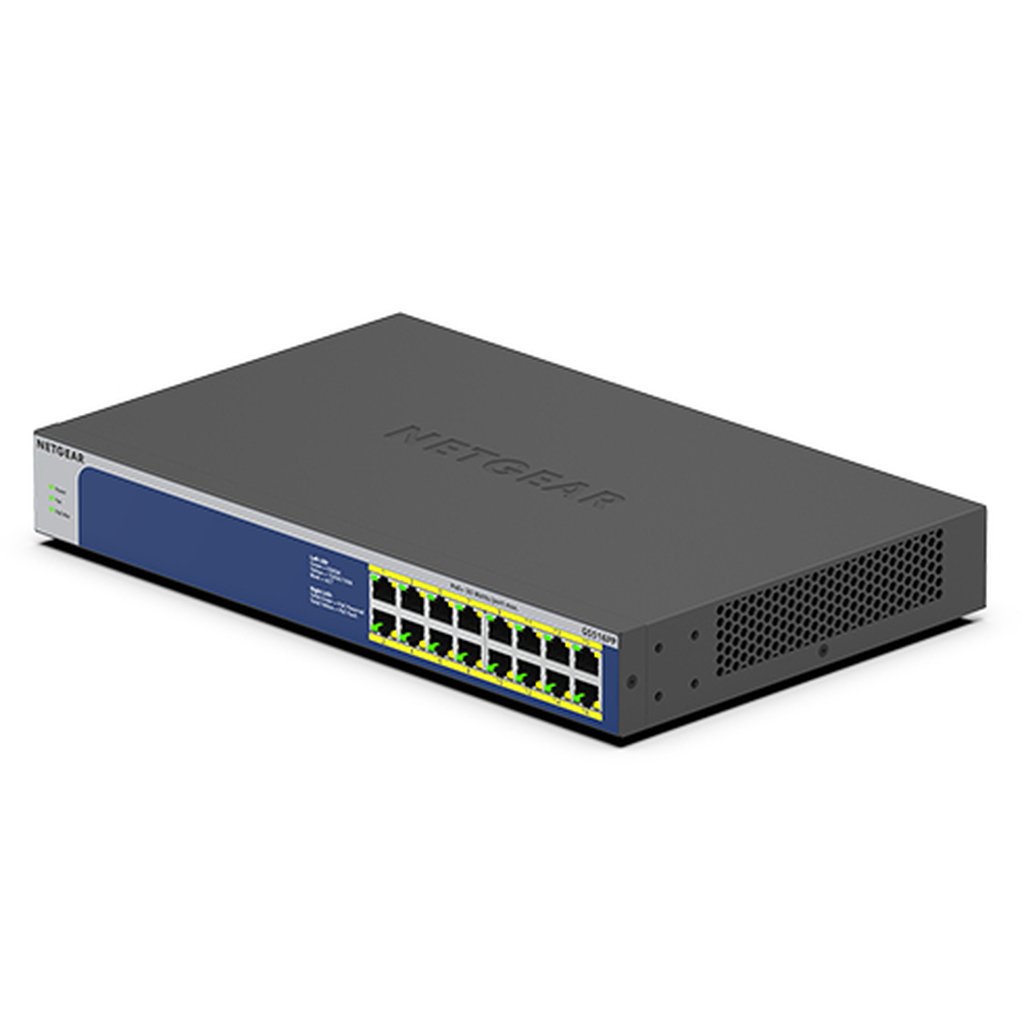

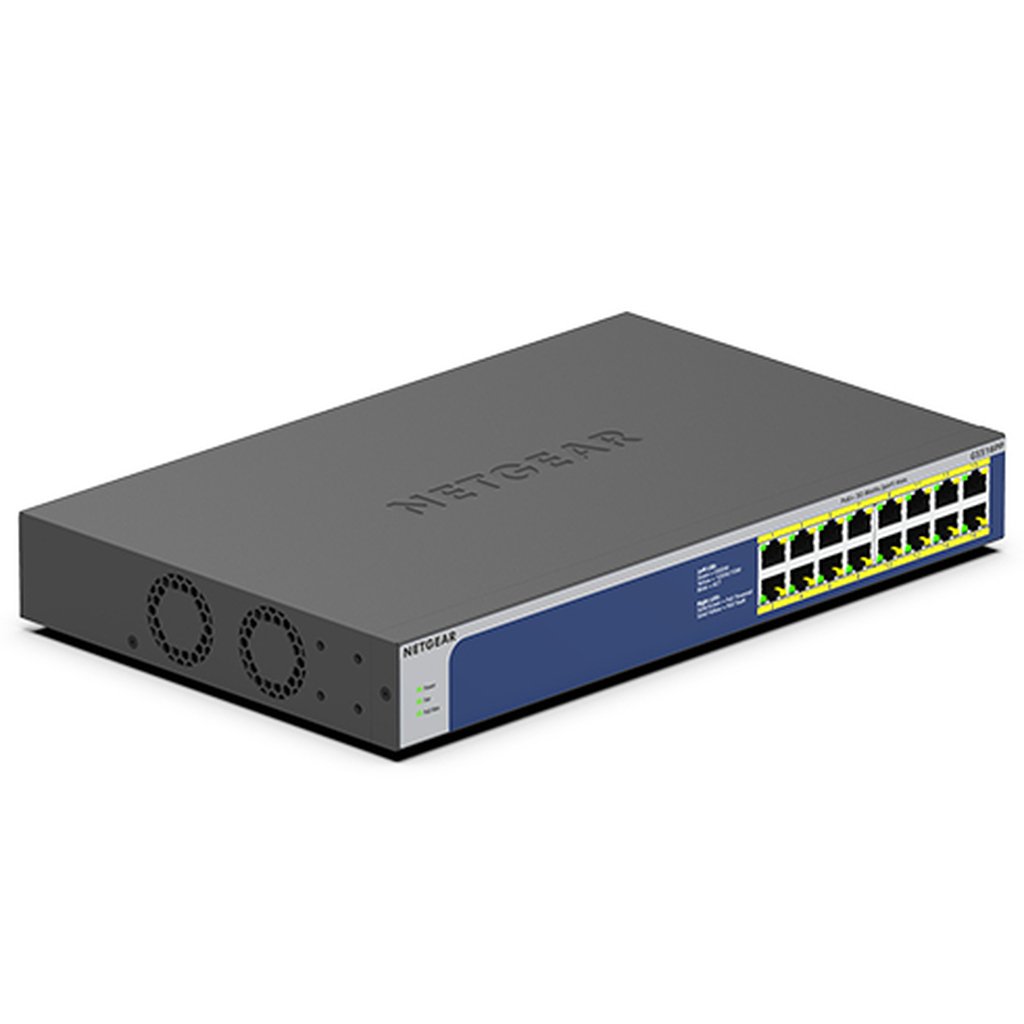

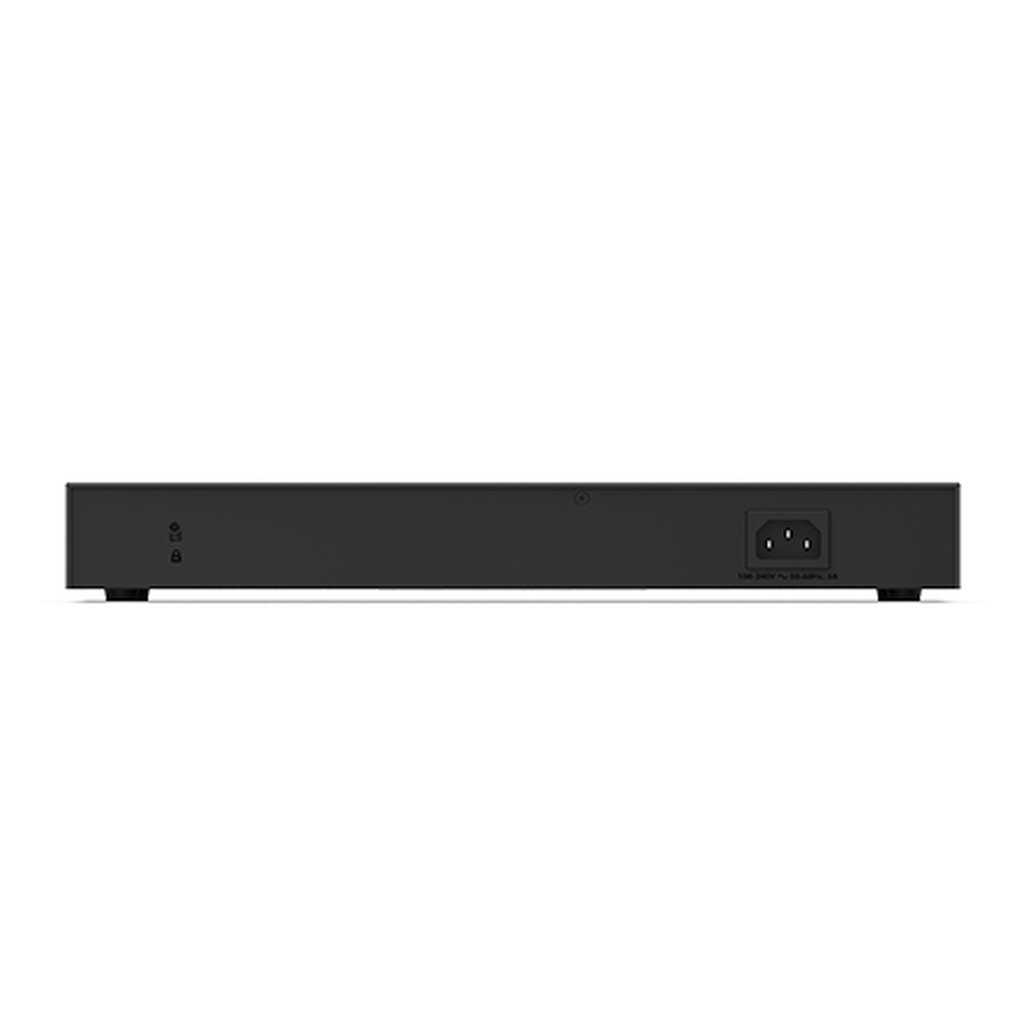

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey
Gigabit Ethernet, 802.3at PoE+ Ports x16, 32 Gbps, 2 fans
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516PP joins the series and offers 16 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 260W, deploy denser PoE+ devices to a single switch rather than multiple
The GS516PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Powerful and Energy Efficient
Ideal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS516PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.
Additional information
| Weight | 3.64 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
| Rack mounting | Yes |
| Product colour | Blue, Grey |
| Housing material | Metal |

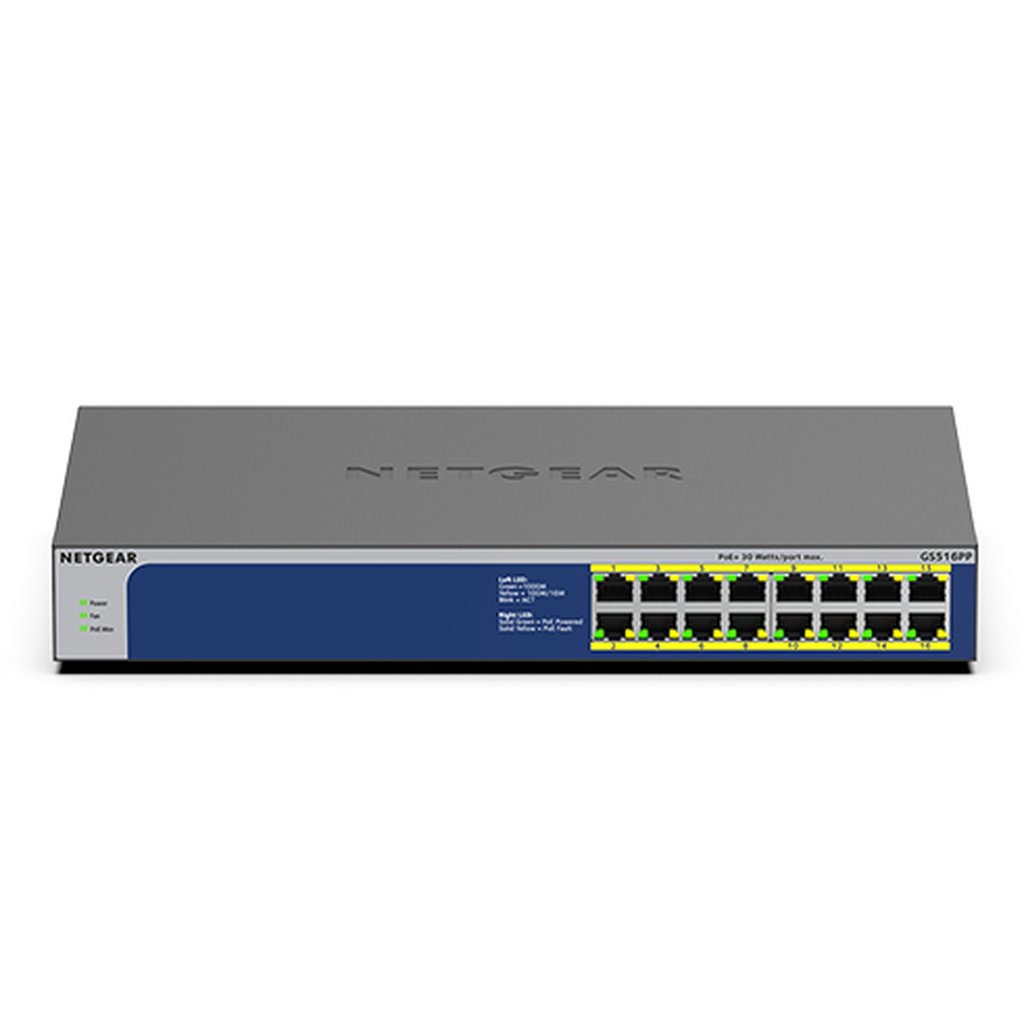

| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Mean time between failures (MTBF) | 2415333.9 h |
| Power consumption (max) | 316.1 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 330 mm |
| Depth | 207 mm |
| Height | 43 mm |
| Weight | 2.3 kg |
| Harmonized System (HS) code | 85176990 |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 1000BASE-T |

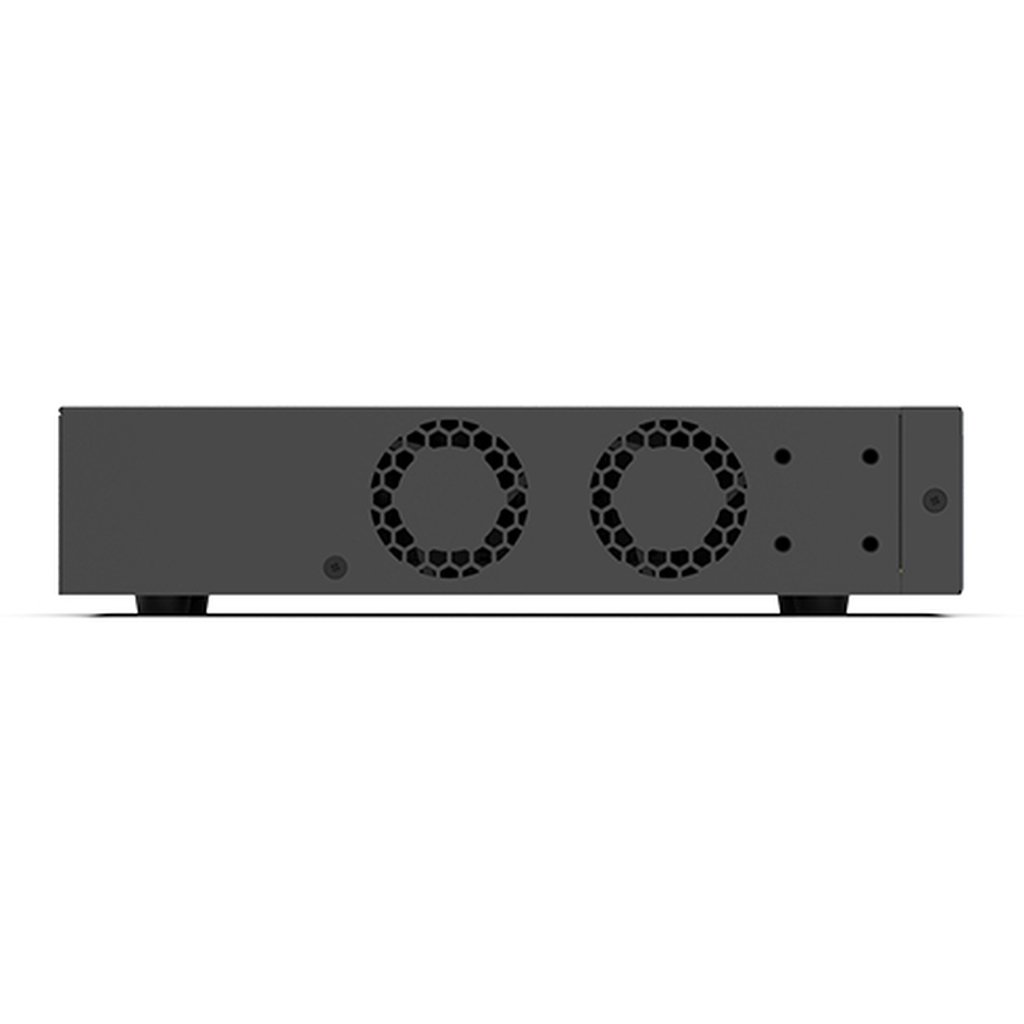

| Number of fans | 2 fan(s) |
| Power supply included | Yes |
| Certification | FCC 47 CFR Part15B (Class A)ICES-003 Class AEN 55024/55032/55035 (Class A)AS/NZS CISPR 32VCCIBSMI CNS13438KCCUL 62368-1CB_IEC 60950-1 + IEC 62368-1 Ed-3LVD EN60950-1+EN62368-1 Ed-2 RptAS/NZS 62368.1 E |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Total Power over Ethernet (PoE) budget | 260 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Half duplex | Yes |
| Latency (1 Gbps) | 12 µs |
| Operating altitude | 0 – 3000 m |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Power over Ethernet (PoE) type supported | PoE+ |
