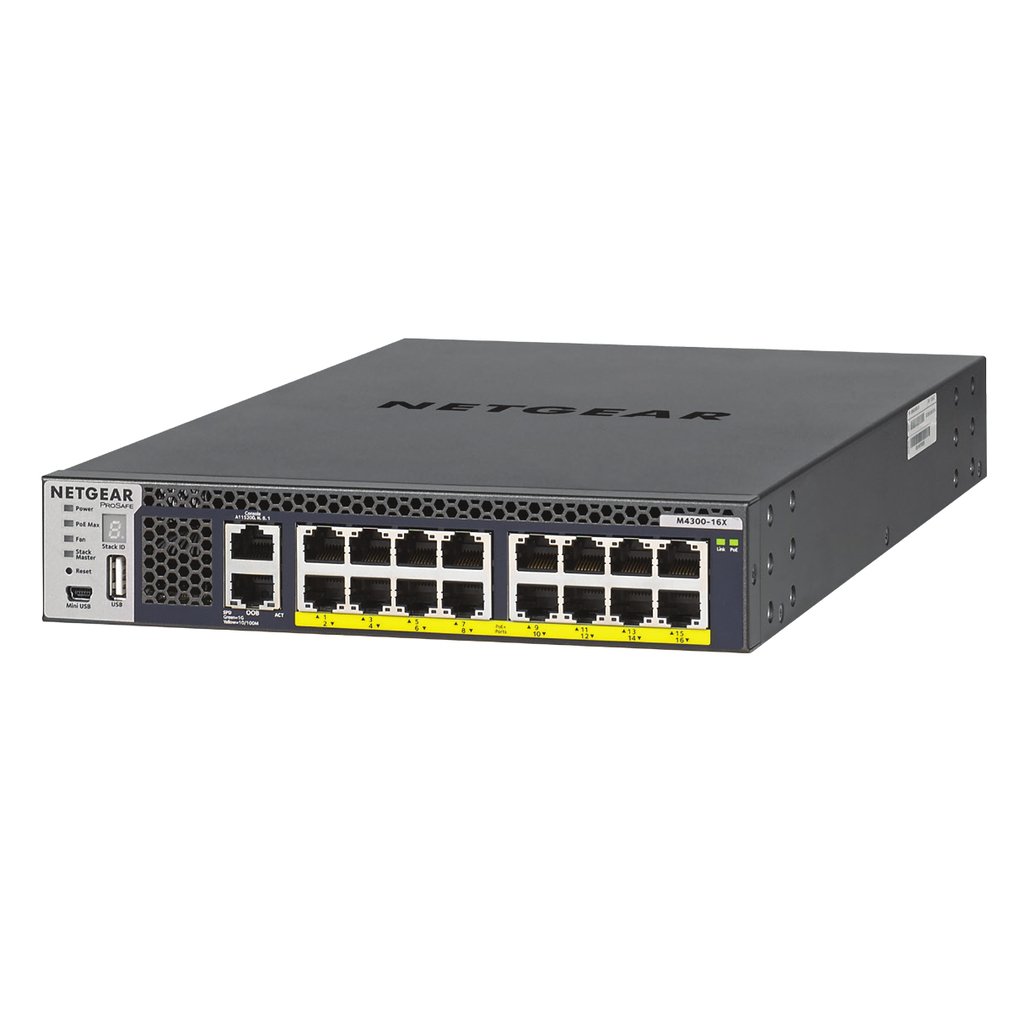

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
M4300-16X, 320 Gbps, 238 Mpps, 16x 100/1000/2.5/5/10GBASE-T RJ-45, PoE+, 600W PSU, 212x44x345 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
Additional information
| Weight | 5.1 lbs |
|---|---|
| Brand compatibility | 238 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Rack mounting | Yes |
| Product colour | Black |
| Mean time between failures (MTBF) | 690301 h |
| Power consumption (max) | 610 W |
| Power over Ethernet (PoE) | Yes |
| Width | 212 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.22 kg |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L3 |
| Console port | RJ-45/Mini-USB |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Power supply included | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Total Power over Ethernet (PoE) budget | 500 W |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
| Number of static routes | 64 |
| Internal memory | 1024 MB |
| Power over Ethernet (PoE) power per port | 30 W |
| Link aggregation | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Noise level | 35 dB |
| Heat dissipation | 2081.64 BTU/h |
| Auto-sensing | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Multicast support | Yes |
| Number of queues | 8 |
| Number of multicast groups filtered | 4000 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IP routing | Yes |
| USB 2.0 ports quantity | 1 |
| Built-in processor | Yes |
| Number of power supply units | 1 |
| Rack mount kit | Yes |
| Processor frequency | 800 MHz |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| Airflow direction | Front-to-back airflow |
| Physical stacking (units) | 8 |
