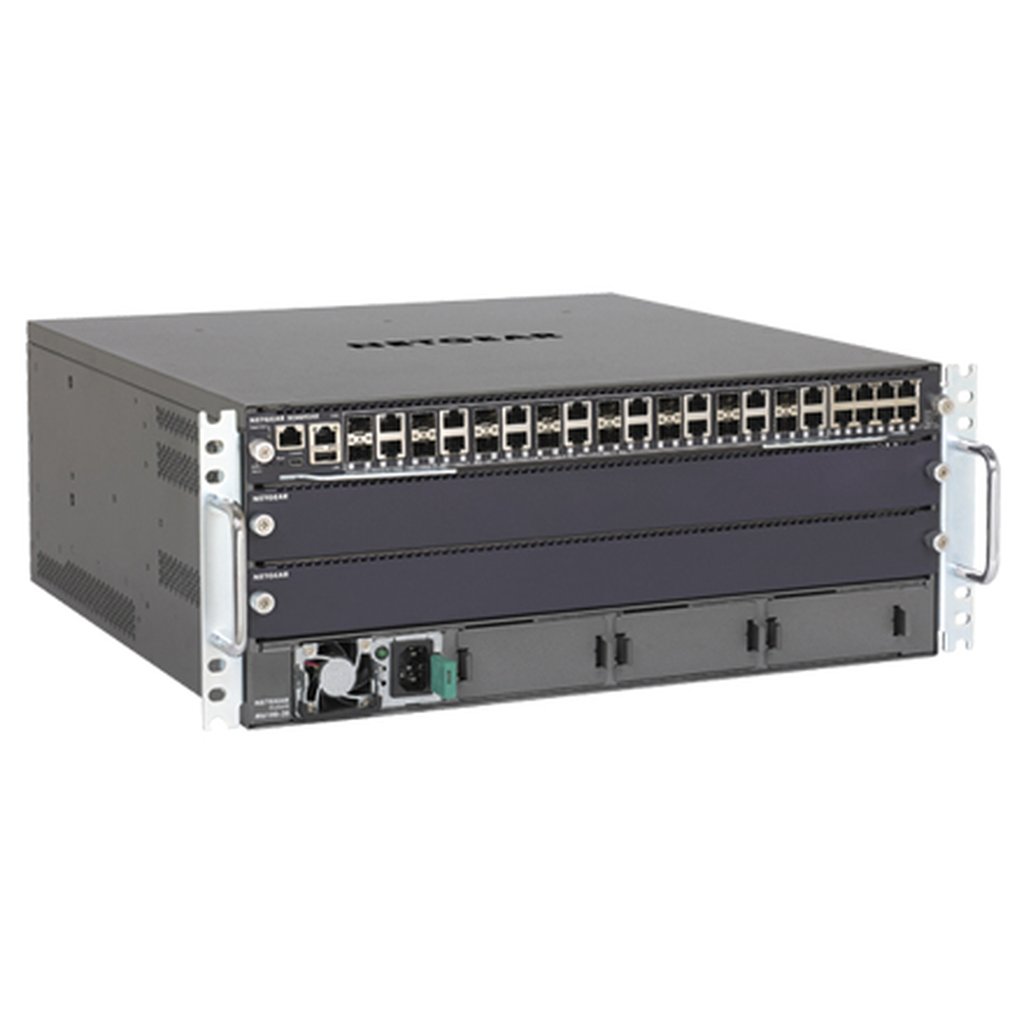

NETGEAR M6100-24X3 Managed L3 Gigabit Ethernet (10/100/1000) 4U Black, Grey
Starter Kit, 1 x 1Gb RJ45, 16 x SFP+, 24 x 10GBASE-T RJ-45
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
M6100-24X3 Starter Kit bundle including M6100-3S base chassis, XCM8924X blade, AFT603 fan tray, APS1000W power supply
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability – including passive backplane, hitless failover, redundant fabric and redundant management – without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
– Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
– N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
– 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
– 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
– Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
– Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
– Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
– Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
– Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
– Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
– NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
– 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Additional information
| Weight | 39 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, |
| 10G support | Yes |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Rack mounting | Yes |
| Product colour | Black, Grey |
| Housing material | Metal |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Width | 432 mm |
| Depth | 441.6 mm |
| Height | 175.9 mm |
| Harmonized System (HS) code | 85176990 |
| Safety | CE, CSA, UL 1950 /cUL IEC 950/EN 60950 |
| Switch layer | L3 |
| Web-based management | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 3 fan(s) |
| Certification | CEFCC Part 15 Class AVCCI Class AClass A EN 55022(CISPR 22) Class AClass A C-TickEN 50082-1EN 55024 |
| Stackable | Yes |
| Form factor | 4U |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Operating altitude | 0 – 3000 m |
| SFP+ module slots quantity | 16 |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Multicast support | Yes |
| Number of queues | 7 |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Management protocols | SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN |
| Supported network protocols | iPv4/iPv6 |
| Non-operating altitude | 0 – 3000 m |
| Maximum data transfer rate | 10000 Mbit/s |
