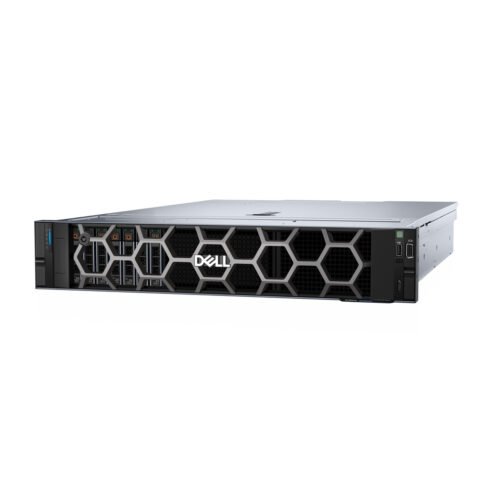

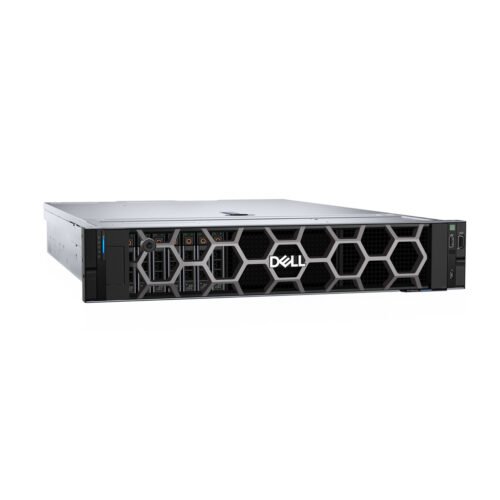

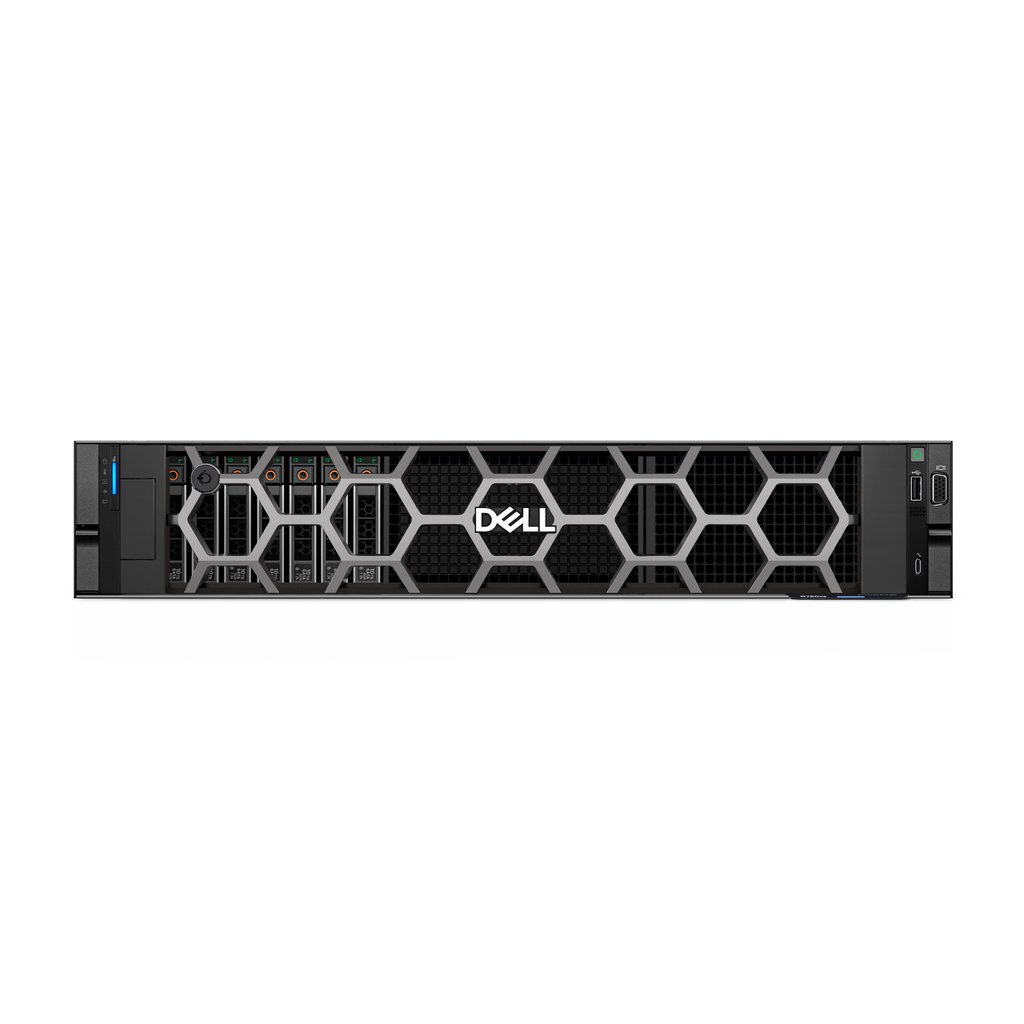

DELL PowerEdge R760XS server 960 GB Rack (2U) Intel® Xeon® Gold 5416S 2 GHz 32 GB DDR5-SDRAM 1100 W
Intel Xeon Gold 5416S (30MB Cache, 2GHz), 32GB DDR5-SDRAM, 960GB SSD, LAN, PERC H755, iDRAC9, Enterprise 16G, 2 x 1100W, No OS
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The perfect blend of performance and density
Run the most popular IT applications with ease thanks to the balanced compute and flexible storage of this air-cooled server.
Additional information
| Weight | 23 lbs |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Processor model | 5416S |
| Processor frequency | 2 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Number of processors installed | 1 |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 1 TB |
| Memory slots | 16x DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| RAID support | Yes |
| Optical drive type | No |
| Supported RAID controllers | PERC H755 |
| Internal drive bays | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| Chassis type | Rack (2U) |
| Compatible operating systems | Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware vSAN/ESXi |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies supported | 2 |
| Width | 482 mm |
| Height | 86.8 mm |
| Supported storage drive interfaces | SAS, Serial ATA |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Product colour | Black |
| Power supply input voltage | 100 – 240 V |
| Storage temperature (T-T) | -40 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Motherboard chipset | Intel C741 |
| Memory ranking | 2 |
| Operating system installed | No |
| Number of redundant power supplies installed | 2 |
| Weight | 28.6 kg |
| Thermal Design Power (TDP) | 150 W |
| Buffered memory type | Registered (buffered) |
| Memory data transfer rate | 5600 MT/s |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Hot-Plug support | Yes |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" – 3.5" |
| Rack rails | Yes |
| Bezel | Yes |
| Remote administration | iDRAC9, Enterprise 16G |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
| Non-operating altitude | 0 – 12000 m |
| Total carbon footprint (kg of CO2e) | 6654 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3747 |
| Carbon emissions, manufacturing (kg of CO2e) | 465.78 |
| Carbon emissions, logistics (kg of CO2e) | 133.08 |
| Carbon emissions, energy usage (kg of CO2e) | 6055.14 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 598.86 |
| PAIA version | 1.3.2, 2022 |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Power cables quantity | 2 |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 8 |
| Maximum internal memory supported by processor | 512 GB |
