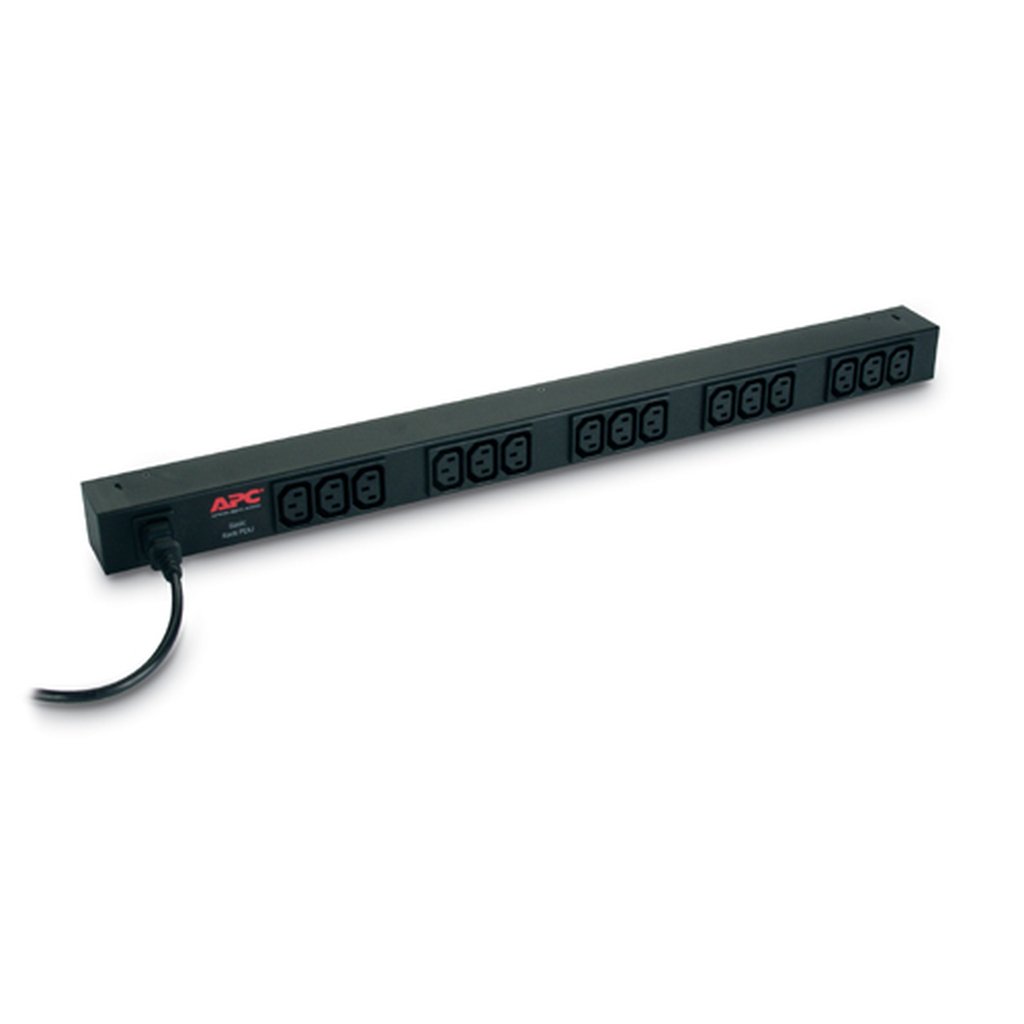

APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15 AC outlet(s) 0U Black
Rack PDU,Basic,Zero U,10A,230V, (15)C13
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Description – APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13
Features – Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities
Includes – Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit
Output:
Output Voltage(s) (main only) – 208, 230 V
Maximum Total Current Draw per Phase – 10 A
Output Connections – (15)IEC 320 C13
Input:
Nominal input voltage – 208, 230
Input frequency (Hz) – 50/60 Hz
Input Connection Type – IEC-320 C14
Cord Length – 6.5 feet ( 1.98 meters )
Acceptable Input Voltage – 200-240 VAC
Maximum Input Current per phase – 10.0 A
Load Capacity – 2300
Additional information
| Weight | 2.32 lbs |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 15 AC outlet(s) |
| AC outlet types | C13 coupler |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum power | 2300 W |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 445 mm |
| Depth | 445 mm |
| Height | 609.6 mm |
| Weight | 2 kg |
| Type | Single-phase |
| Power plug | C14 coupler |
| I/O ports | Output Connections – (15)IEC 320 C13 Input Connection Type – IEC-320 C14 |
| Cable length | 1.98 m |
