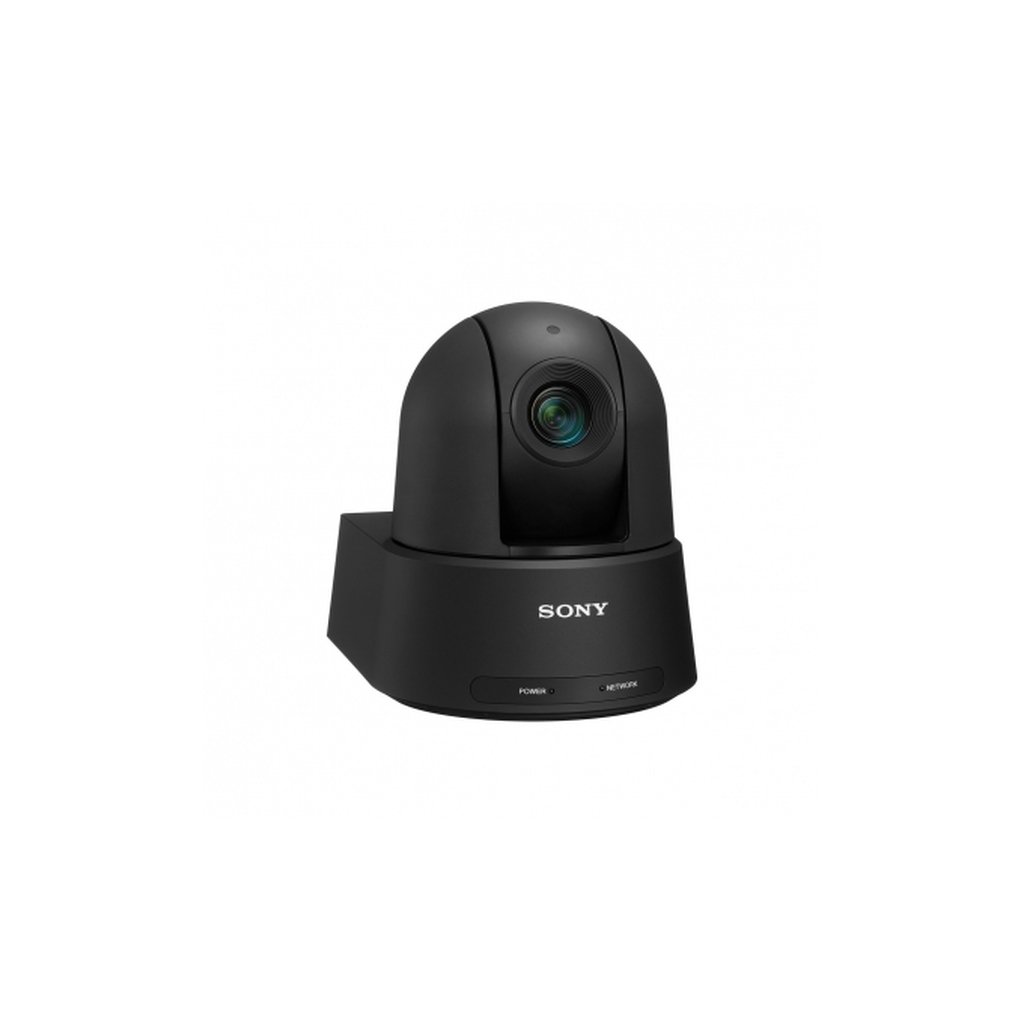

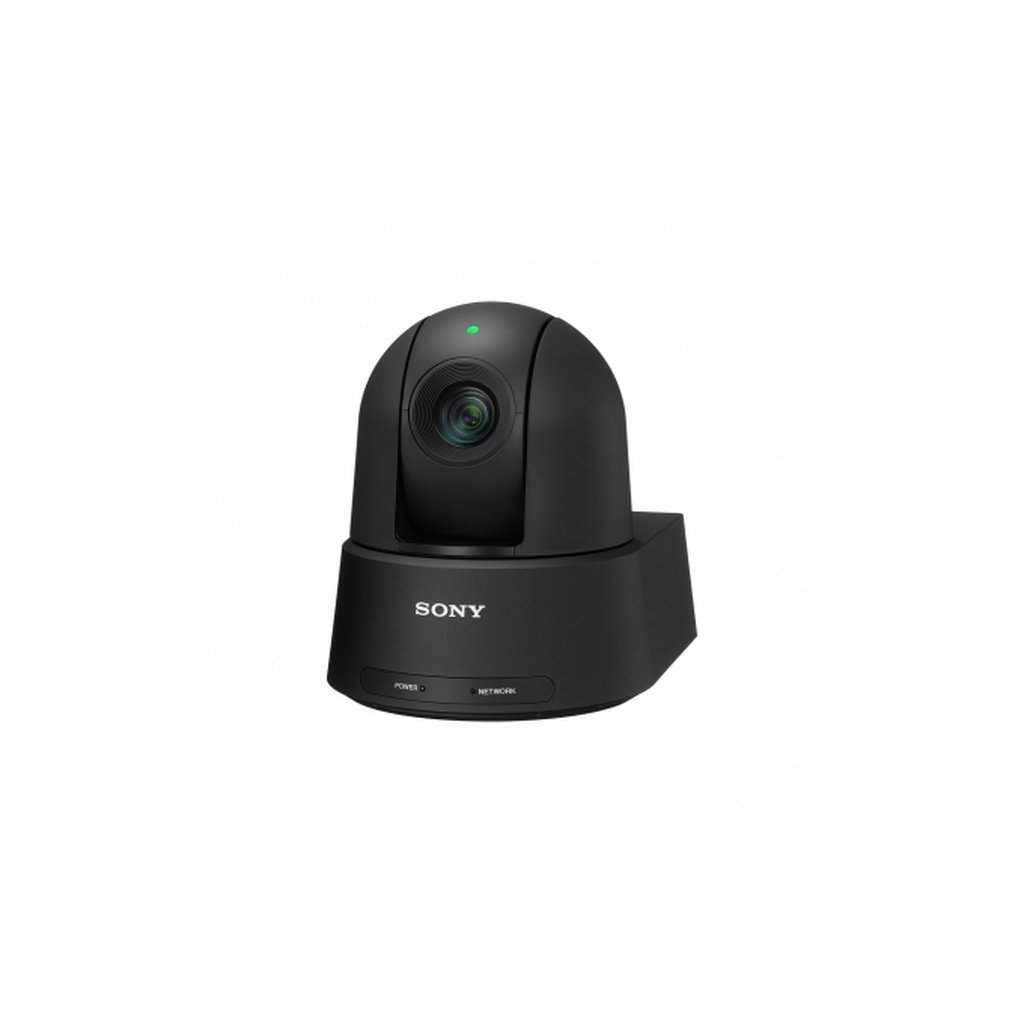

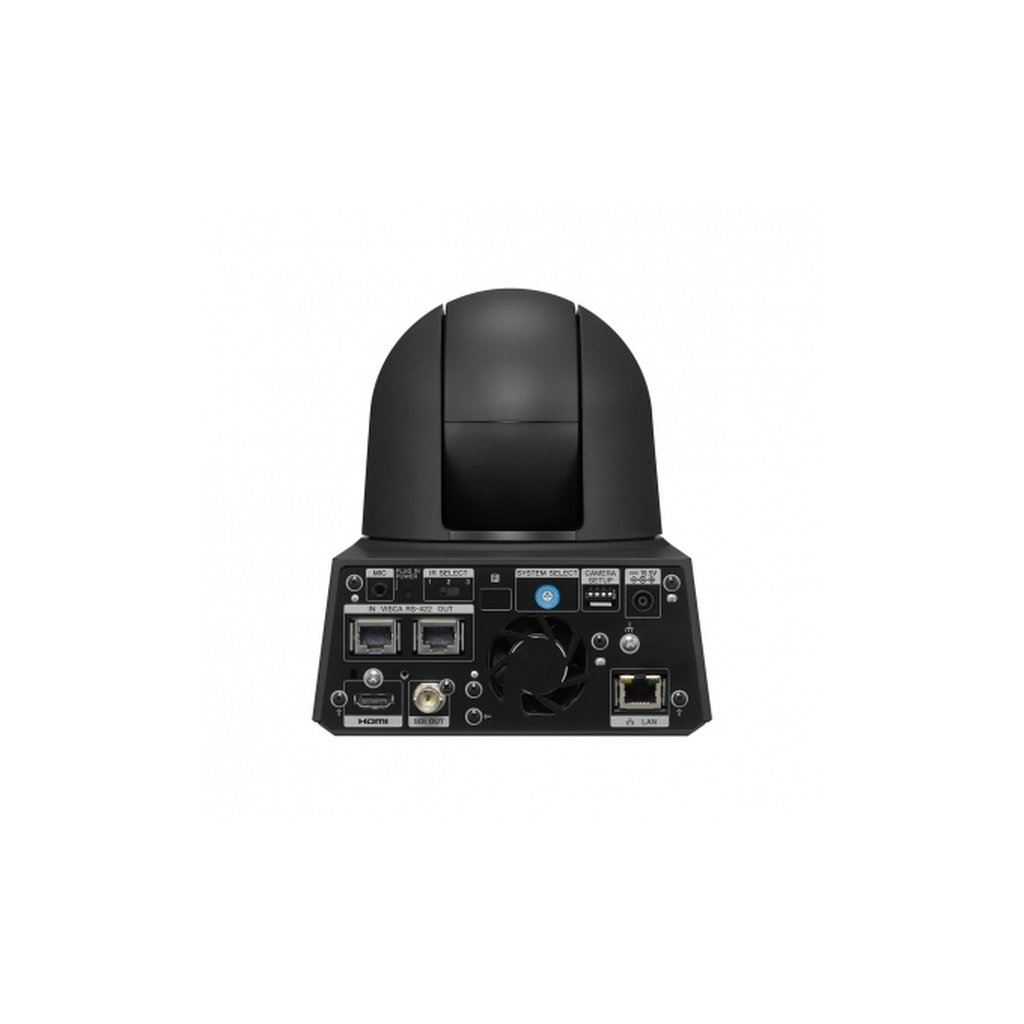

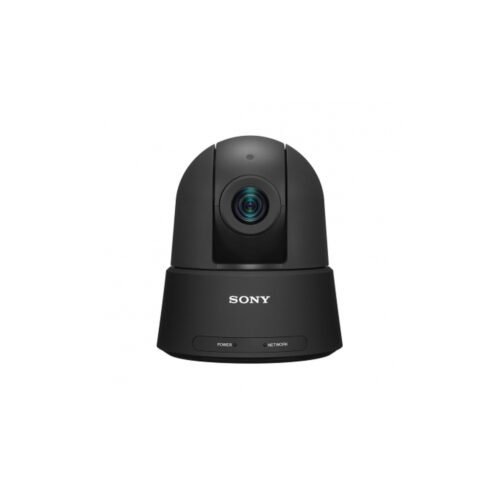

Sony SRG-A12 8.5 MP Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5″)
SRG-A12 PTZ camera with PTZ Auto Framing
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
SRG-A40/ SRG-A12 with PTZ Auto Framing
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.
A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.
Since the camera does most of the work automatically, the operator can spend its time efficiently.
PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.
Automatically and reliably shoots video for you
With Sony’s newly developed AI analytics algorithm, it detects the subject’s skeleton and head position and matches the subject’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.
Choice from three shooting modes
The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can adjust picture composition (size, up & down, and left & right) and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.
Integrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).
Remote control of PTZ operation
Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote controller, for convenient wireless control of PTZ functions without needing additional equipment. It can also be controlled using the optional additional RM-IP500 remote controller, just like professional broadcast cameras.
Easy ceiling mounting
The camera comes supplied with a mounting plate for convenient ceiling installation if required.
Light, compact design
The camera’s stylish, compact body fits unobtrusively into any environment.
Choice of colour finishes
The camera is available in a choice of black or while colour finishes, to suit the needs of any application.
Additional information
Weight | 5 lbs |
---|---|
Camera type | Single camera |
Sensor type | CMOS |
Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Zoom capability | Yes |
Auto exposure | Yes |
PTZ control | Yes |
Maximum video resolution | 3840 x 2160 pixels |
Maximum frame rate | 60 fps |
HD type | 4K Ultra HD |
Video formats supported | H.264, H.265 |
Product colour | Black |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Microphone in | Yes |
Cables included | AC, HDMI |
Screws included | Yes |
Auto framing | Yes |
Width | 156.7 mm |
Depth | 200 mm |
Height | 184 mm |
Power source type | AC, DC |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -20 – 60 °C |
Weight | 2 kg |
Megapixel (approx.) | 8.5 MP |
Optical zoom | 12x |
DC input voltage | 19.5 V |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 1 |
Supported graphics resolutions | 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
HDMI ports quantity | 1 |
Mounting brackets included | Yes |
Minimum illumination | 1.6 lx |
Aperture range (F-F) | 2 – 3.7 |
Focus adjustment | Auto/Manual |
Tilt angle range | -20 – 90° |
Pan range | -170 – 170° |
Focal length range | 4.4 – 52.8 mm |
Horizontal field of view (wide) | 70° |
Flip & mirror | Yes |
White balance | Auto, Daylight, Indoor, Manual, One push, Outdoor |
Light exposure modes | Auto, Manual, Shutter priority AE |
Gain control type | Auto/Manual |
PTZ protocols | VISCA |
Minimum working distance (wide) | 8 cm |
Maximum working distance (tele) | 40 cm |
Slowest camera shutter speed | 1 s |
Fastest camera shutter speed | 1/10000 s |
Number of TV lines | 1700 |
Image stabilizer | Yes |
Tally light | Yes |
Tilt speed (min) | 0.5 °/sec |
Tilt speed (max) | 126 °/sec |
Pan speed (min) | 0.5 °/sec |
Pan speed (max) | 300 °/sec |
3G-SDI output | Yes |
VISCA output ports | 1 |
VISCA input ports | 1 |
Power consumption (typical) | 80 W |
Power supply included | Yes |
Warranty card | Yes |
Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
Audio channels | 2 |
Audio codecs | AAC LC 256kbps/ST (IP), AAC LC 128kbps/ST(IP) |
Multi-stream capability | 3 |
Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
Bit rate range | 512 – 50000 Kbit/s |
Supported network protocols | IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT |
