Sony ZRCT-300 video wall processor Black 100 W
Display Controller for C-series and B-series Micro LED wall display cabinets
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Cutting-edge image processing technology for extraordinary visual experiences
The ZRCT-300 is a dedicated display controller for Sony’s modular Micro LED large display system. One ZRCT-300 unit can control up to 64 ZRD-C12A/ZRD-B12A cabinets or 100 ZRD-C15A/ZRD-B15A cabinets to create spectacular high-resolution Micro LED displays.
The powerful processor “X1 for Crystal LED” ensures extraordinarily realistic, finely-detailed images for an overwhelming visual experience on virtually any size and scale.
The controller can accept a wide range of video input signals up to a maximum resolution of 3840 x 2160 pixels, with support for HDR, High Frame Rate and 3D.

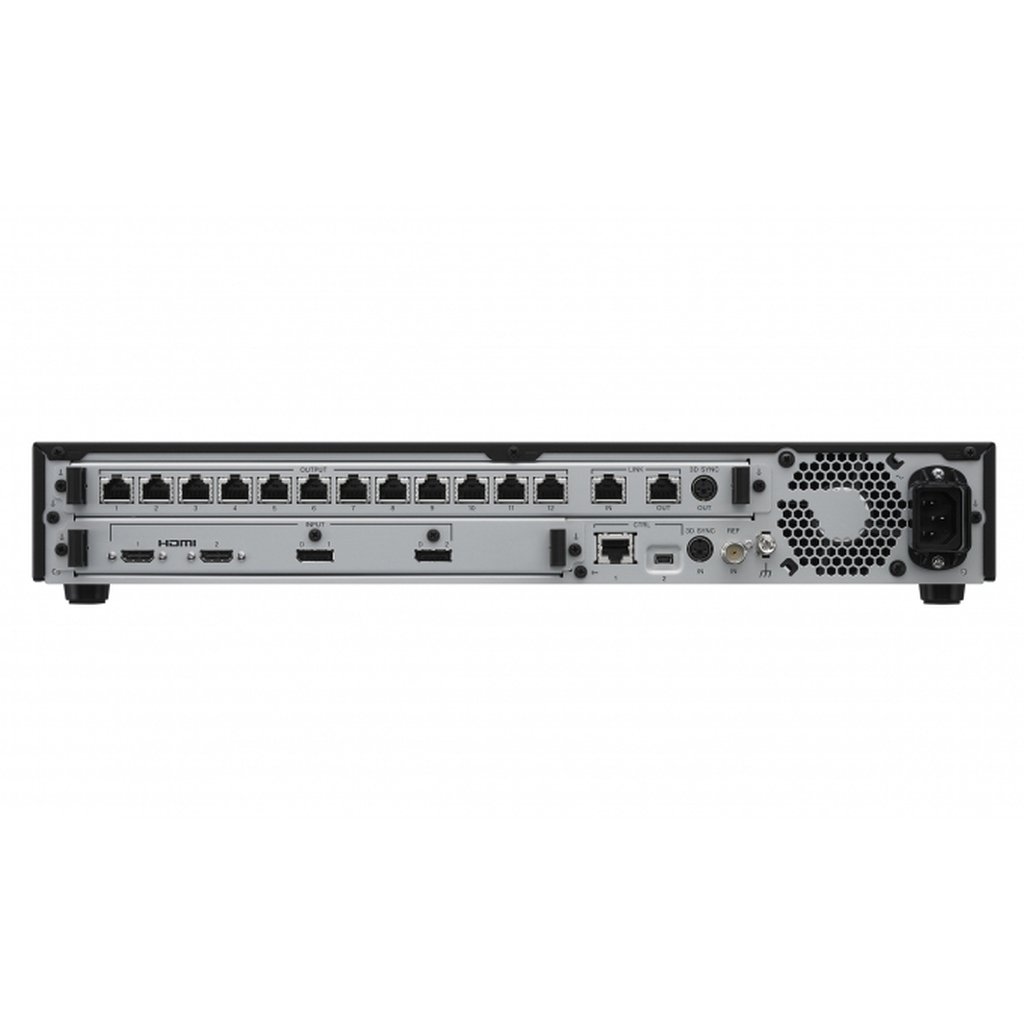

The 1.5U size rack mounting unit features 12x RJ45 output ports, 2x HDMI and 2x DisplayPort video inputs, 3D sync, genlock, network control and maintenance ports together with link input/output ports for interconnection with other ZRCT-300 display controllers to produce even larger displays.
Additional information
| Weight | 8.15 lbs |
|---|---|
| Product colour | Black |
| Built-in fan | Yes |
| Fan location | Rear |
| Rack mounting | Yes |
| Rack capacity | 1.5U |
| Number of displays supported | 100 |
| Scaled resolutions | 3840 x 2160 |
| HDMI input ports quantity | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| RJ-45 ports quantity | 15 |
| RJ-45 output ports | 12 |
| USB 2.0 Type-A ports quantity | 1 |
| Power consumption (max) | 100 W |
| Input voltage | 100 – 240 V |
| Input frequency | 50/60 Hz |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 20 – 80% |
| Pallet net height | 122.5 cm |
| Pallet net length | 120 cm |
| Pallet net width | 100 cm |
| Width | 440 mm |
| Depth | 349 mm |
| Height | 65 mm |
| Weight | 6.4 kg |
