StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add an R422/485 serial port to your laptop or desktop computer through USB

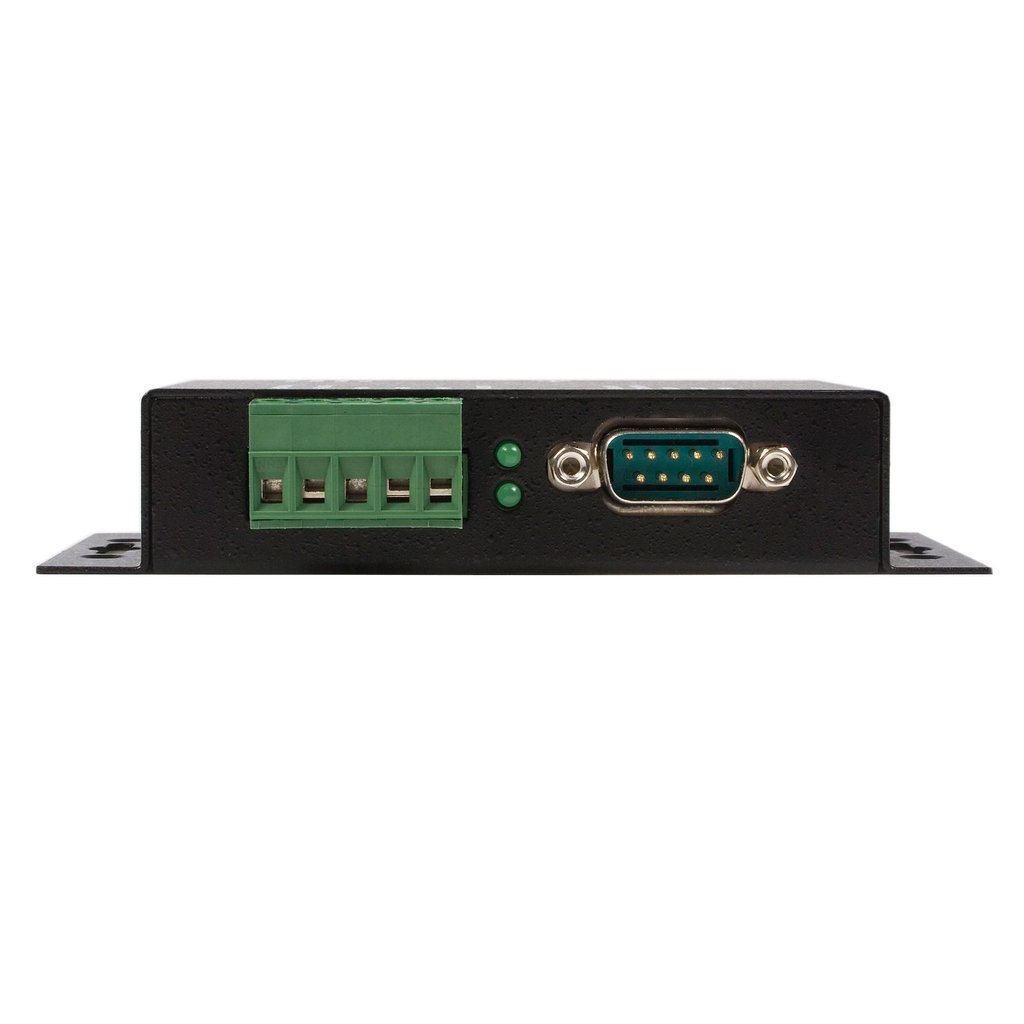

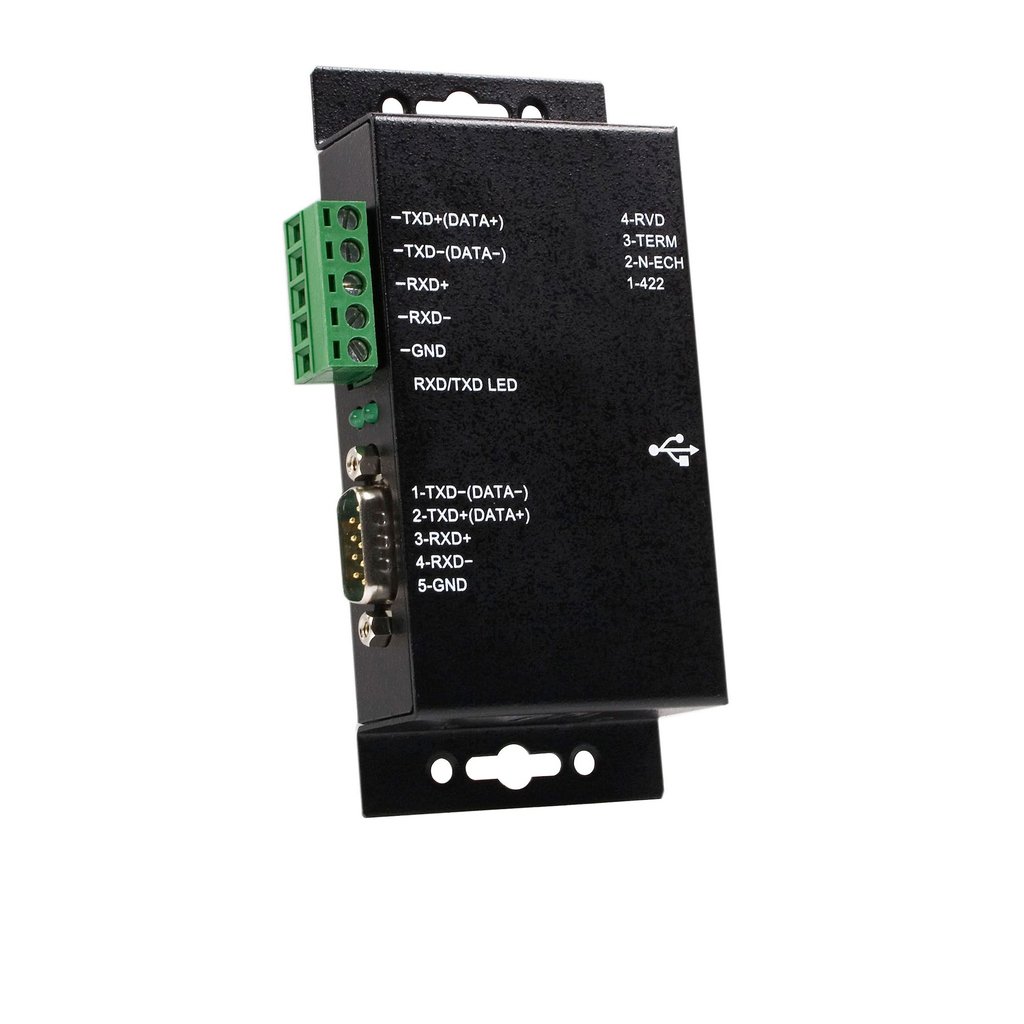

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.36 lbs |
|---|---|
| Connector 1 | USB B |
| Connector 2 | RS-422/485 |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| Weight | 180 g |
| Quantity per pack | 1 pc(s) |
| Cable length | 1.8 m |
| Data transfer rate | 0.00088 Gbit/s |
| Input voltage | 5 V |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Relative humidity | 5 – 95% |
| Width | 64 mm |
| Depth | 118 mm |
| Height | 23 mm |
| Package width | 45 mm |
| Package depth | 230 mm |
| Package height | 160 mm |
| Package weight | 390 g |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 502 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 511 mm |
| Compatible operating systems | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019macOS 10.6 to 10.15, 11.0, 12.0, 13.0Linux Kernel 3.0.x+ |
| Cables included | USB |
