StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
10/100 Mbps Single Mode Fiber Media Converter SC 30 km
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber

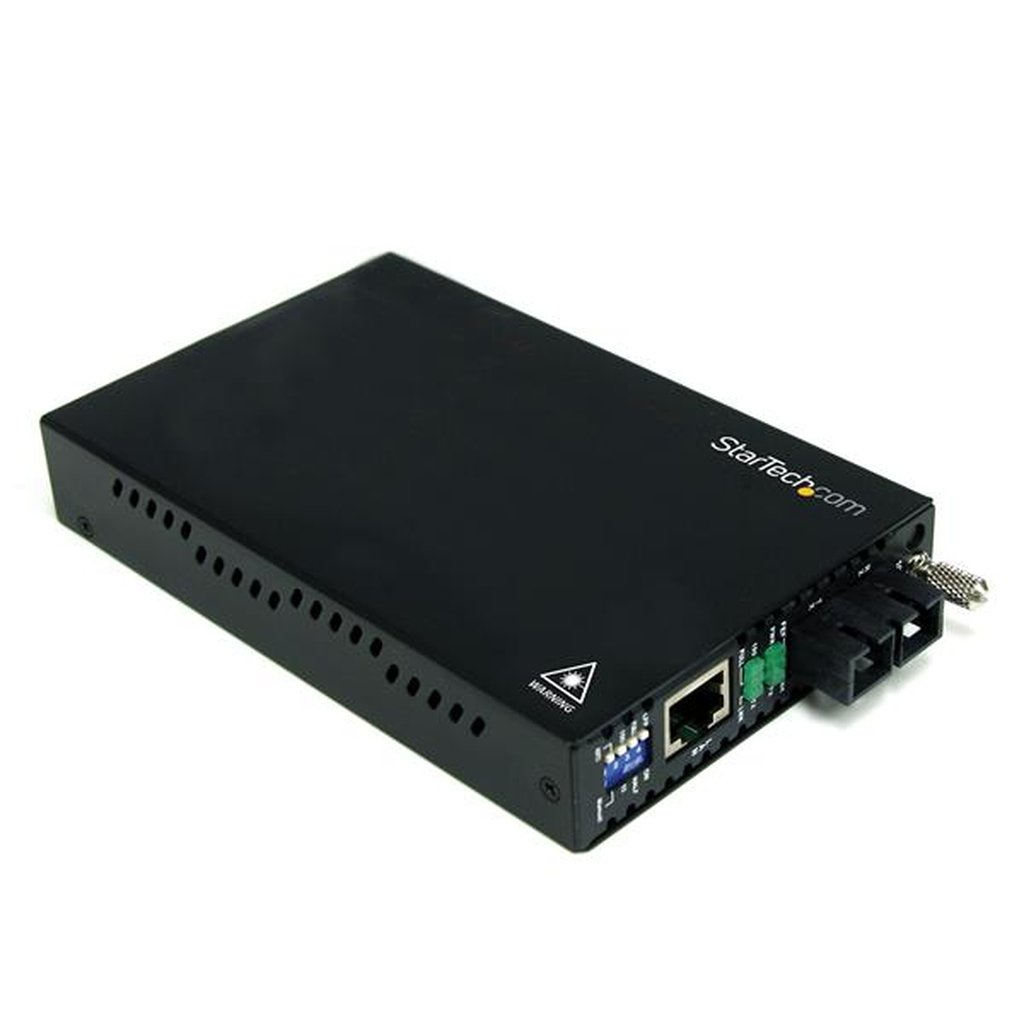

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.

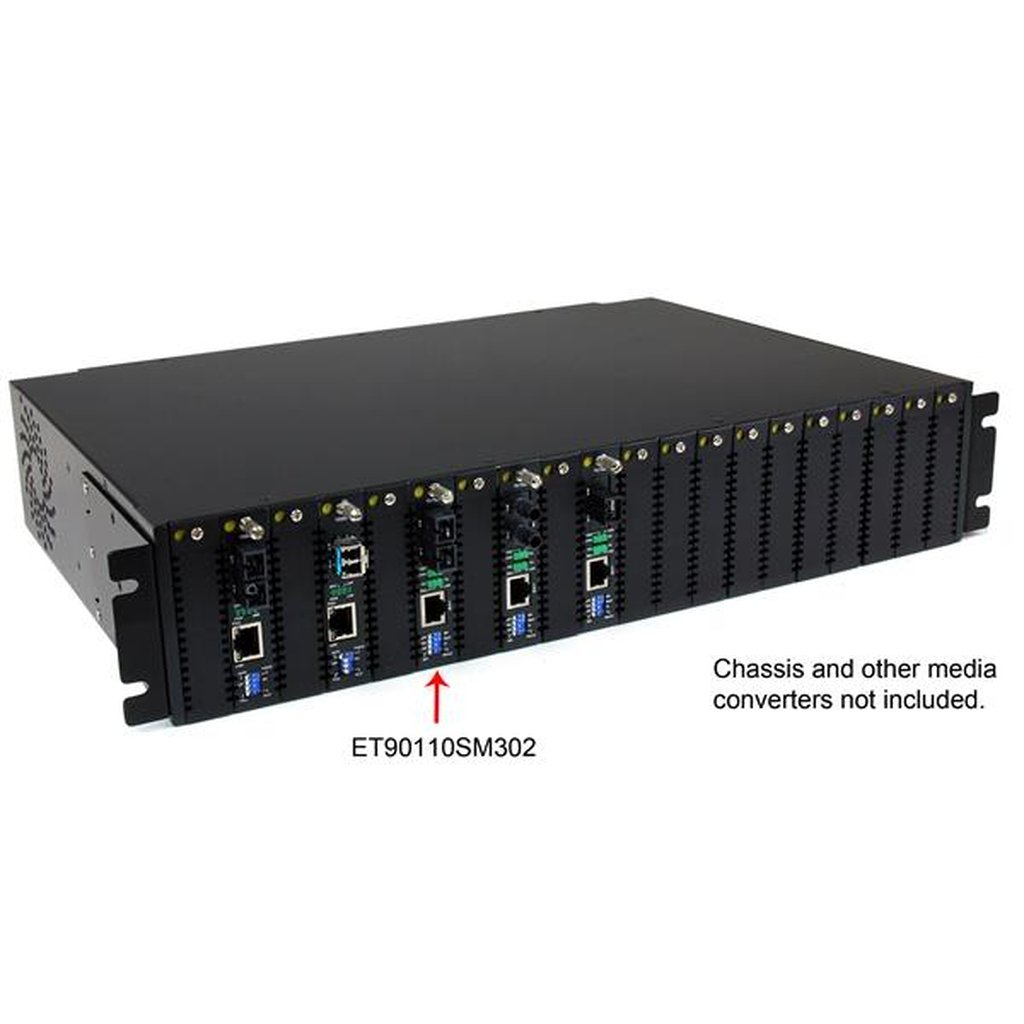

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Link loss forwarding, remote monitoring of status ensures maximum up-time
– Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
– Rugged steel casing for durability in harsh environments
Additional information
| Weight | 0.76 lbs |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 30000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Internal | No |
| Product colour | Black |
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Manual | Yes |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Plug and Play | Yes |
| Weight | 600 g |
| Package width | 206 mm |
| Package depth | 137 mm |
| Package height | 89 mm |
| Package weight | 766 g |
| Converter input interface | 10Base-T |
| Converter output interface | 100Base-FX |
| Certification | CE, FCC |

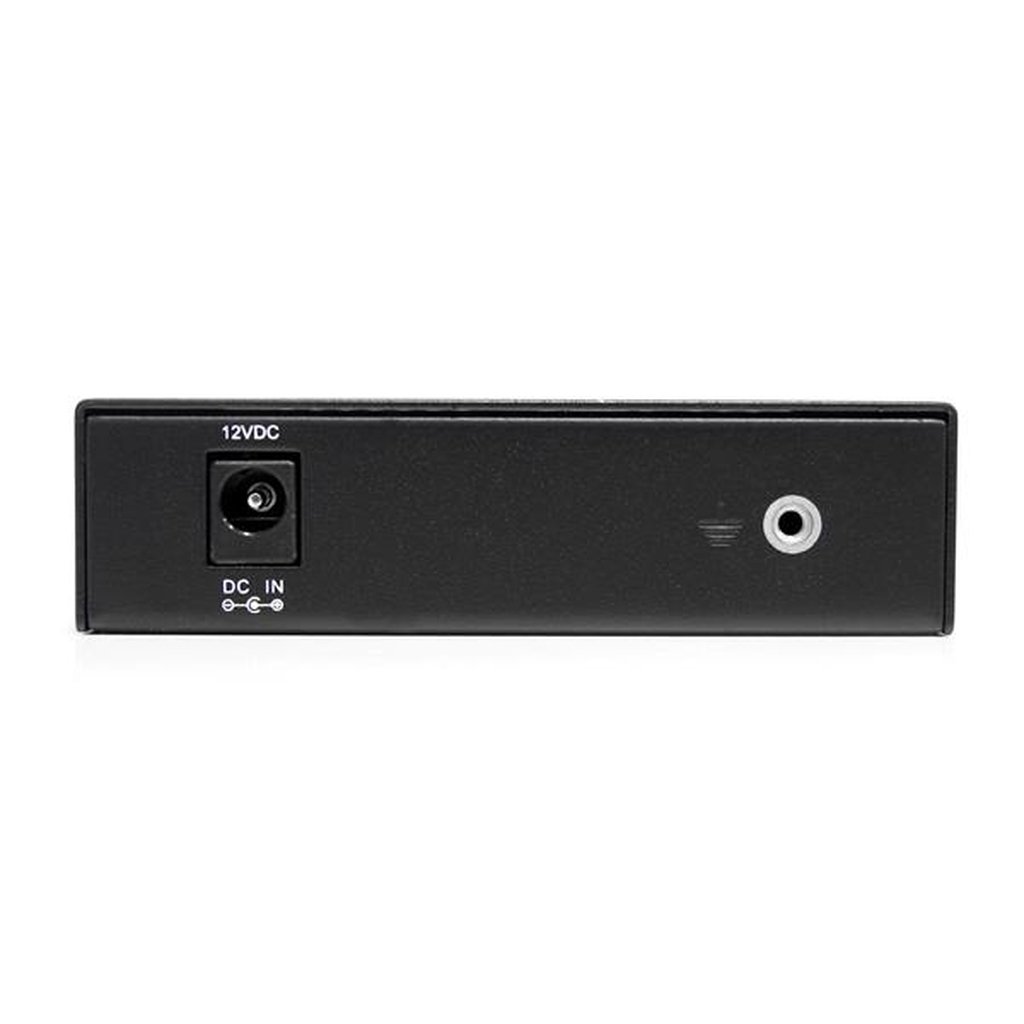

| DC-in jack | Yes |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
| Full duplex | Yes |
