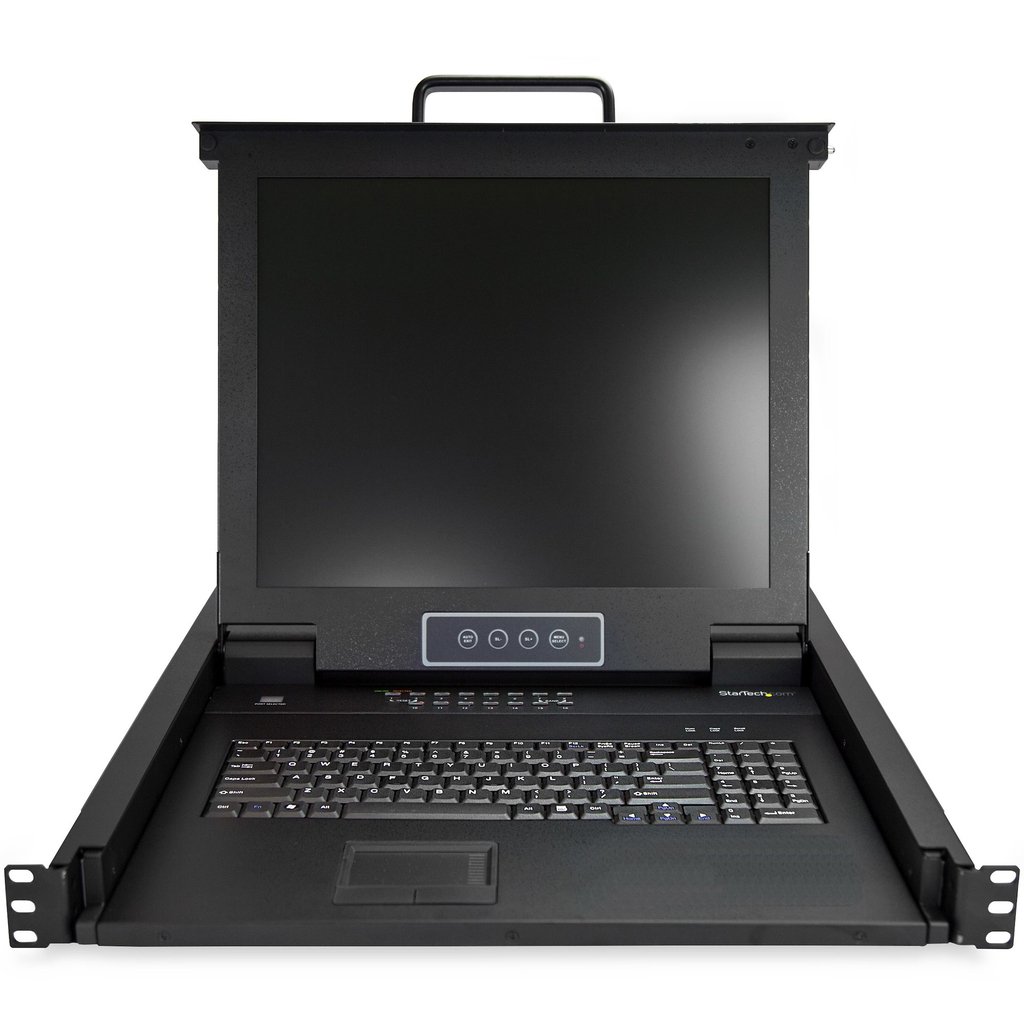

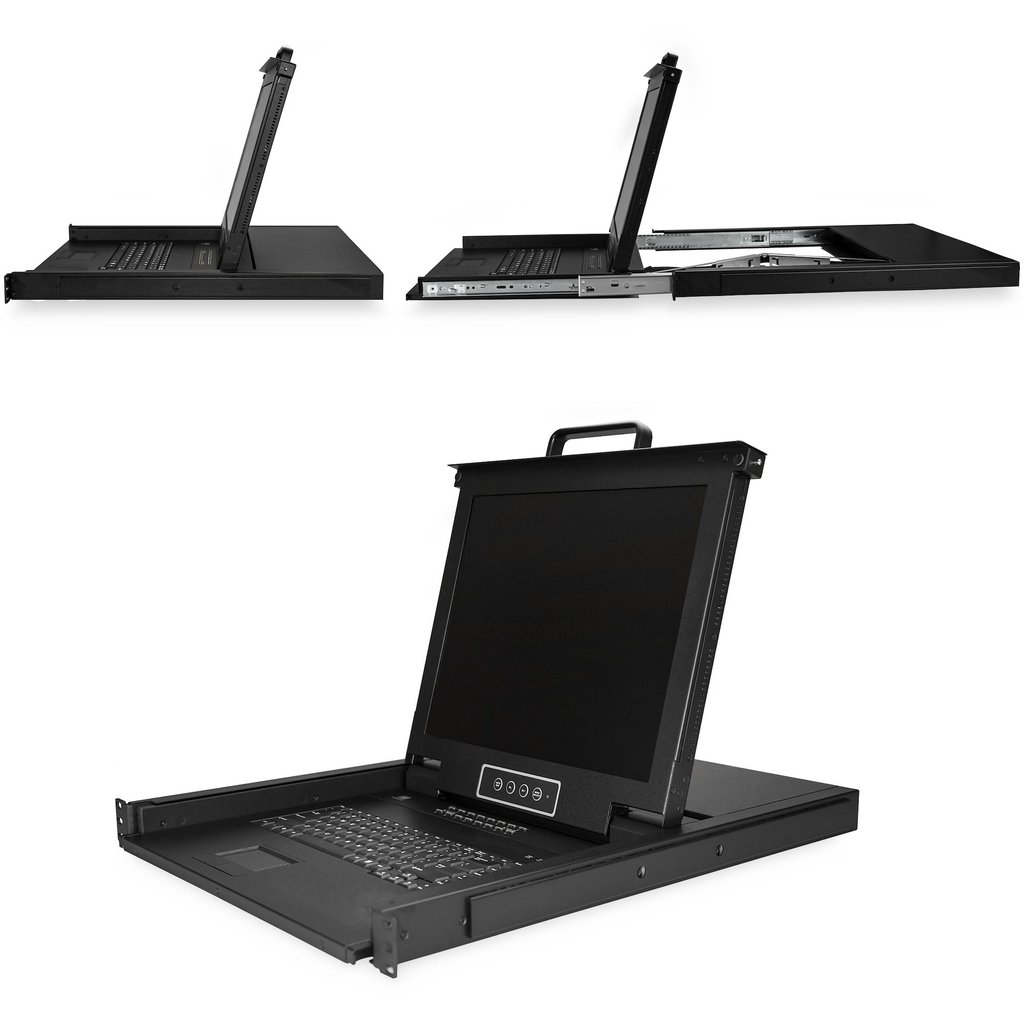

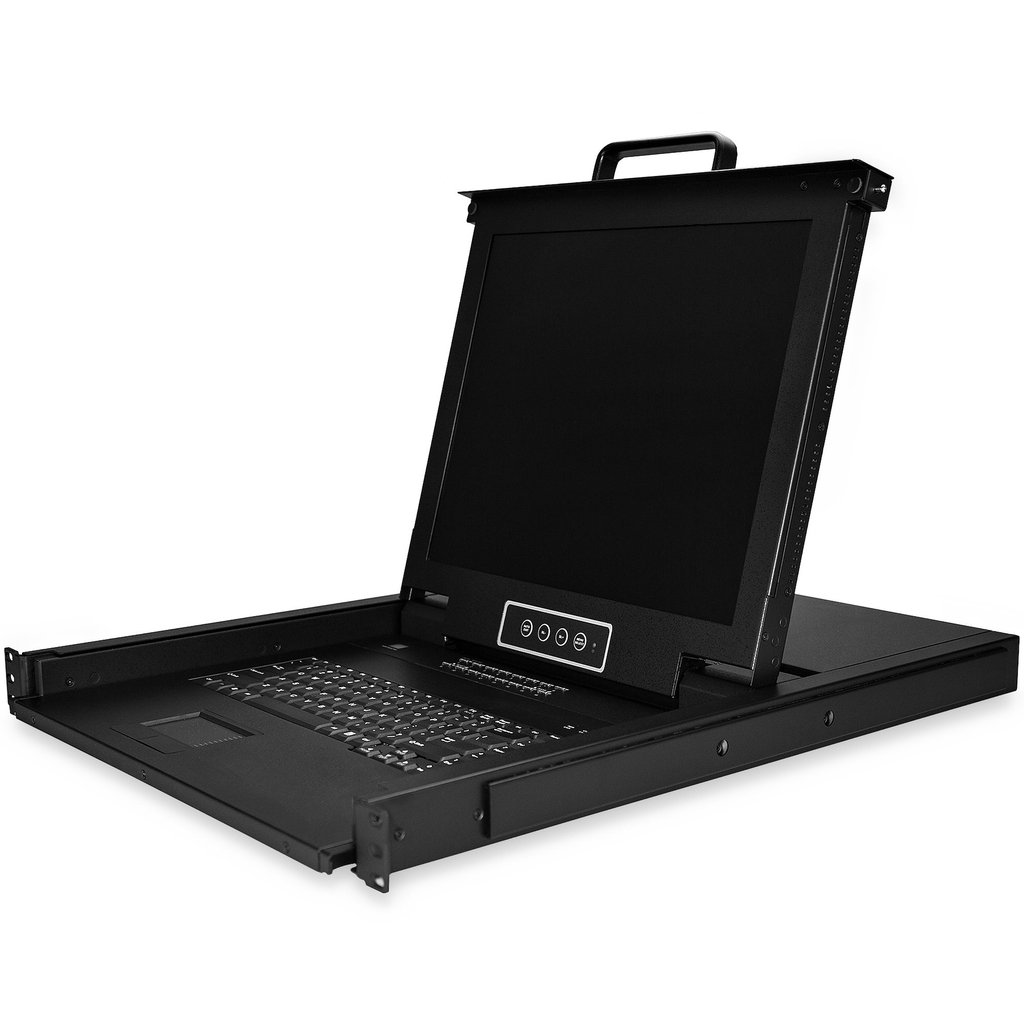

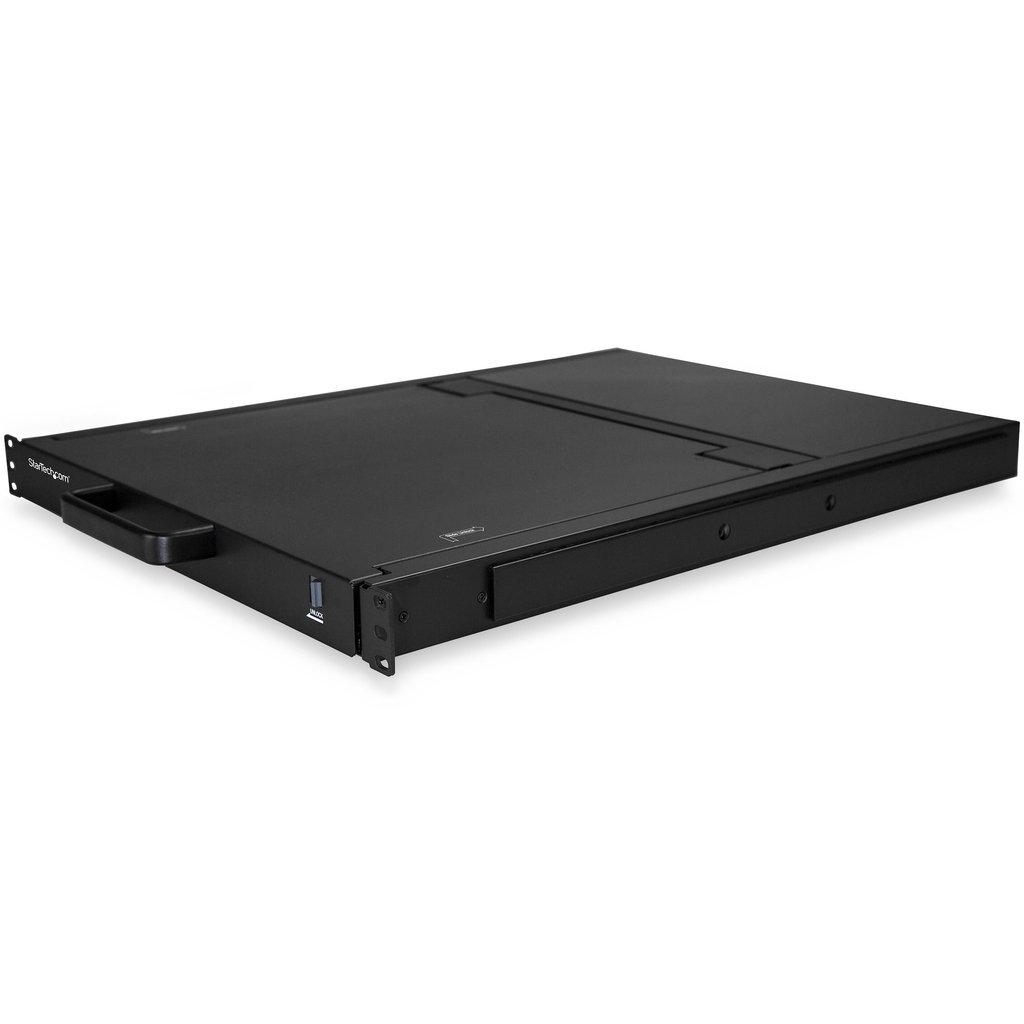

StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables – Integrated KVM Switch w/ 17″ LCD Monitor – Fully Featured 1U LCD KVM
StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables – Integrated KVM Switch w/ 17″ LCD Monitor – Fully Featured 1U LCD KVM Drawer- OSD KVM – Durable 50,000 MTBF – USB + VGA Support (RKCONS1716K)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
KVM Console | 1U | VGA | 1280×1024 | Cables & Mounting Hardware Included
Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280×1024.
This 16-port KVM console comes with everything you need to set up right out of the box:
• 16 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 21 lbs |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display | TFT LCD |
| Product colour | Black |
| Certification | FCC, PSE, UL, CE, REACH |
| Power consumption (typical) | 23 W |
| AC adapter input voltage | 100 – 240 V |
| Weight | 13 kg |
| Package weight | 21.1 kg |
| Operating temperature (T-T) | 0 – 40 °C |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Aspect ratio | 5:4 |
| Display type | LCD |
| Rack mounting | Yes |
| USB 2.0 Type-A ports quantity | 2 |
| Storage temperature (T-T) | -20 – 60 °C |
| Cables included | KVM |
| On Screen Display (OSD) | Yes |
| Display number of colours | 16.78 million colours |
| Material | Steel |
| Mean time between failures (MTBF) | 50000 h |
| Operating relative humidity (H-H) | 10 – 80% |
| Daisy chain | No |
| Key lock | No |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| IP control | No |
| Video port type | VGA |
| Hot keys | Yes |
| Width | 448 mm |
| Height | 581 mm |
| Depth | 43 mm |
| Mounting depth (min) | 56 cm |
| Mounting depth (max) | 90 cm |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 185 mm |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 1 pc(s) |

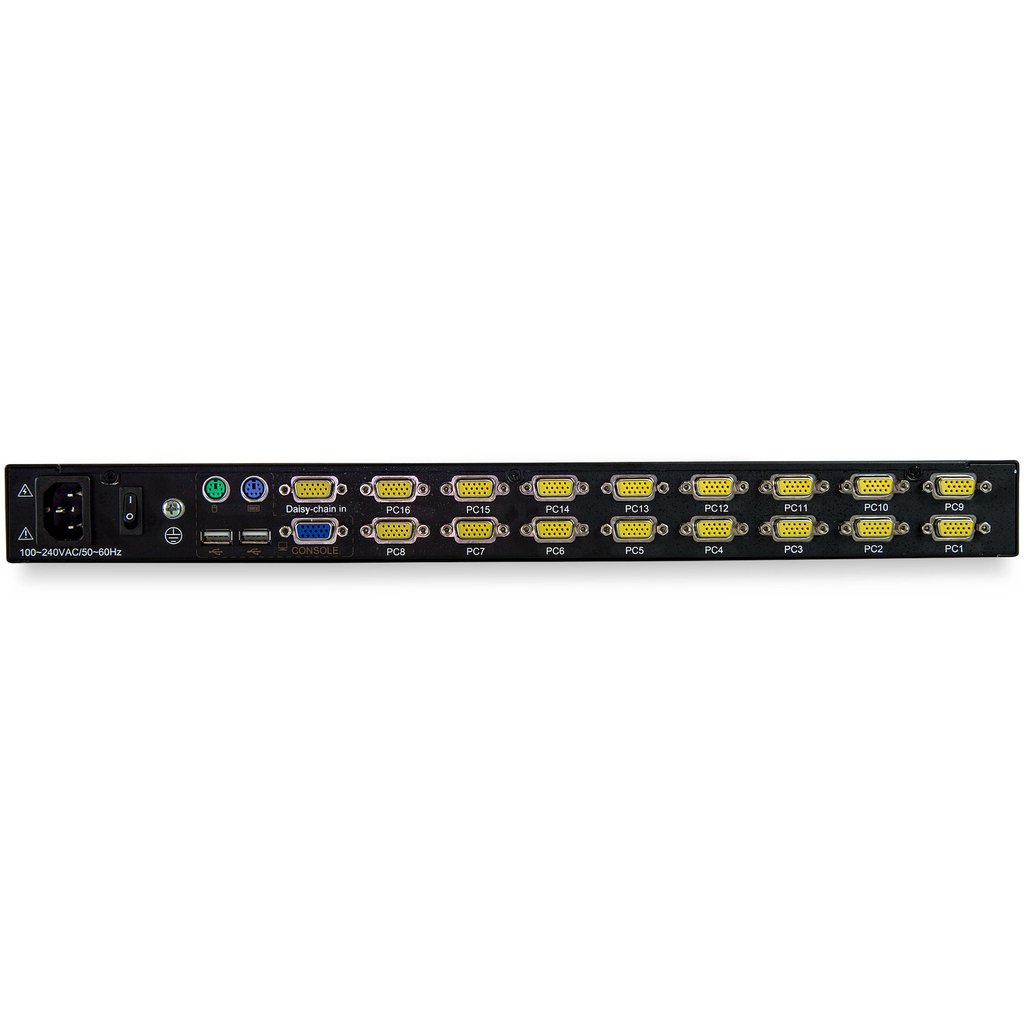

| VGA (D-Sub) ports quantity | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Input current | 1.5 A |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Response time | 5 ms |
| Manual | Yes |
