StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables – Integrated KVM Switch w/ 19″ LCD Monitor – Fully Featured 1U LCD KVM
StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables – Integrated KVM Switch w/ 19″ LCD Monitor – Fully Featured 1U LCD KVM Drawer- OSD KVM – Durable 50,000 MTBF – USB + VGA Support (RKCONS1916K)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Control your server or KVM switch from a centralized rack-mount KVM console

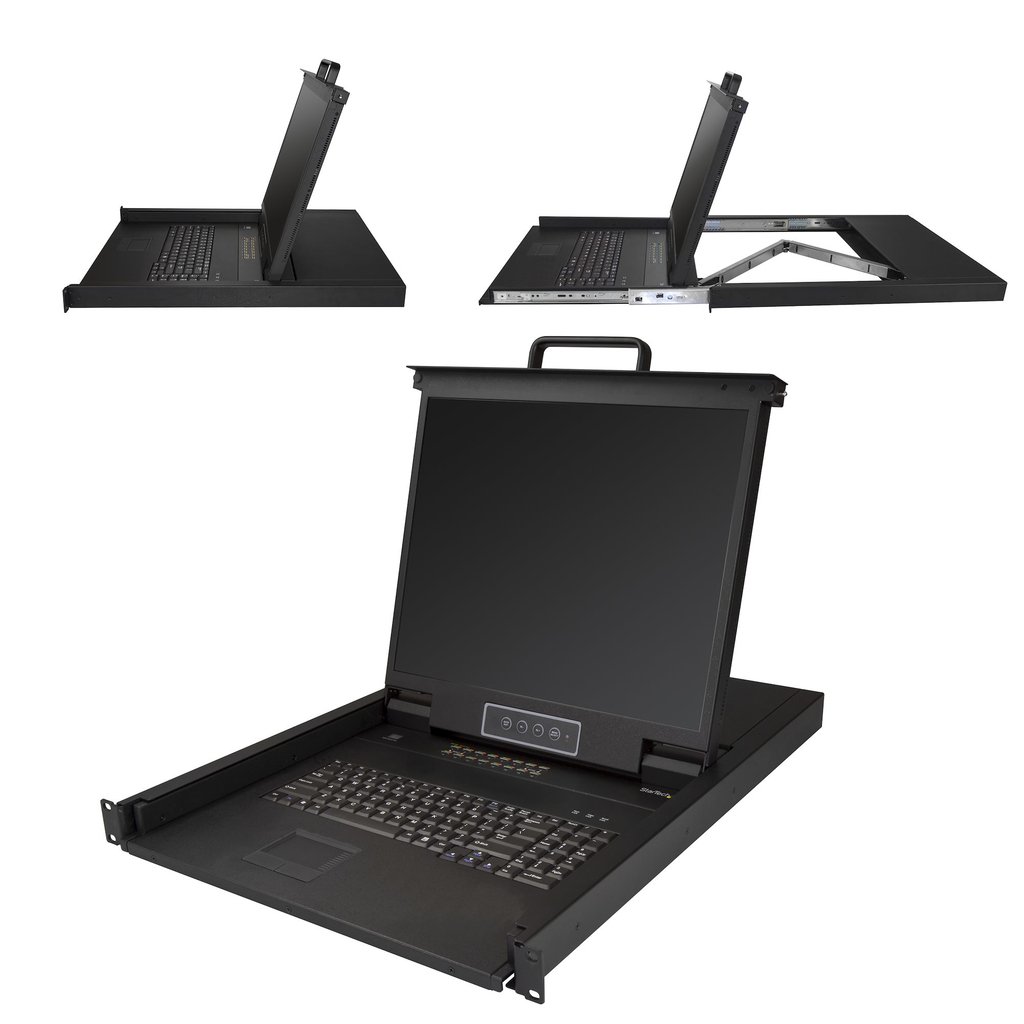

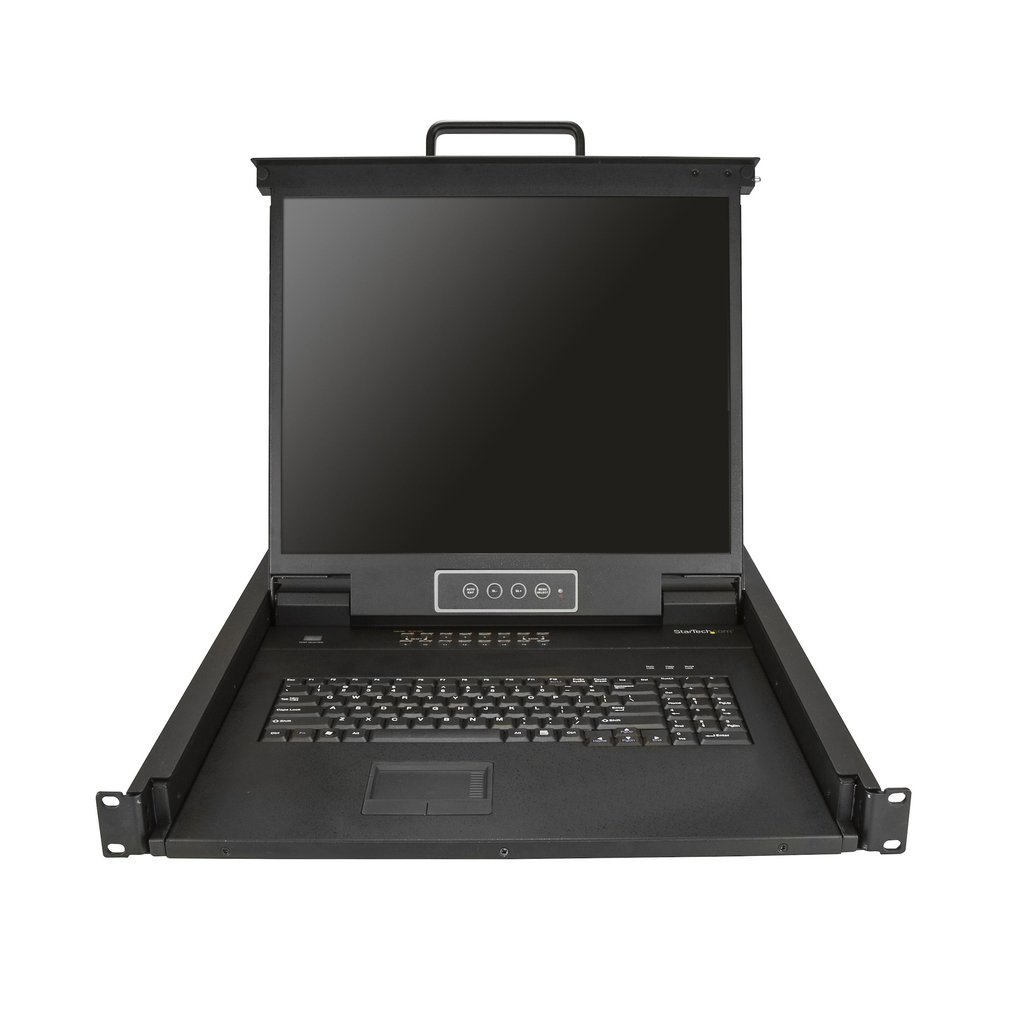

This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280×1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.
Clutter-free monitoring

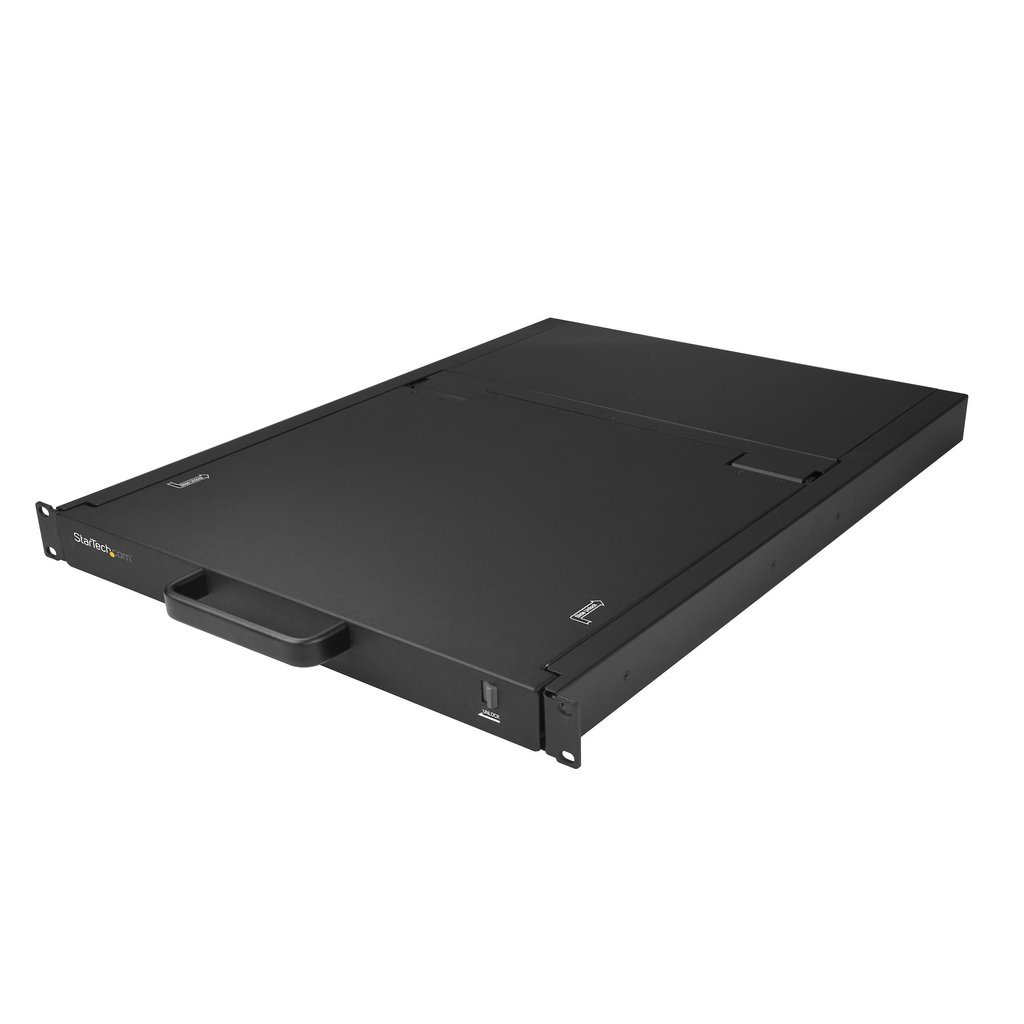

The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration

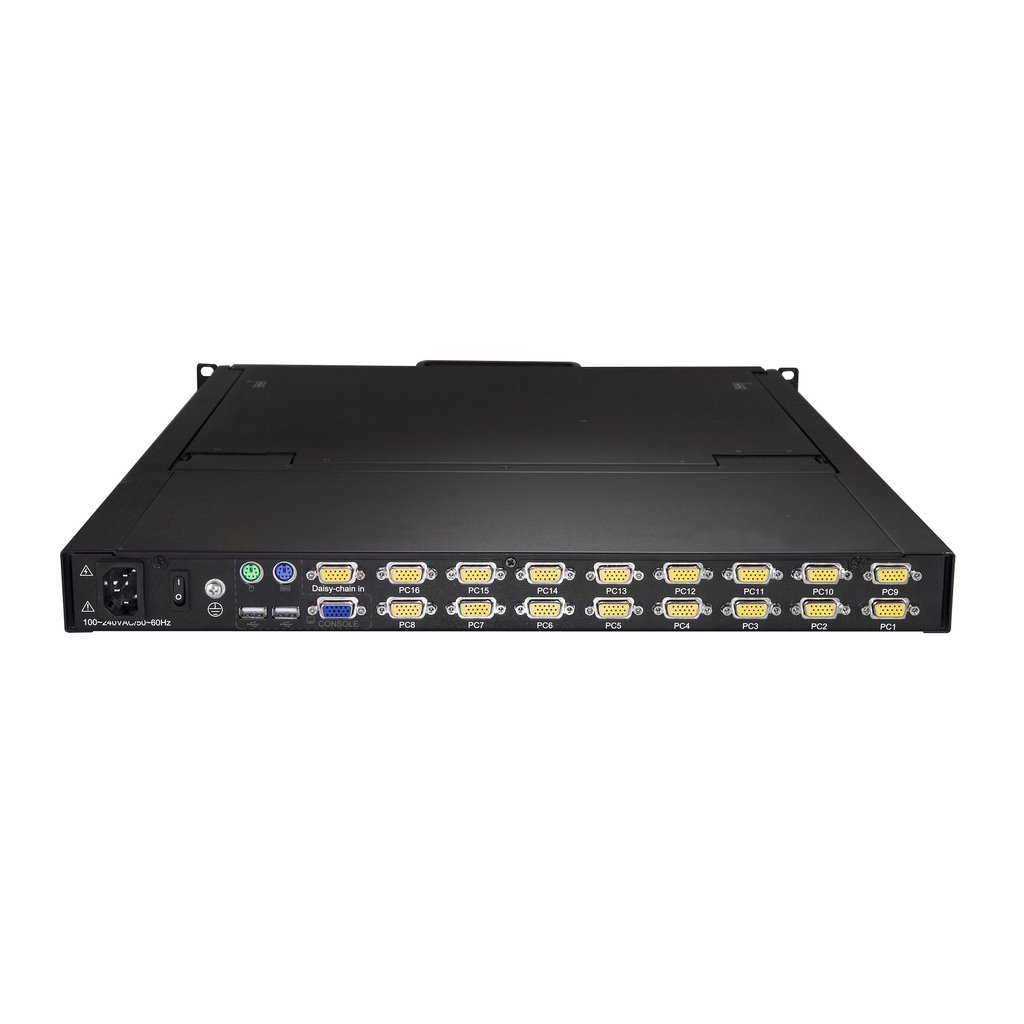

The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.
The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 21 lbs |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display | TFT LCD |
| Product colour | Black |
| Certification | PSE, FCC, UL, CE, REACH |
| Power consumption (typical) | 23 W |
| AC adapter input voltage | 100 – 240 V |
| Weight | 13.5 kg |
| Package weight | 21 kg |
| Operating temperature (T-T) | 0 – 40 °C |
| Built-in touchpad | Yes |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Pixel pitch | 0.264 x 0.264 mm |
| Display type | LCD |
| USB 2.0 Type-A ports quantity | 2 |
| Storage temperature (T-T) | -20 – 60 °C |

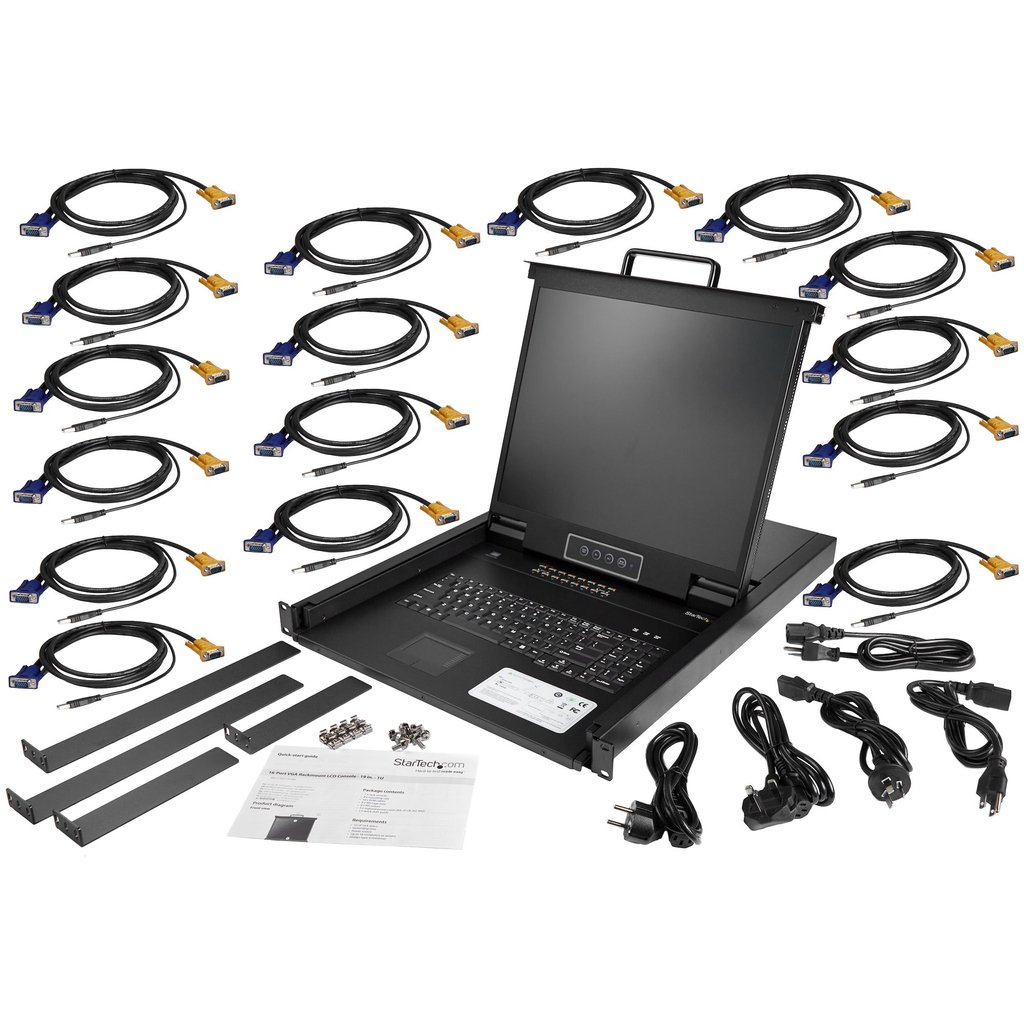

| Cables included | KVM |
| Display number of colours | 16.78 million colours |
| Mean time between failures (MTBF) | 50000 h |
| Operating relative humidity (H-H) | 10 – 80% |
| Daisy chain | No |
| Key lock | No |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Audio support | No |
| Video port type | VGA |
| Width | 483 mm |
| Height | 43 mm |
| Depth | 643 mm |
| Mounting depth (min) | 60.5 cm |
| Mounting depth (max) | 89 cm |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 190 mm |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Yes |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 190 mm |
| Products per master (outer) case | 1 pc(s) |
| Colour depth | 8 bit |
| Number of computers controlled | 16 |
| VGA (D-Sub) ports quantity | 18 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Input current | 1.5 A |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
