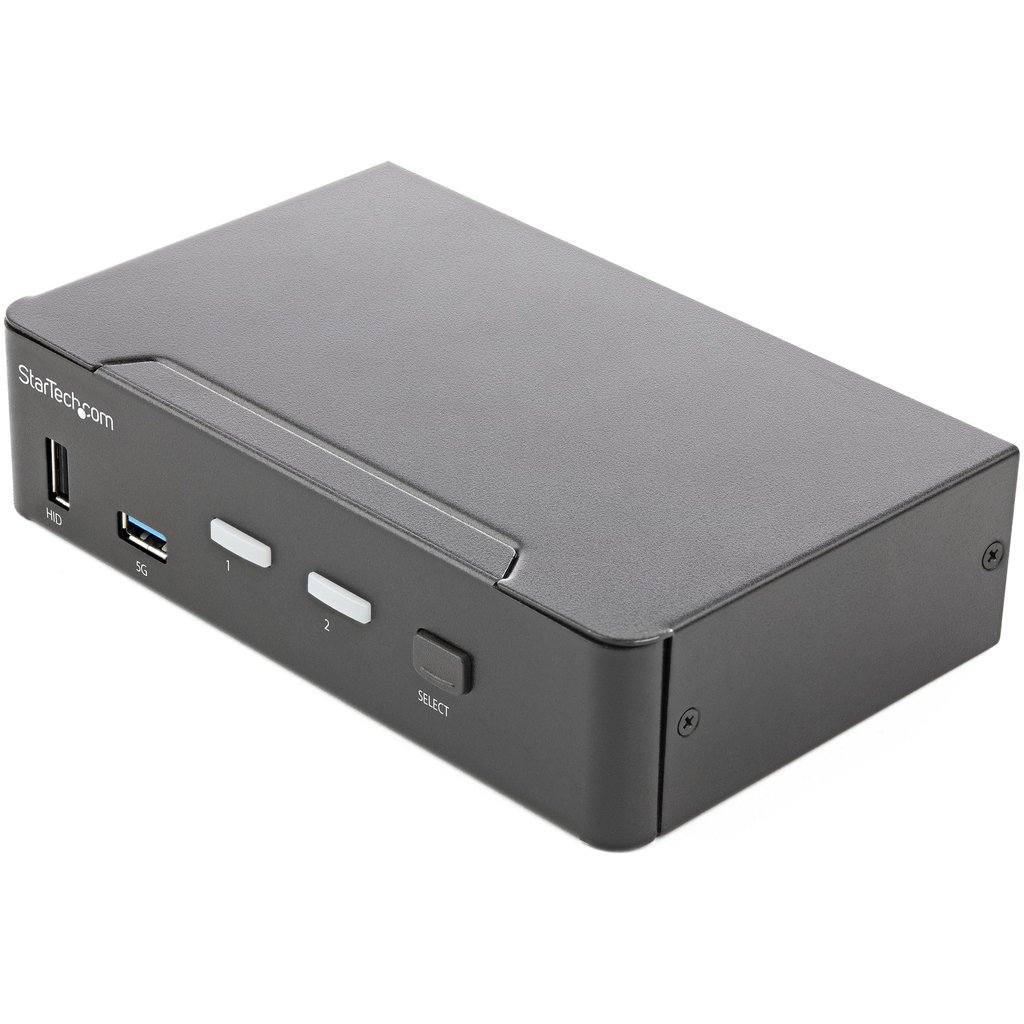

StarTech.com 2 Port HDMI KVM Switch – Single Monitor 4K 60Hz Ultra HD HDR – Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub
StarTech.com 2 Port HDMI KVM Switch – Single Monitor 4K 60Hz Ultra HD HDR – Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio – Hotkey Switching – TAA (SV231HU34K6)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

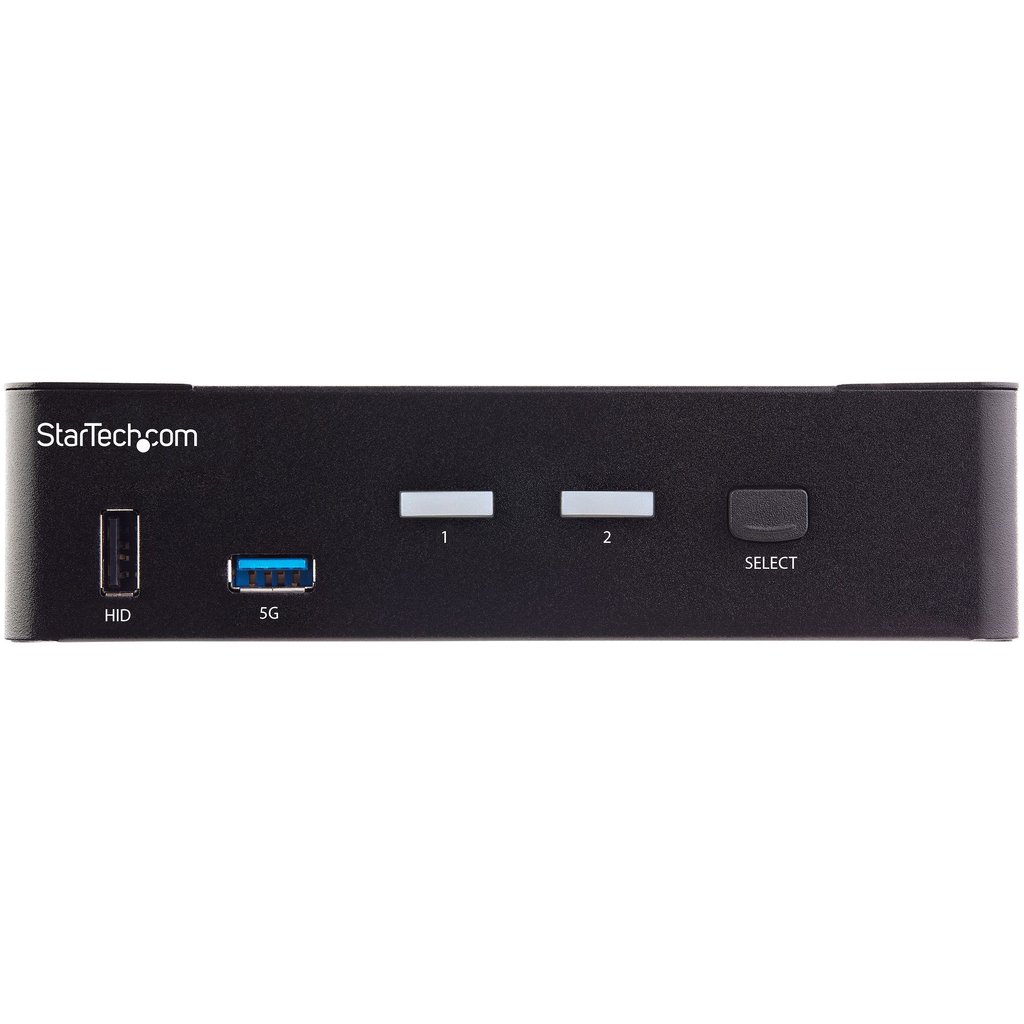

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This 2-port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 1.6 lbs |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| HDCP | Yes |
| Chipset | Genesys Logic – GL3523 |
| Audio channels | 7.1 |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 143000 h |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Input voltage | 100 – 240 V |
| Input current | 1 A |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 100 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 640 g |
| Package width | 238 mm |
| Package depth | 180 mm |
| Package height | 91 mm |
| Package weight | 147 g |
| IP control | No |
| Master (outer) case width | 397 mm |
| Master (outer) case length | 265 mm |
| Master (outer) case height | 305 mm |
| Products per master (outer) case | 6 pc(s) |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Output voltage | 12 V |
| External power adapter | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| Certification | CE, RoHS, FCC |
