StarTech.com 2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1×2 HDMI Display/Output Splitter, HDR/H

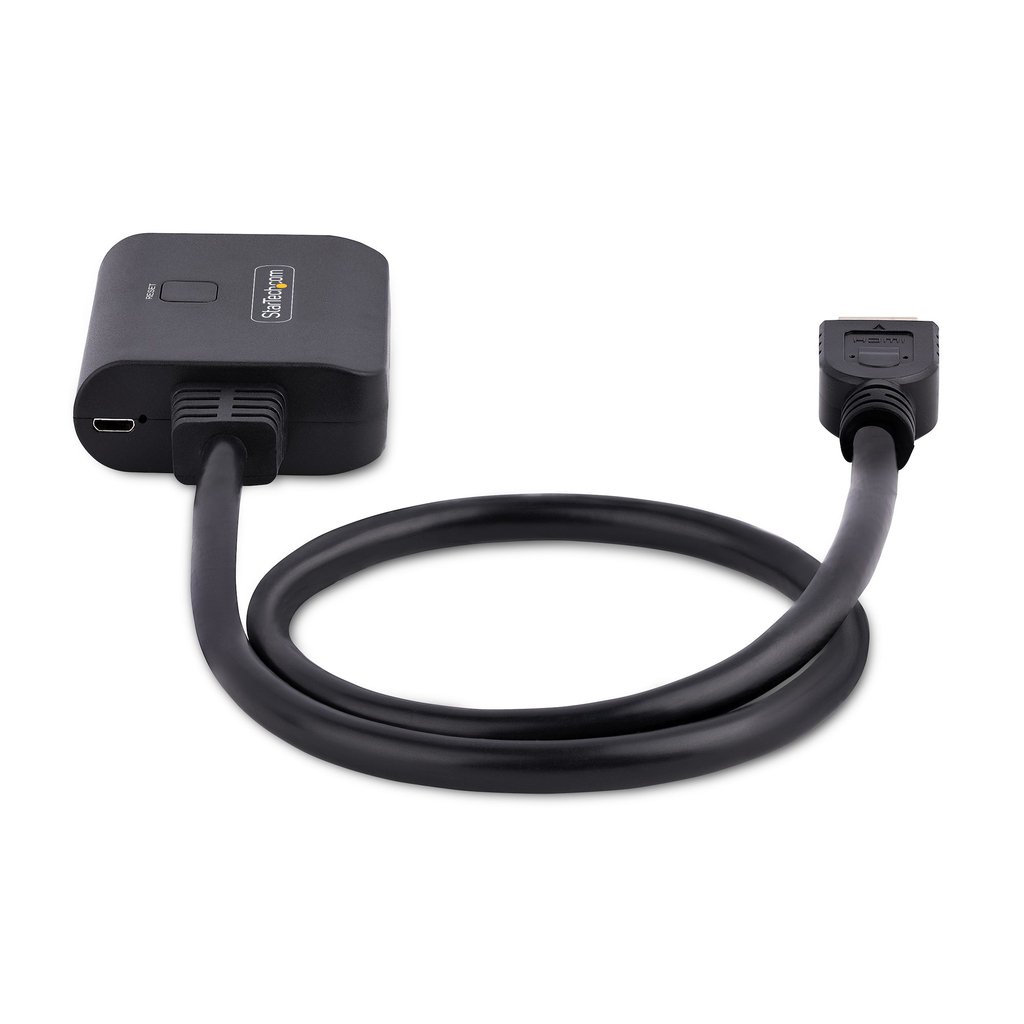

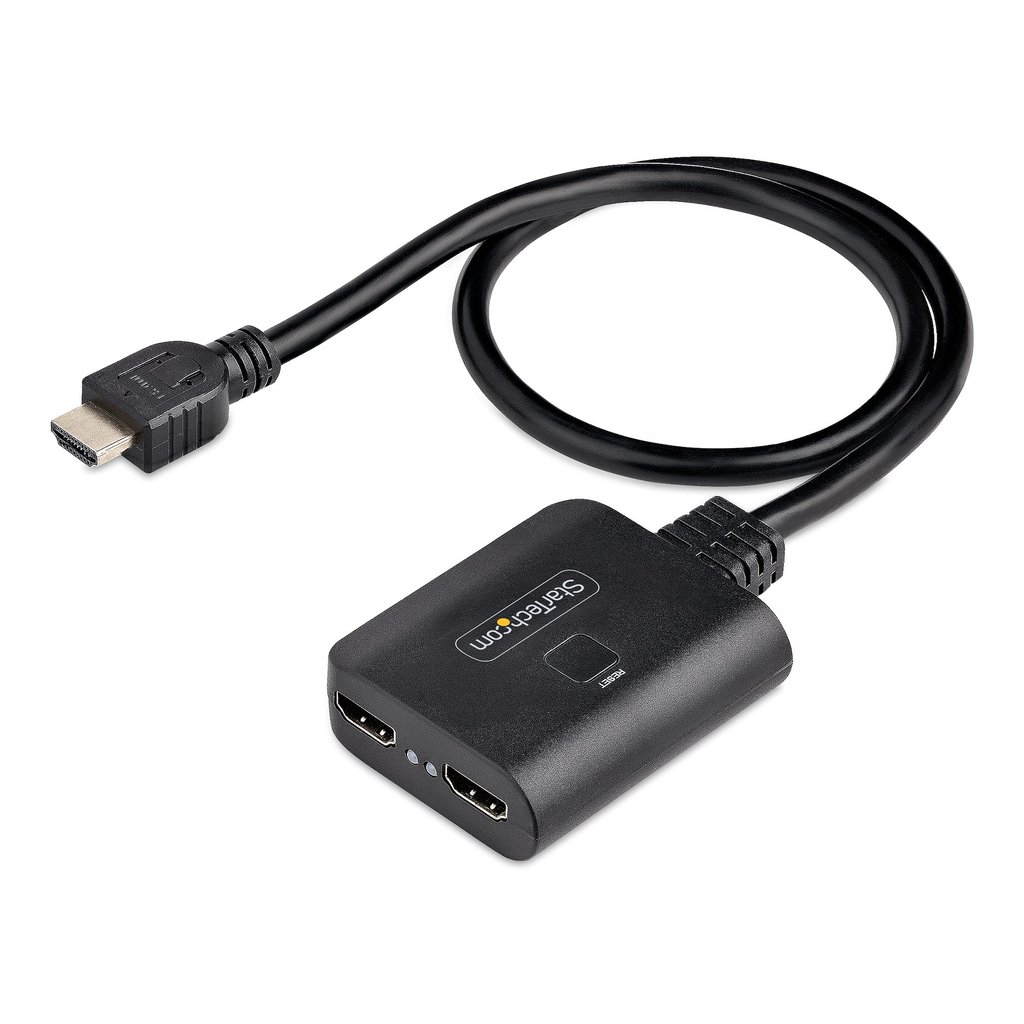

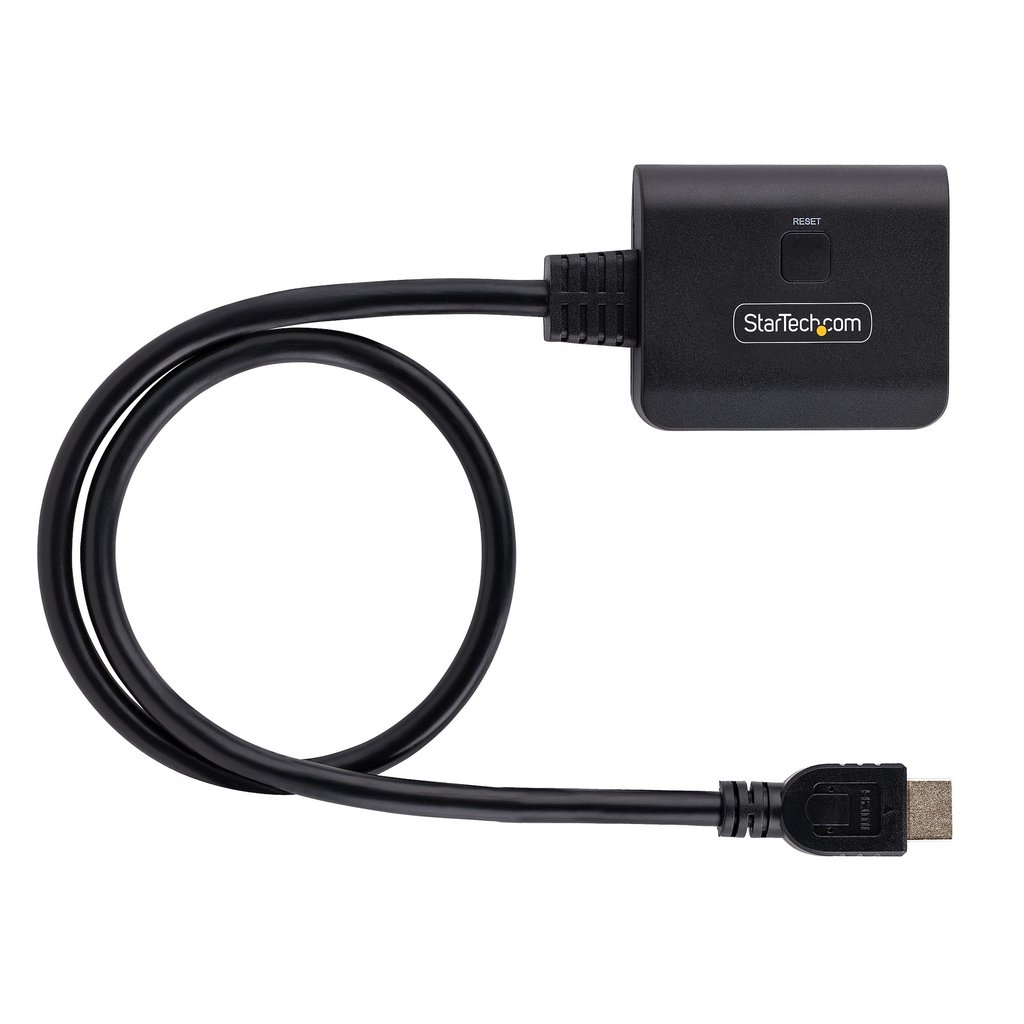

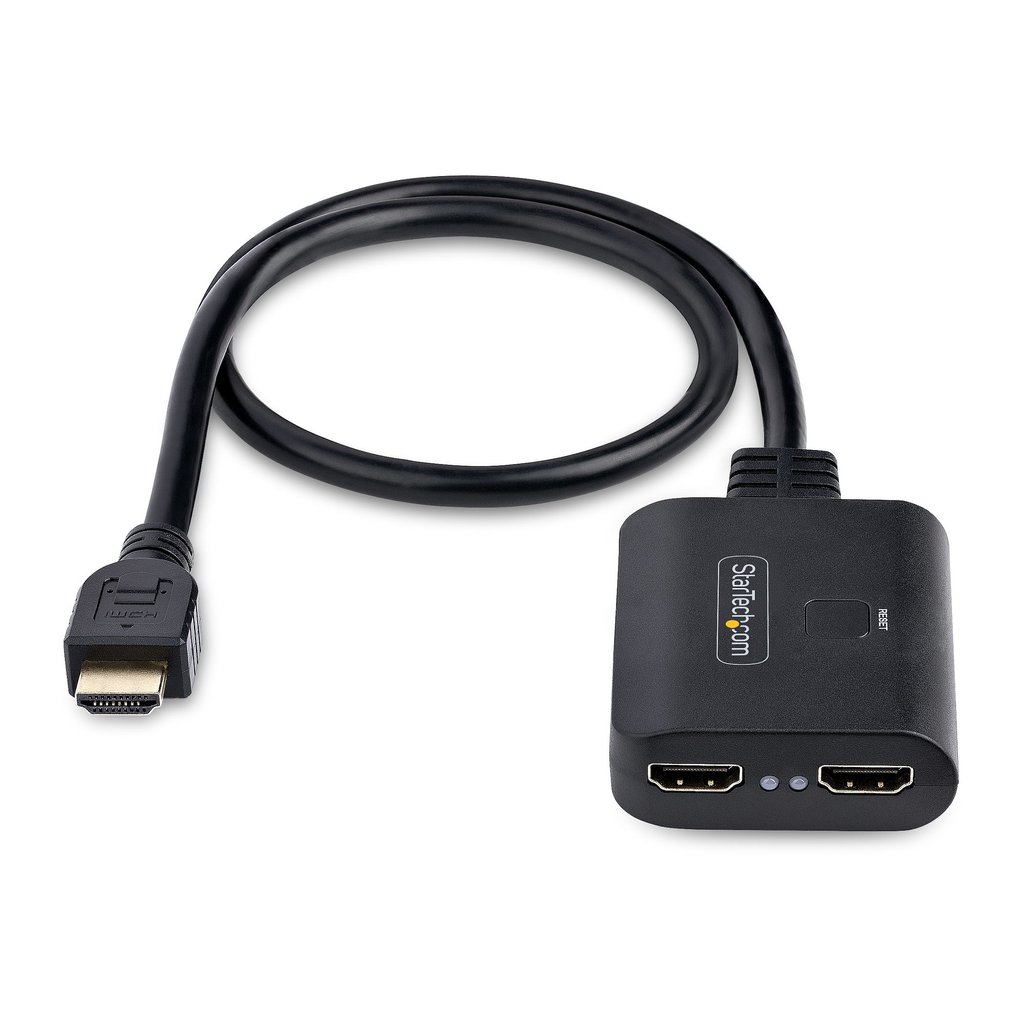

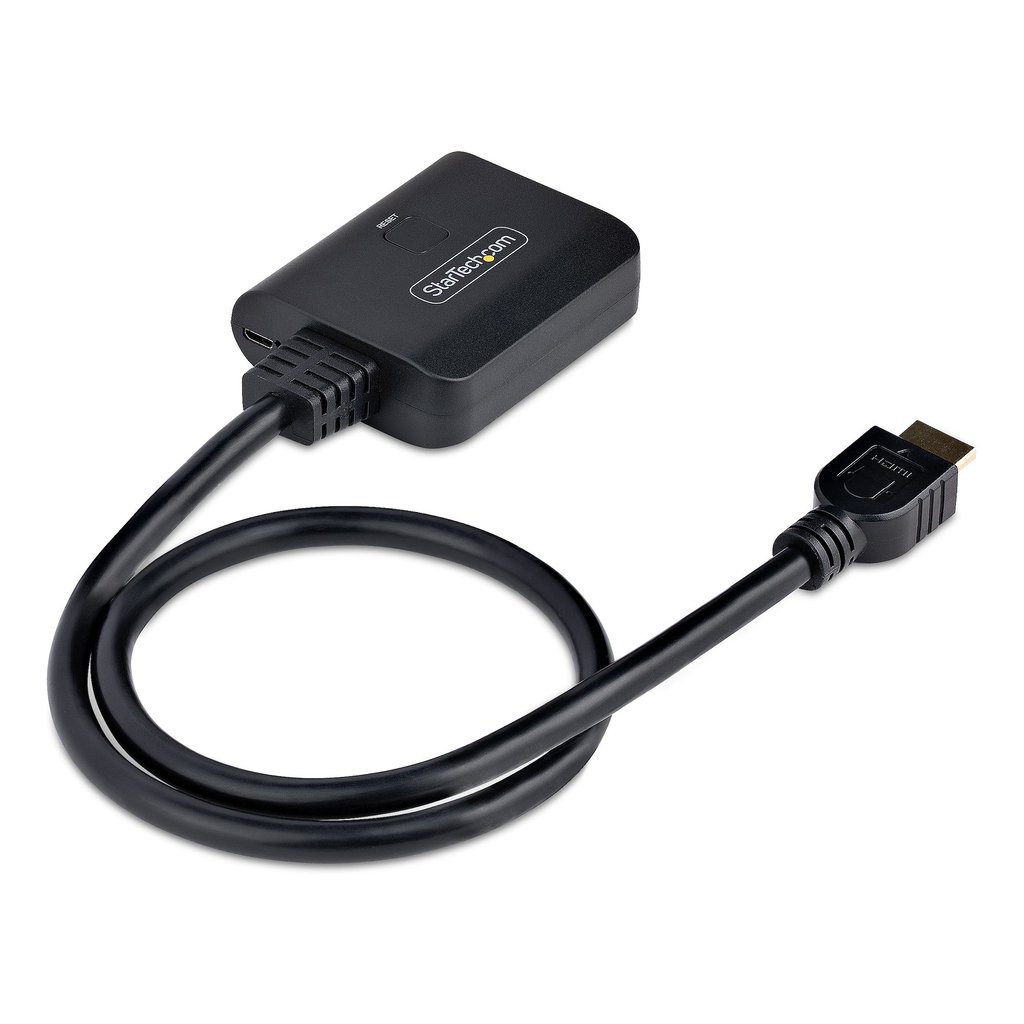

StarTech.com 2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1×2 HDMI Display/Output Splitter, HDR/HDCP, 20in (50cm) Built-in HDMI Cable (HDMI-SPLITTER-4K60UP)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Send a 4K 60Hz HDMI signal to two separate displays simultaneously, powered with a nearby USB port
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered

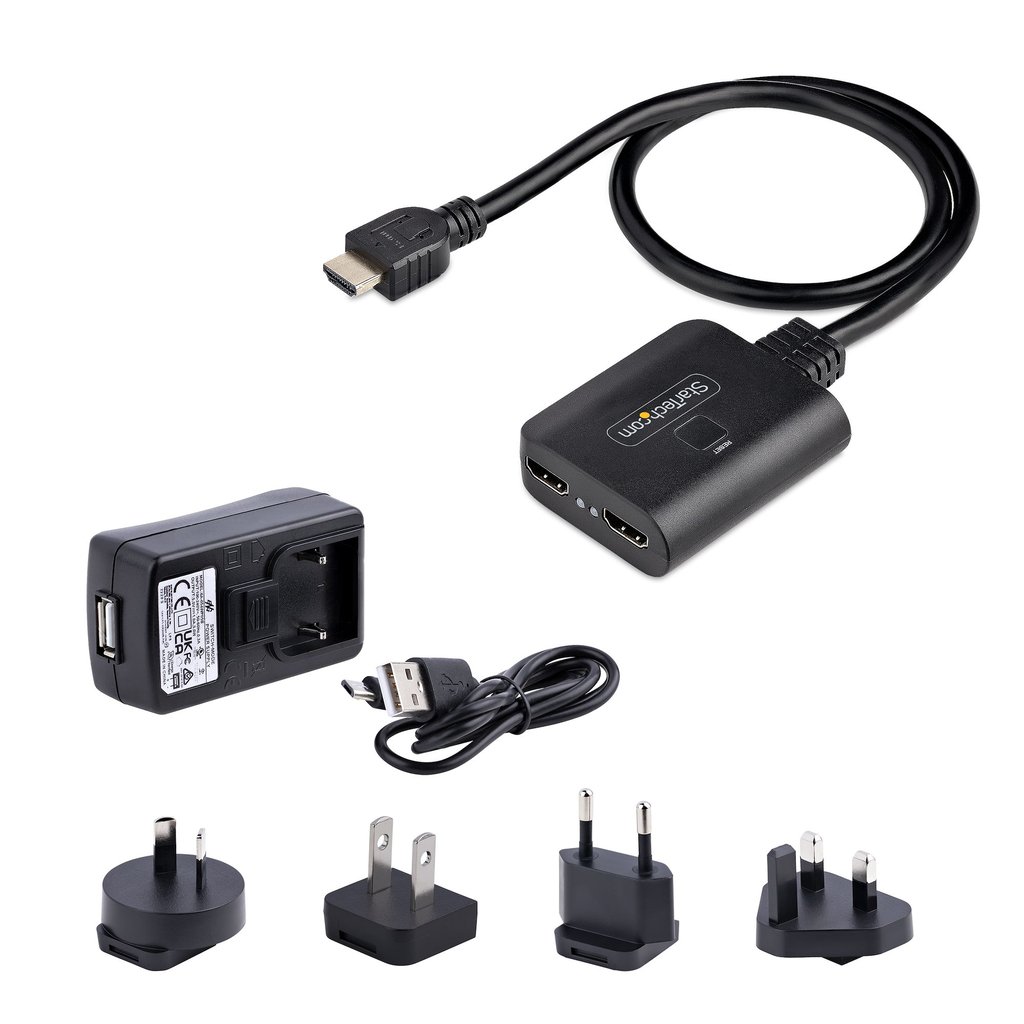

The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Additional information
| Weight | 0.34 lbs |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Maximum operating distance | 5 m |
| Package width | 190 mm |
| Package depth | 145 mm |
| Package height | 30 mm |
| Package weight | 168 g |
| Video out | 2x HDMI |
| AC input voltage | 100 – 240 V |
| Weight | 92 g |
| Manual | Yes |
| HDMI version | 2.0 |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Width | 55 mm |
| Depth | 65 mm |
| Height | 19 mm |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Cable length | 0.5 m |
| HDCP | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| LED indicators | Power |
| Input current | 0.3 A |
| Supported audio channels | 7.1 |
| Compliance certificates | CE, RoHS |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 60 pc(s) |
| USB powered | Yes |
| Cables included | USB Type-A to Micro-USB Type-B |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Sustainability compliance | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Data transfer rate | 18 Gbit/s |
