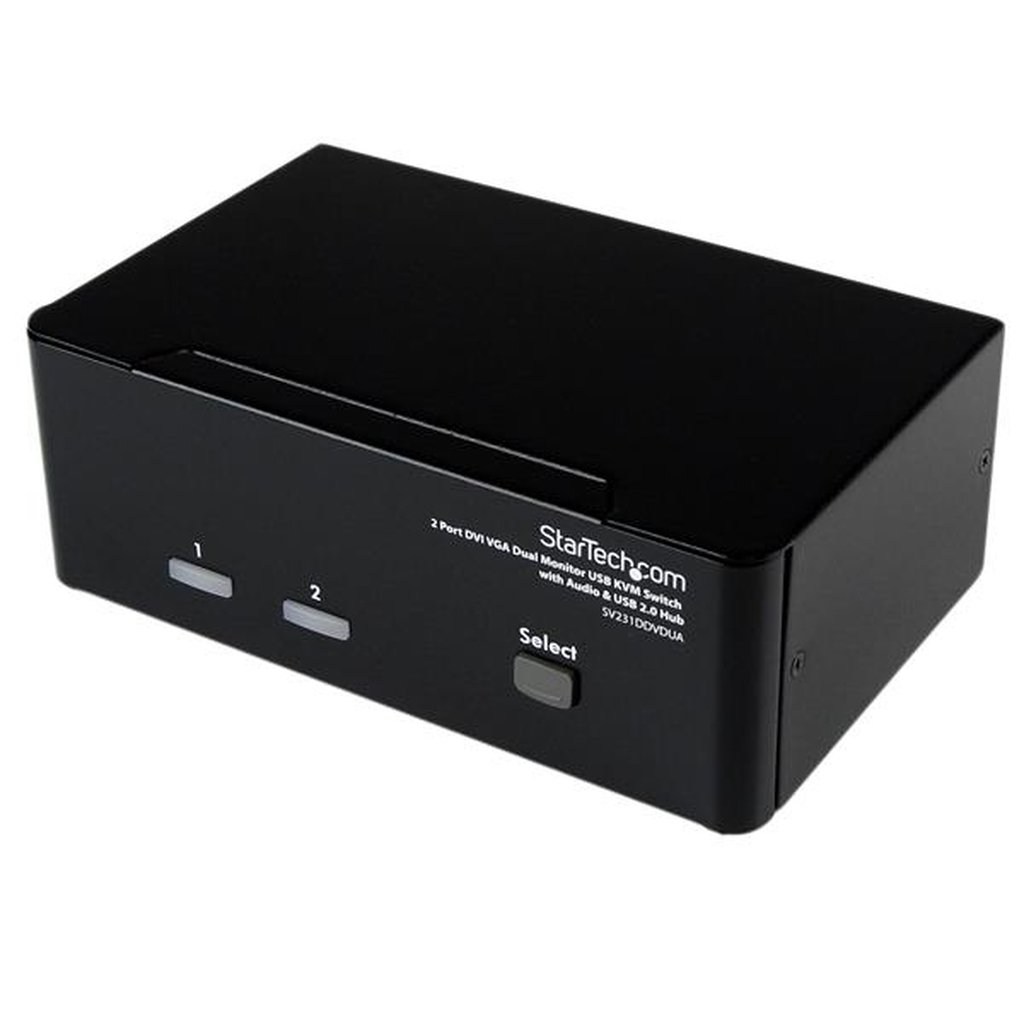

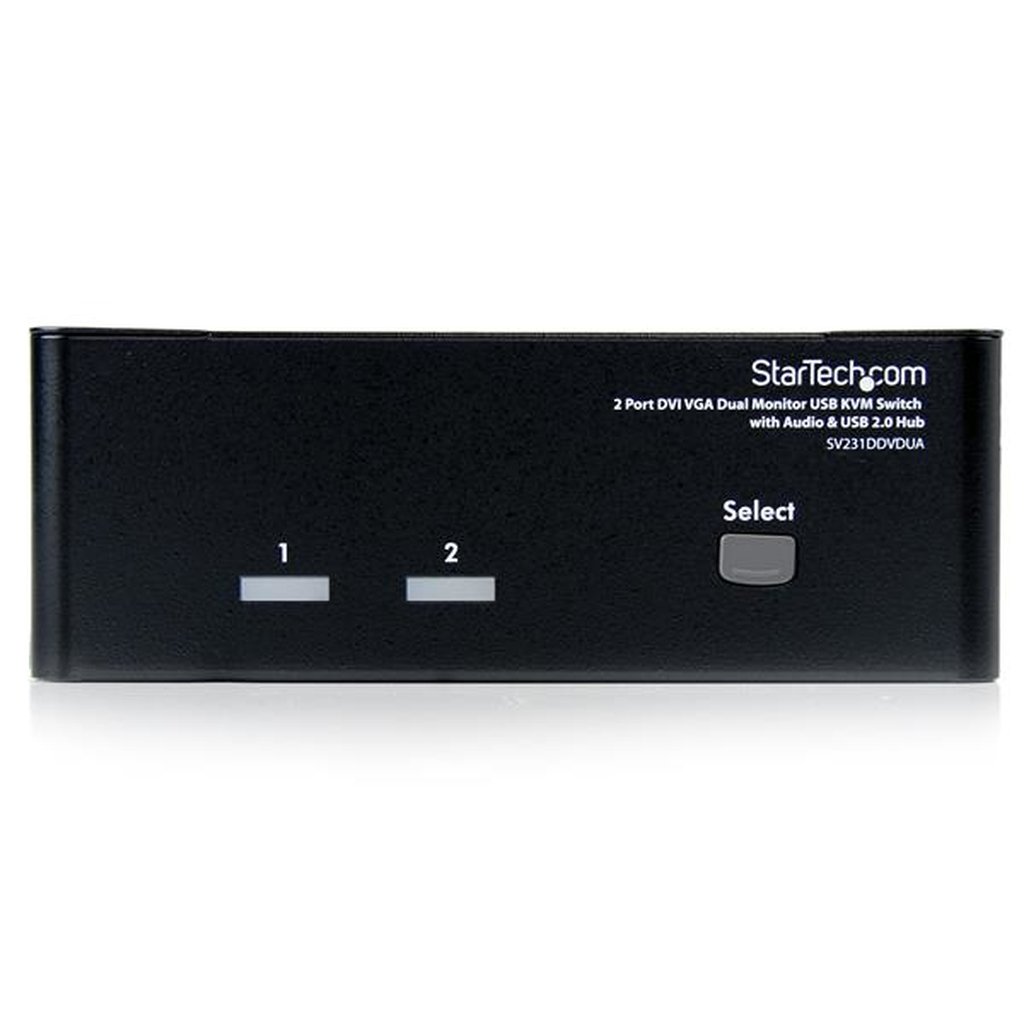

StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
StarTech.com 2 Port KVM Switch – DVI and VGA w/ Audio and USB 2.0 Hub – Dual Monitor / Display / Screen KVM Switch – DVI VGA (SV231DDVDUA)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
– High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
– Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
– Absolutely no software or drivers required providing a completely OS independent KVM solution
Additional information
| Weight | 1.24 lbs |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA/DVI-I |

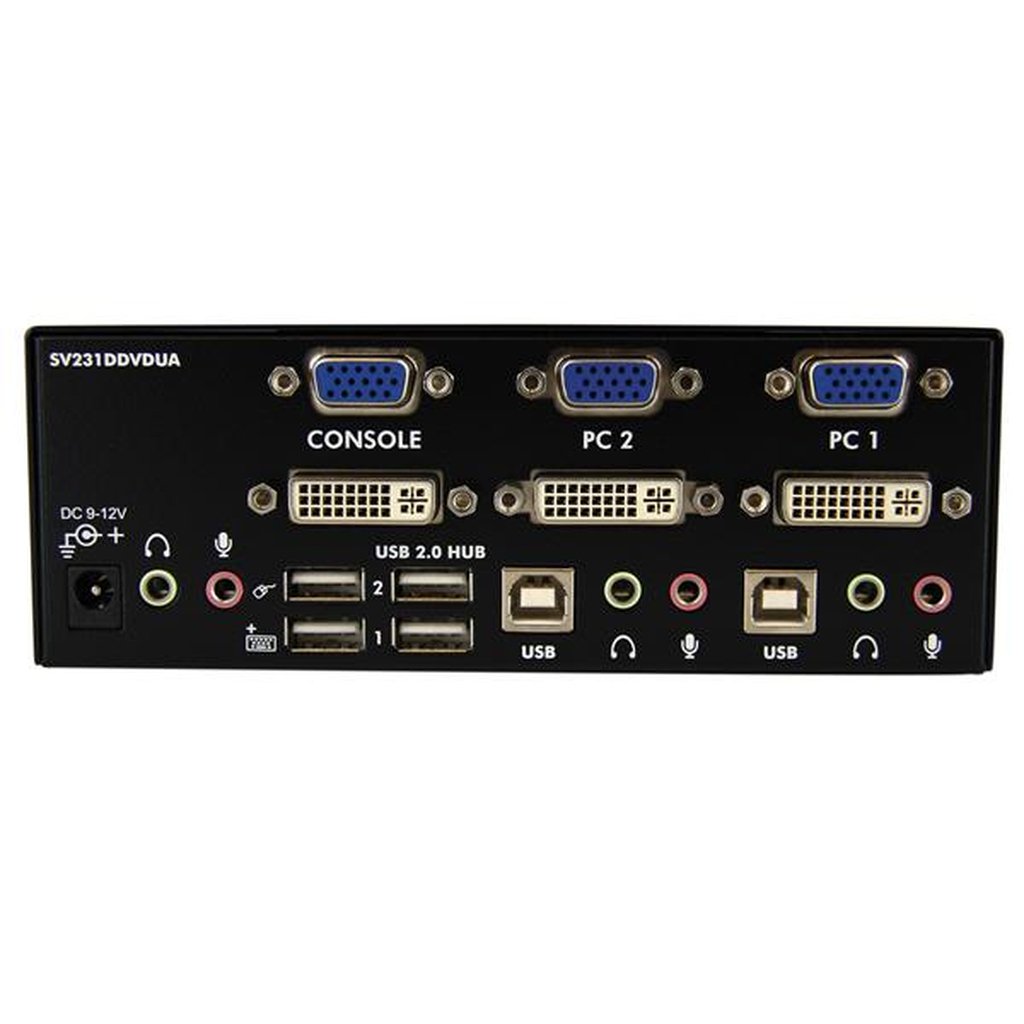

| Console ports | 3.5mm headphone, DVI-I, VGA (D-Sub) |
| Audio connections | Yes |
| Headphone outputs | 3 |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Mean time between failures (MTBF) | 64691 h |
| Built-in display | No |
| Input voltage | 100-240 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 160 mm |
| Depth | 163 mm |
| Height | 57 mm |
| Weight | 750 g |
| Package width | 295 mm |
| Package depth | 199 mm |
| Package height | 72 mm |
| Package weight | 1.29 kg |
| Rubber feet | Yes |
| IP control | No |
| Number of microphone inputs | 3 |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Output voltage | 12 V |
| External power adapter | Yes |
| Manual | Yes |

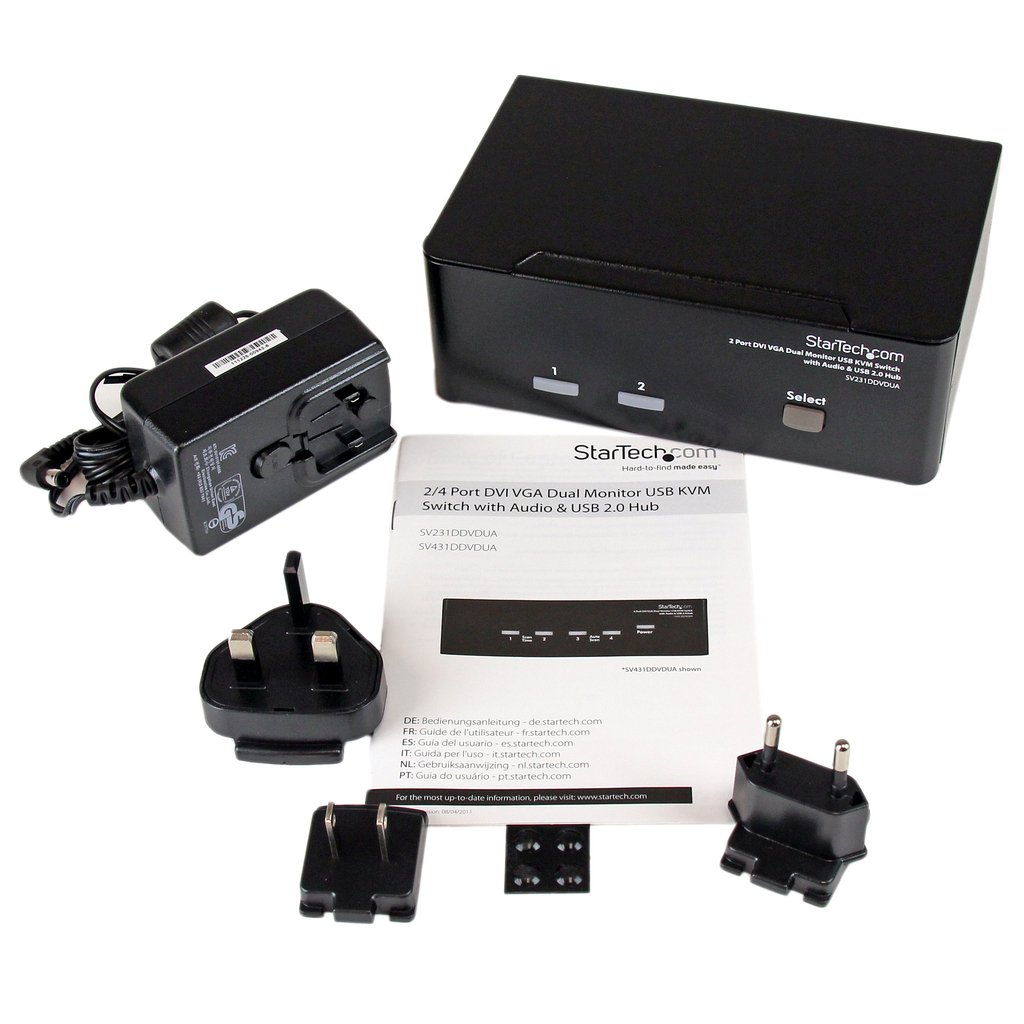

| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
| USB connector type | USB Type-A |
| Certification | CE, FCC |
| Audio support | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| USB 2.0 ports quantity | 4 |
| DDC2B support | Yes |
