StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Li
StarTech.com 2-Port Low Profile PCI Express RS232 Serial Adapter Card, PCIe to DB9, Windows/Linux, TAA – Replaced by PEX2S953LP
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot

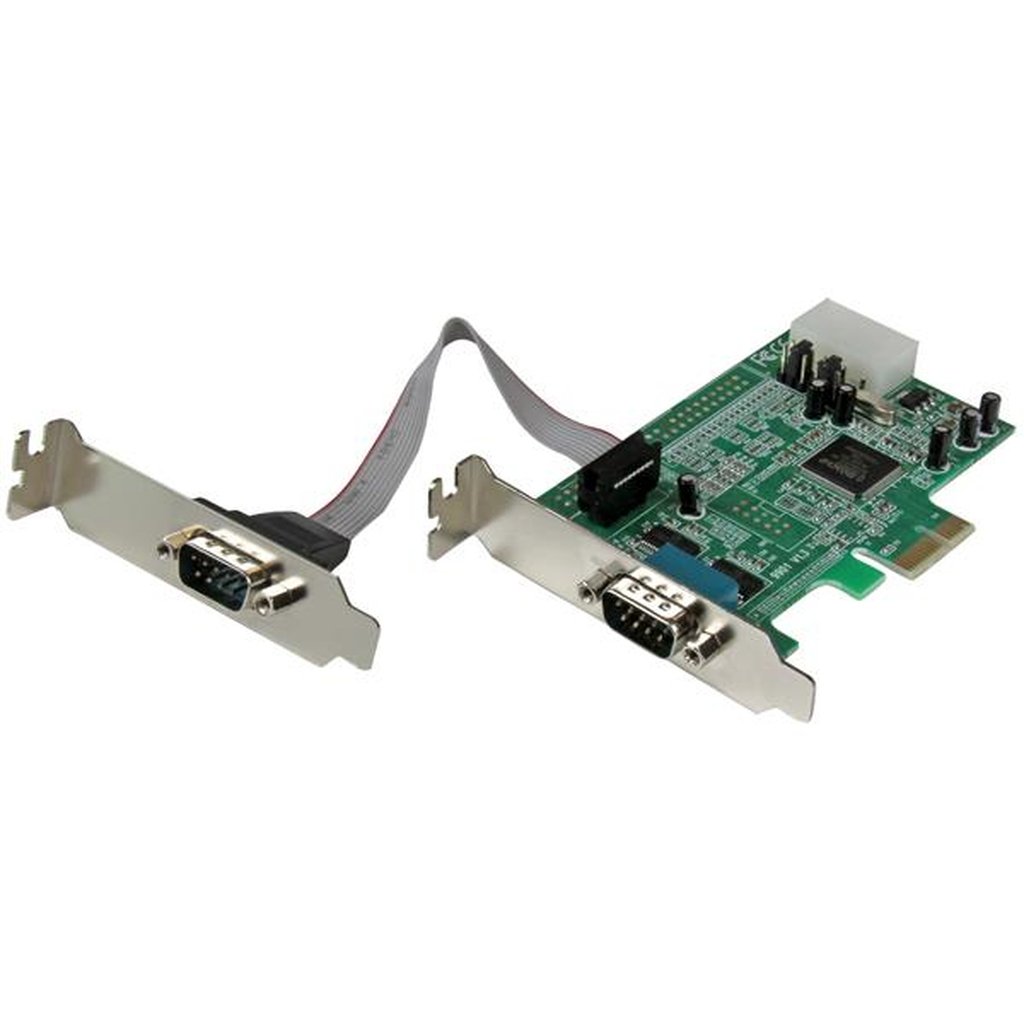

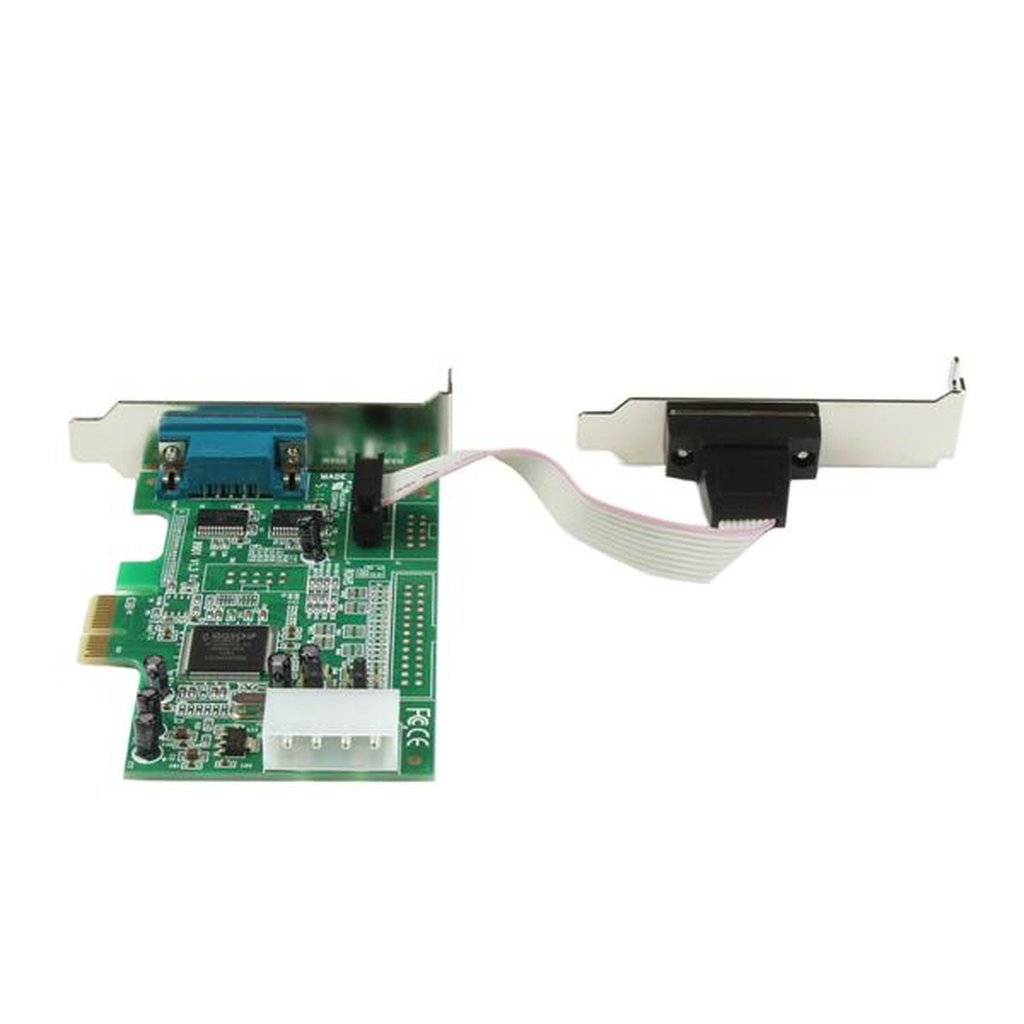

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

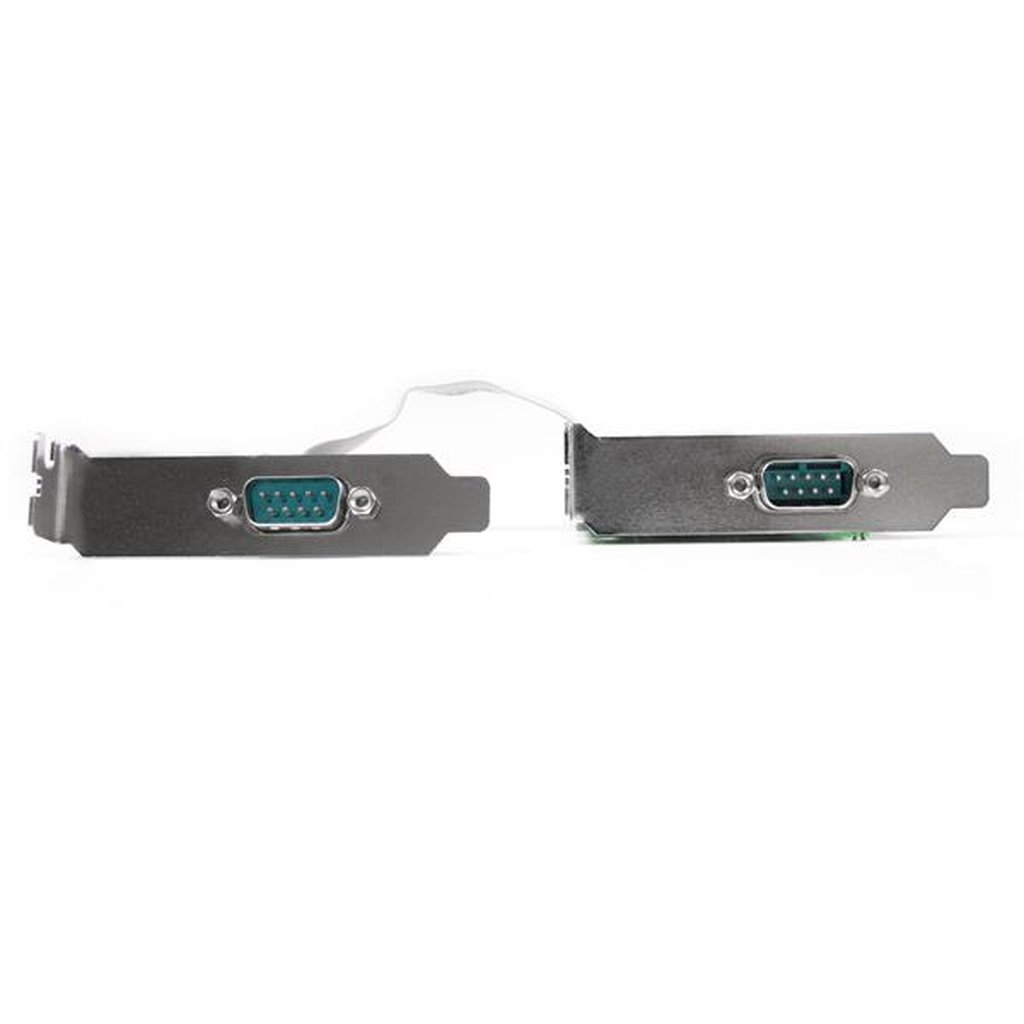

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®; and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX2S552LP card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| Product colour | Green |
| Operating temperature (T-T) | -10 – 80 °C |
| Storage temperature (T-T) | -20 – 100 °C |
| Weight | 63.5 g |
| Chipset | ASIX – MCS9922CV-AA |
| Host interface | PCIe |
| Output interface | Serial |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Compliance certificates | CE, RoHS |
| Depth | 105 mm |
| Expansion card standard | PCIe 1.1 |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 80 mm |
| Height | 20 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Serial interface type | RS-232 |
| Operating relative humidity (H-H) | 5 – 85% |
| Package width | 143 mm |
| Package depth | 173 mm |
| Package height | 32 mm |
| Package weight | 180 g |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 363 mm |
| Master (outer) case length | 684 mm |
| Master (outer) case height | 320 mm |
| Cables included | Serial |
| Serial ports quantity | 2 |
| FIFO (First In, First Out) | 128 B |
| Baud rate | 460.8 Kbit/s |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Drivers included | Yes |
| Manual | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Other operating systems supported | DOS, Windows XP Embedded |
