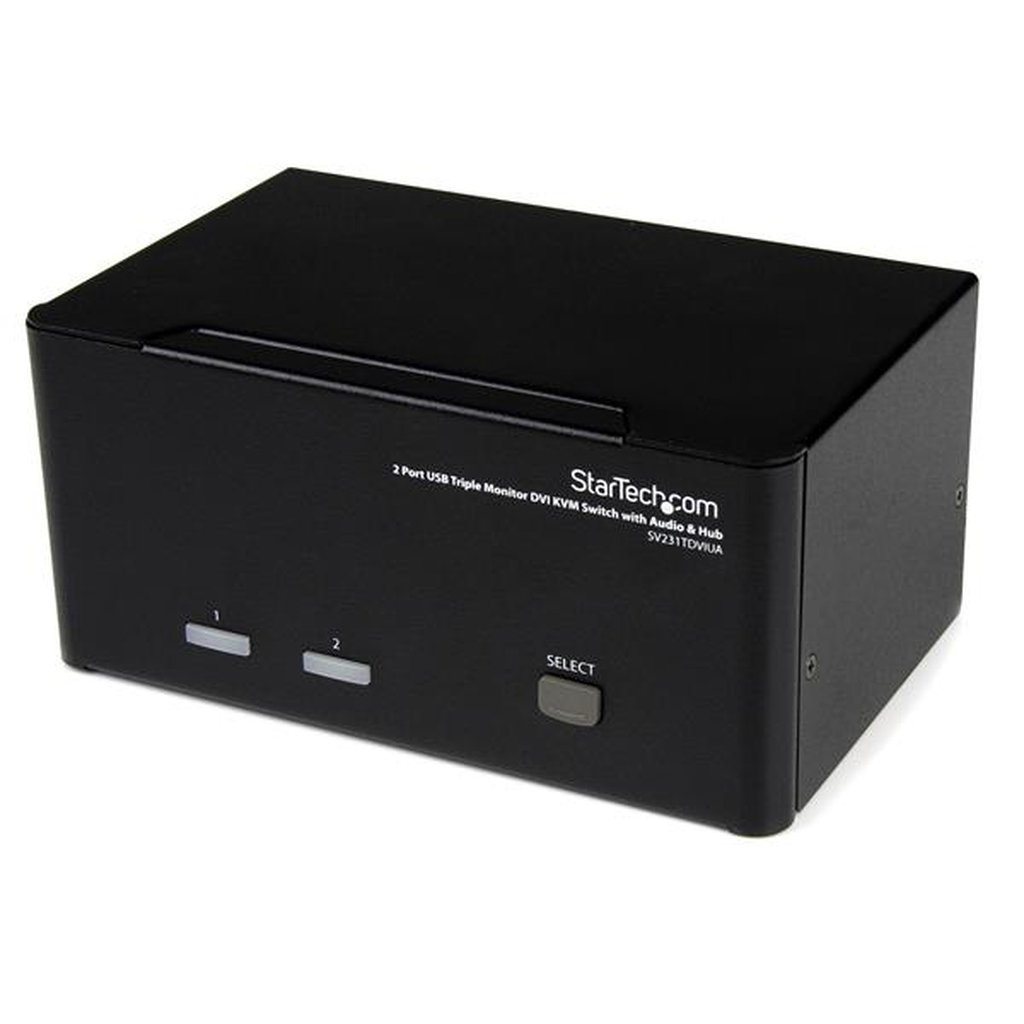

StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub – Multi Monitor KVM – Dual Port KVM Switch
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920×1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
The StarTech.com Advantage
– By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
– With support for high definition resolutions (1920×1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
– Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
Additional information
| Weight | 1.366 lbs |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |

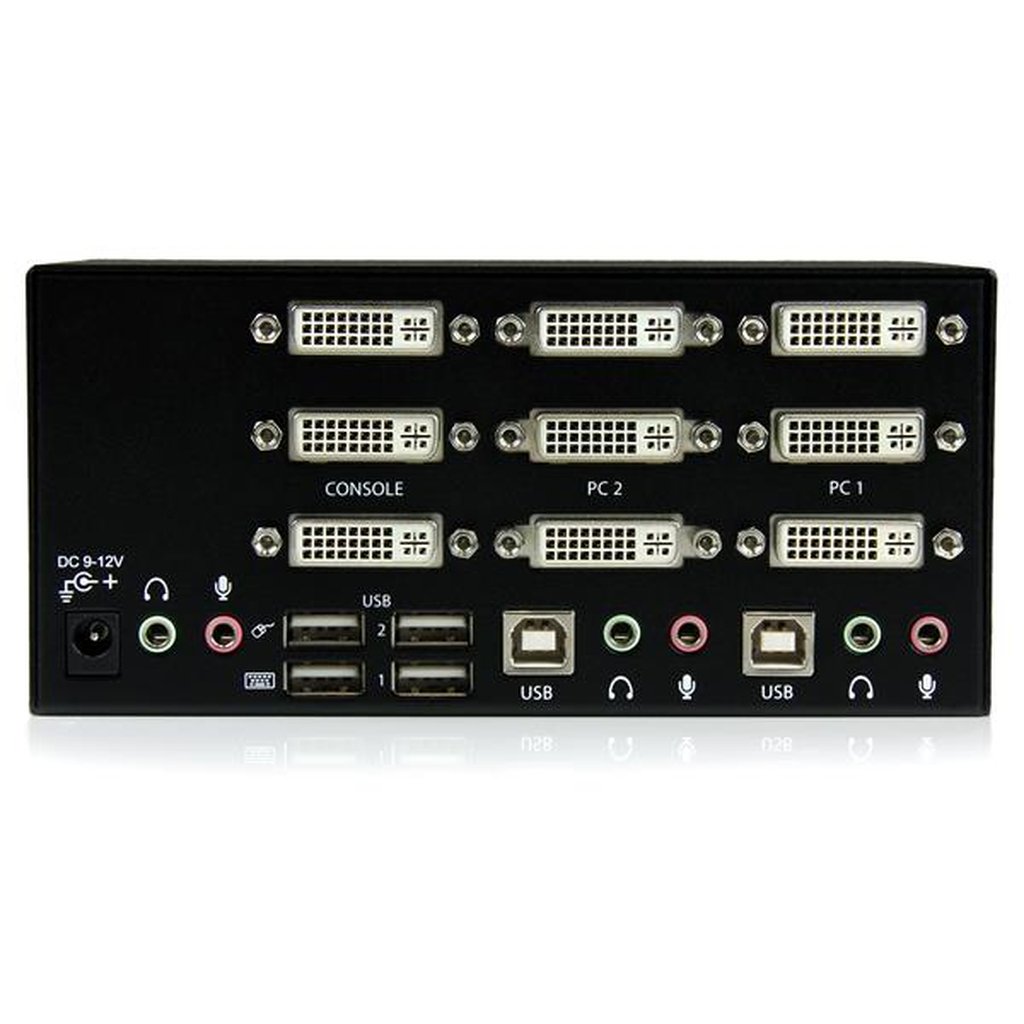

| Console ports | DVI-I, 3.5mm headphone, 3.5mm mic, USB A |
| Console USB ports quantity | 4 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| DC-in jack | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Plug and Play | Yes |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Activity |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 62000 h |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Input voltage | 110-240 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 159 mm |
| Depth | 100 mm |
| Height | 74 mm |
| Weight | 900 g |
| Package width | 185 mm |
| Package depth | 240 mm |
| Package height | 95 mm |
| Package weight | 1.41 kg |
| Rubber feet | Yes |
| IP control | No |
| Number of microphone inputs | 2 |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Output voltage | 12 V |
| External power adapter | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
| Certification | CE, FCC |
| Audio support | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| USB 2.0 ports quantity | 2 |
| DVI-I ports quantity | 6 |
