StarTech.com 2×1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching – 1080p
StarTech.com 2×1 VGA + HDMI to HDMI Switch / Selector Box – 1080p Multi Video Input Automatic Switcher – 2 Computers In 1 Monitor Out (VS221VGA2HD)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

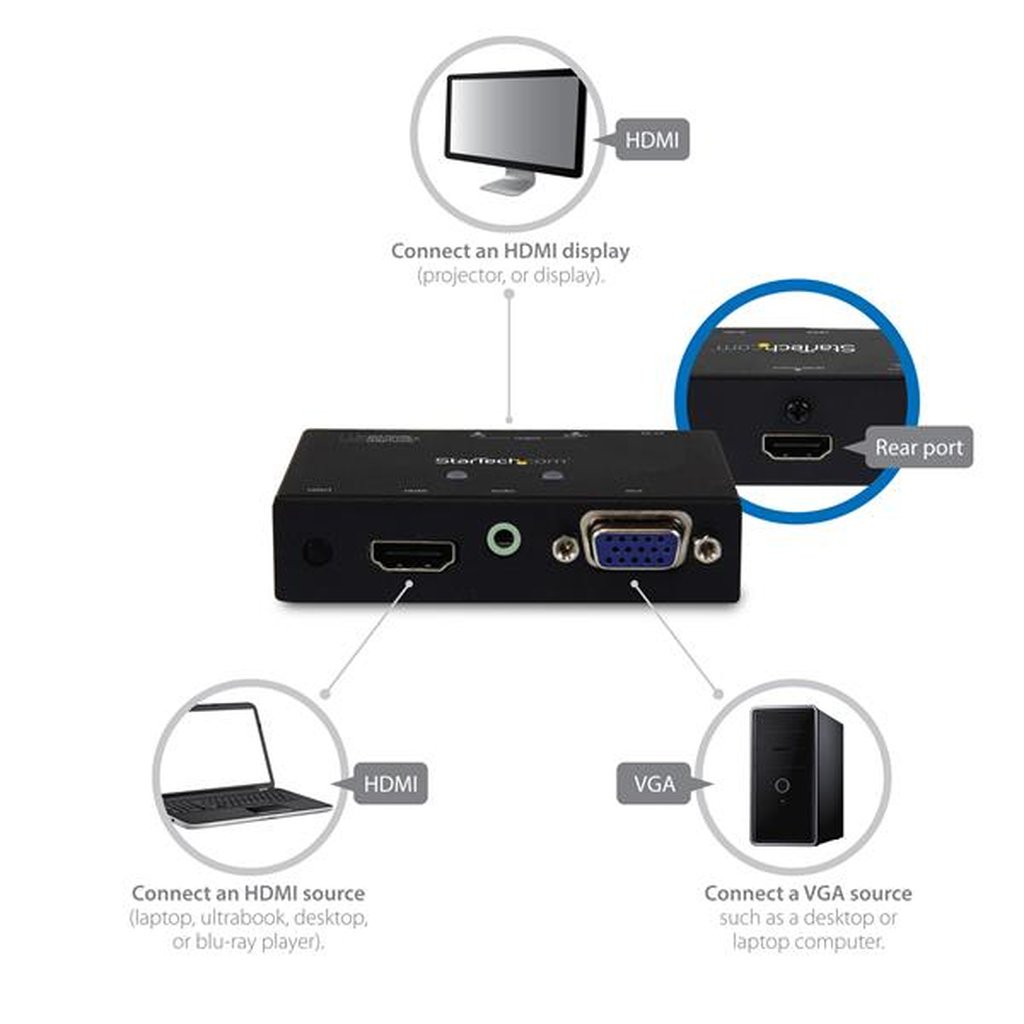

Share an HDMI display/projector between a VGA and HDMI audio/video source, with automatic and priority switching
The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920×1200 (1080p) and includes mounting hardware for a tidy professional installation.
One Switch for VGA and HDMI
The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.
Effortless Control
The VS221VGA2HD ensures hassle-free operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching.
Focus on the Presentation, Not Boardroom Connections
This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.
If you are looking for a similar device with VS221HD2VGA” text=”VGA output, please see our VS221HD2VGA” text=”VS221HD2VGA.
The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
– Effortless switching with automatic and priority switching
– Allow your presenters / guest to focus on the presentation or lesson without the worry of connecting to an available display or projector
Additional information
| Weight | 0.65 lbs |
|---|---|
| Video port type | HDMI/VGA |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Product colour | Black |
| Supported video modes | 1080p |
| Weight | 225 g |
| Compliance certificates | RoHS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| LED indicators | Yes |
| Maximum resolution | 1290 x 1200 pixels |
| AC adapter input voltage | 100 – 240 V |
| AC adapter input current | 0.4 A |
| Manual | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Audio output channels | 7.1 channels |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Package width | 236 mm |
| Package depth | 157 mm |
| Package height | 64 mm |
| Package weight | 657 g |
| AC adapter included | Yes |
| External power adapter | Yes |
| Mounting brackets included | Yes |
| Certification | CE, FCC |
| Dimensions (WxDxH) | 54 x 102 x 29 mm |
| Harmonized System (HS) code | 85176990 |
| DC-in jack | Yes |
| Audio support | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Rack mounting | Yes |
| Power requirements | 100 – 240 VAC, 0.4 A / 5 VDC, 2 A |
