StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III – 6 Gbps HDD
StarTech.com 3 Drive Bay Aluminum Trayless Hot Swap Mobile Rack Backplane with Fan & Lock for 3.5in SAS II / SATA III – 6 Gbps Hard Drive
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5″ drives from the front of your computer, by turning two 5.25″ bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives — an ideal accommodation for enterprise system applications.

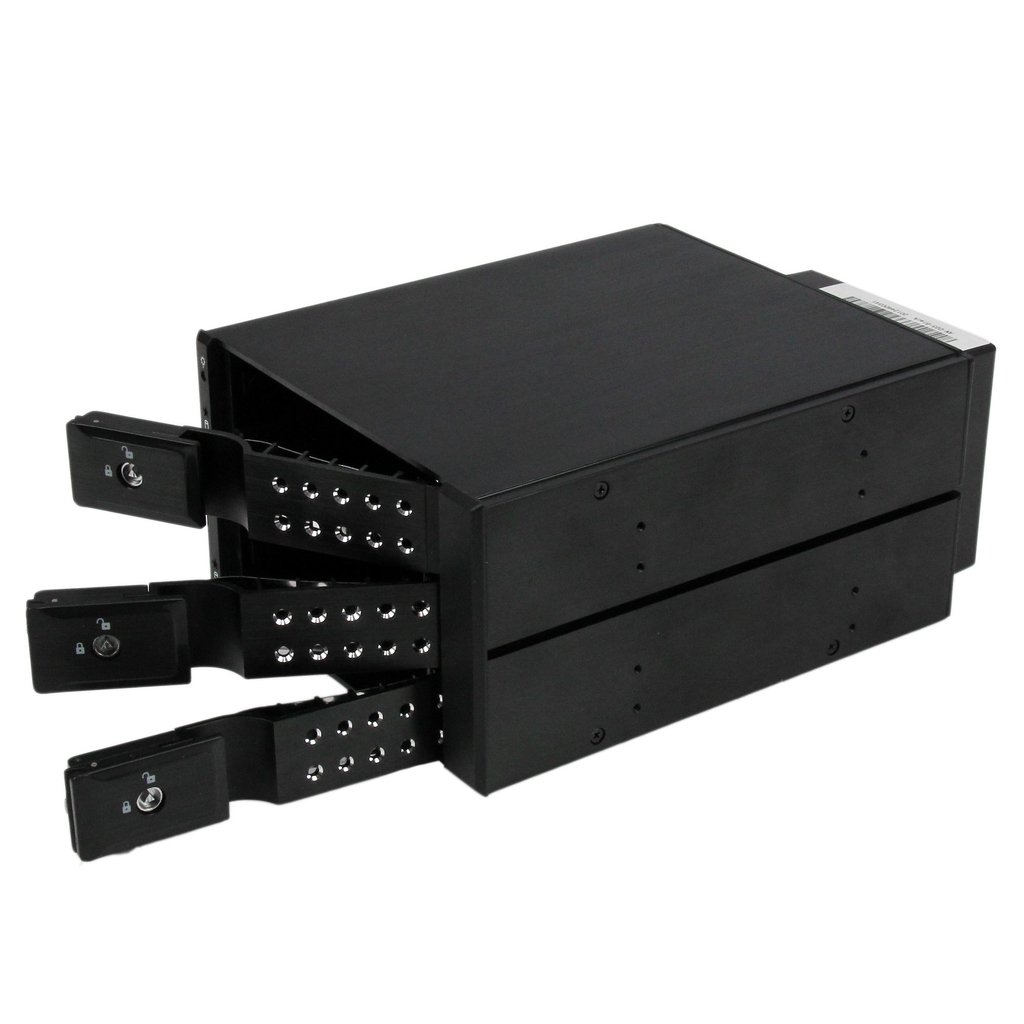

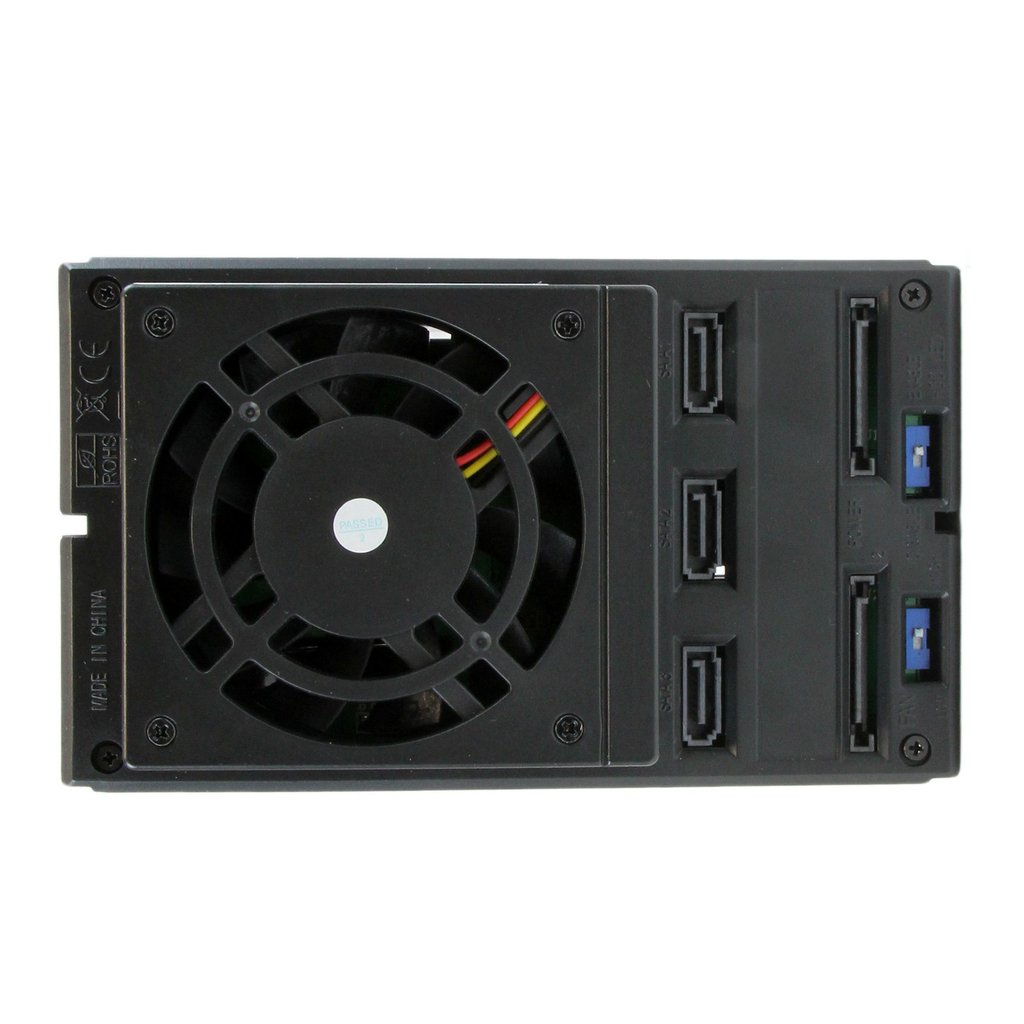

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 1.2 lbs |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 3 |
| Maximum supported storage capacity | 12 TB |
| Hot-swap drive bays | Yes |
| Product colour | Black |
| LED indicators | Activity, Power |
| Width | 145 mm |
| Depth | 194.1 mm |
| Height | 110 mm |
| Weight | 1.2 kg |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5" |
| Data transfer rate | 6 Gbit/s |
| Cables included | SATA |
| Harmonized System (HS) code | 84717020 |
| Host ports | 3 |
| SATA host port | Yes |
| Number of SATA power connectors | 2 |
| SATA power connector type | SATA 15-pin |
| Internal | No |
| Number of fans | 1 fan(s) |
| Backplanes support | Yes |
| Package width | 179 mm |
| Package depth | 253 mm |
| Package height | 123 mm |
| Package weight | 1.2 kg |
| Compliance certificates | RoHS |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case length | 523 mm |
| Master (outer) case width | 386 mm |
| Master (outer) case height | 290 mm |
