StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter – 1394 FW PCIe FireWire 800 / 400 Card
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot

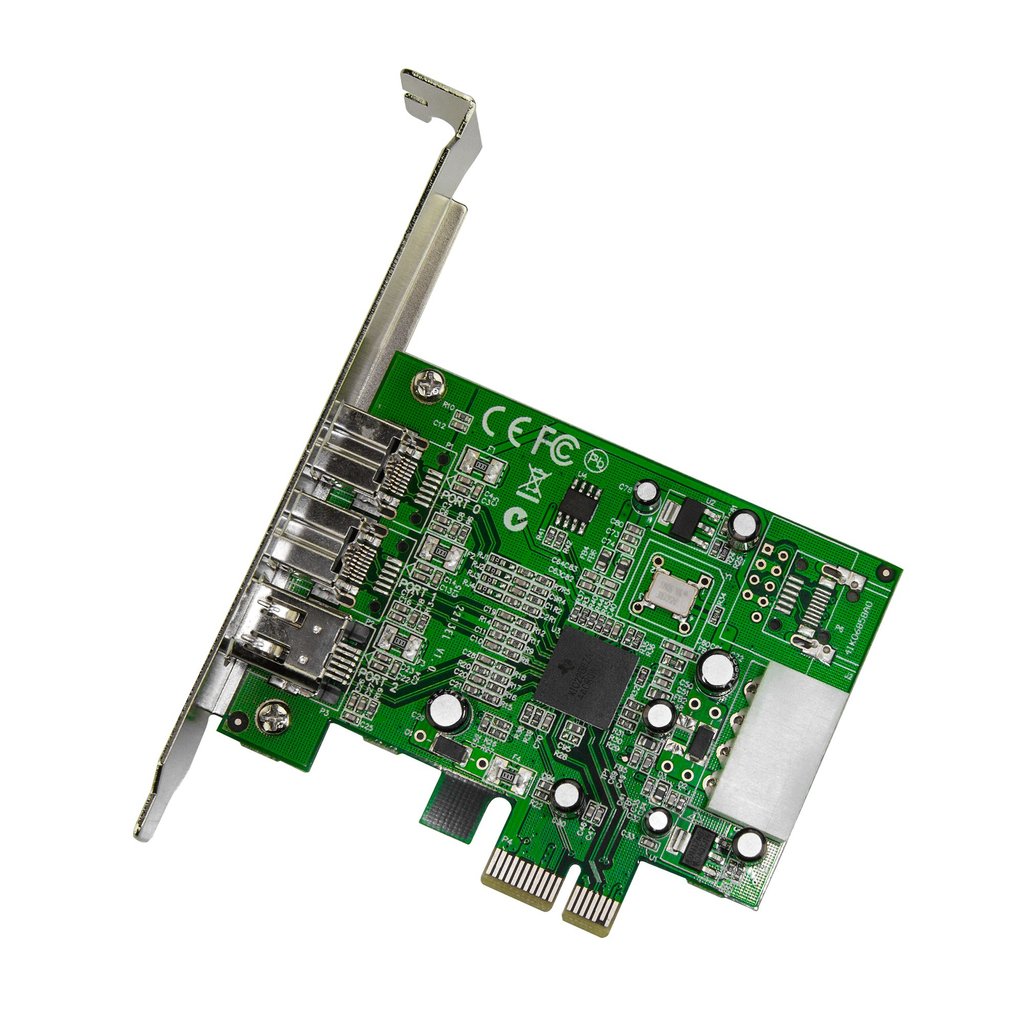

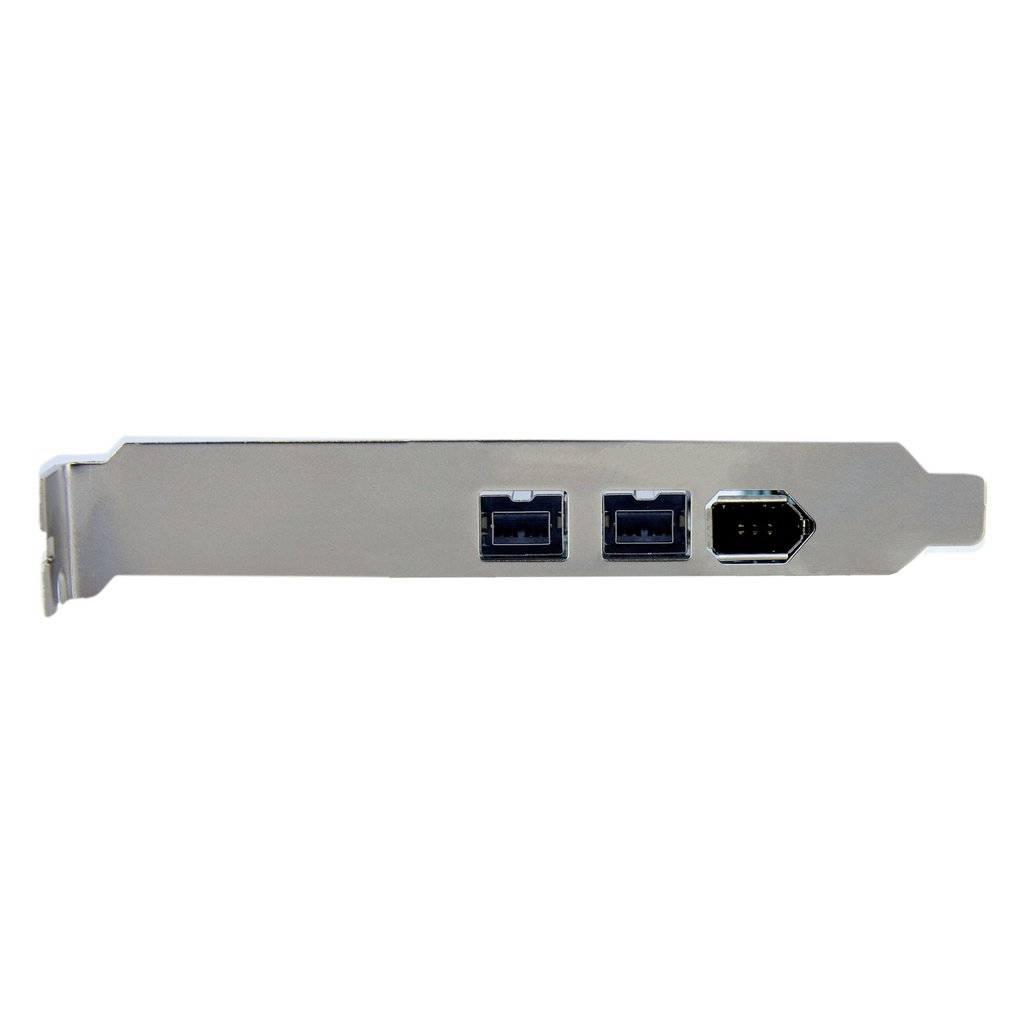

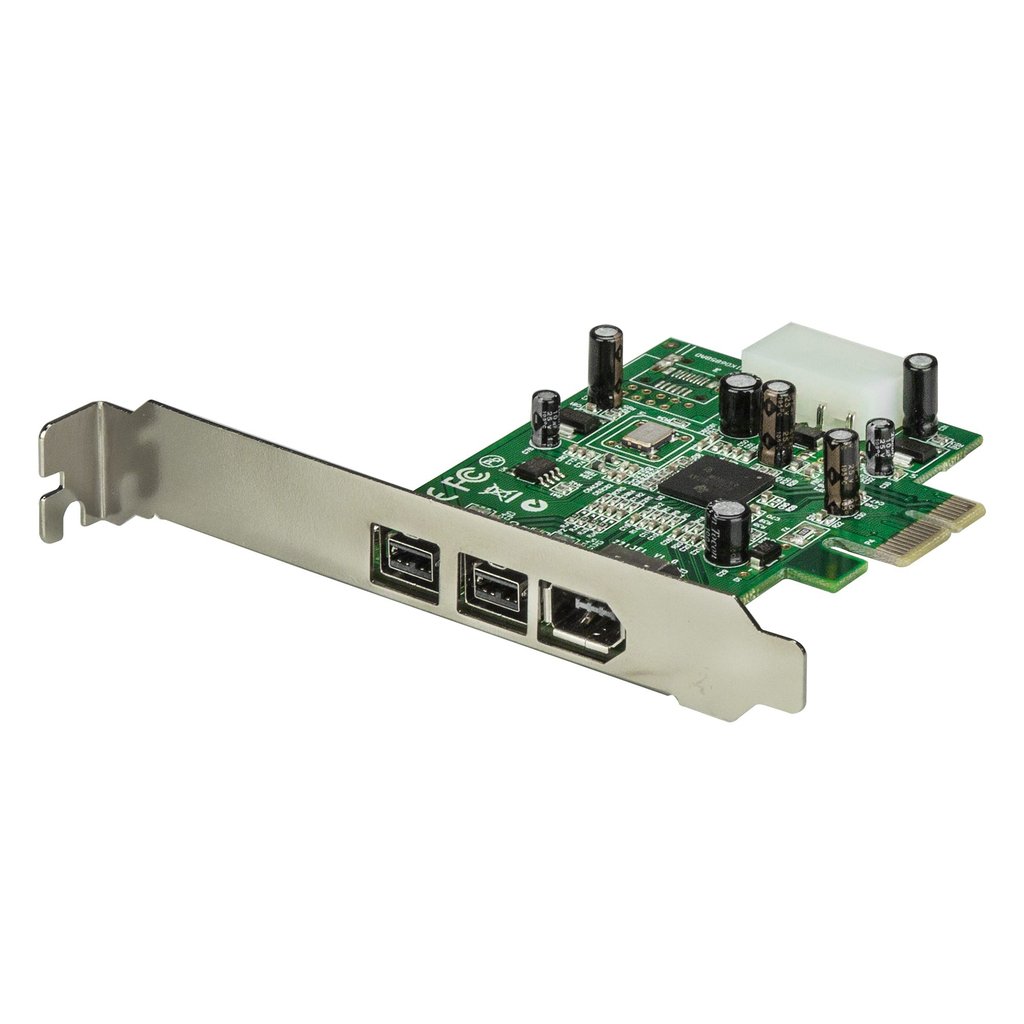

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 – 9 pin) ports and one IEEE1394a (FireWire 400 – 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset – resulting in faster, more reliable and cost effective performance than expansion cards that utilize a “bridge” chip.
The StarTech.com Advantage
Additional information
| Weight | 0.22 lbs |
|---|---|
| Product colour | Green |
| Weight | 48 g |
| Chipset | Texas Instruments – XIO2213B |
| Host interface | PCIe |
| Output interface | Firewire 800 / 400 |
| Data transfer rate (max) | 0.8 Gbit/s |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lio |
| Compliance certificates | CE, RoHS |
| Depth | 85 mm |
| Expansion card standard | PCIe 1.1 |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Width | 18 mm |
| Height | 120 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Package width | 148 mm |
| Package depth | 213 mm |
| Package height | 41 mm |
| Package weight | 212 g |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 681 mm |
| Master (outer) case height | 317 mm |
| Mean time between failures (MTBF) | 149905 h |
| Cables included | FireWire |
| Sustainability compliance | Yes |
| Drivers included | Yes |
| Manual | Yes |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
