StarTech.com 3-Port Multi Monitor Adapter – Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p – Video Splitter f

In Stock

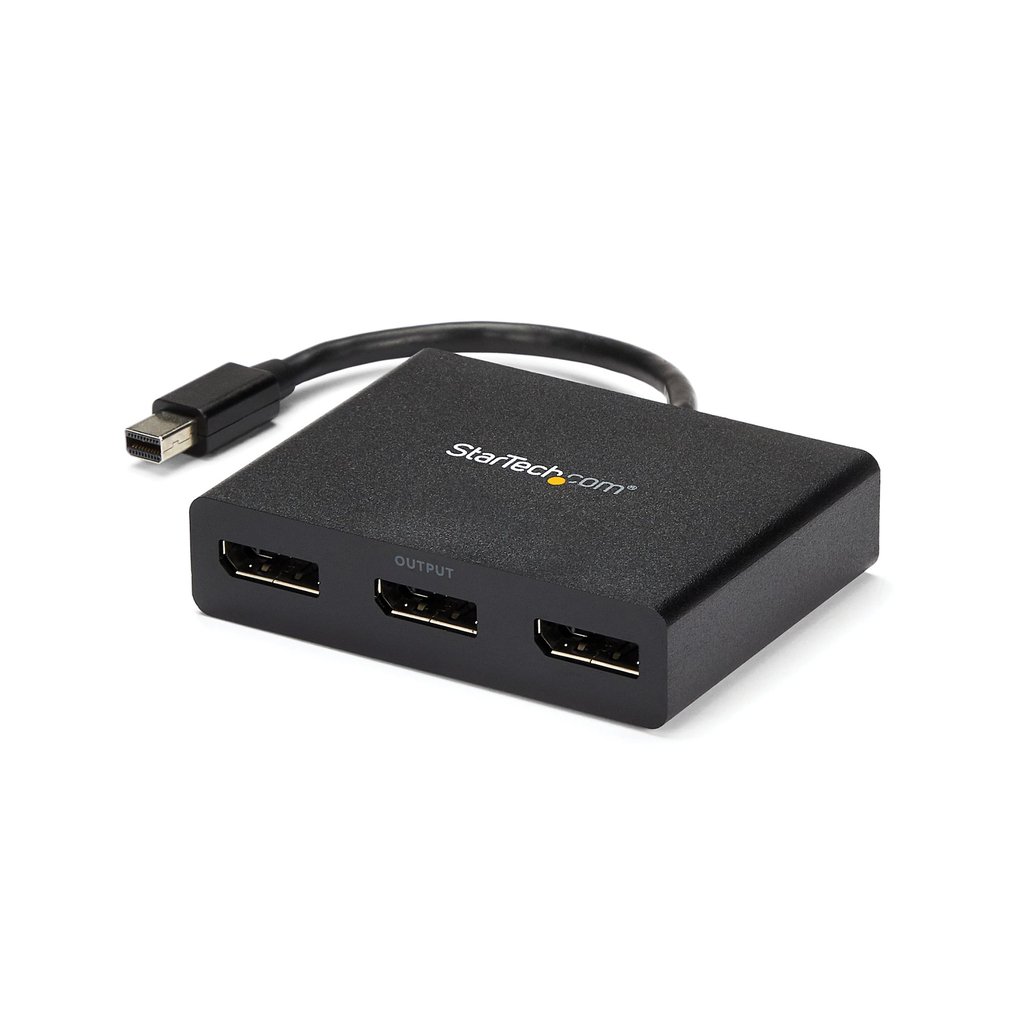

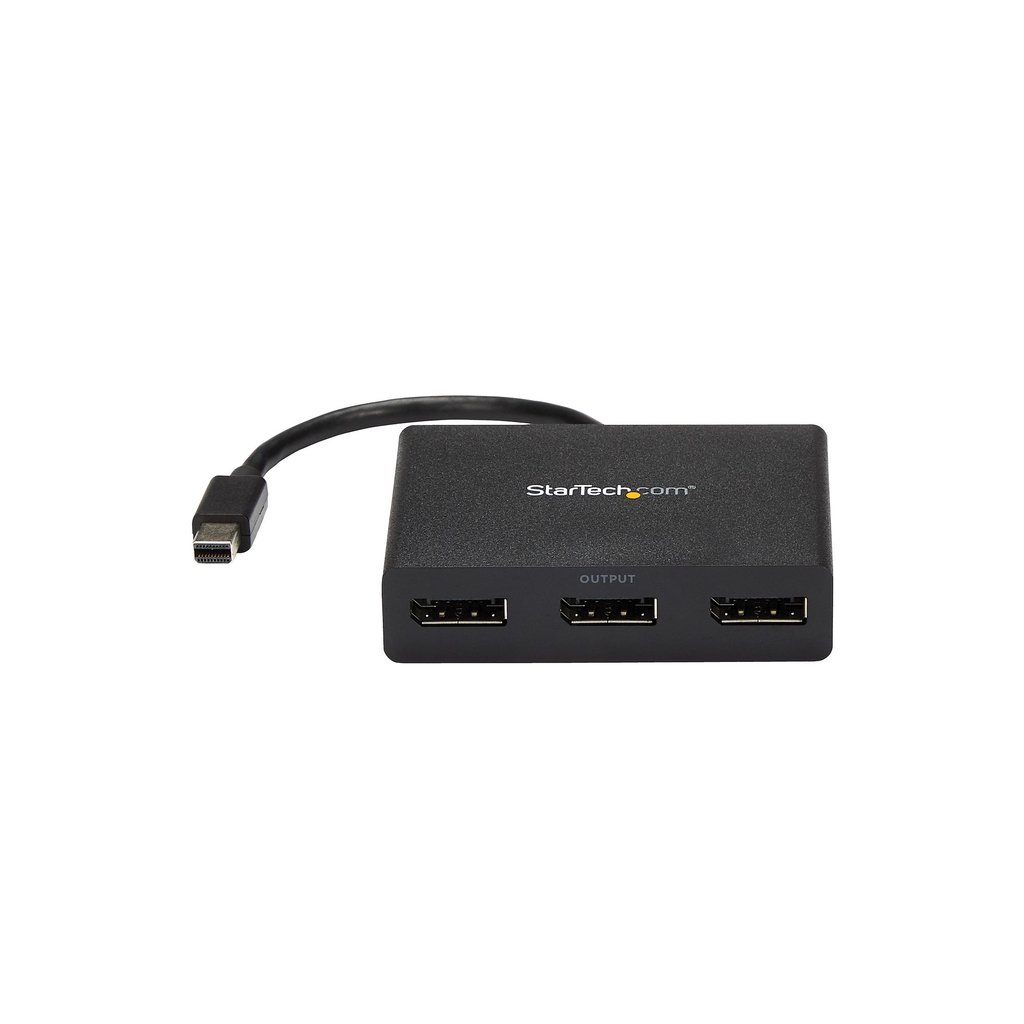

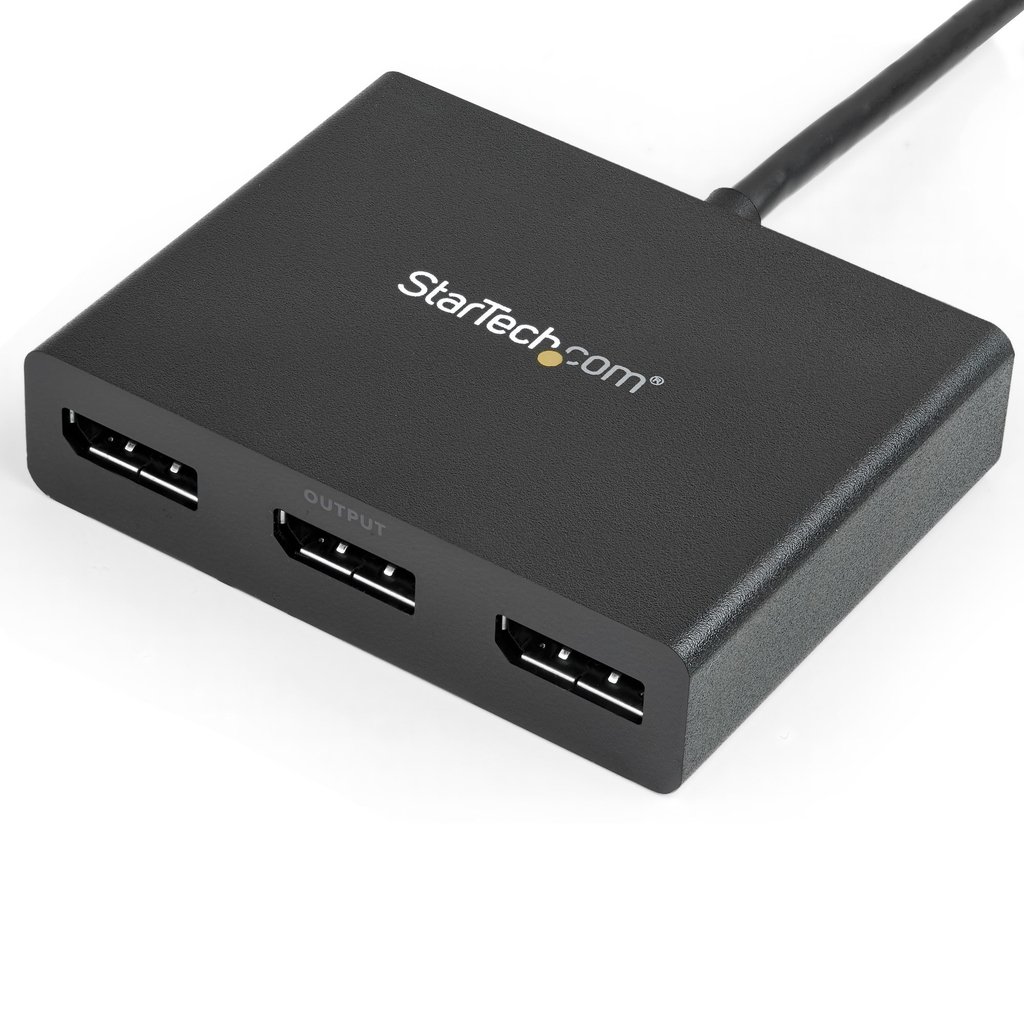

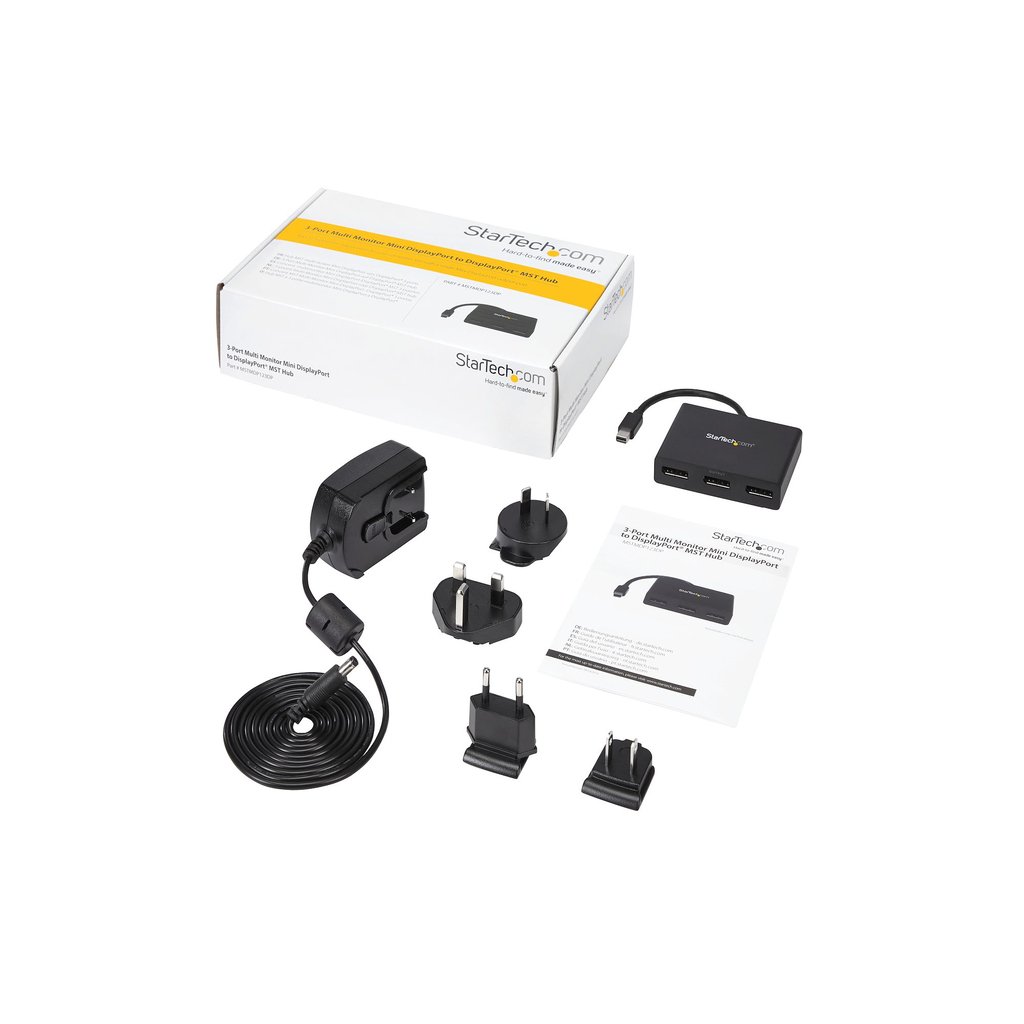

StarTech.com 3-Port Multi Monitor Adapter – Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p – Video Splitter for Extended Desktop Mode on Windows Only – mDP 1.2 to 3x DP (MSTMDP123DP)

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: MSTMDP123DP
Brand:

Description

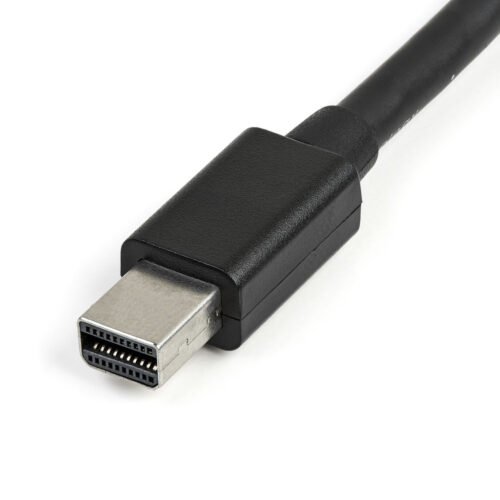

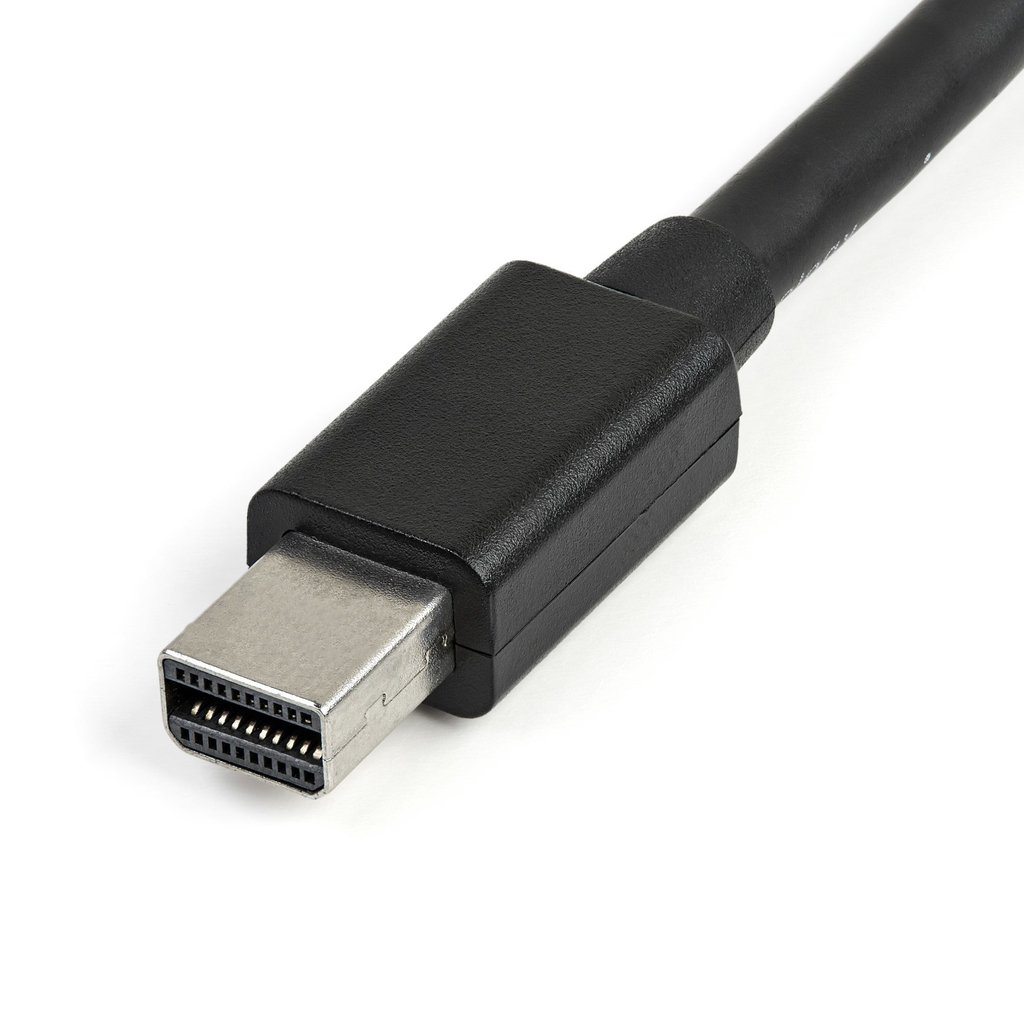

Use this adapter to connect three independent displays to a single mDP 1.2 port

This MST hub lets you connect three DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.

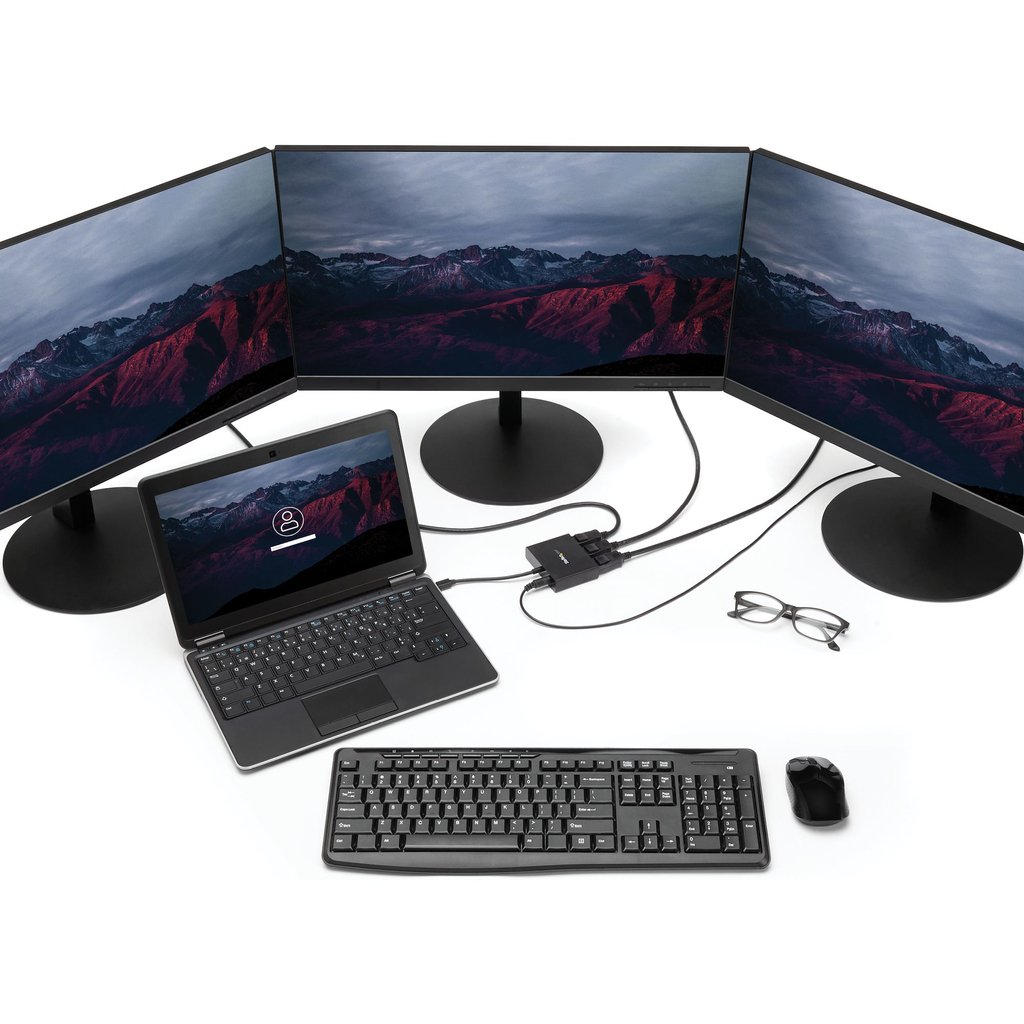

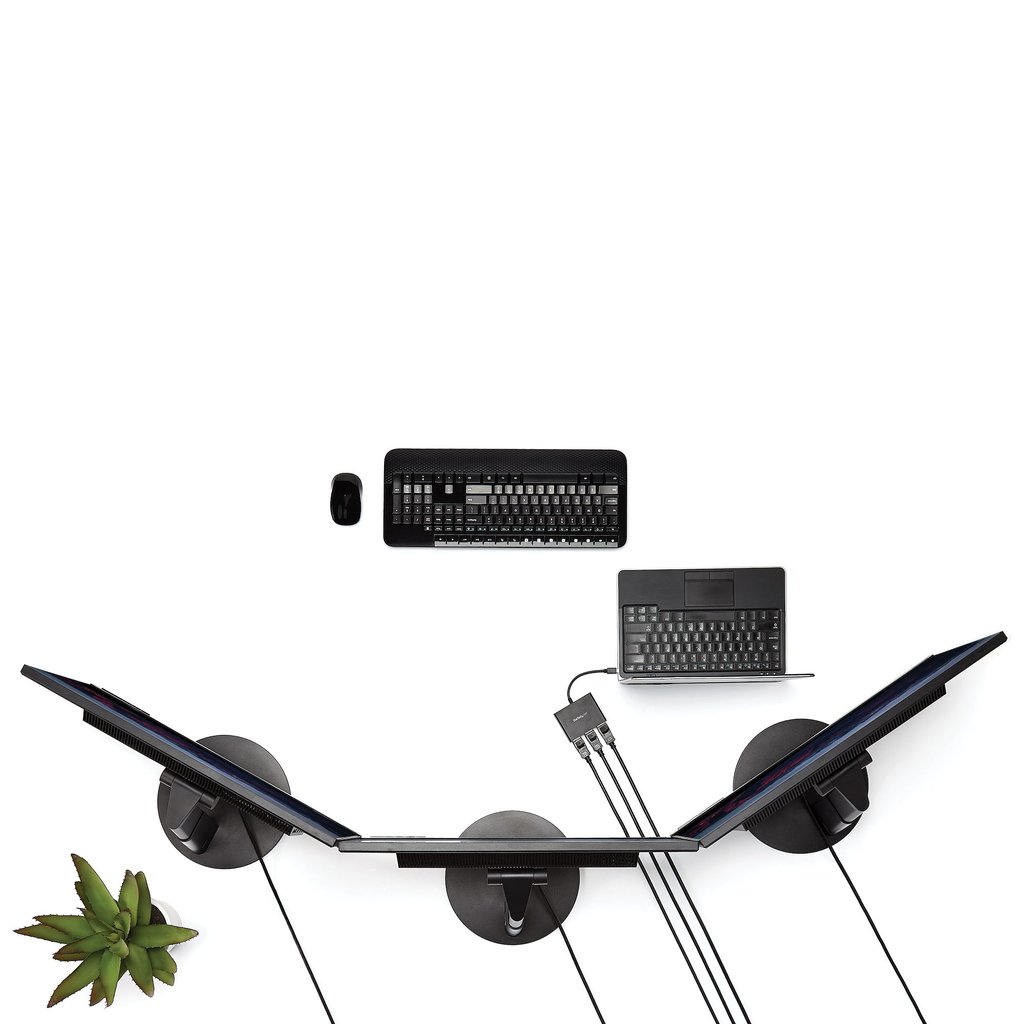

Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity – perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

Works with any monitor, television or projector

With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

The MSTMDP123DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Weight 0.43 lbs
Video ports quantity

3

Video port type

Mini DisplayPort

Maximum resolution

3840 x 2160 pixels

Product colour

Black

Package width

228 mm

Package depth

155 mm

Package height

55 mm

Package weight

400 g

Video out

3x DisplayPort

Supported graphics resolutions

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160

AC input voltage

110 – 240 V

Weight

87 g

Manual

Yes

Harmonized System (HS) code

85176990

Output voltage

5 V

Output current

3 A

Width

78 mm

Depth

386 mm

Height

20 mm

AC adapter included

Yes

Operating temperature (T-T)

0 – 45 °C

Storage temperature (T-T)

-20 – 70 °C

Cable length

0.19 m

Housing material

Plastic

Plug and Play

Yes

Input current

0.5 A

Power consumption (typical)

15 W

Compliance certificates

RoHS

Master (outer) case width

337 mm

Master (outer) case length

496 mm

Master (outer) case height

224 mm

Products per master (outer) case

10 pc(s)

Certification

CE, FCC, RoHS

Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Window

Included power plug types

AU, EU, NA, UK
