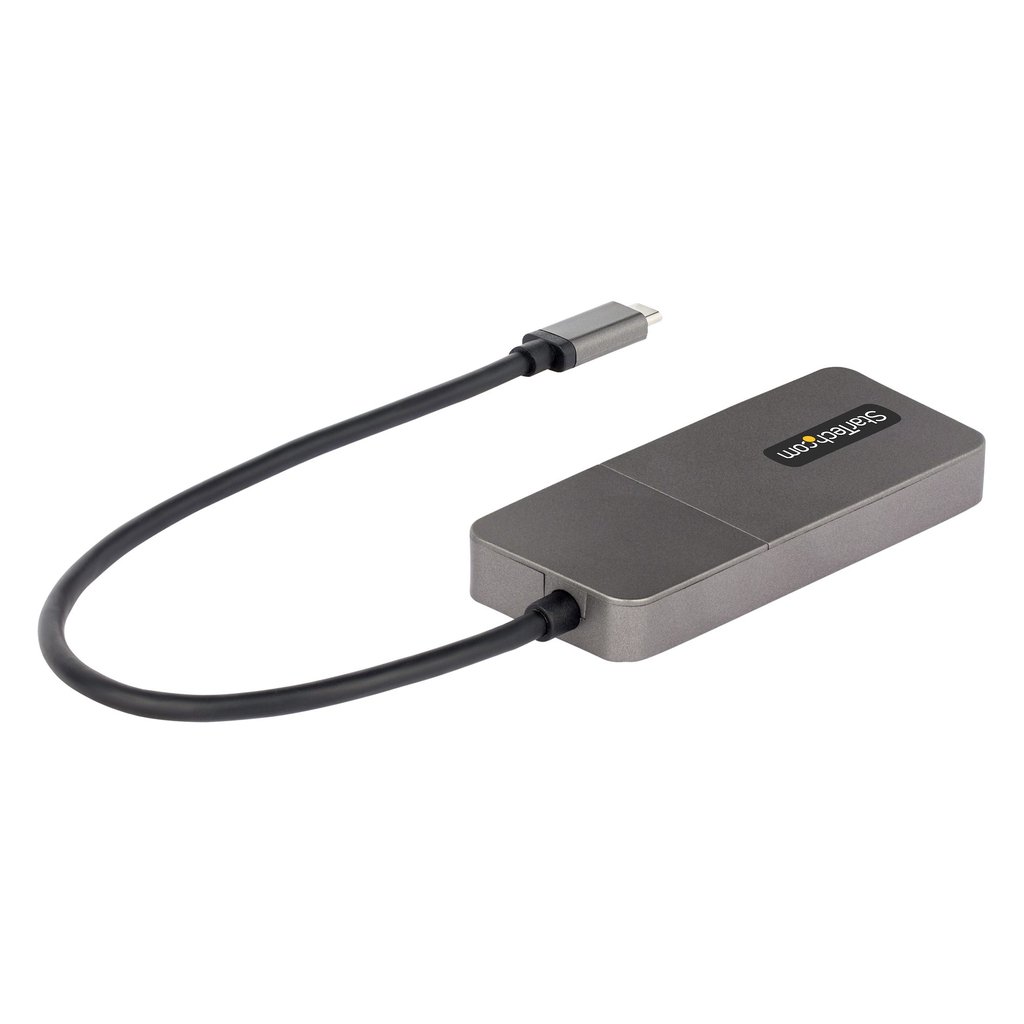

StarTech.com 3-Port USB-C MST Hub – USB Type-C to 3x HDMI Multi-Monitor Adapter for Laptop – Triple HDMI up to 4K 60Hz with DP
StarTech.com 3-Port USB-C to HDMI MST Hub – USB Type-C Multi Monitor Adapter for Laptop – Triple HDMI up to 4K 60Hz with DP 1.4 Alt Mode & DSC – HDR – 1ft Long Cable – Windows Only (MST14CD123HD)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors
This USB-C to HDMI MST Hub enables a connection to three HDMI monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.

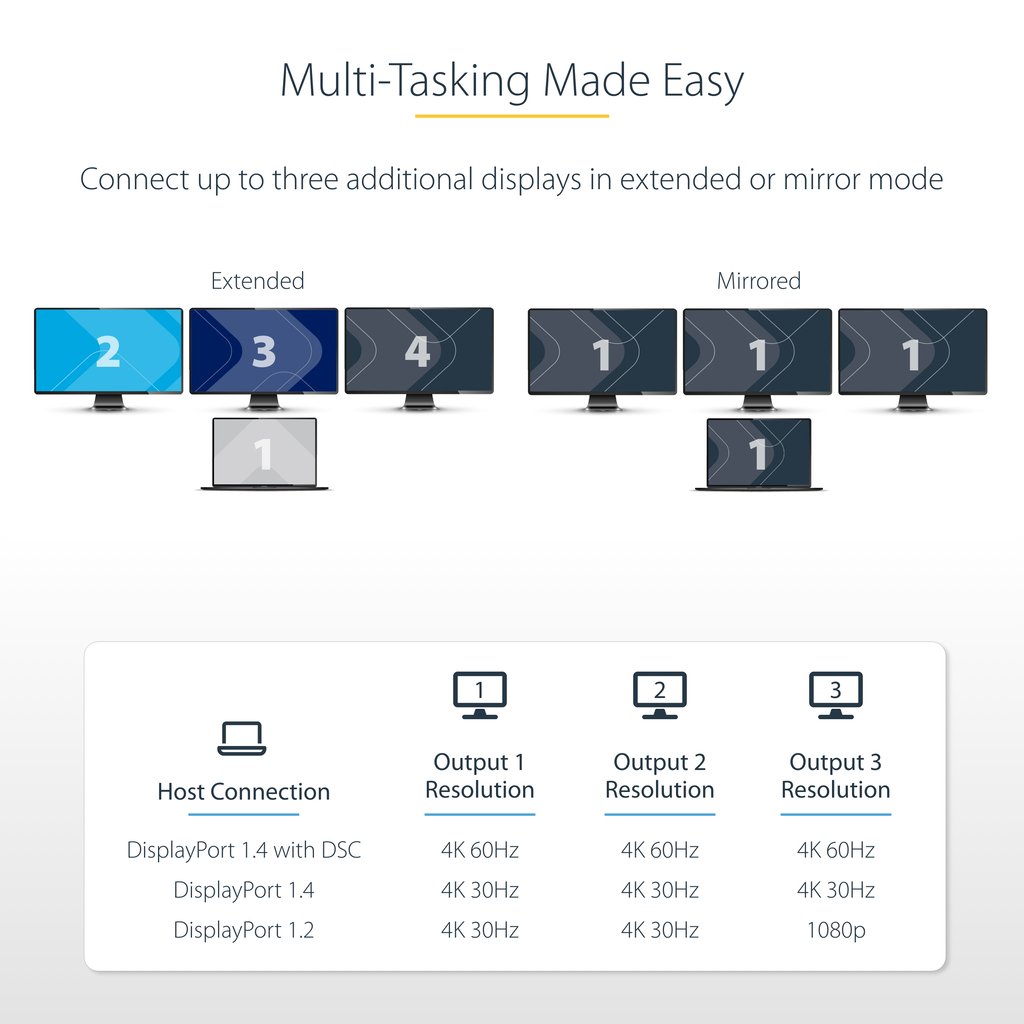

Multi-Tasking Made Easy
Configure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.
Host Connection
Max Resolution
Output 1
Max Resolution
Output 2
Max Resolution
Output 3
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
4K 60Hz
*Some Intel 11th Gen
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU’s that support DSC
DisplayPort 1.4
4K 30Hz
4K 30Hz
4K 30Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU’s that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
1080p
Intel 8th – 10th Gen Processors & Later
*Please verify the GPU capabilities and DSC for MST driver support with the OEM of the host device

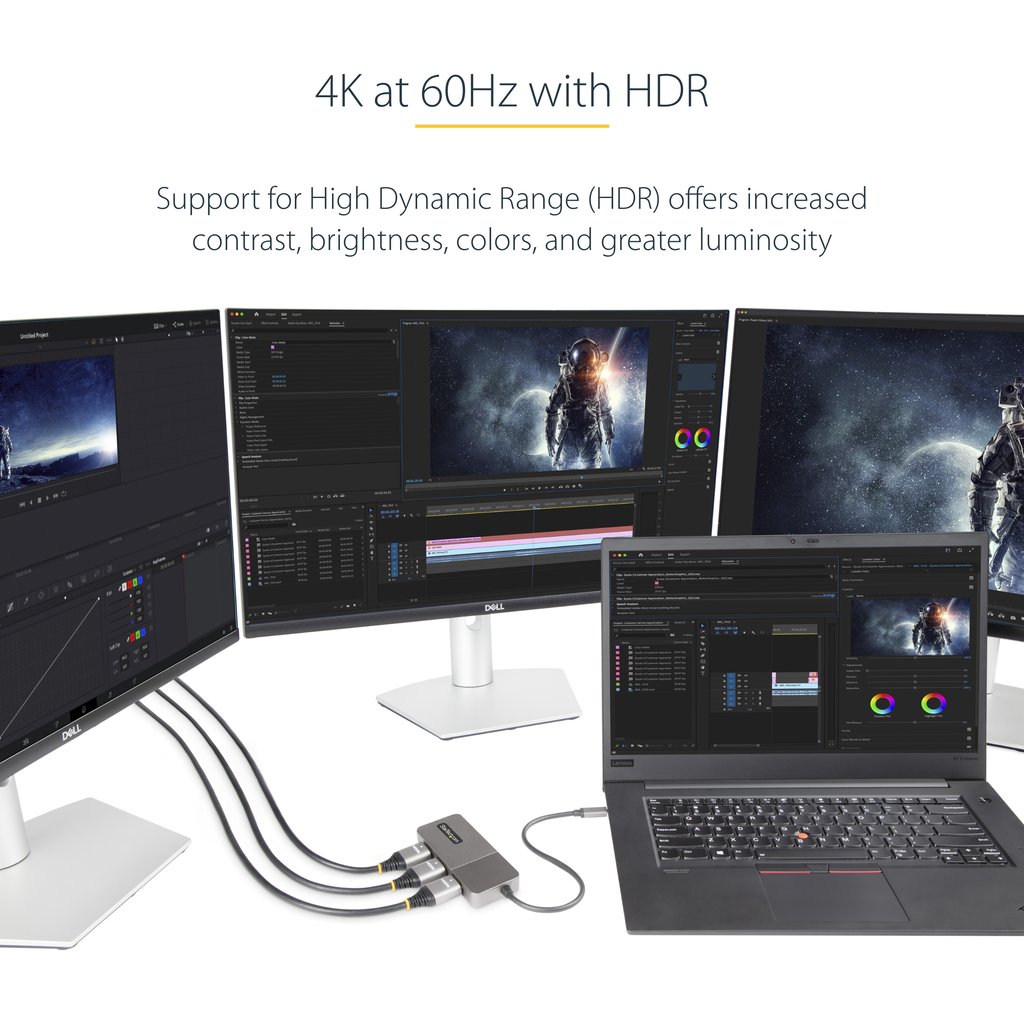

4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into three independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

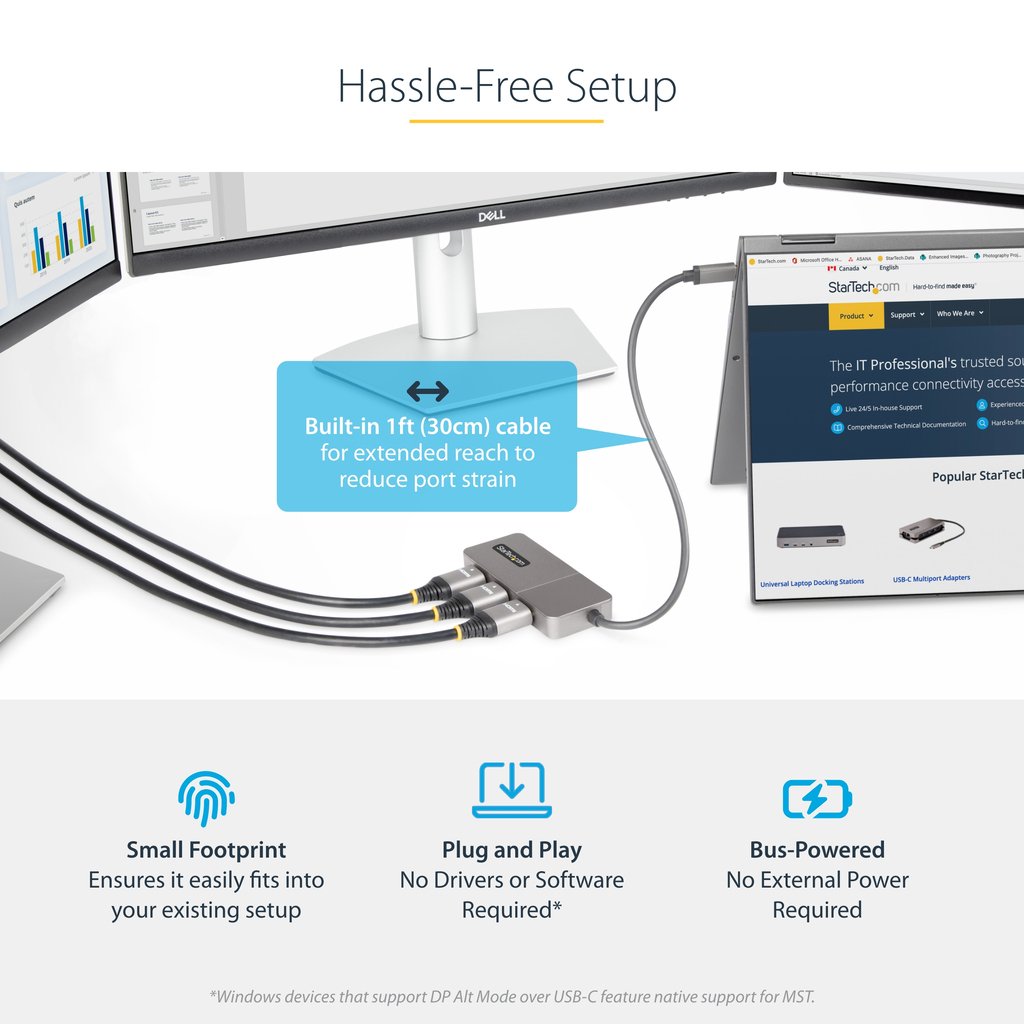

Hassle-Free Setup

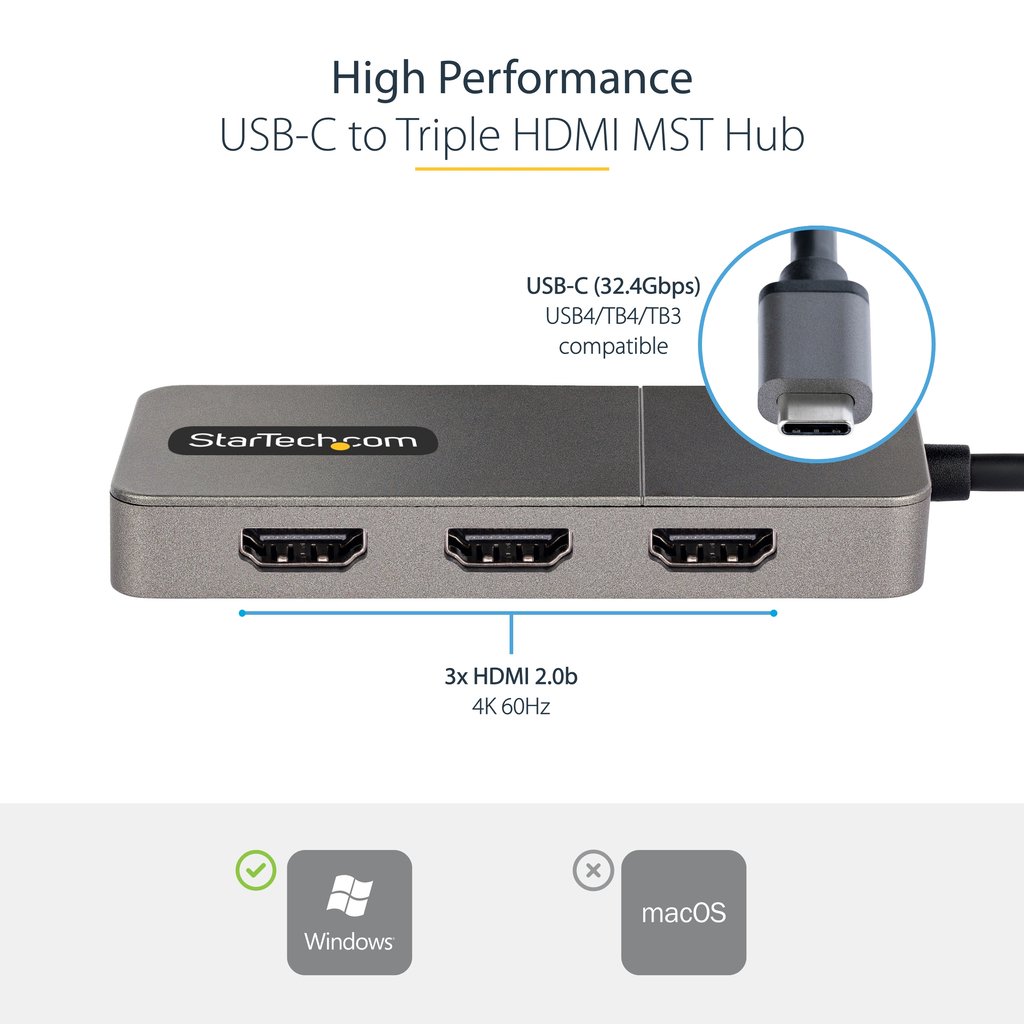

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.
This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Additional information
| Weight | 0.12 lbs |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Product colour | Grey |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Compliance certificates | CE, RoHS |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 3 |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| High Dynamic Range (HDR) supported | Yes |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | Synaptics VMM5310 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |

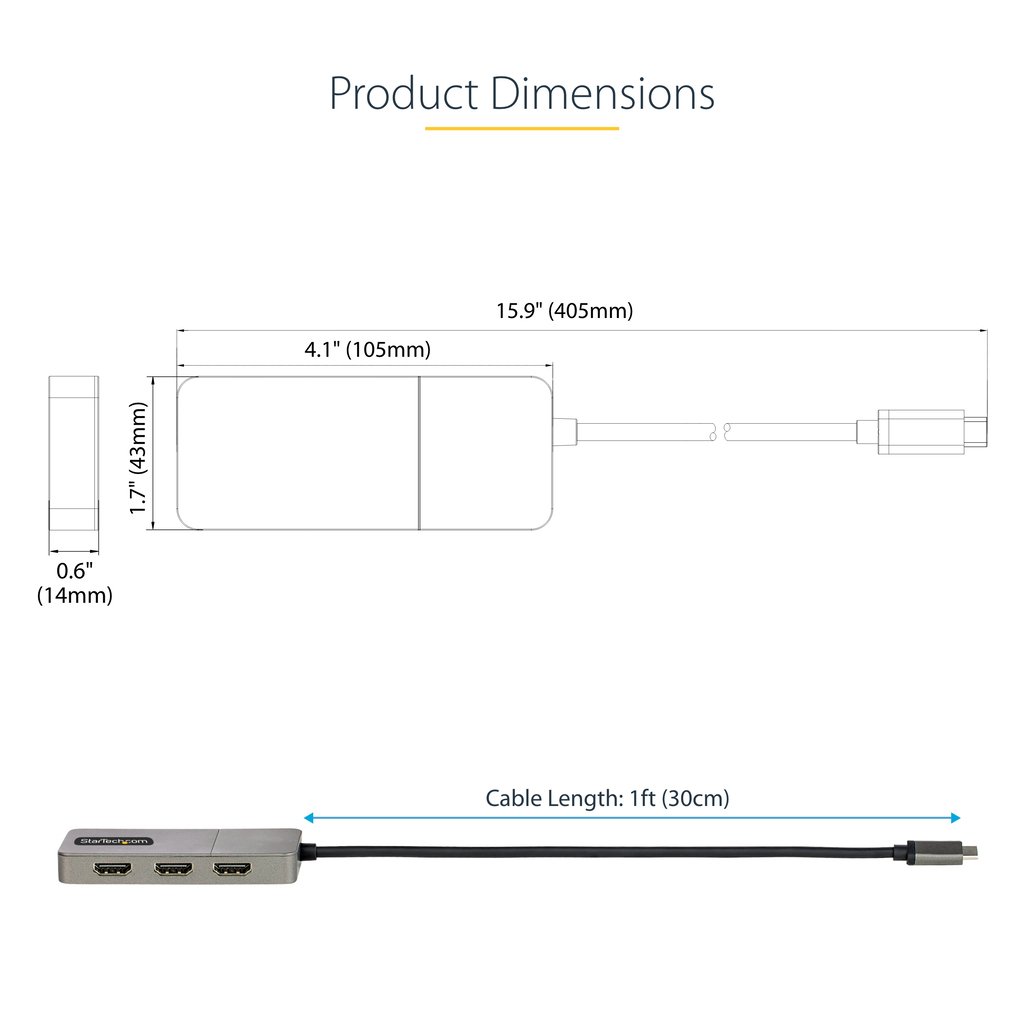

| Width | 43 mm |
| Depth | 105 mm |
| Height | 14 mm |
| Weight | 72 g |
| USB cable length | 0.3 m |
| Operating relative humidity (H-H) | 0 – 85% |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 124 g |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
| Housing material | Plastic |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Sustainability compliance | Yes |
