StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video – 330ft (100m)
StarTech.com 330ft (100m) USB HDMI over CAT5e / CAT6 KVM Extender – 1080p Uncompressed HD Video – IT Grade KVM Console Extender for PC (SV565UTPHDU)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

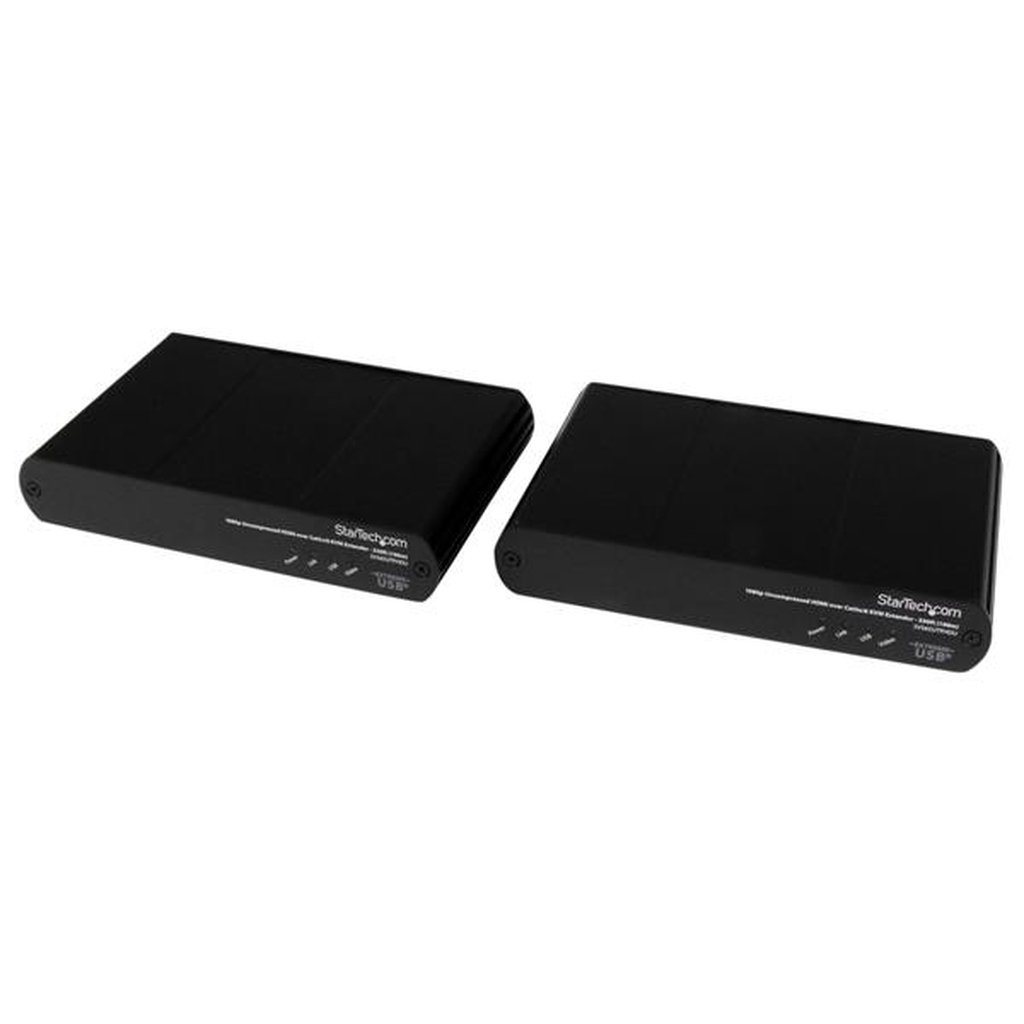

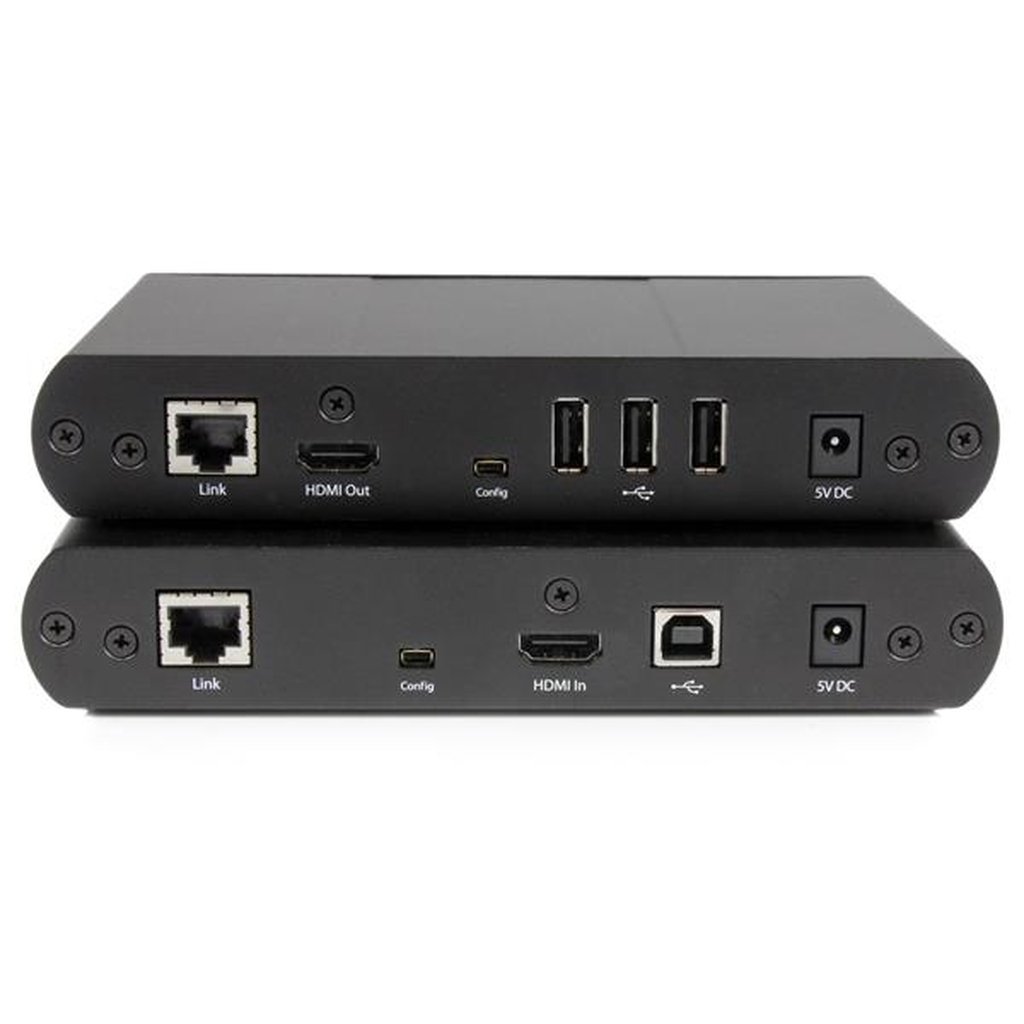

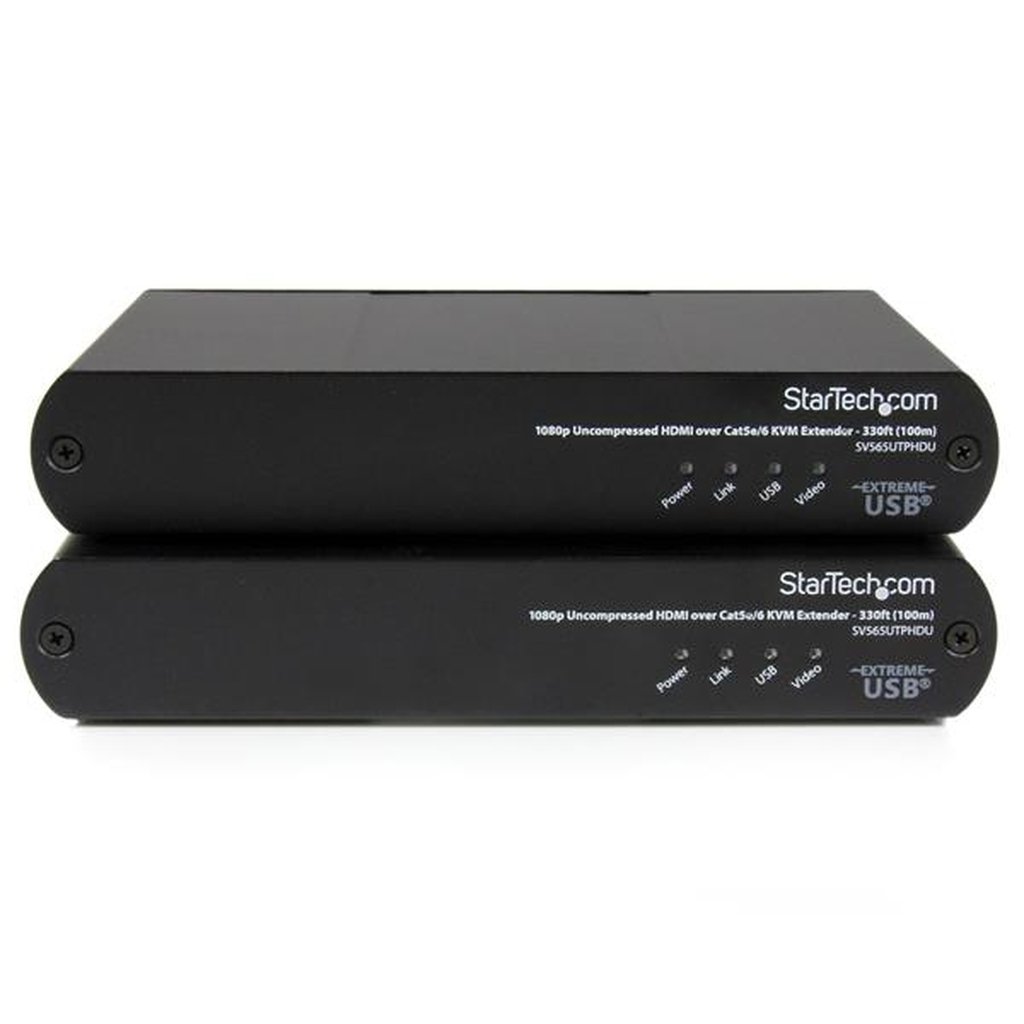

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920×1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.
This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Power a large HDMI display from a distance with uncompressed 1080p video
– Operate a single system or KVM switch remotely through KVM console extension
– Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling
Additional information
| Weight | 2.998 lbs |
|---|---|
| Type | AV transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Rack mounting | No |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Material | Aluminium |
| Transmitter video port type | HDMI |
| Receiver local video port type | HDMI |
| AC input voltage | 100-240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 3 A |
| Power consumption (transmitter) (max) | 15 W |
| Power consumption (receiver) (max) | 15 W |
| Package width | 214 mm |
| Package depth | 375 mm |
| Package height | 103 mm |
| Package weight | 2.46 kg |
| AC adapter included | Yes |

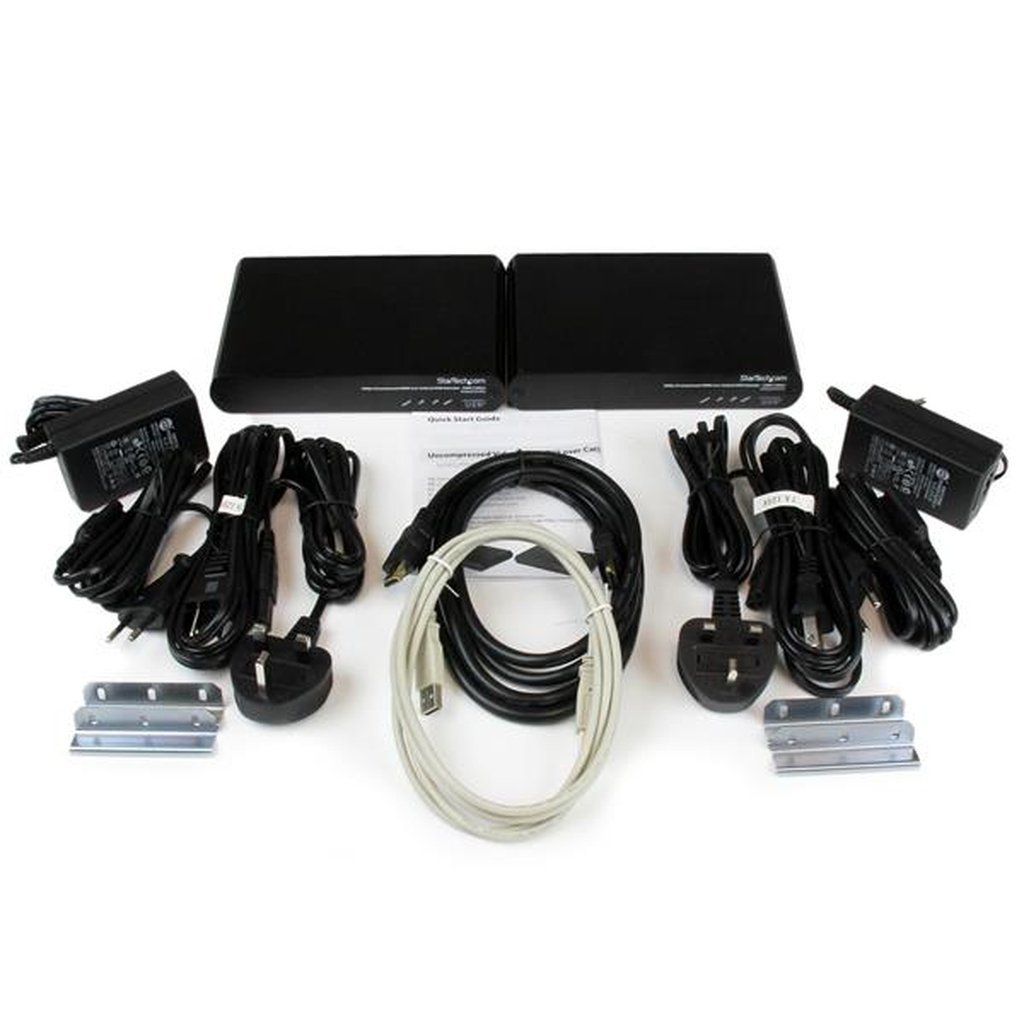

| Cables included | AC, HDMI, USB |
| Quick installation guide | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Weight | 847 g |
| Harmonized System (HS) code | 84733080 |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS, UL |
| Transmitter local keyboard/mouse port type | USB |
| AC input frequency | 50 – 60 Hz |
| Dimensions (WxDxH) | 112 x 175 x 30 mm |
