StarTech.com 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639)
StarTech.com 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) NVMe SSDs, Includes Mini-SAS HD Cables/Removeable Trays (4U2525-SAS-BACKPLANE)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive trays
This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design

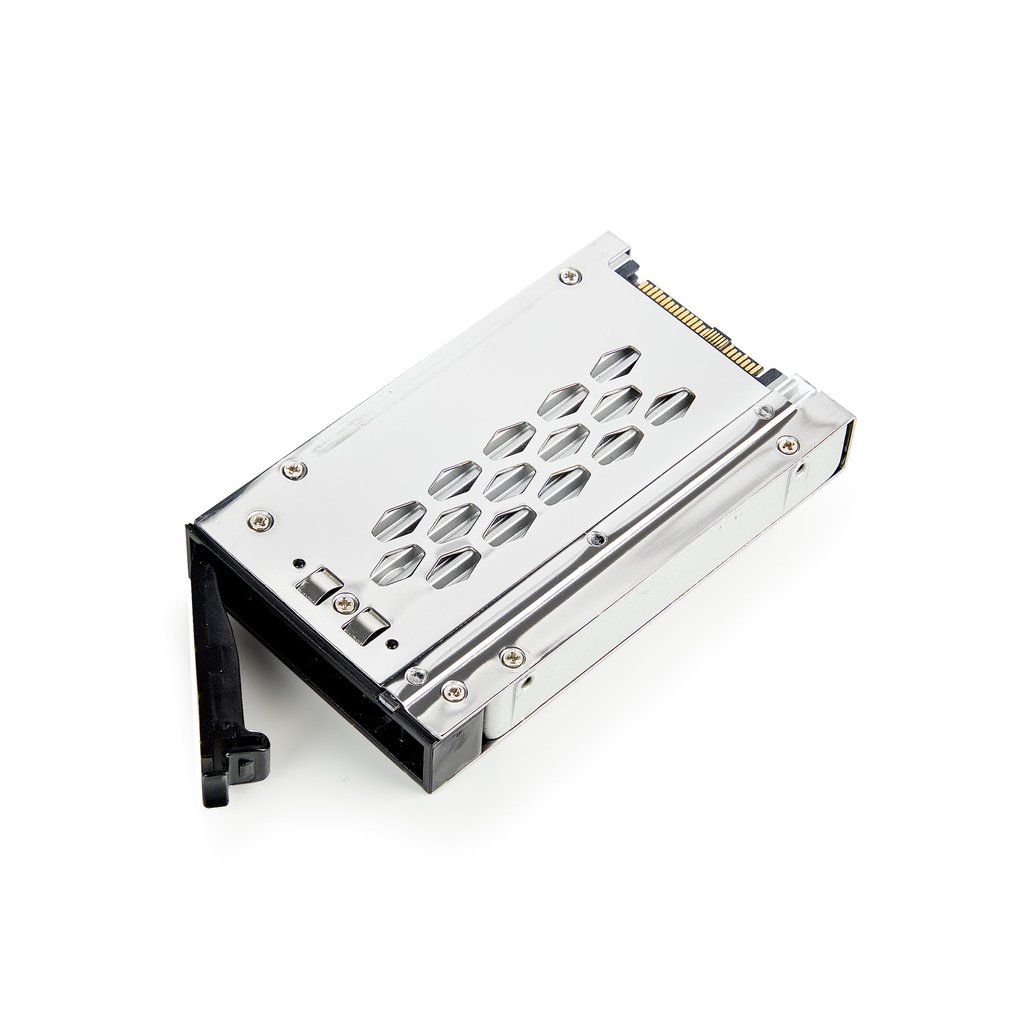

Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.
*Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented

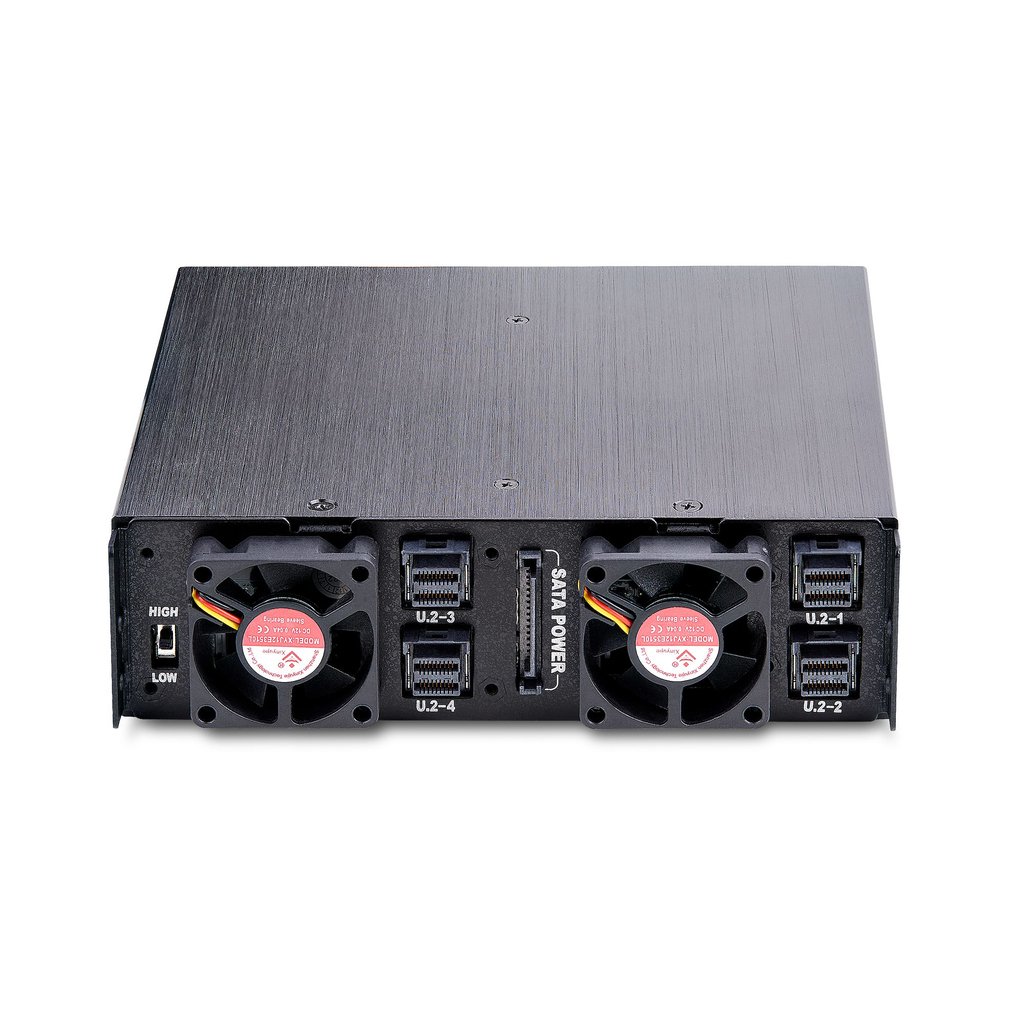

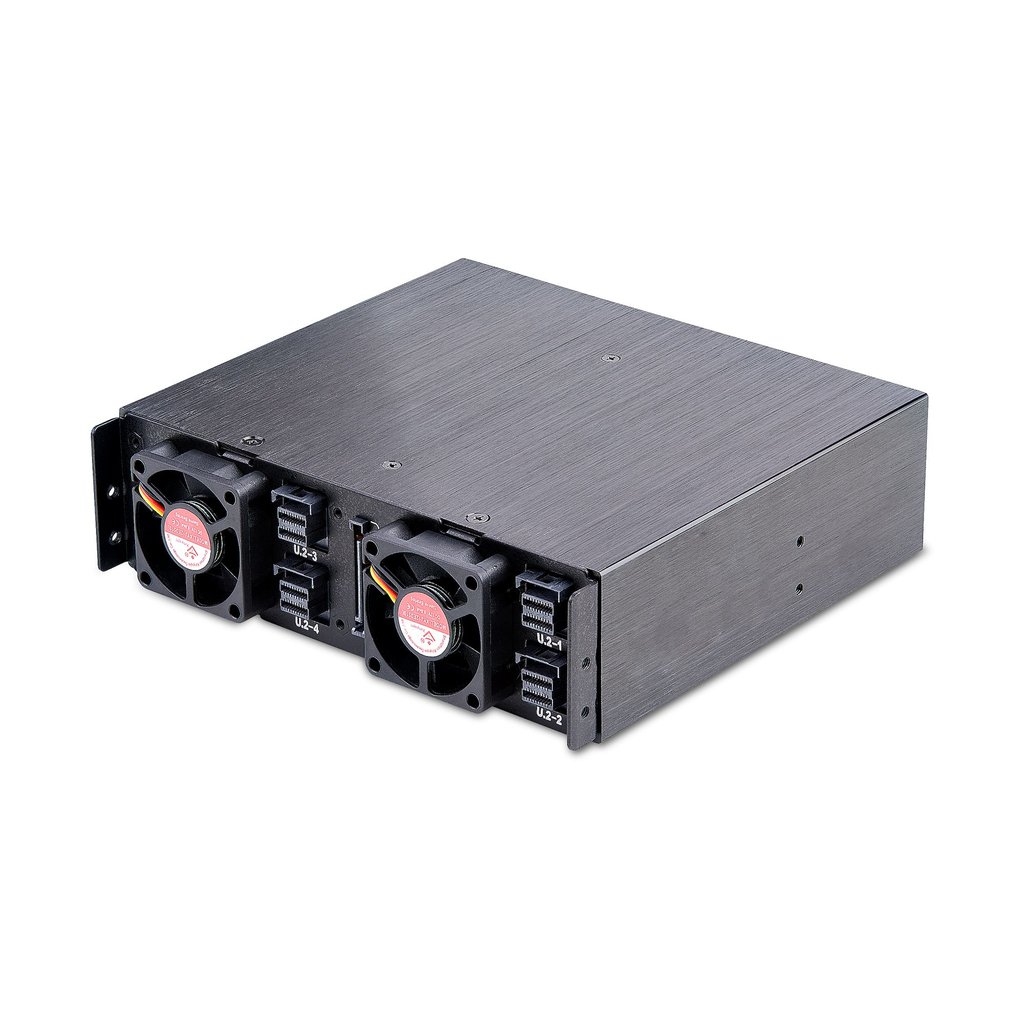

The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup

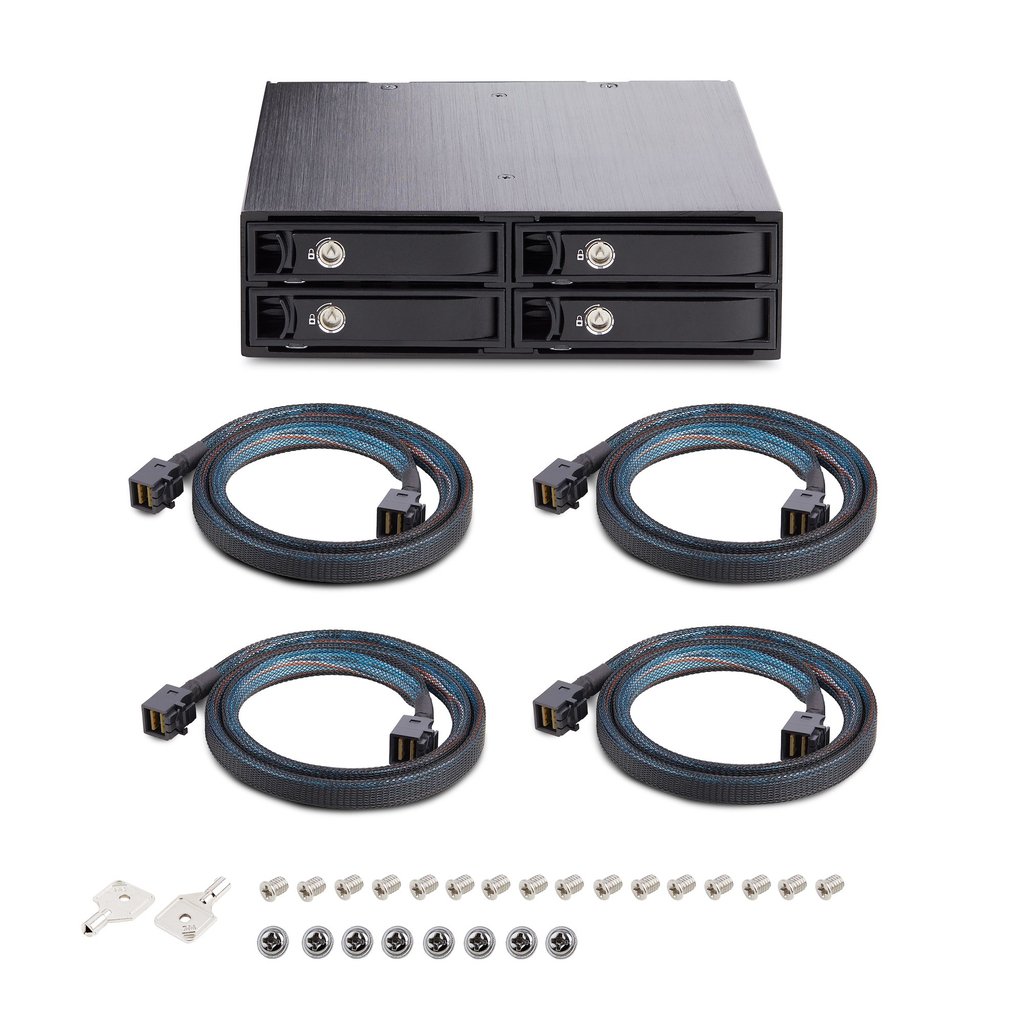

This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
The StarTech.com Advantage
Additional information
| Weight | 0.96 lbs |
|---|---|
| Type | Storage drive tray |
| Product colour | Black |
| Number of SSDs supported | 4 |
| SSD form factor | U.2 |
| Hot-swap | Yes |
| Number of fans | 2 fan(s) |
| Data transfer rate | 32 Gbit/s |
| LED indicators | Yes |
| Key lock | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Package width | 212 mm |
| Package depth | 180 mm |
| Package height | 133 mm |
| Package weight | 1.1 kg |
| Quick start guide | Yes |
| Number of lock keys included | 2 pc(s) |
| Number of screws | 24 |
| Storage temperature (T-T) | 0 – 55 °C |
| Operating temperature (T-T) | -20 – 55 °C |
| Operating relative humidity (H-H) | 5 – 65% |
| Compliance certificates | RoHS |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 445 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 200 mm |
| Quantity per pack | 1 pc(s) |
| Size (imperial) | 13.3 cm (5.25") |
| Material | Aluminium |
| Number of cycles | 500 |
| Supported storage drive heights | 7,9.5,12.5,15 mm |
| Airflow (imperial) | 2.47 cfm |
| Noise level | 21.3 dB |
| Fan diameter | 3.5 cm |
| Bearing type | Sleeve bearing |
| Port multiplier | No |
| Cables included | MiniSAS |
| Screws included | Yes |
| Sustainability compliance | Yes |
