StarTech.com 4 Port DisplayPort KVM Switch – 4K 60Hz – Single Display – Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB
StarTech.com 4 Port DisplayPort KVM Switch – 4K 60Hz – Single Display – Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio – Dell, HP, Apple, Lenovo – TAA Compliant (SV431DPUA2)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

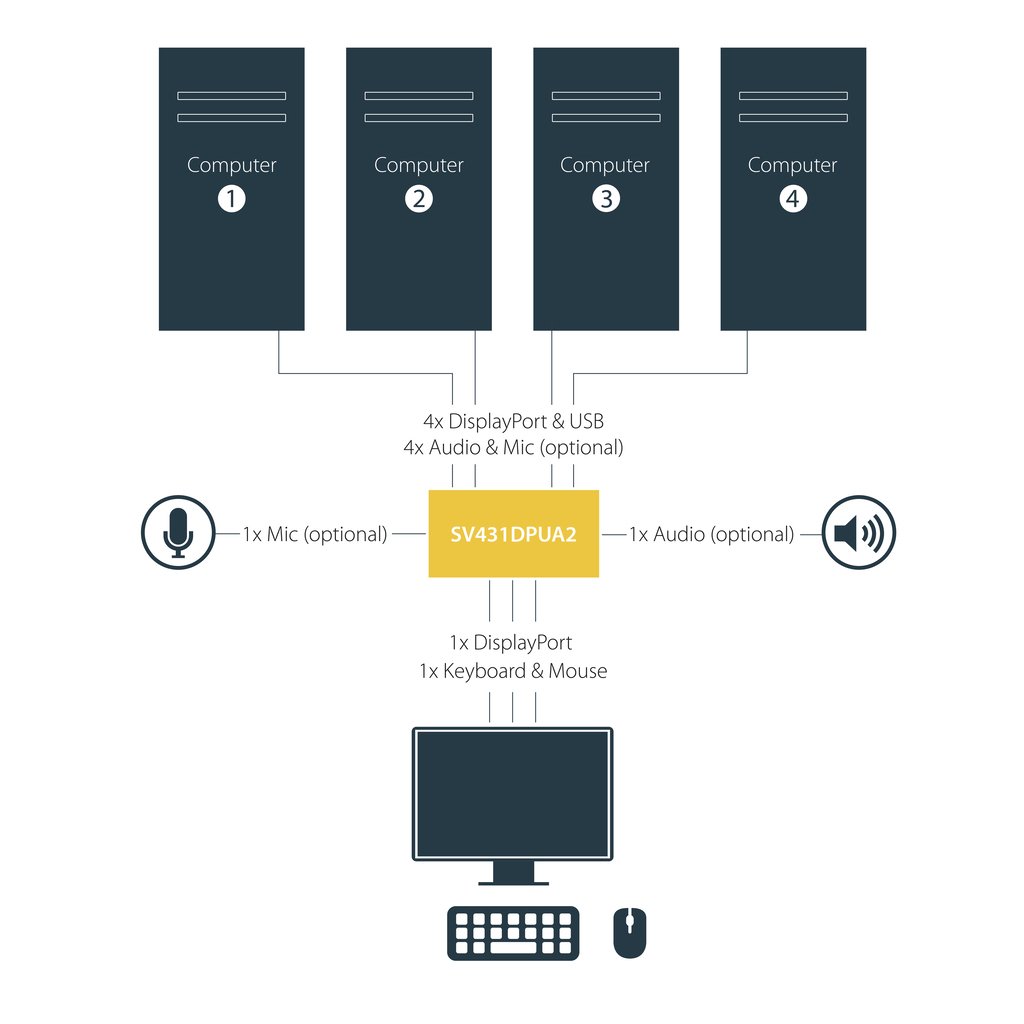

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate

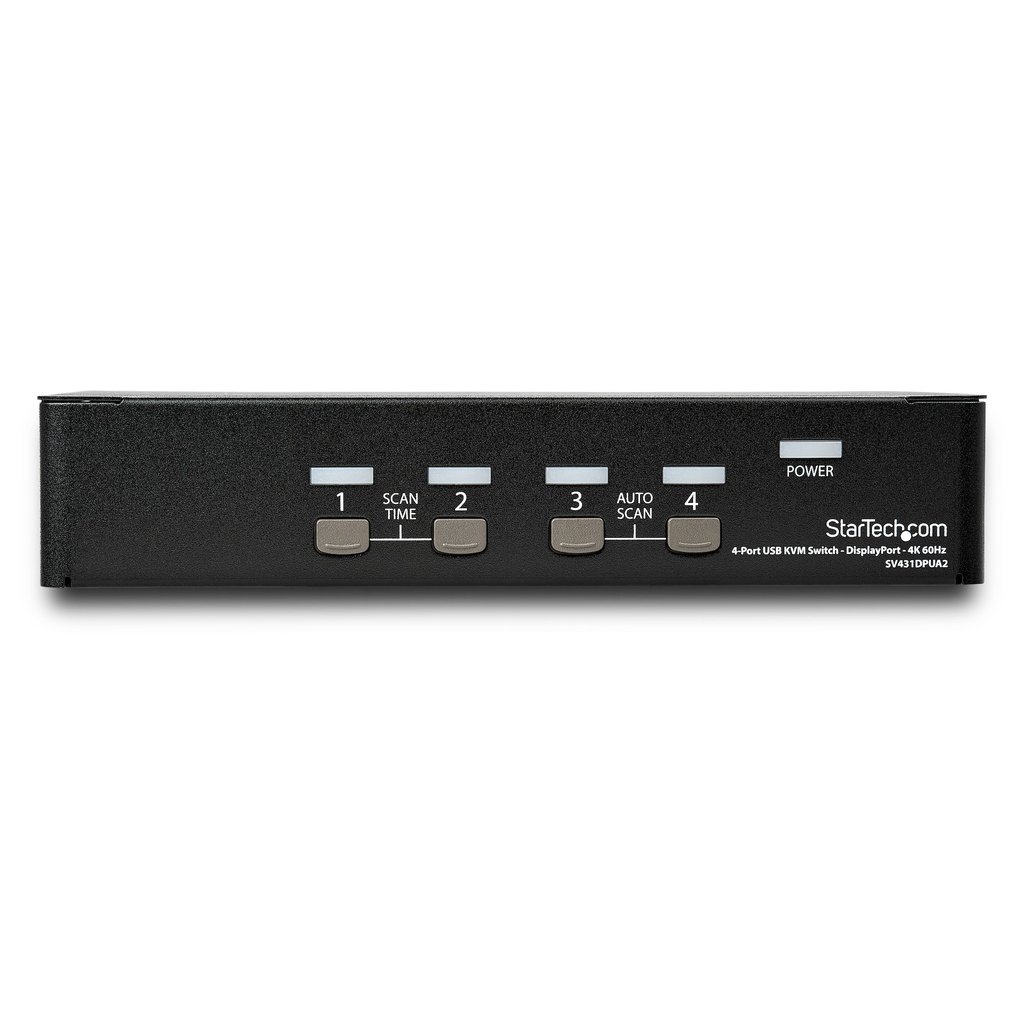

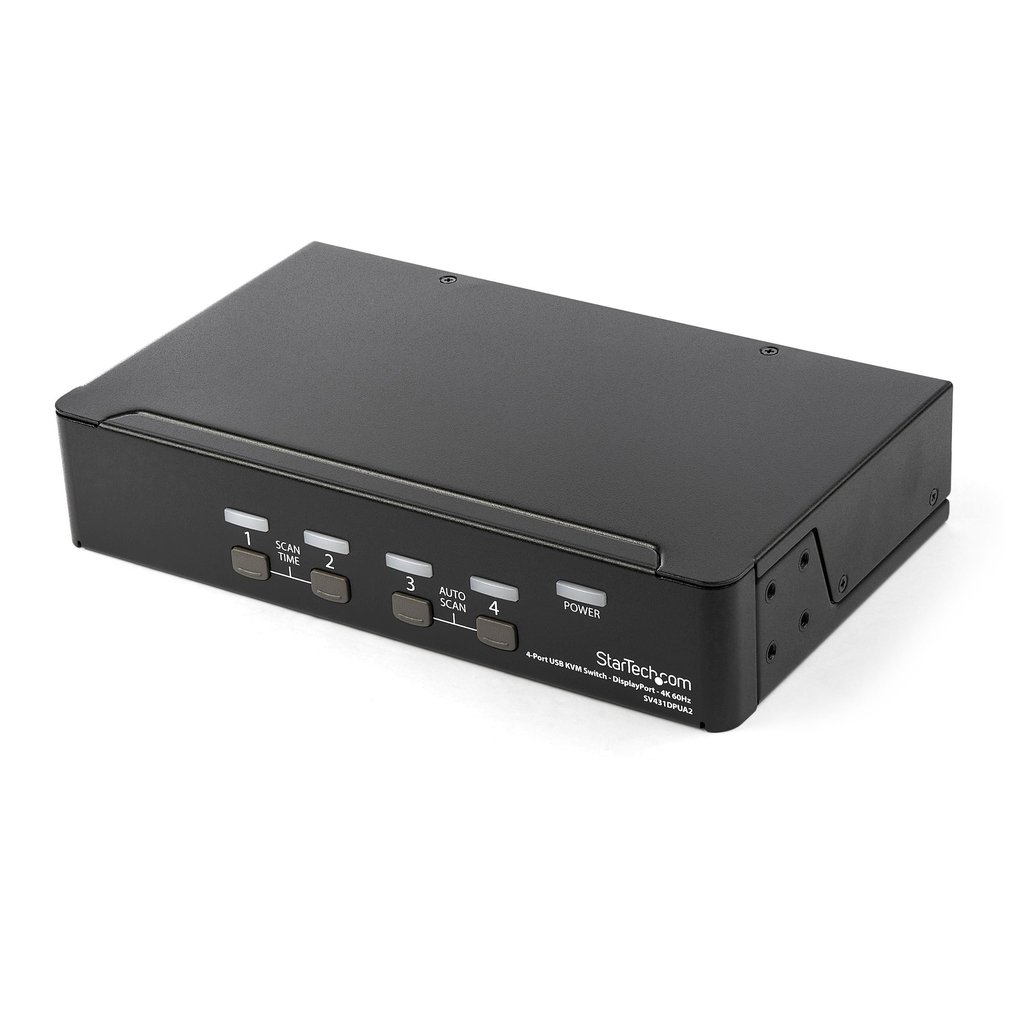

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 1.6 lbs |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |

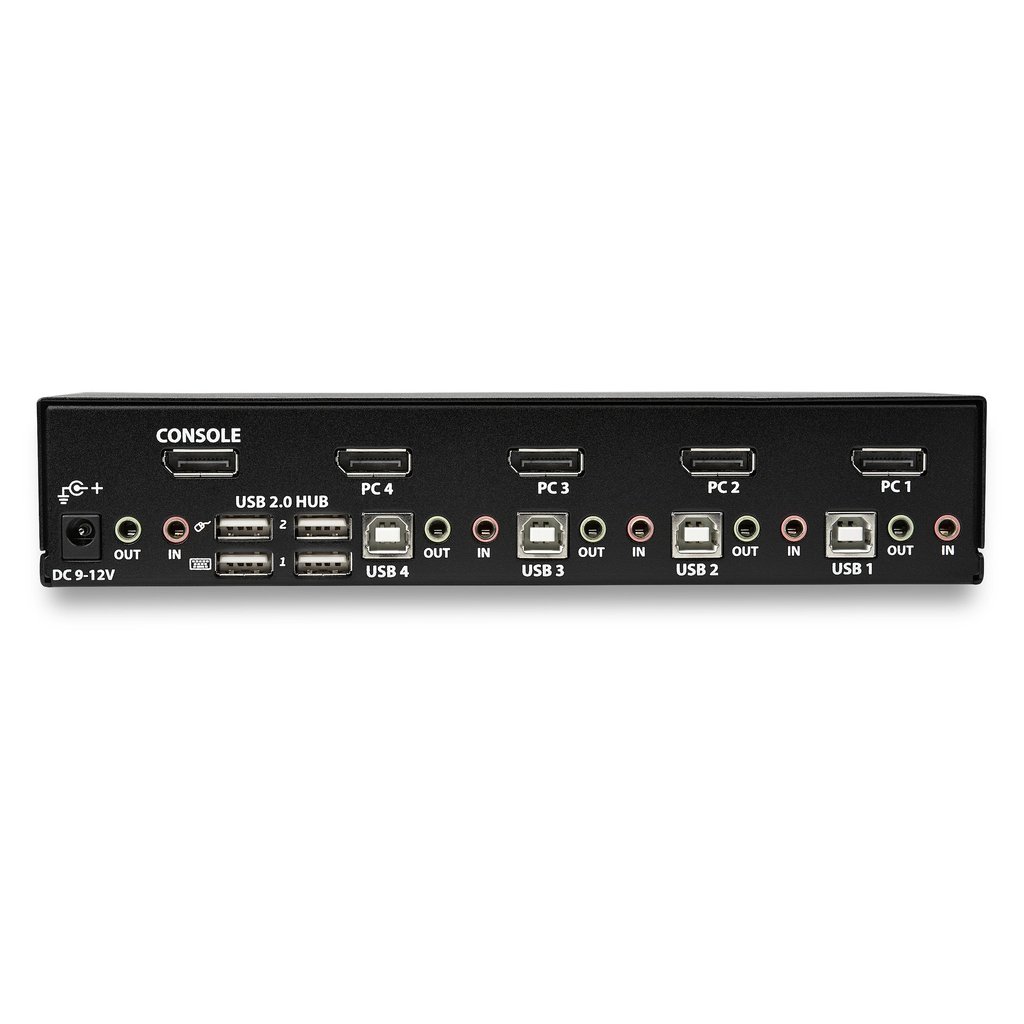

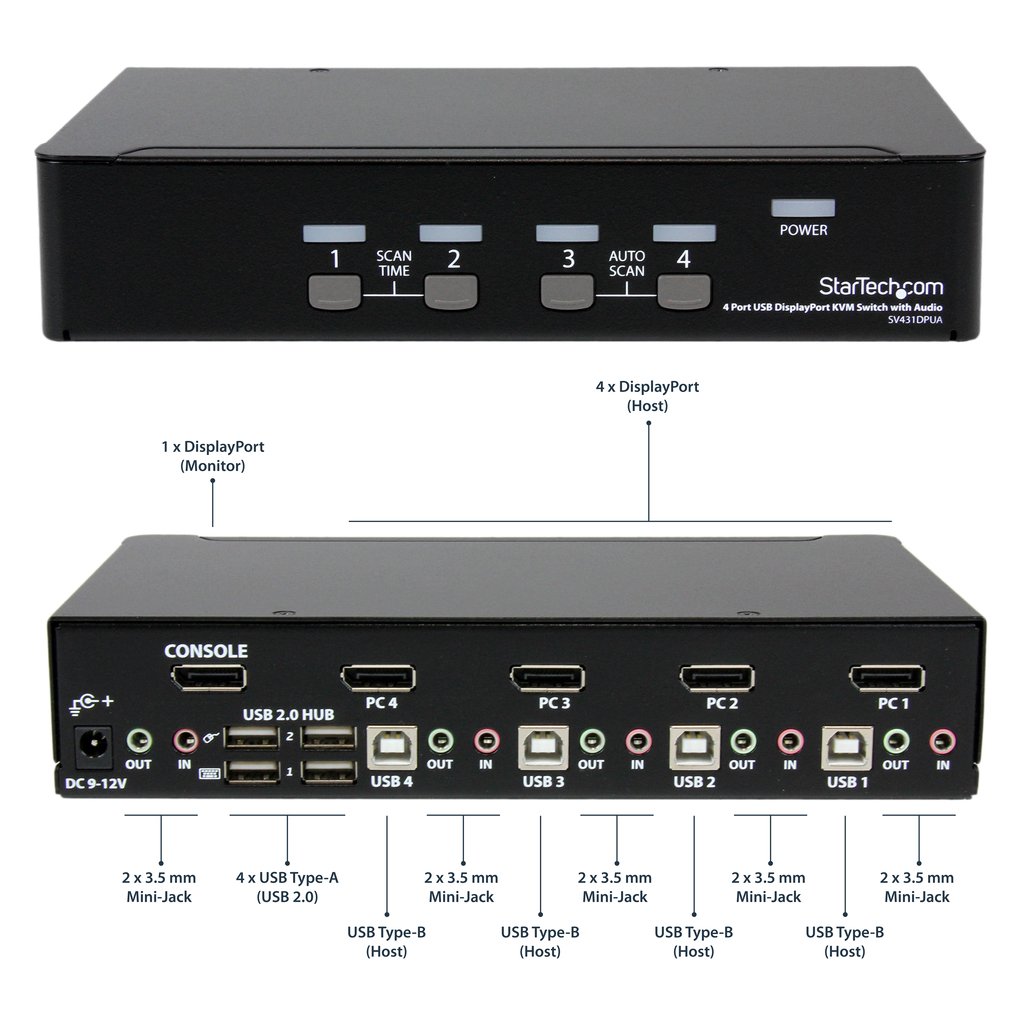

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| DisplayPorts quantity | 5 |
| Console USB ports quantity | 4 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 138327 h |
| On Screen Display (OSD) | Yes |
| Input voltage | 100 – 240 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 40% |

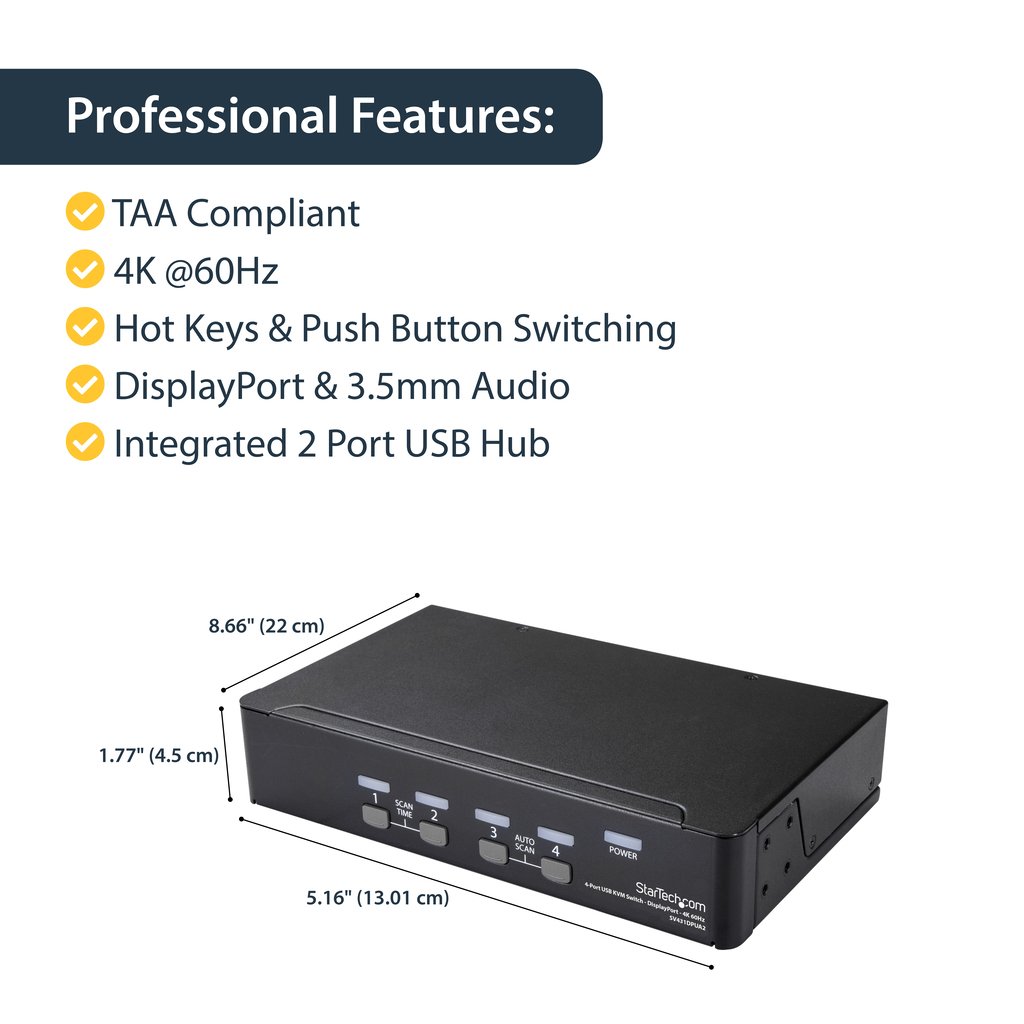

| Width | 131 mm |
| Depth | 220 mm |
| Height | 45 mm |
| Weight | 1 kg |
| Package width | 212 mm |
| Package depth | 409 mm |
| Package height | 87 mm |
| Package weight | 1.6 kg |

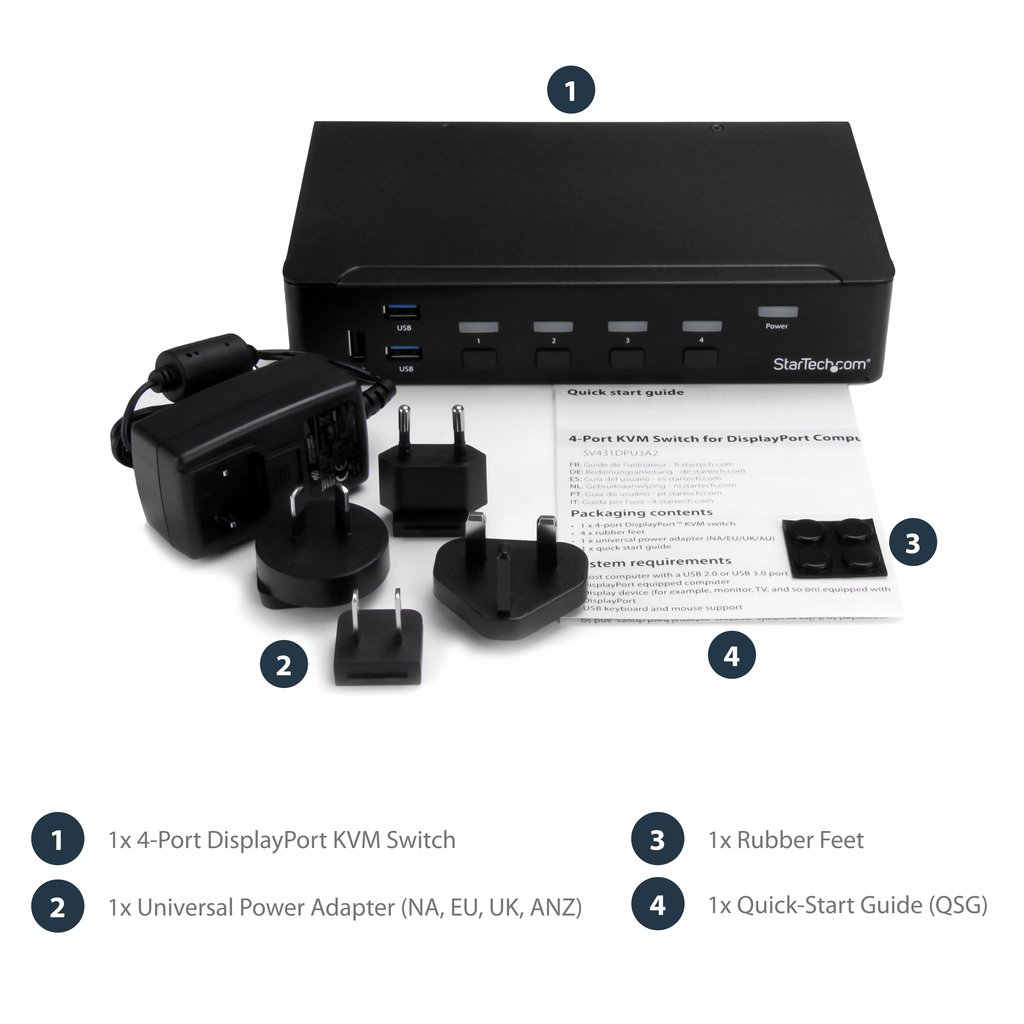

| Quick installation guide | Yes |
| Rubber feet | Yes |
| IP control | No |
| Master (outer) case width | 433 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 258 mm |
| Products per master (outer) case | 6 pc(s) |
| Number of microphone inputs | 5 |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Rack capacity | 1U |
| Output voltage | 12 V |
| External power adapter | Yes |

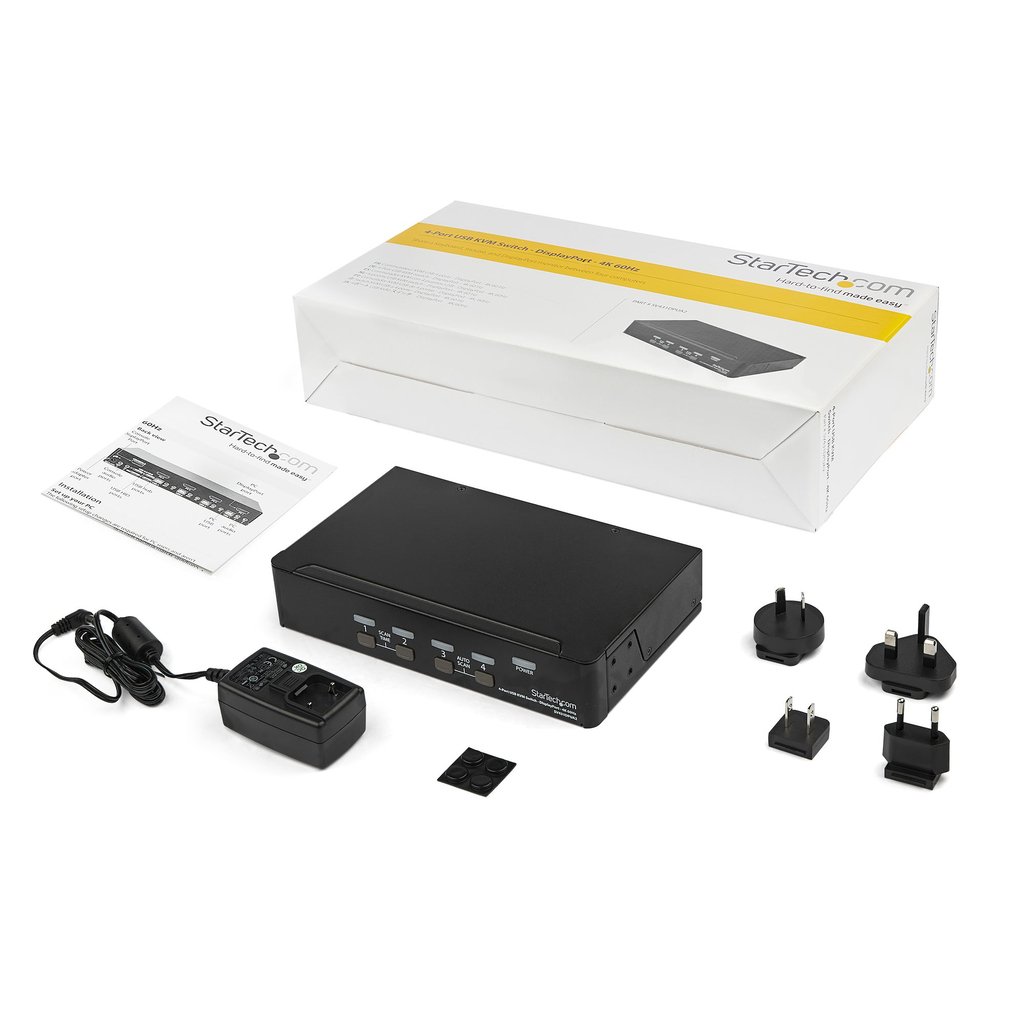

| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
| Ethernet LAN | No |
| Certification | CE, FCC, TAA, REACH |
| Audio support | Yes |
| USB 2.0 Type-B ports quantity | 4 |
