StarTech.com 4-Port Gigabit Midspan – PoE+ Injector – 802.3at/af

In Stock

StarTech.com 4 Port Gigabit Midspan – PoE+ Injector – 802.3at and 802.3af – Wall-mountable Power over Ethernet Midspan

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: POEINJ4G
Brand:

Description

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.

More power, with less cost and hassle

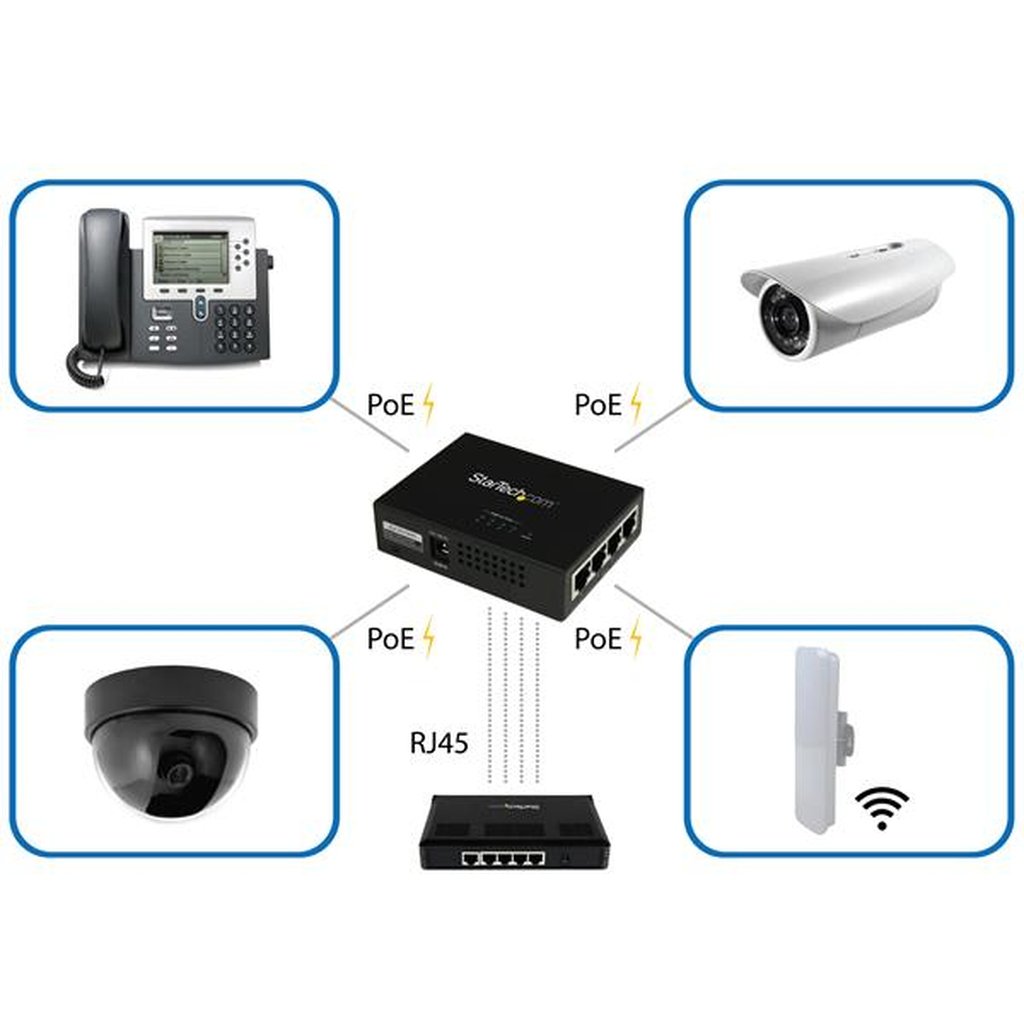

This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Additional information

Weight 1.6 lbs
Type

Network transmitter

Maximum transfer distance

100 m

Data transfer rate

2000 Mbit/s

Auto MDIX IEEE

Yes

Auto-negotiation

Yes

Duplex system

Full

Mean time between failures (MTBF)

50000 h

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Power over Ethernet (PoE) ports quantity

4

Product colour

Black

Housing material

Steel

LED indicators

PoE, Power

Certification

CE, FCC

Power over Ethernet (PoE)

Yes

Power plug type

Type M

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-10 – 70 °C

Operating relative humidity (H-H)

5 – 95%

Width

70 mm

Depth

94 mm

Height

26 mm

Weight

204 g

Package width

180 mm

Package depth

305 mm

Package height

90 mm

Package weight

1.63 kg

Compliance certificates

RoHS

Harmonized System (HS) code

85176990

Cabling technology

10/100/1000Base-T(X)

Ethernet LAN (RJ-45) ports

8

Plug and Play

Yes

DC-in jack

Yes

Manual

Yes

AC input voltage

100 – 240 V

Power consumption (max)

120 W

AC adapter included

Yes

Output voltage

52 V

Output current

2.31 A

Cables included

AC
