StarTech.com 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio
StarTech.com 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio and USB 2.0 Hub
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Control up to 4 high resolution multimedia computers from a single console
The SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections.
Audio switching capability and support for high resolution dual link DVI applications up to 2560×1600 @ 60Hz (up to 3840×2400 at lower refresh rates), make this KVM a superior switching solution that integrates perfectly into multimedia environments.
The DVI USB KVM Switch is compatible with all USB supported operating systems with no software or drivers to install, and features a built-in USB 2.0 hub that allows you to share up to 3 high speed USB devices between computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Dual Link DVI interface supports higher resolution applications, allowing you to take full advantage of your larger high resolution monitor’s workspace
– Integrated USB 2.0 hub allows the user to have full multimedia control and share USB peripherals eliminating the expense of duplicate devices
– Supports even higher resolutions (exceeding 2560×1600) by using a lower refresh rate. Example 3840×2400 @30Hz
Additional information
| Weight | 1.24 lbs |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |

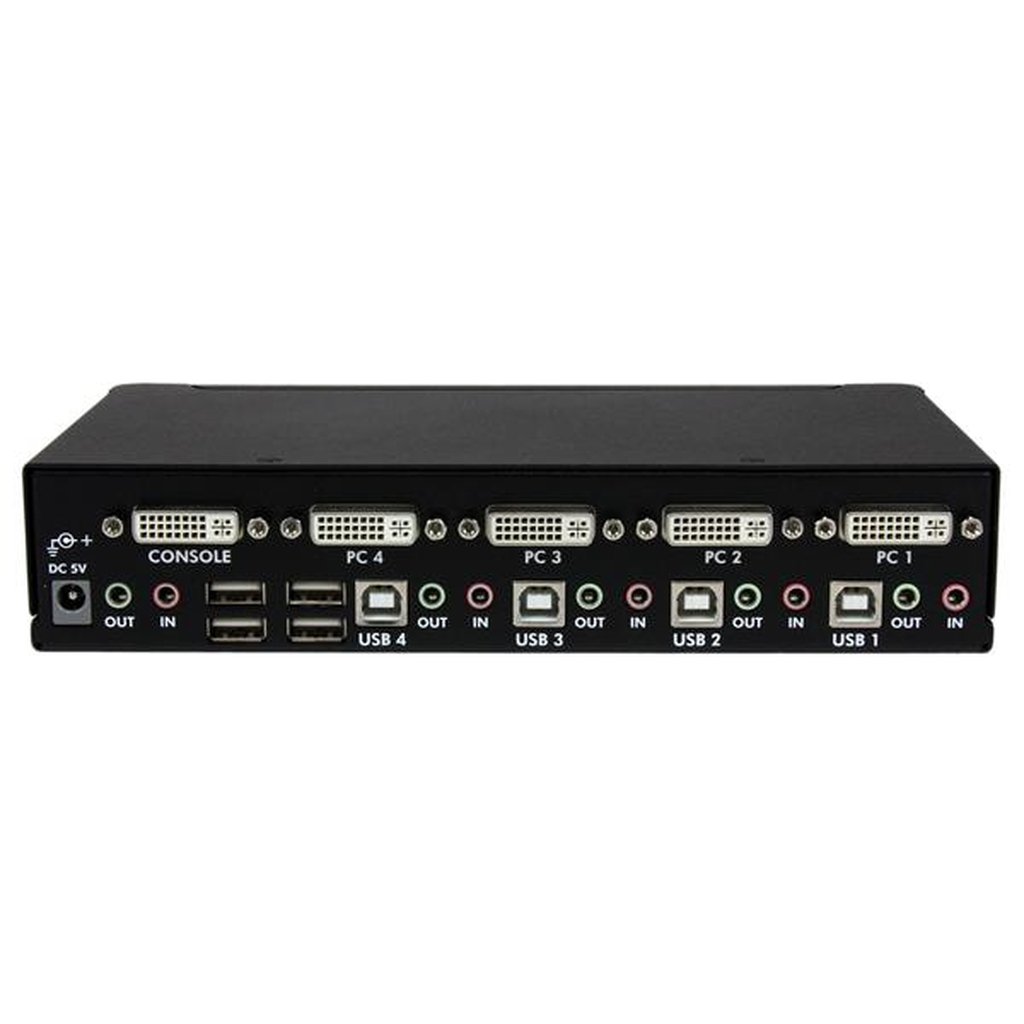

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Audio connections | Yes |
| DC-in jack | Yes |
| Maximum resolution | 3840 x 2400 pixels |
| HDCP | Yes |
| Product colour | Black |
| Mean time between failures (MTBF) | 64000 h |
| Built-in display | No |
| Input voltage | 110-240 V |
| Input current | 0.4 A |
| Output current | 2 A |
| Power plug type | Type M |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 220 mm |
| Depth | 130 mm |
| Height | 44 mm |
| Weight | 1.75 kg |
| Package width | 95 mm |
| Package depth | 411 mm |
| Package height | 214 mm |
| Package weight | 1.24 kg |
| Rubber feet | Yes |
| IP control | No |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Output voltage | 5 V |
| Manual | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
| Certification | CE, FCC |
| Audio support | Yes |
| Maximum digital resolution | 2560 x 1600 pixels |
| USB 2.0 ports quantity | 4 |
| DVI-I ports quantity | 5 |
