Description
Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot

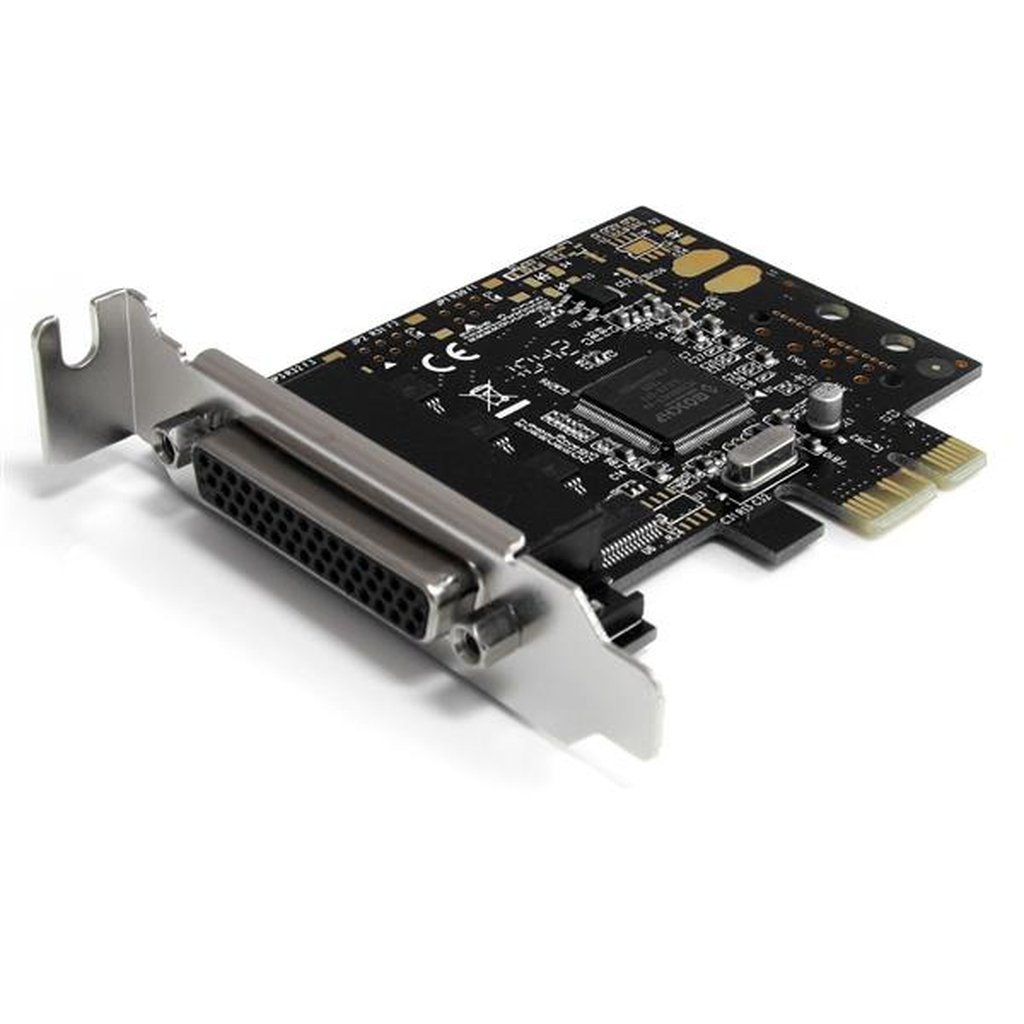

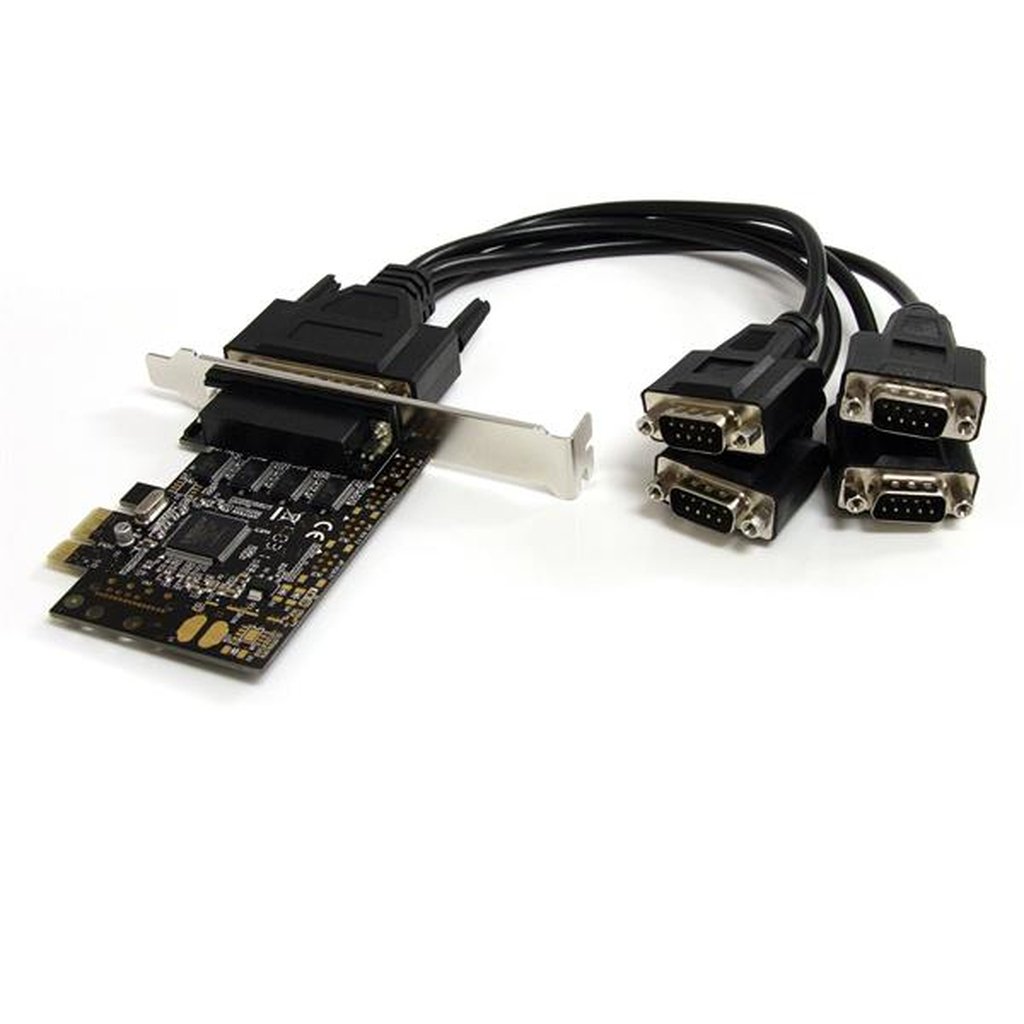

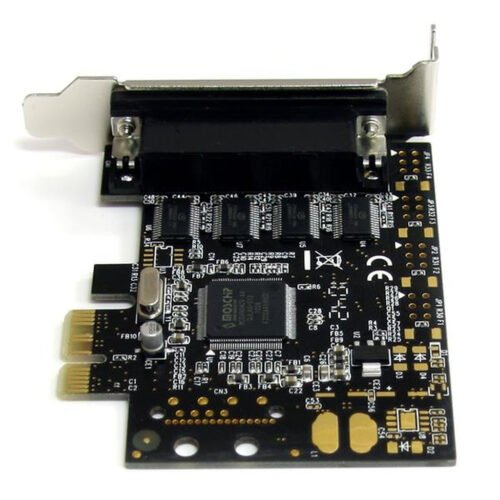

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.

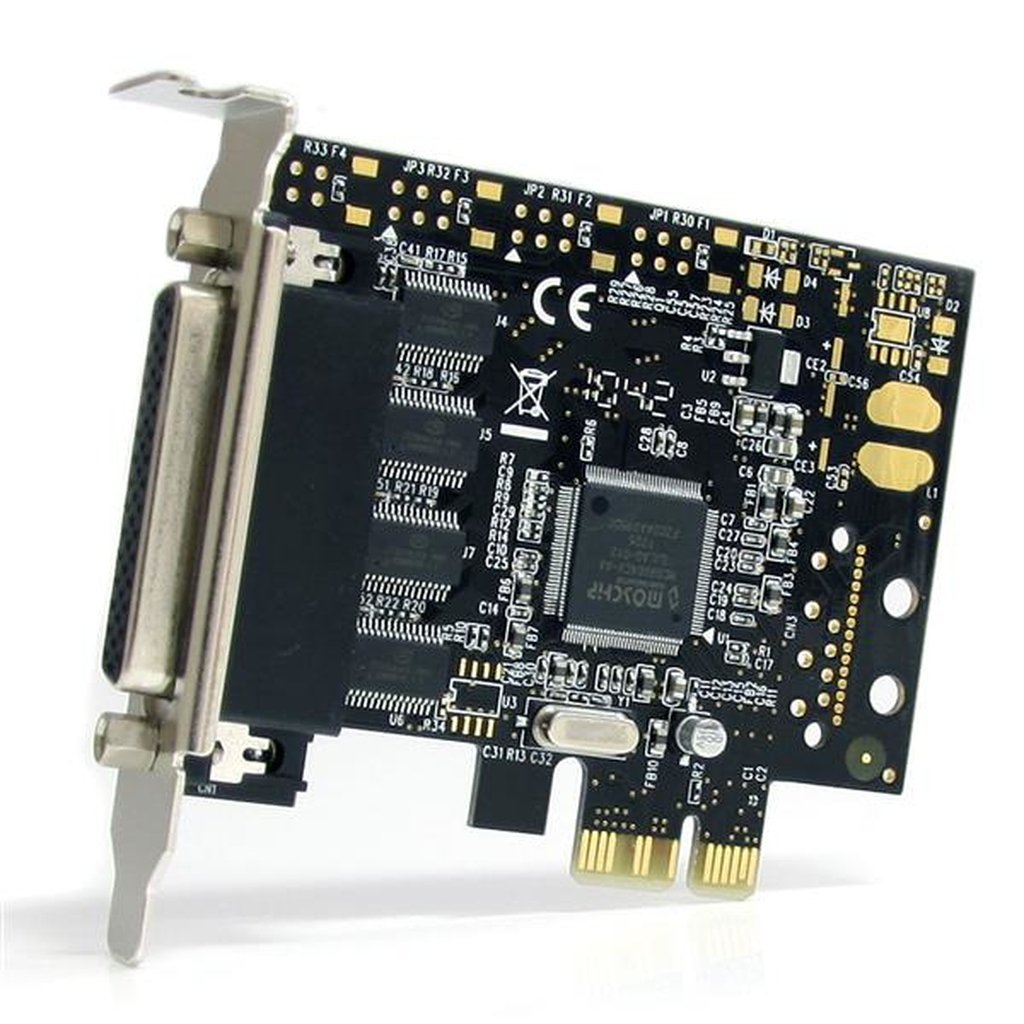

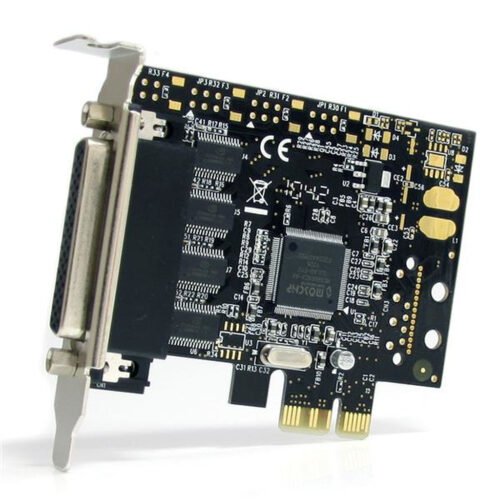

The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards – a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

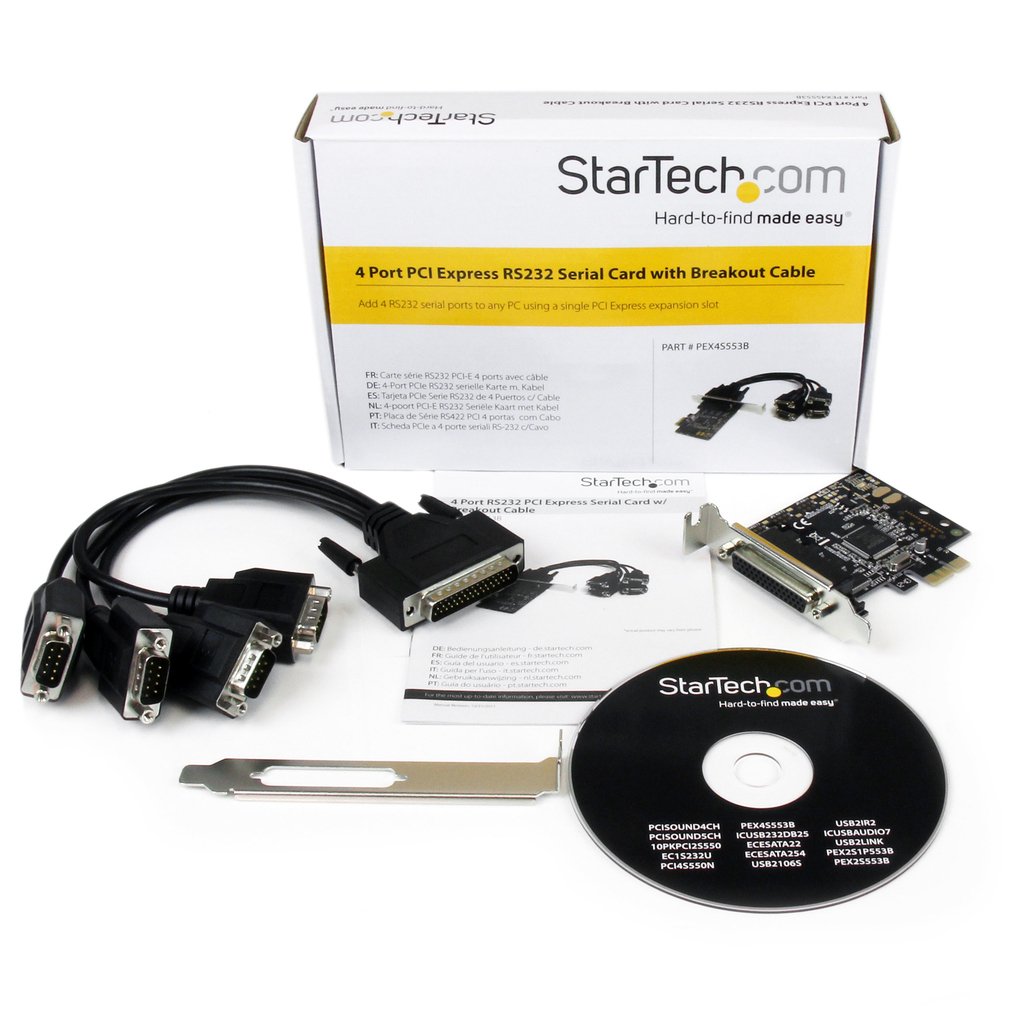

The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows, Linux, and MAC OS.
This product is a replacement for our PEX4S552B card.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
– Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load)

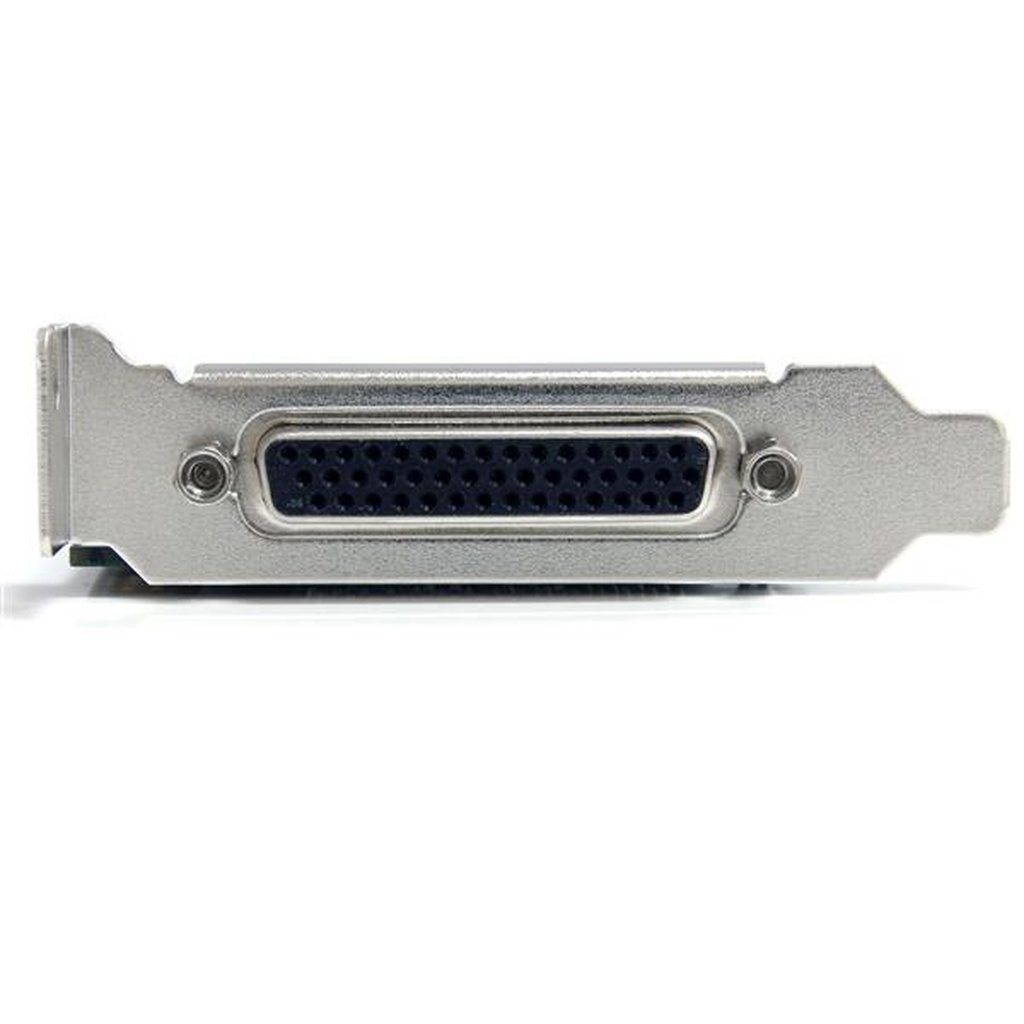

– Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications

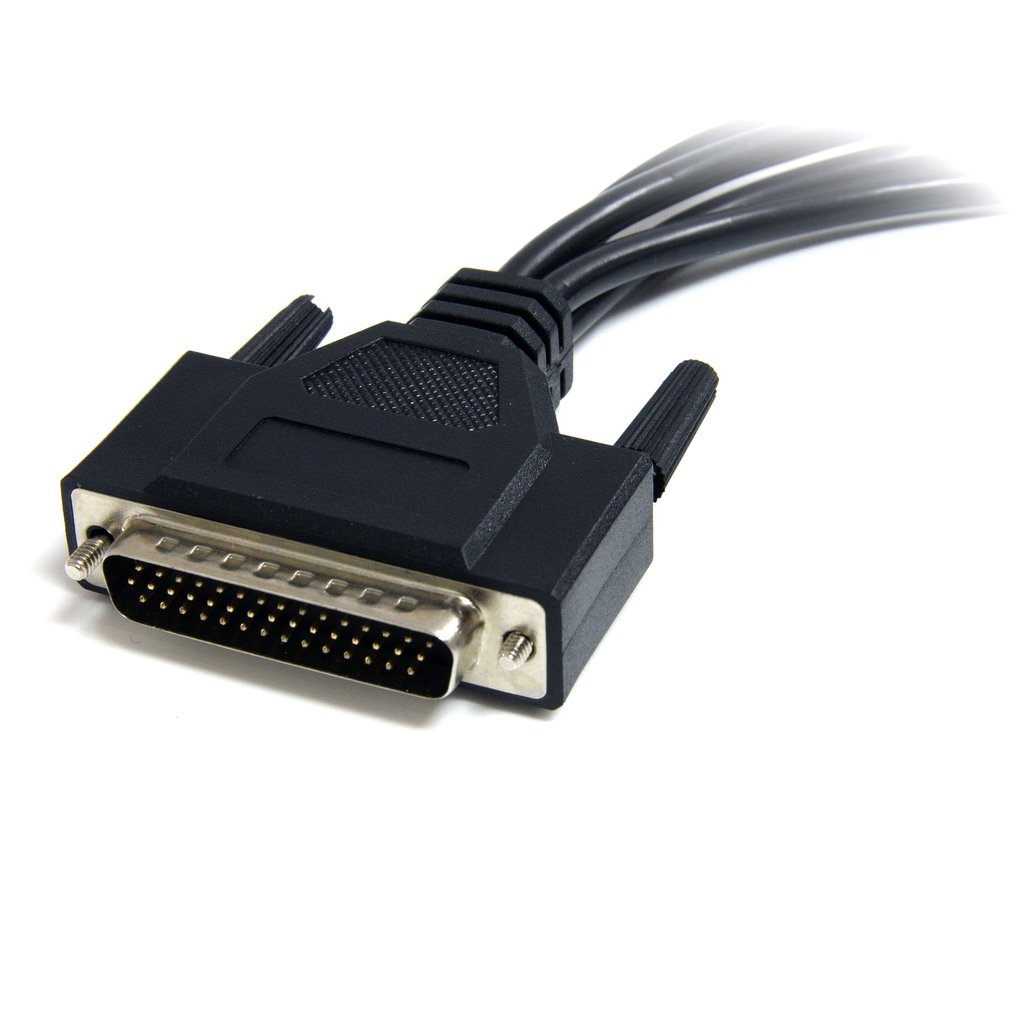

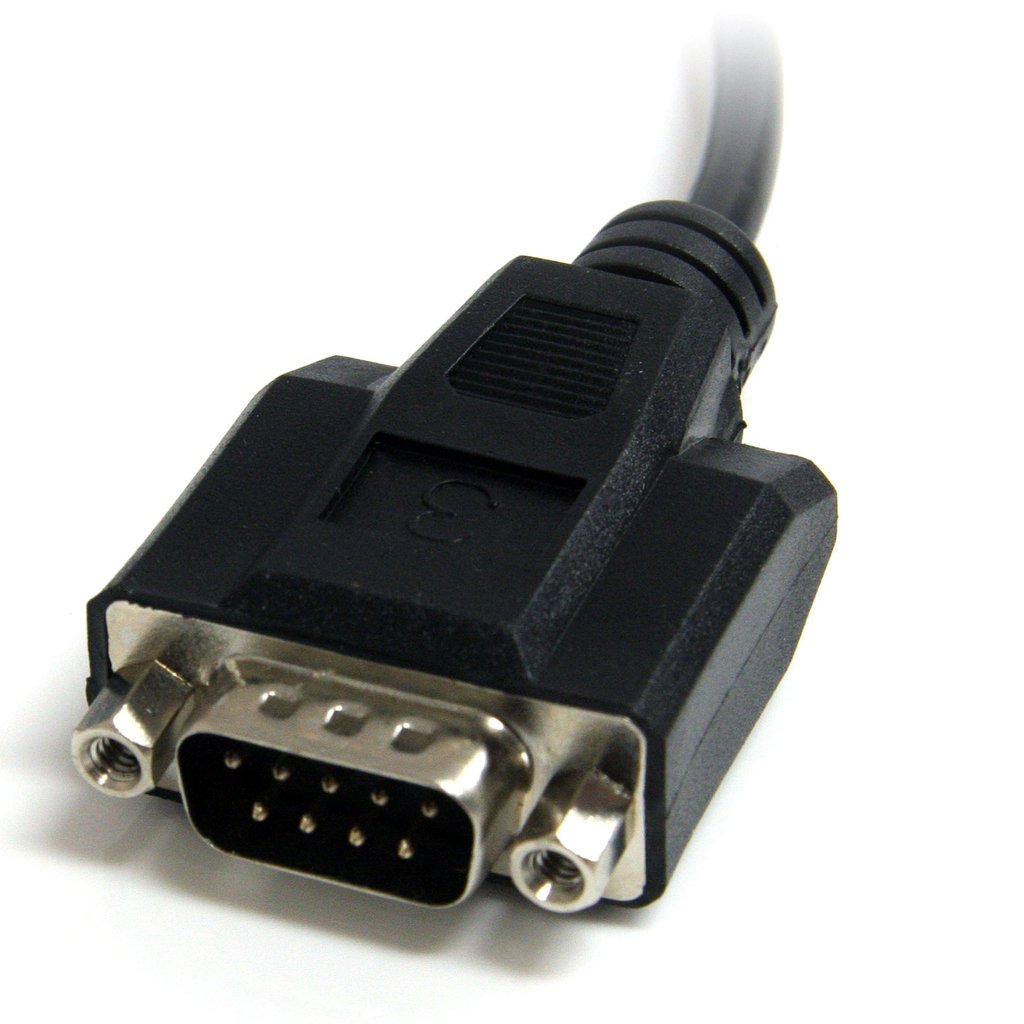

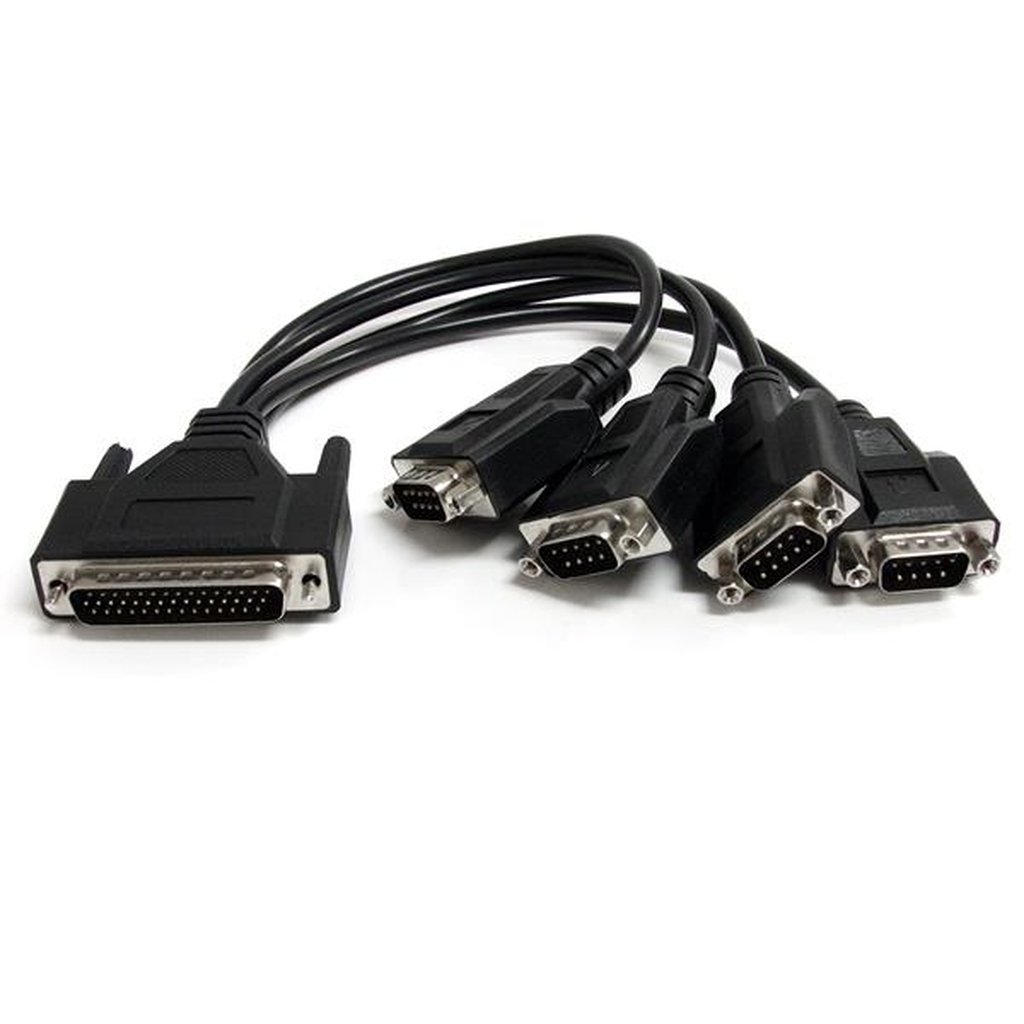

– Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system
Additional information
| Weight | 0.34 lbs |
|---|---|
| Product colour | Black |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Weight | 239 g |
| Chipset | ASIX Moschip MCS9904CV-AA |
| Host interface | PCIe |
| Output interface | Serial |
| Certification | REACH, CE |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Compliance certificates | RoHS |
| Depth | 80.5 mm |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 12 mm |
| Height | 68 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Serial interface type | RS-232 |
| Operating relative humidity (H-H) | 5 – 85% |
| Package width | 208 mm |
| Package depth | 145 mm |
| Package height | 41 mm |
| Package weight | 343 g |
| Cables included | Serial |
| Serial ports quantity | 4 |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 230.4 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Parity bit | Even, Mark, No, Odd |
| Drivers included | Yes |
| Manual | Yes |
| Other operating systems supported | DOS, Windows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded |
