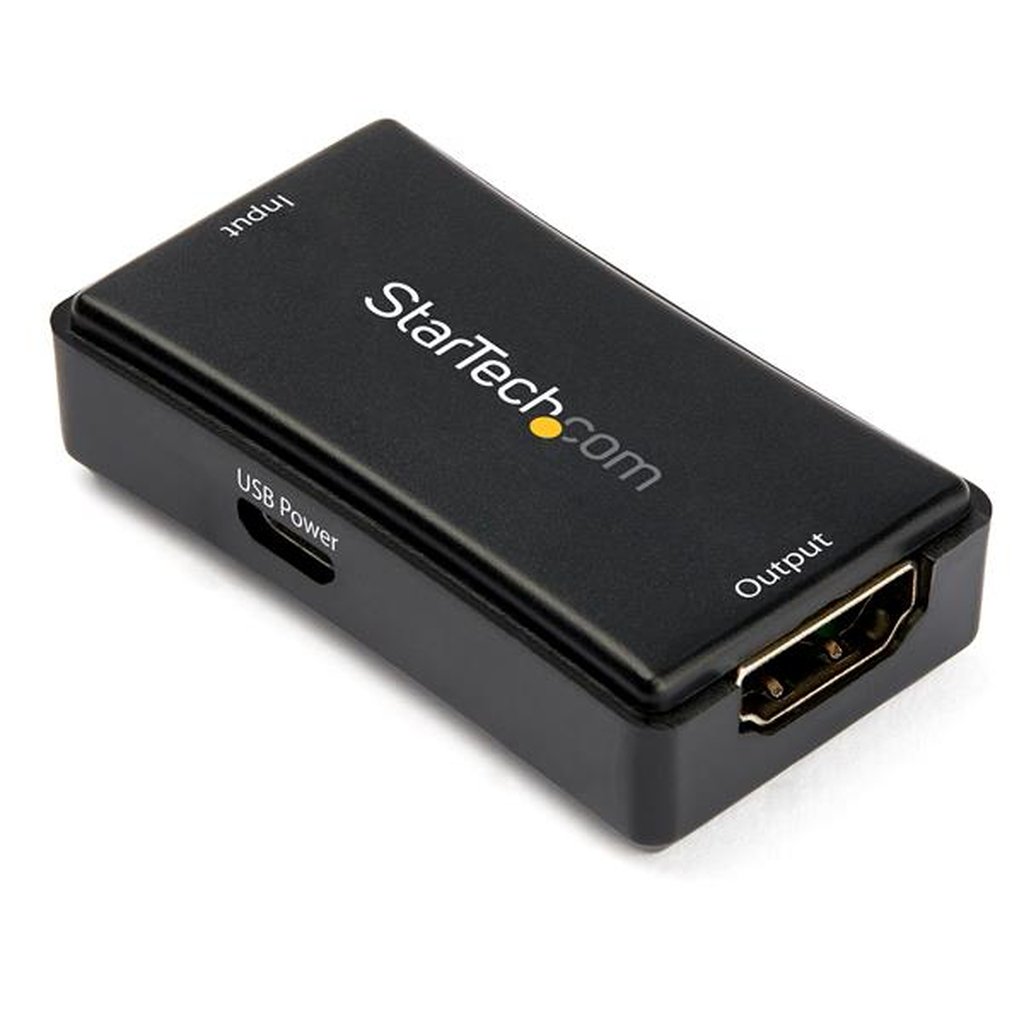

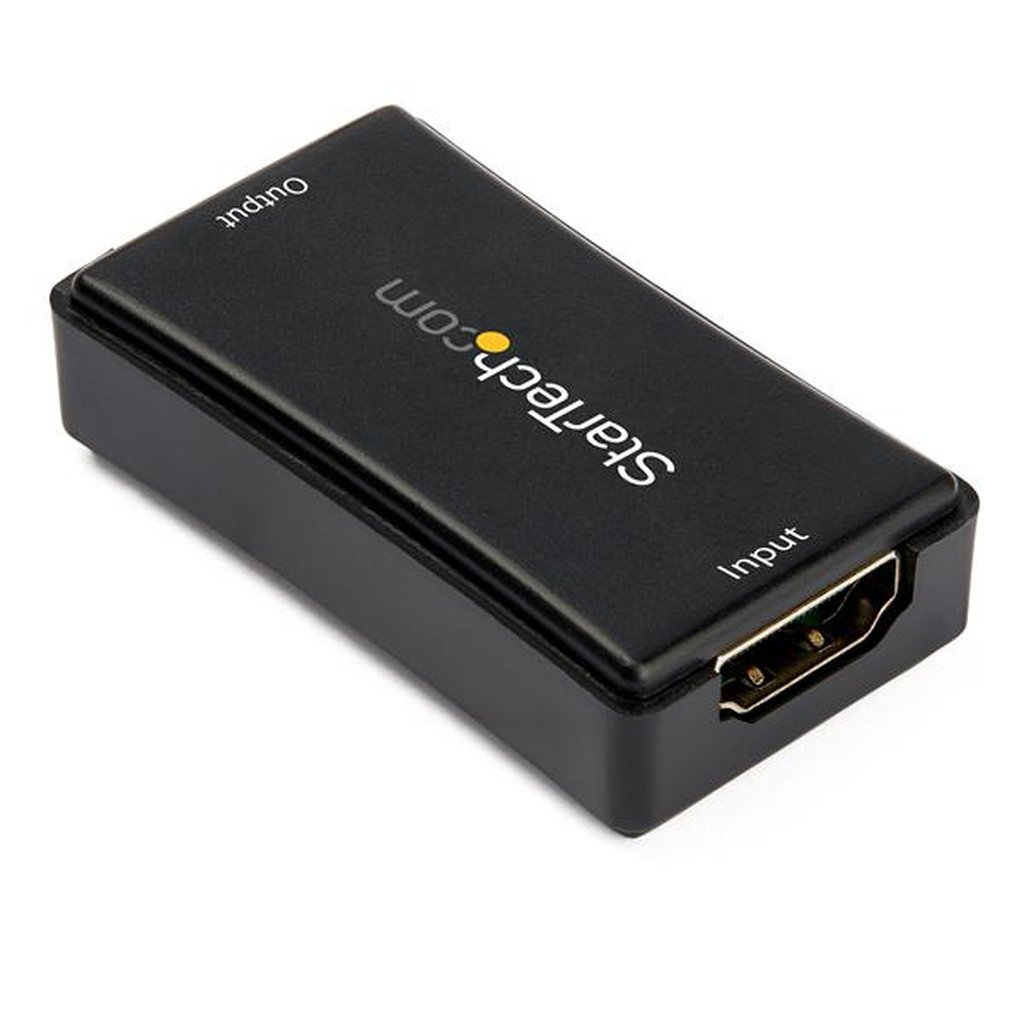

StarTech.com 45 ft. (14 m) HDMI Signal Booster – 4K 60Hz
StarTech.com 45ft / 14m HDMI Signal Booster – 4K 60Hz – USB Powered – HDMI Inline Repeater & Amplifier – 7.1 Audio Support (HDBOOST4K2)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Cable length
from source
Cable length
to display
Total cable length
Maximum
resolution
82 ft. (25 m)
82 ft. (25 m)
164 ft. (50 m)
1080p (60 Hz) – 1920×1080
65 ft. (20 m)
65 ft. (20 m)
130 ft. (40 m)
4K (30 Hz) – 3840×2160
22.5 ft. (7 m)
22.5 ft. (7 m)
45 ft. (14 m)
4K (60 Hz) – 3840×2160
Maintains Ultra HD 4K Video
When you’re extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates – up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
The StarTech.com Advantage
Additional information
| Weight | 0.1 lbs |
|---|---|
| Type | AV repeater |
| Maximum transfer distance | 14 m |
| Material | Plastic |
| Product colour | Black |
| USB ports quantity | 1 |
| USB connector type | Micro-USB B |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Compliance certificates | RoHS |
| Maximum resolution | 3840 x 2160 pixels |
| Weight | 15 g |
| Package width | 140 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 113 g |
| Cables included | USB |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 18 Gbit/s |
| Certification | REACH, CE, FCC |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Width | 52 mm |
| Depth | 28.5 mm |
| Height | 13.7 mm |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 2.0 |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Daisy chain | No |
| Quick start guide | Yes |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 550 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 100 pc(s) |
| Power consumption (typical) | 2.5 W |
| USB powered | Yes |
