Streamline RS-232 connectivity for serial device management over IP

This 4-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.

Configuration and Management

The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.

The product family includes the following options:

• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)

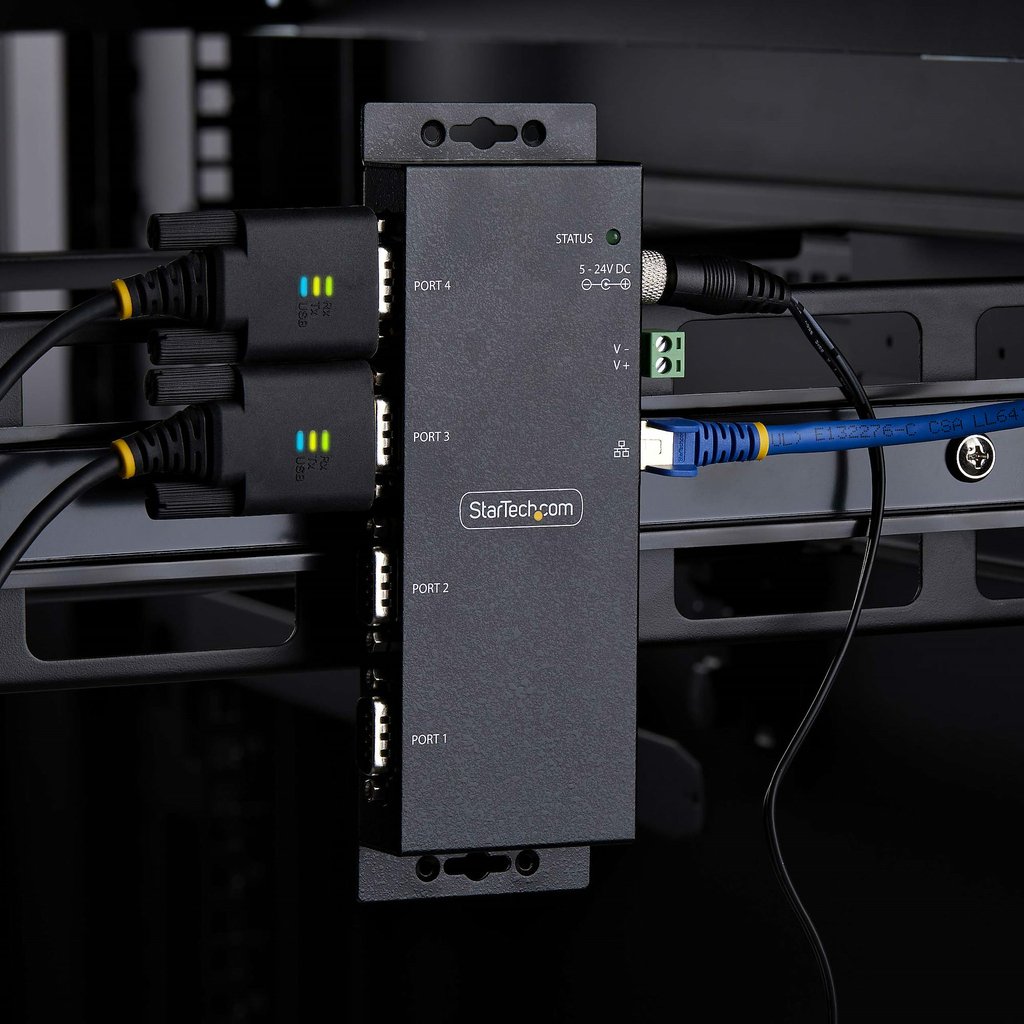

Flexible Installation and Rugged Chassis

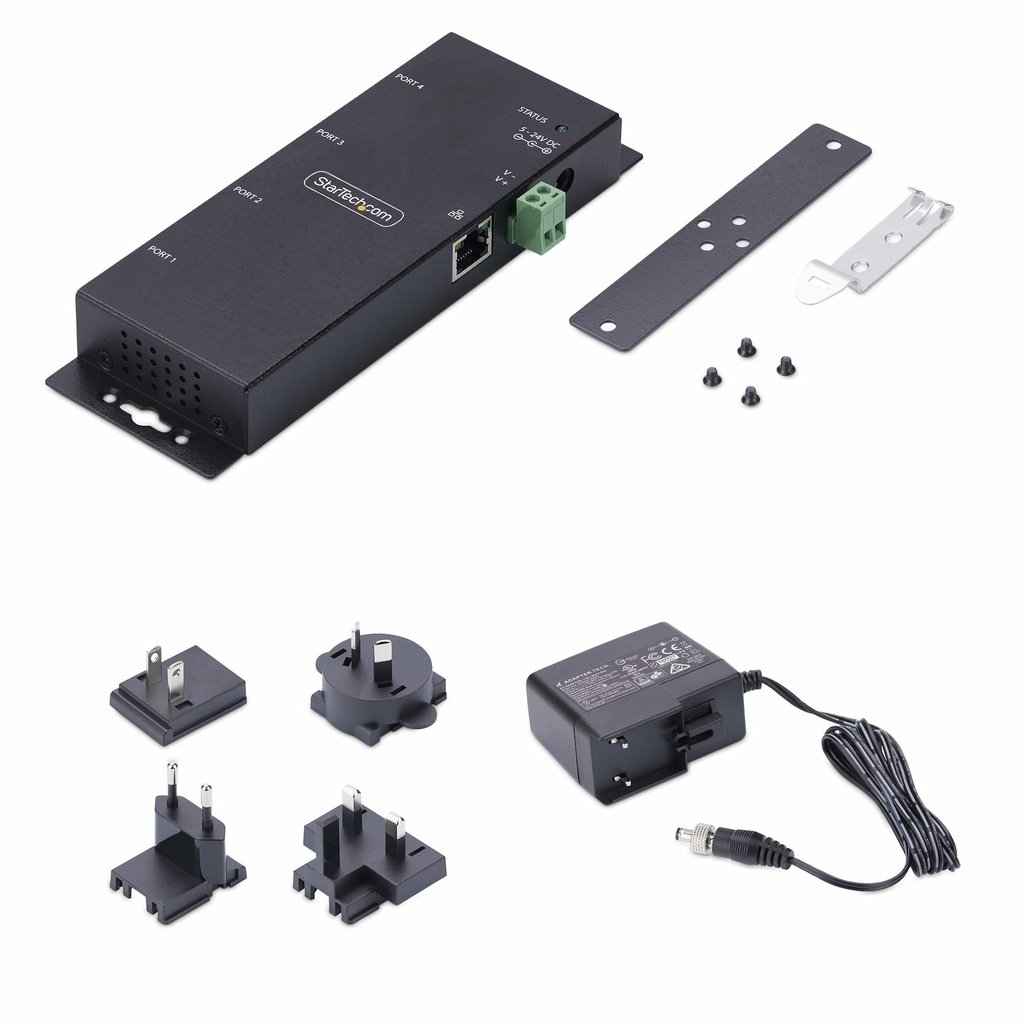

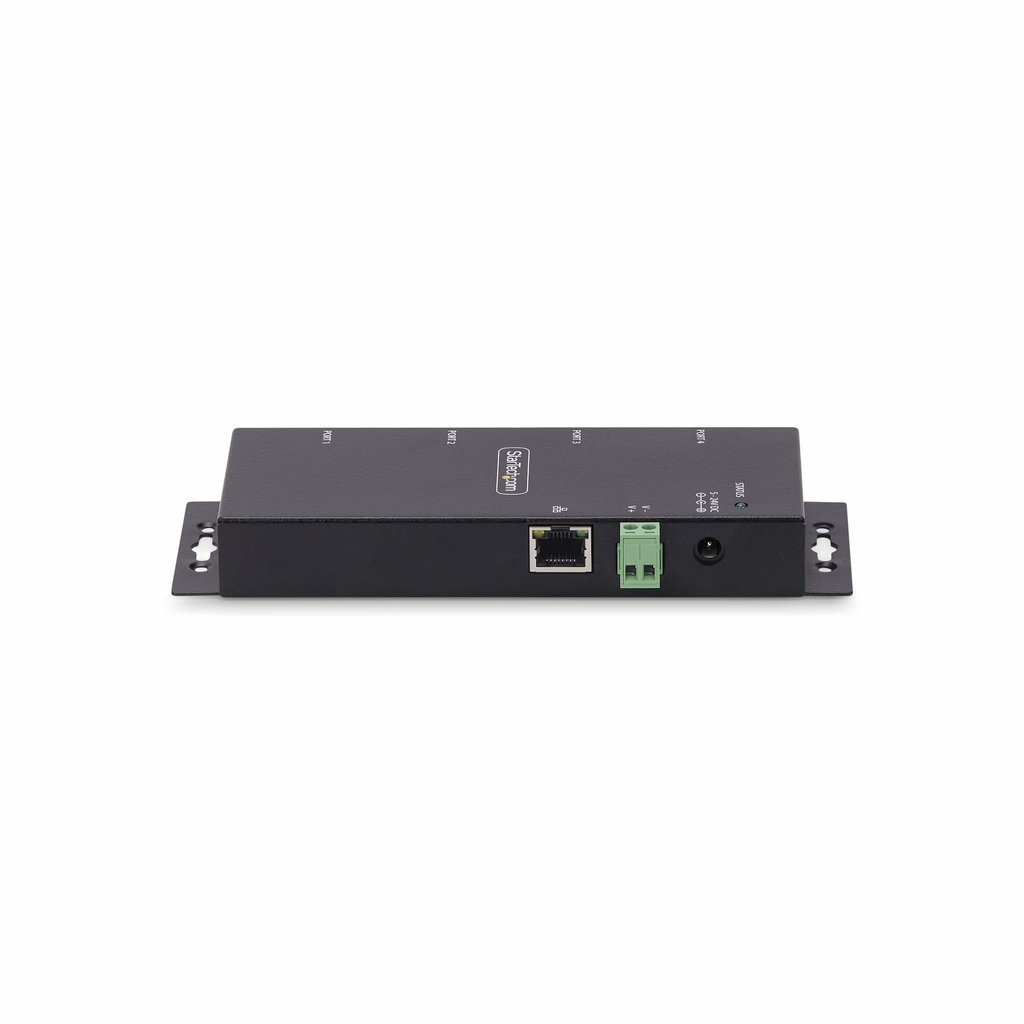

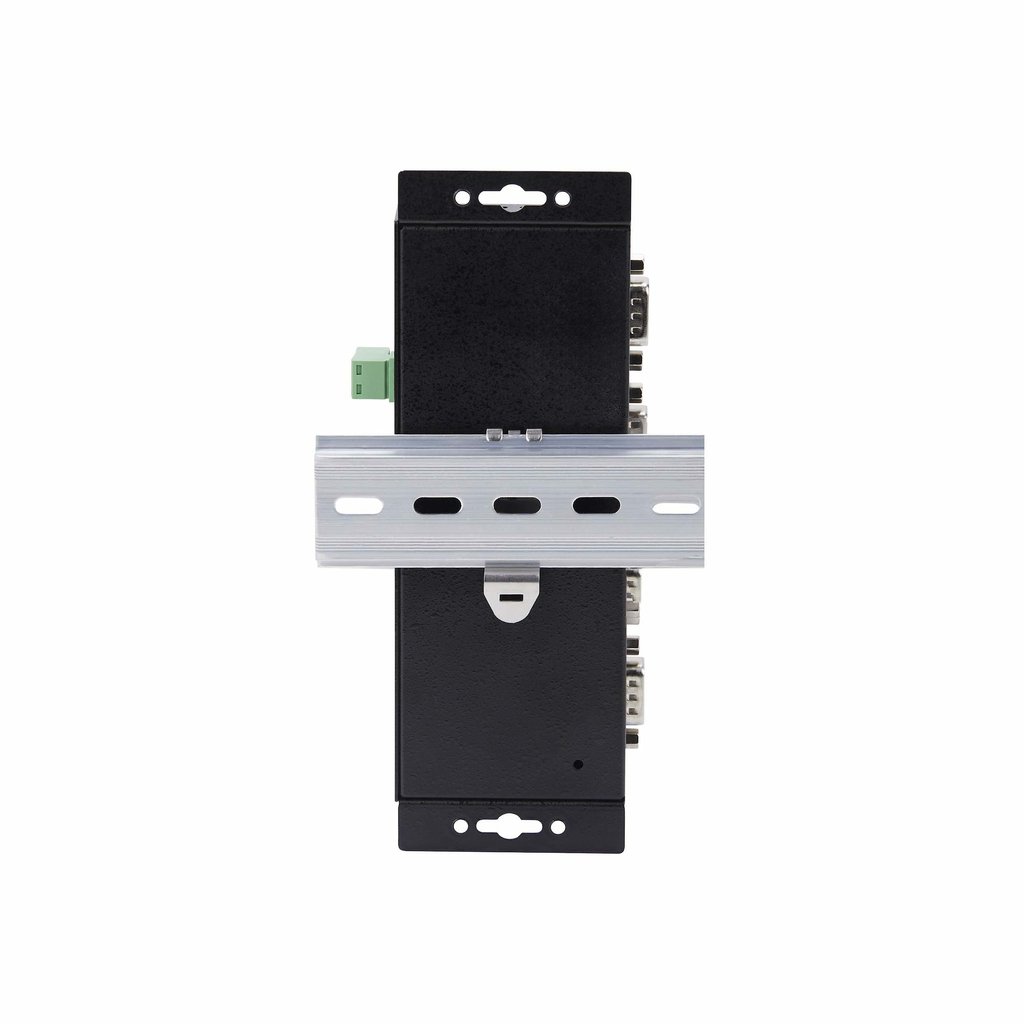

Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7×2.3×0.9in (178×59.4x23mm).

Ethernet and Power Options

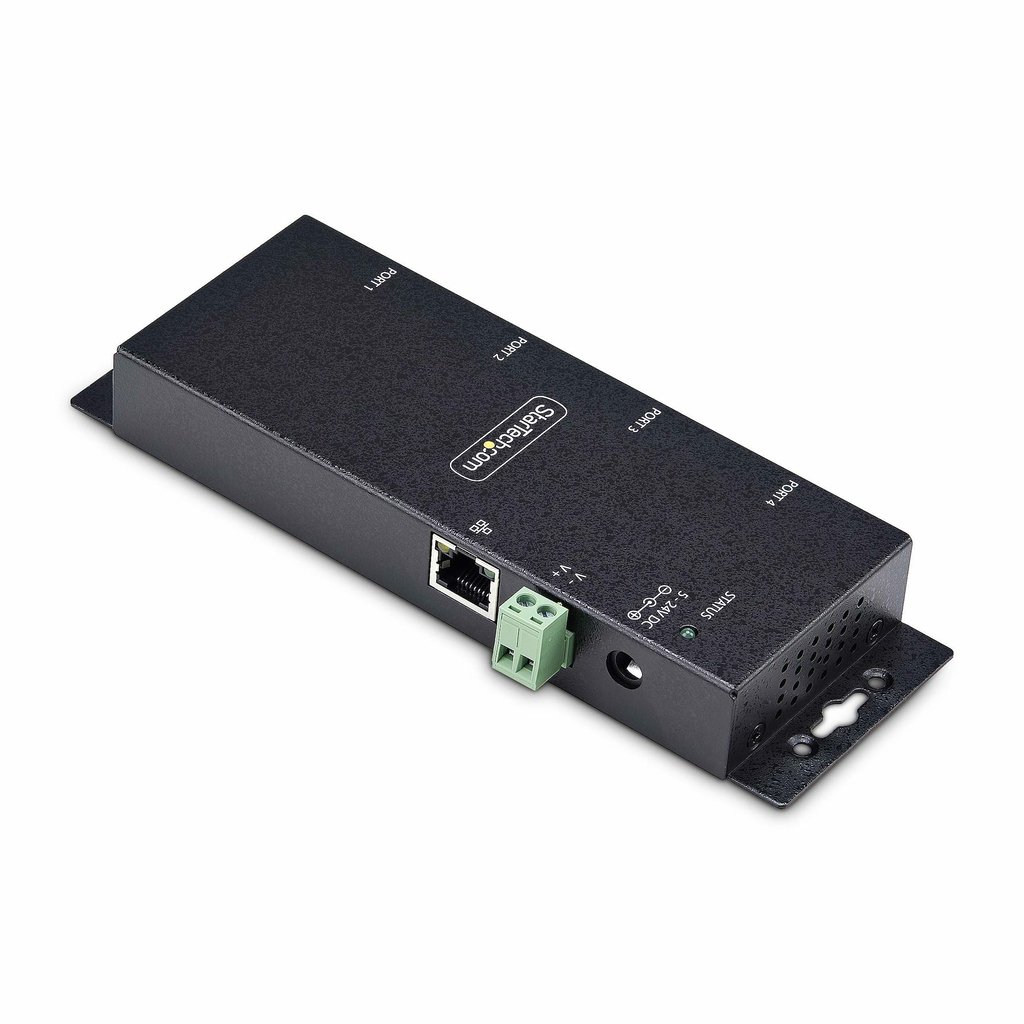

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports ESD level 4 surge protection, and can supply 5VDC over pin 9 if required.

The StarTech.com Advantage

Additional information

Weight	0.638 lbs
Networking standards	IEEE 802.3i, IEEE 802.3u
Auto-negotiation	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
Host interface	RS-232
Output interface	RJ-45
Connector 1	DB-9
Connector 2	RJ-45
Connector gender	Female/Female
Mounting	Wall/DIN
Baud rate	921.6 Kbit/s
Product colour	Black
Data bits	7, 8
Parity bit	Even, No, Odd, Space
Stop bits	1, 2
Compliance certificates	Trade Agreements Act (TAA)
Flow Control type	No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Operating temperature (T-T)	0 – 60 °C
Storage temperature (T-T)	-20 – 75 °C
Operating relative humidity (H-H)	5 – 95%
Width	179 mm
Depth	60 mm
Height	23 mm
Weight	400 g
Package width	166 mm
Package depth	242 mm
Package height	55 mm
Package weight	600 g
Housing material	Steel
LED indicators	Yes
Number of screws included	2 pc(s)
AC adapter included	Yes
DIN rail included	Yes
Manual	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind
Products per master (outer) case	15 pc(s)
Master (outer) case length	430 mm
Master (outer) case width	410 mm
Master (outer) case height	280 mm
Serial ports quantity	4
Input voltage	100 – 240 V
Input current	0.48 A
Output voltage	5 V
Output current	3 A
Power consumption (typical)	15 W
