StarTech.com 8 Port 1U Rackmount DVI USB KVM Switch
StarTech.com 8 Port 1U Rackmount DVI USB KVM Switch – USB DVI KVM Switch – DVI KVM Switch – USB KVM Switch
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

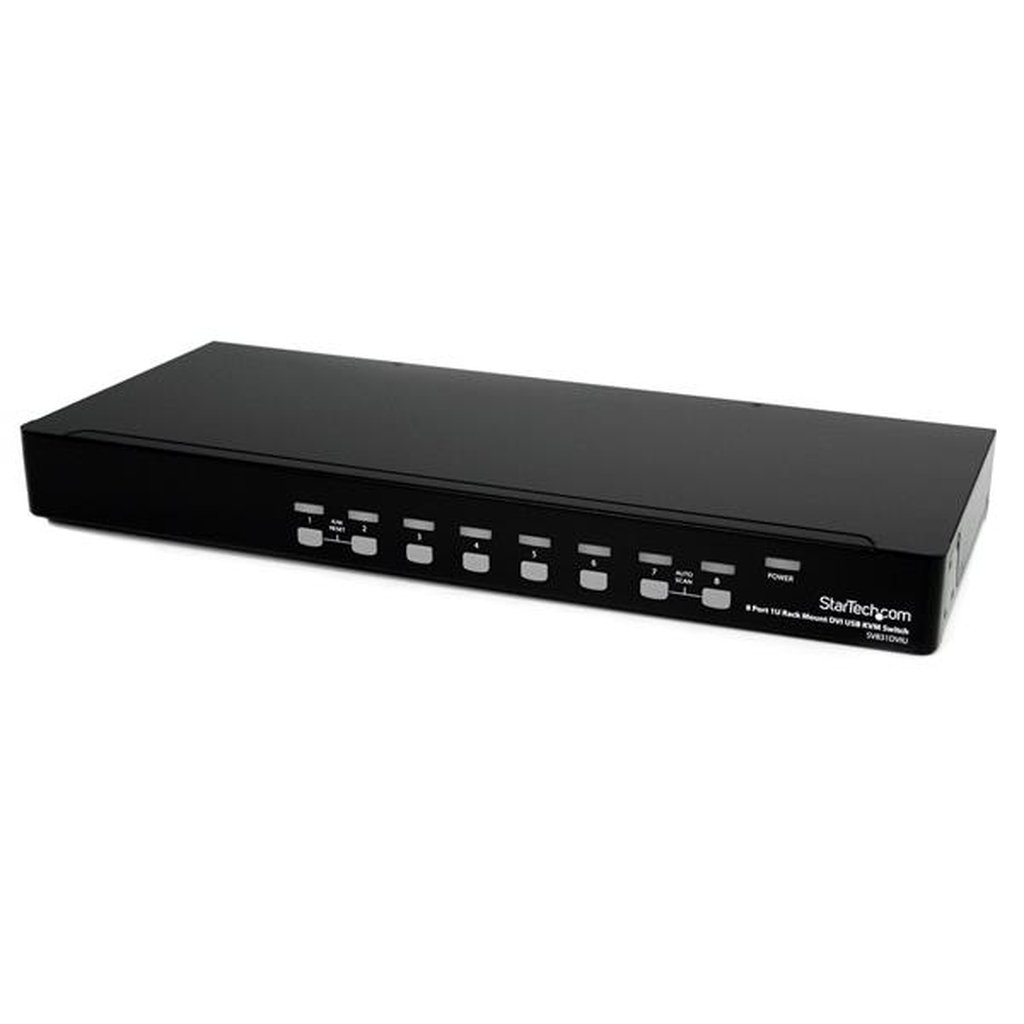

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920×1200 via DVI or HDMI connection (using DVI to HDMI adapter – see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The StarTech.com Advantage
– High-resolution 1920×1200 DVI connections support control of DVI systems or HDMI systems (with adapter)
– Supports wireless and combo style mouse and keyboard sets for added flexibility
– Rugged, solid steel rack-mountable case offers durability even in harsh environments
Additional information
| Weight | 3.8 lbs |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Audio connections | No |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 45254 h |
| Input voltage | 100-240 V |
| Input current | 1.8 A |
| Output current | 4 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 438 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
| Package width | 265 mm |
| Package depth | 595 mm |
| Package height | 90 mm |
| Package weight | 3.77 kg |
| IP control | Yes |
| Daisy chain | No |
| Rack capacity | 1U |
| Output voltage | 12 V |
| External power adapter | Yes |
| Manual | Yes |
| Harmonized System (HS) code | 85176200 |
| Ethernet LAN | No |
| Certification | CE, FCC |
| USB 2.0 ports quantity | 10 |
| Maximum analog resolution | 1920 x 1200 pixels |
| Rack mount kit | Yes |
