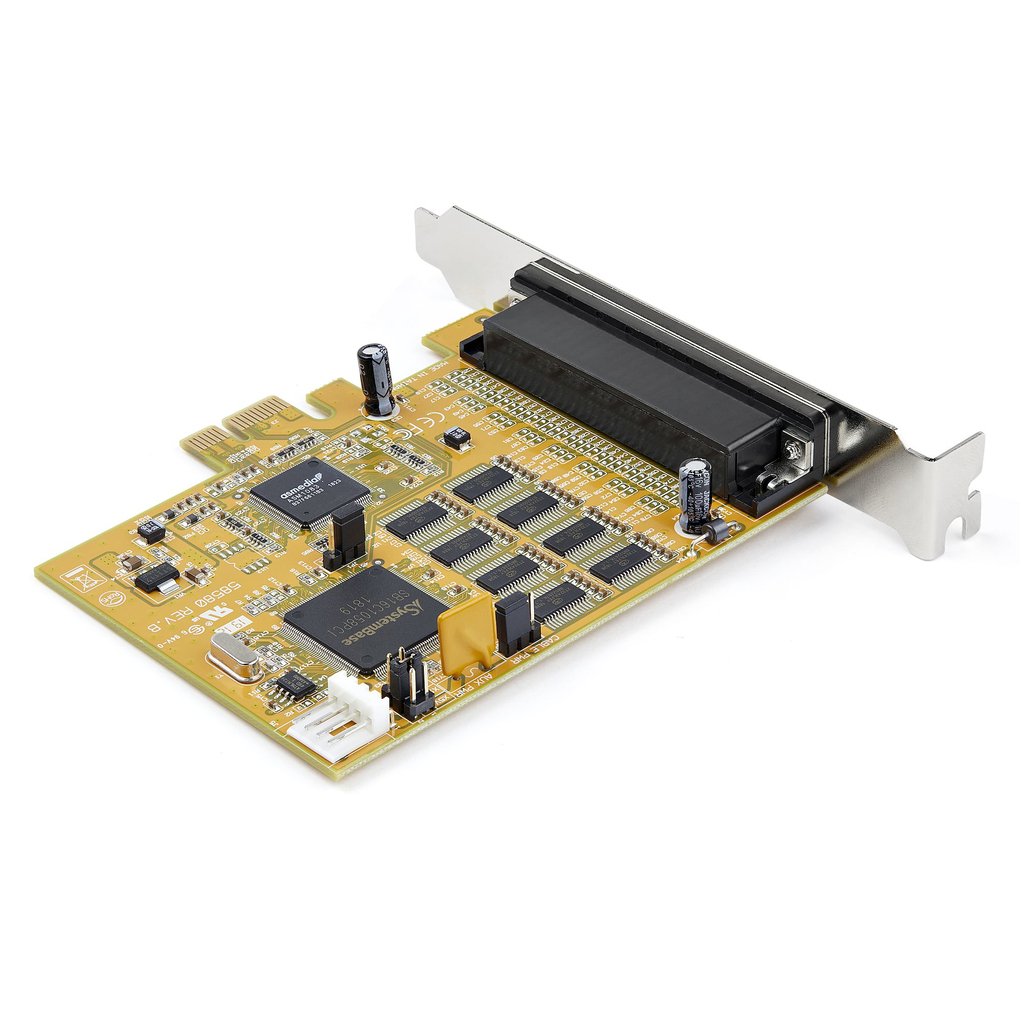

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controlle
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to Serial DB9 Card, 16C1050 UART, 15kV ESD – Windows Only
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

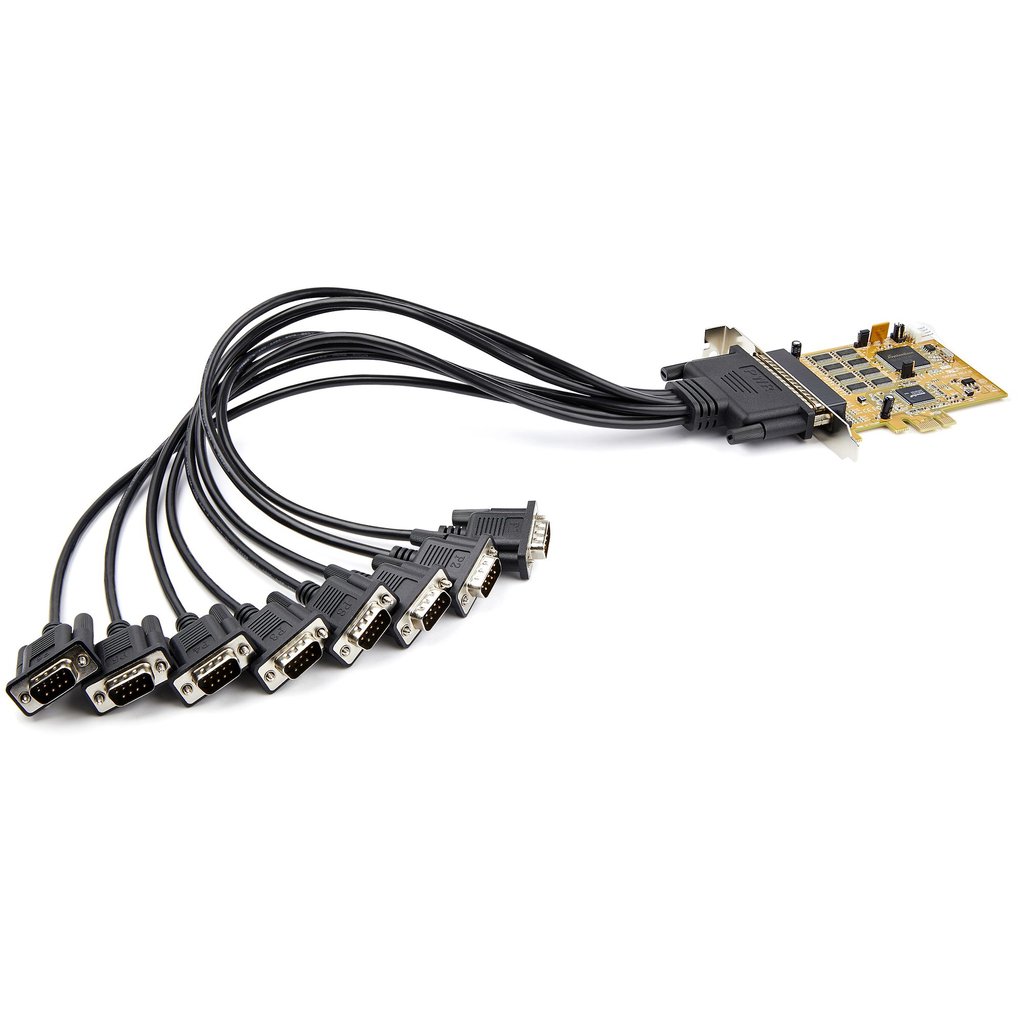

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card – Full Profile Serial Card
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports

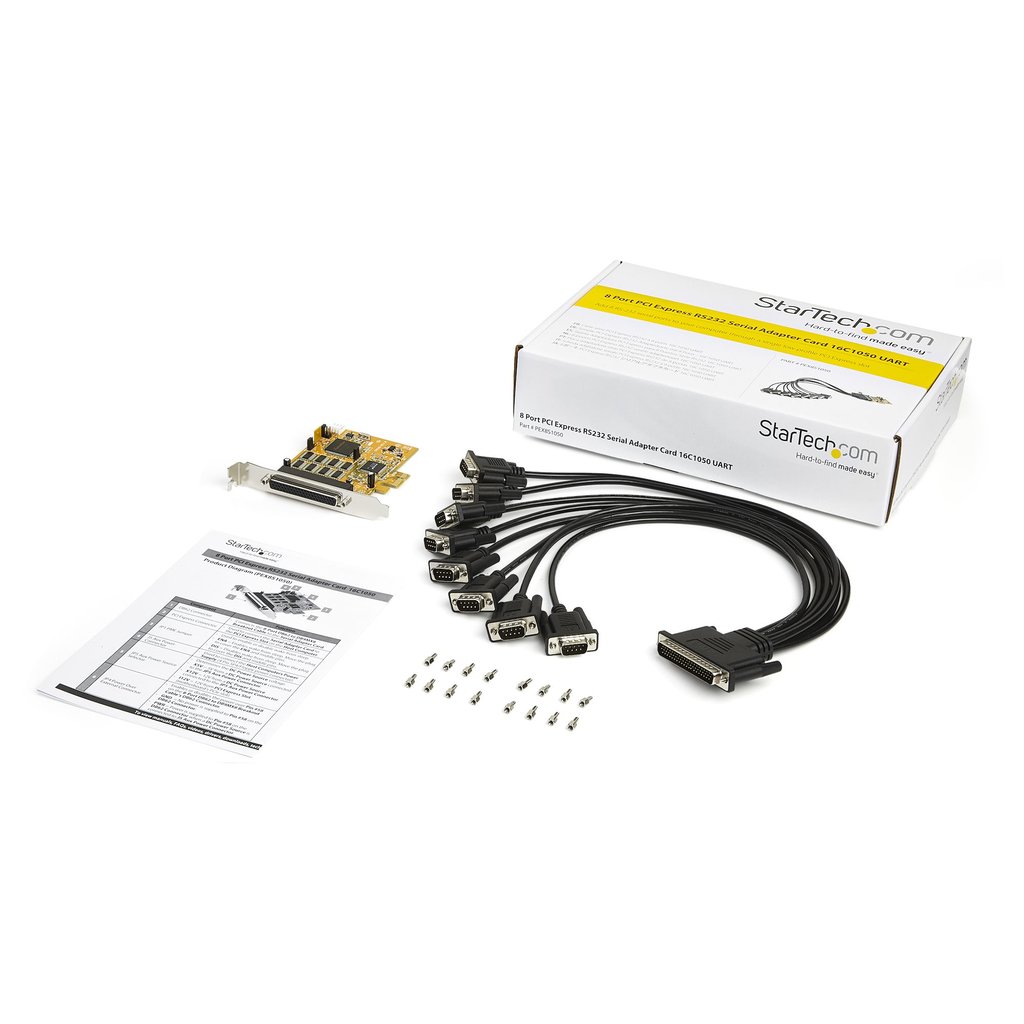

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable – with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
Additional information
| Weight | 0.66 lbs |
|---|---|
| Product colour | Yellow |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -40 – 75 °C |
| Weight | 74 g |

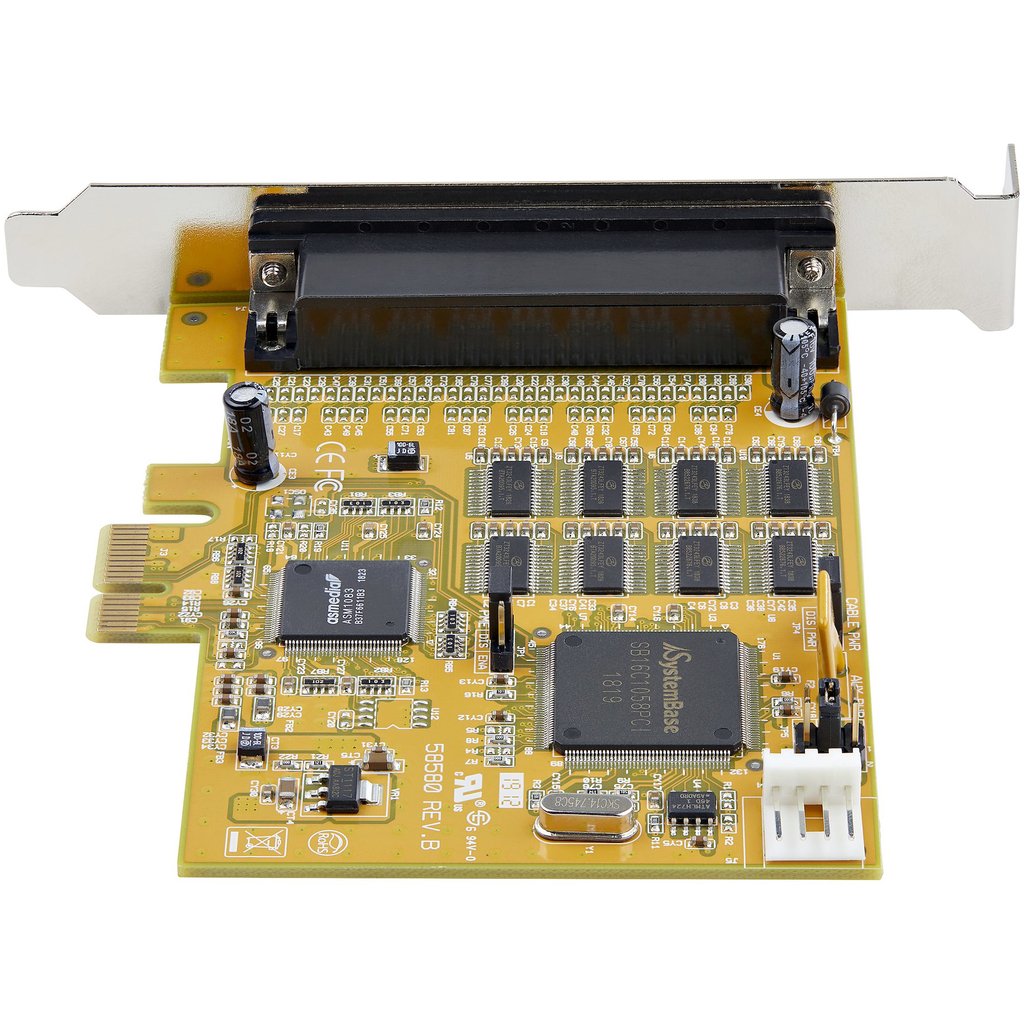

| Chipset | ASMedia – ASM1083, System Base – SB16C1058PCI |
| Host interface | PCIe |
| Output interface | Serial |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Compliance certificates | RoHS |
| Depth | 105 mm |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Width | 16 mm |
| Height | 120 mm |
| Harmonized System (HS) code | 84733020 |
| Serial interface type | RS-232 |
| Operating relative humidity (H-H) | 5 – 95% |
| Quick installation guide | Yes |
| Package width | 190 mm |
| Package depth | 290 mm |
| Package height | 65 mm |
| Package weight | 672 g |
| Products per master (outer) case | 14 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 315 mm |
| Mean time between failures (MTBF) | 160013 h |
| Cables included | Serial |
| Serial ports quantity | 8 |
| FIFO (First In, First Out) | 256 B |
| Compliance industry standards | 16C1050 UART |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, No, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
| Maximum cable length | 0.5 m |
