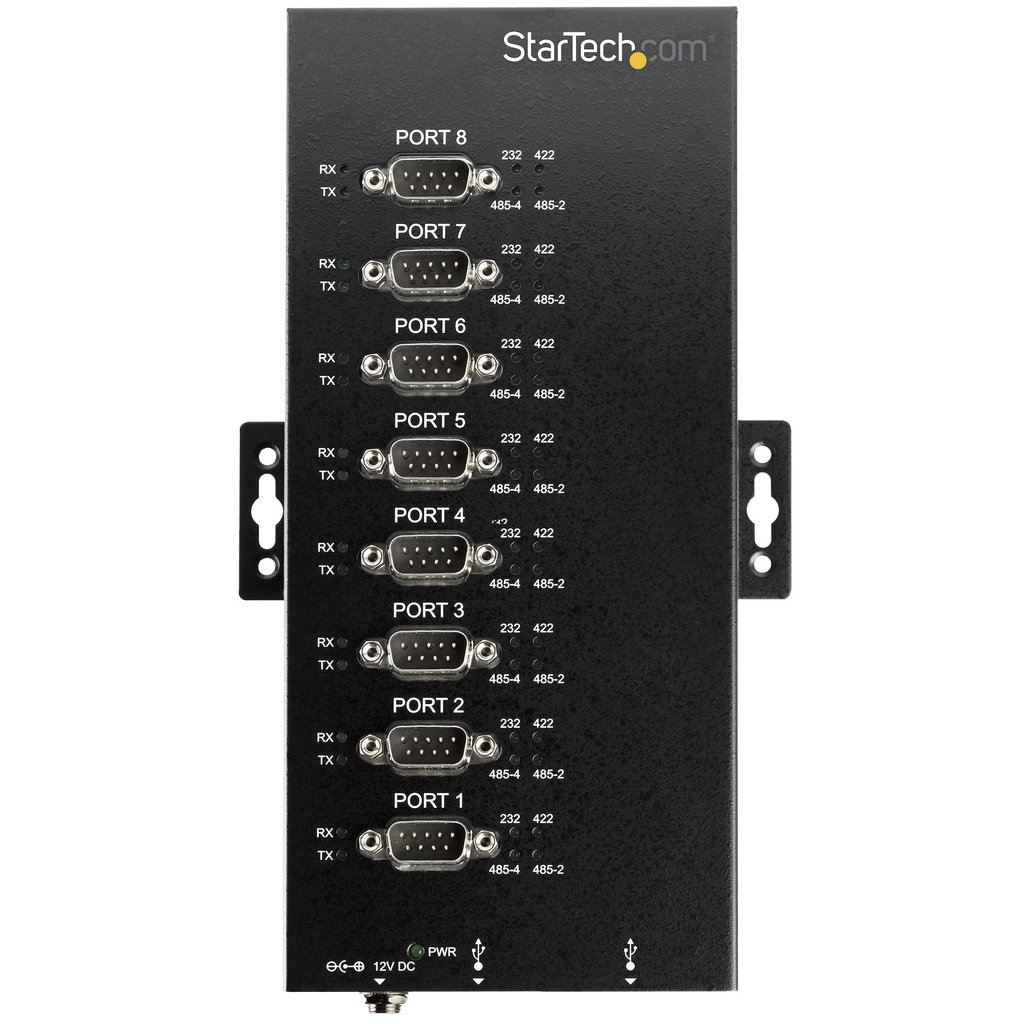

StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter – Industrial USB 2.0 to DB9 Serial Converter Hub – IP30 Rated –
StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter – Industrial USB 2.0 to DB9 Serial Converter Hub – IP30 Rated – Din Rail Mountable Metal Serial Hub – 15kV ESD Protection (ICUSB234858I)
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description
Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection
Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols

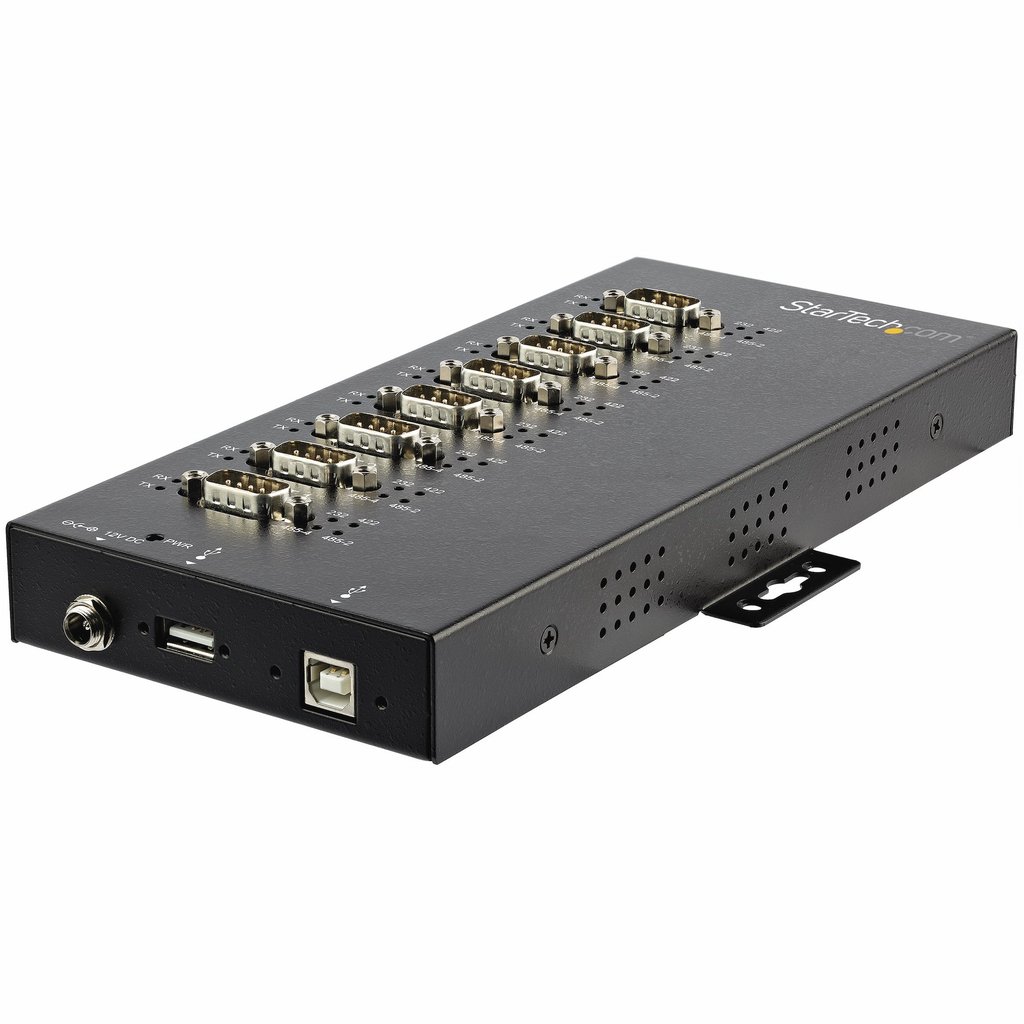

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

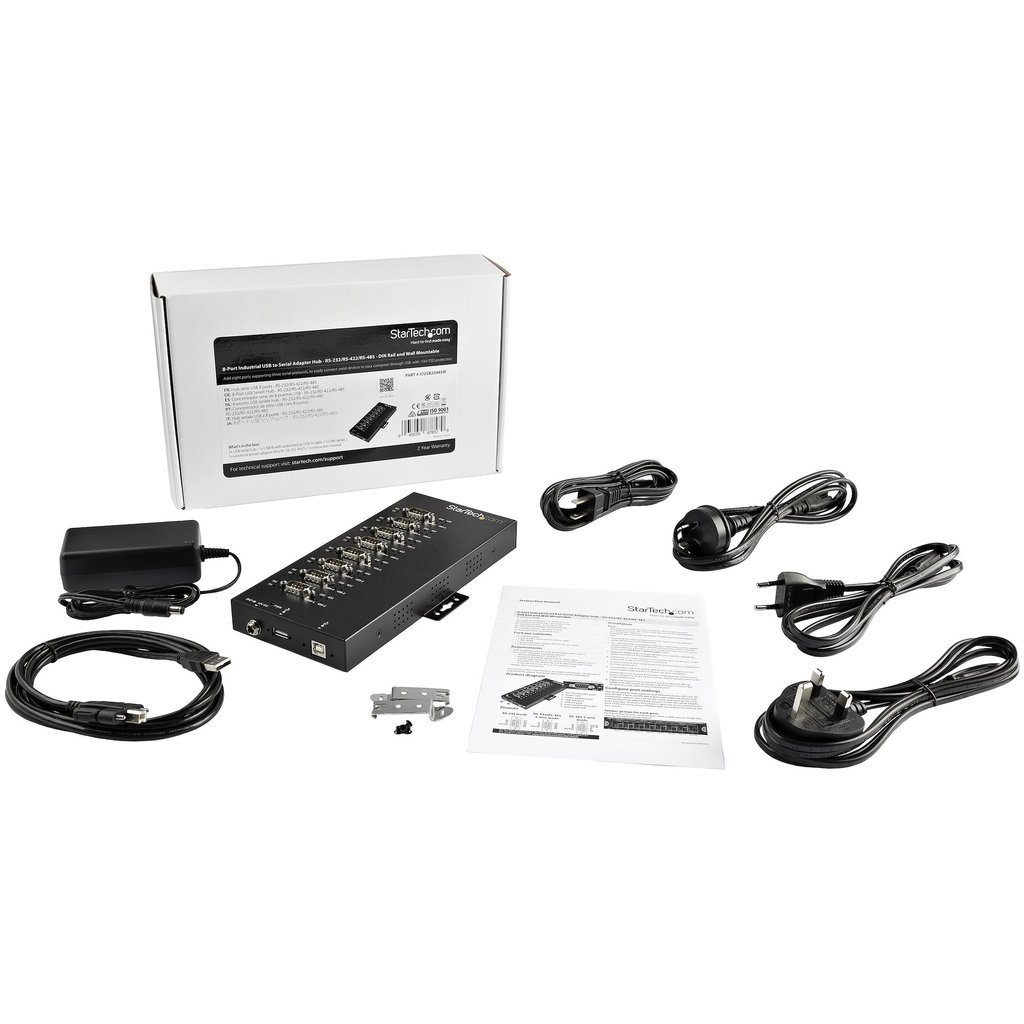

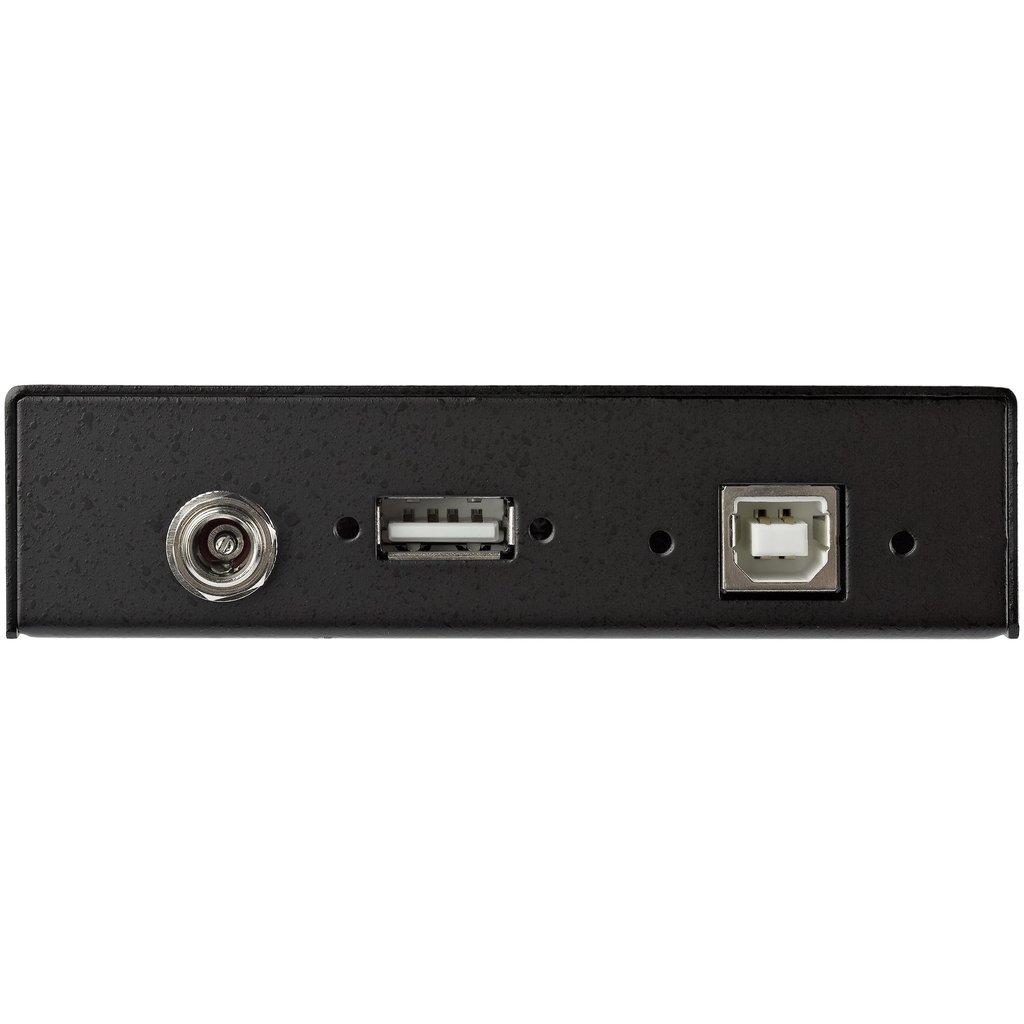

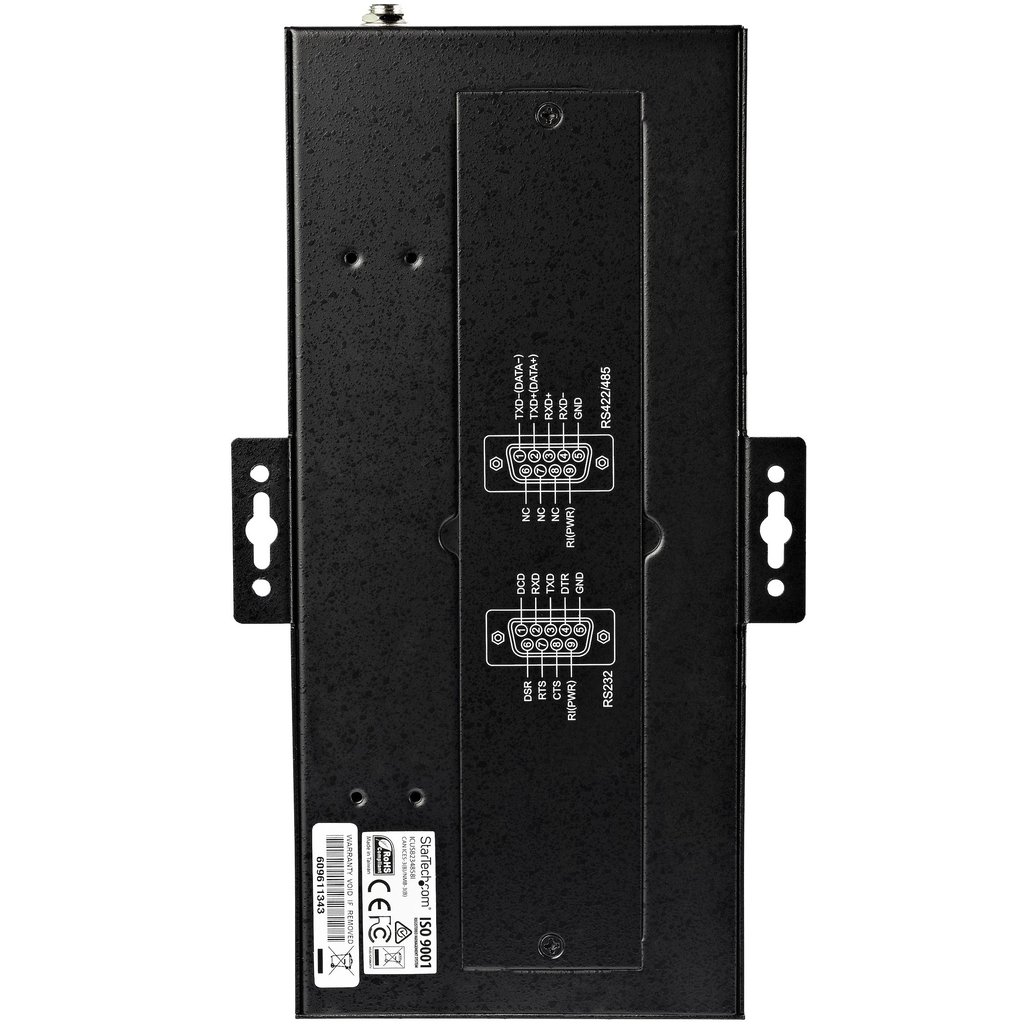

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 1.52 lbs |
|---|---|
| Ports quantity | 8 |
| Host interface | USB 2.0 |
| Hub interfaces | Serial |
| USB 2.0 ports quantity | 2 |
| Product colour | Black |
| Housing material | Steel |
| Width | 128 mm |
| Depth | 219 mm |
| Height | 25 mm |
| Weight | 688 g |
| Package width | 190 mm |
| Package depth | 290 mm |
| Package height | 67 mm |
| Package weight | 1.6 kg |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Compliance certificates | CE, RoHS |
| Chipset | FTDI – FT4232H, Genesys Logic – GL825 |
| Input voltage | 100 – 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, M |
| Harmonized System (HS) code | 84719000 |
| Linux operating systems supported | Yes |
| Surge protection | Yes |
| LED indicators | Power |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Included power plug types | ANZ, EU, UK, US |
| Cables included | USB |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 14 pc(s) |
| AC adapter included | Yes |
| DIN rail kit included | Yes |
| Sustainability compliance | Yes |
| Power source type | AC |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| RS-232 ports | 8 |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Baud rate | 921.6 Kbit/s |
