StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD
8 Port 1U Rackmount USB KVM Switch with OSD
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
– Cascade configuration supported for one spot control of up to 64 computers
– Rugged, rack mountable 1U metal chassis is ideal for any environment
Additional information
| Weight | 3.26 lbs |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |

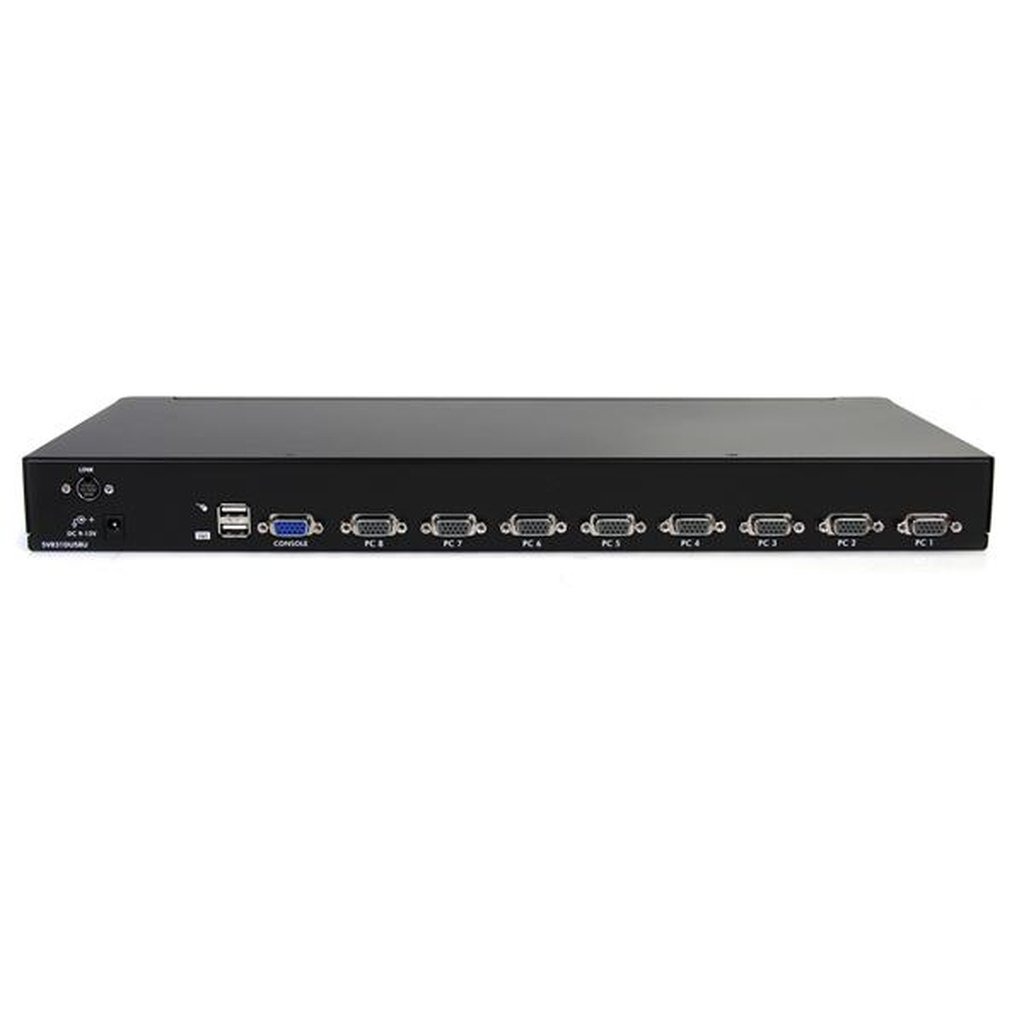

| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Audio connections | No |
| DC-in jack | Yes |
| Maximum resolution | 1920 x 1440 pixels |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 150000 h |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Input voltage | 100 – 240 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 5 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 540 mm |
| Depth | 180 mm |
| Height | 45 mm |
| Weight | 2.9 kg |
| Package width | 89 mm |
| Package depth | 573 mm |
| Package height | 268 mm |
| Package weight | 3.3 kg |
| Rubber feet | Yes |
| IP control | No |
| Daisy chain | Yes |
| Rack capacity | 1U |
| Output voltage | 12 V |
| Manual | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
| Certification | CE, FCC, TAA, REACH |
| Audio support | No |
| VGA (D-Sub) ports quantity | 9 |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 540 x 180 x 45 mm |
| Ports quantity | 8 |
| Power requirements | 110 – 240 AC |
