StarTech.com Dual HDMI over CAT6 Extender – 1080p
StarTech.com Dual HDMI over CAT5e / CAT6 Extender – 1080p over CAT6 or CAT5e – Up to 295 ft. (90m) (ST222HDBT)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Extend two HDMI signals to distances up to 295 ft. (90m) over a single CAT5e or CAT6 cable

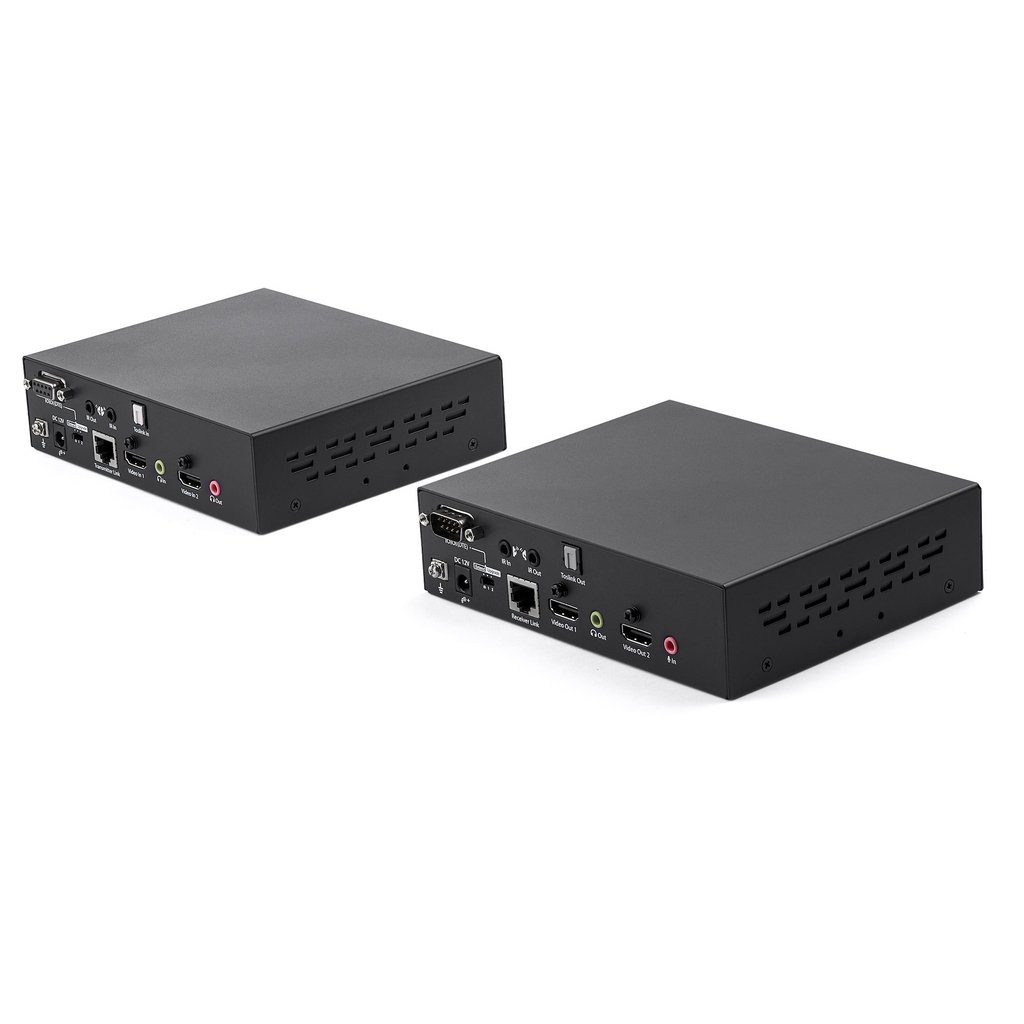

This HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295 ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.
Dual source support
Reduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only one cable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it’s place.
Bi-directional control
With bi-directional IR control, you can control your devices from either end of the extension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. The extender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.
Simplified setup

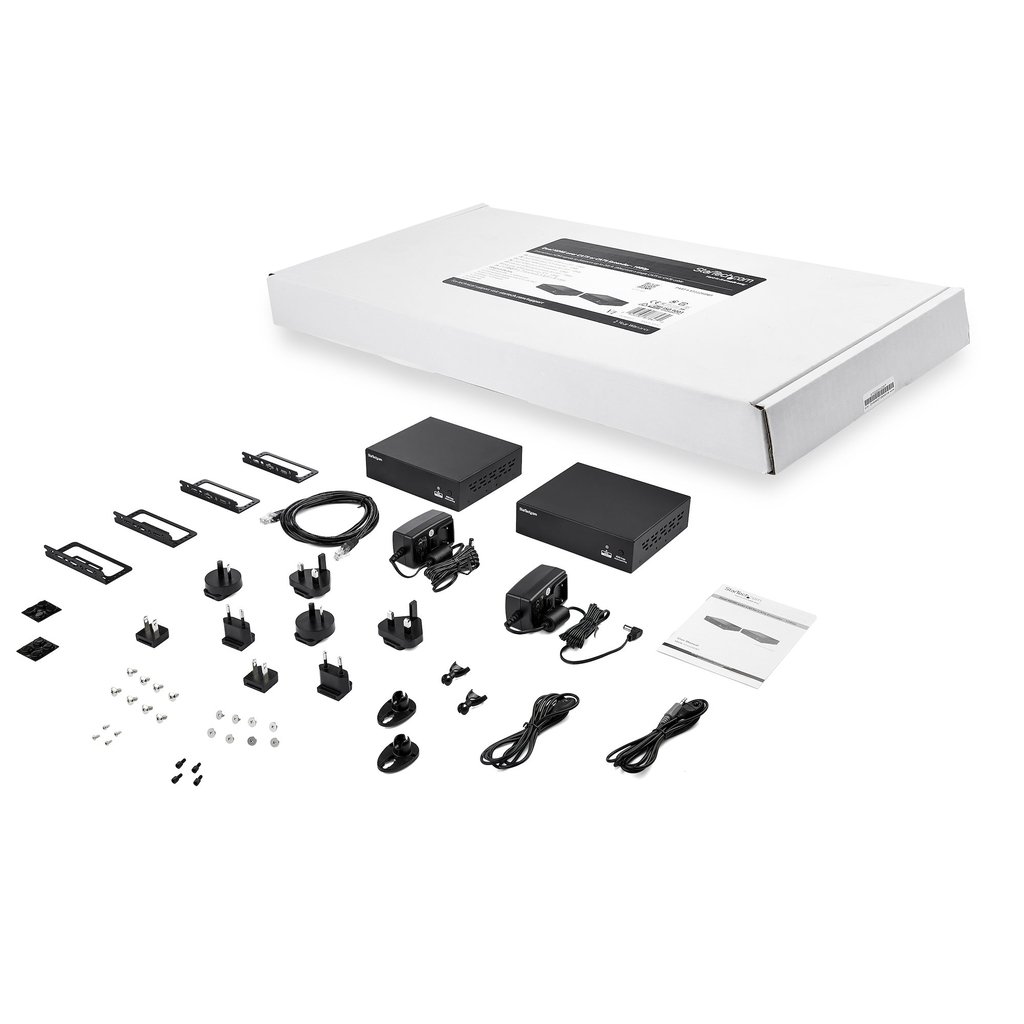

The simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.
The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
Weight | 3 lbs |
---|---|
Type | AV transmitter & receiver |
Cable types supported | Cat5e, Cat6 |
Maximum transfer distance | 90 m |
LED indicators | Link, Status |
Product colour | Black |
Connectivity technology | Wired |
RJ-45 input ports | 1 |
RJ-45 output ports | 1 |
Serial ports quantity | 2 |
Serial interface type | RS-232 |
DC-in jack | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -10 – 60 °C |
Operating relative humidity (H-H) | 0 – 80% |
Receiver dimensions (WxDxH) | 130 x 158 x 43 mm |
Transmitter dimensions (WxDxH) | 130 x 158 x 43 mm |
Compliance certificates | RoHS |
Maximum resolution | 1920 x 1080 pixels |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
Mounting brackets included | Yes |
AC input voltage | 100 – 240 V |
Operating voltage | 12 V |
Weight | 200 g |
Package width | 224 mm |
Package depth | 475 mm |
Package height | 67 mm |
Package weight | 1.43 kg |
Manual | Yes |
Supported video modes | 720p, 1080p |
Audio input | 1 x Toslink |
Audio output | 1 x Toslink |
Cables included | LAN (RJ-45) |
Chipset | VS2310TX, VS2310RX |
Maximum refresh rate | 60 Hz |
Certification | CE, FCC, TAA |
HDMI in | 2 |
Receiver weight | 200 g |
Transmitter weight | 200 g |
Number of HDMI outputs | 2 |
Remote (IR) input | 2 |
Remote (IR) output | 2 |
Output current | 1.5 A |
Included power plug types | ANZ, EU, JP, NA, UK |
Audio output channels | 7.1 channels |
Daisy chain | No |
Master (outer) case width | 300 mm |
Master (outer) case length | 485 mm |
Master (outer) case height | 253 mm |
Products per master (outer) case | 4 pc(s) |
Power plug type | Type M |
IR blaster included | Yes |
IR receiver included | Yes |
Rubber feet | Yes |
3.5 mm (1/8-inch) in | Yes |
3.5 mm (1/8-inch) out | Yes |
