StarTech.com Dual Monitor USB 3.0 Docking Station with HDMI – DVI – 6 x USB Ports~Dual Monitor USB 3.0 Laptop Docking Station w

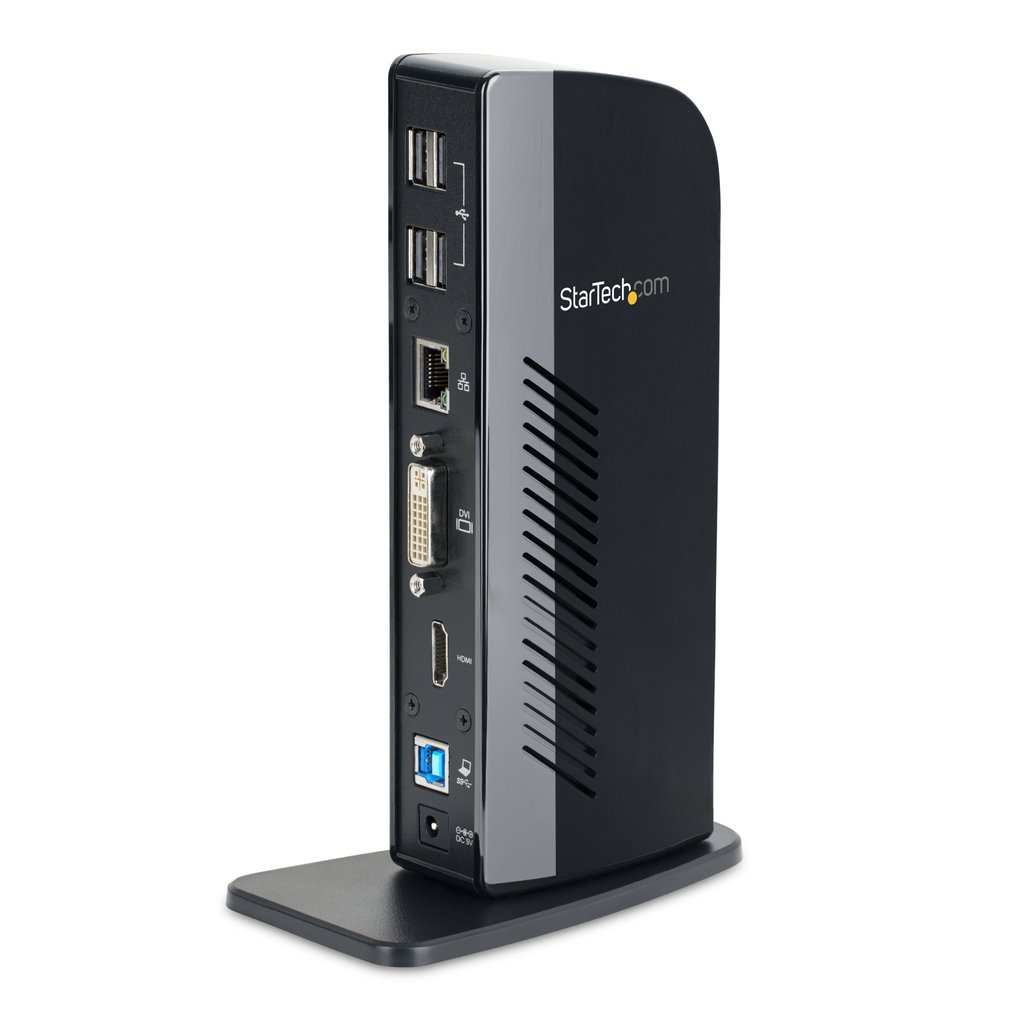

StarTech.com USB 3.0 Dual Monitor Docking Station with HDMI & DVI/VGA, 6x USB-A Ports, Ethernet, Audio & USB Type-A Hub, Universal Laptop Dock – Windows/macOS/ChromeOS (USB3SDOCKHD)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

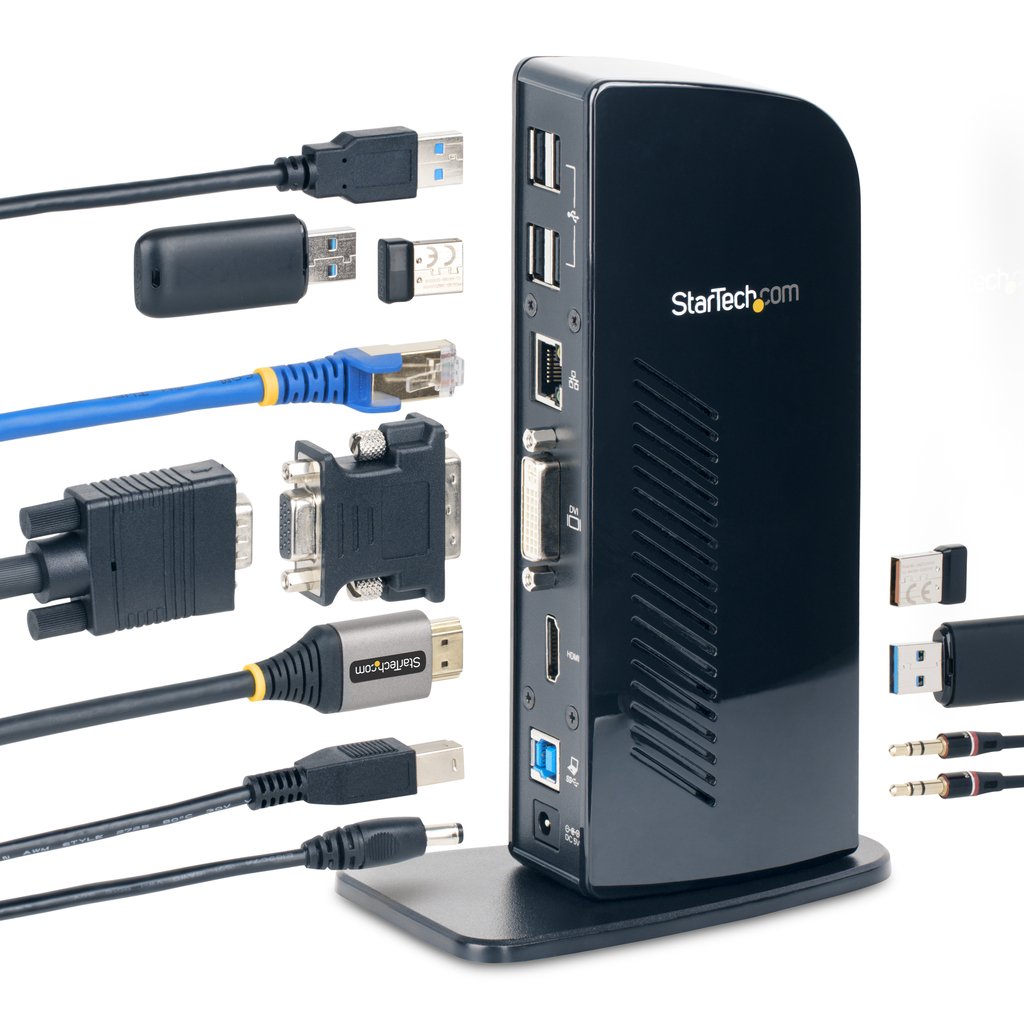

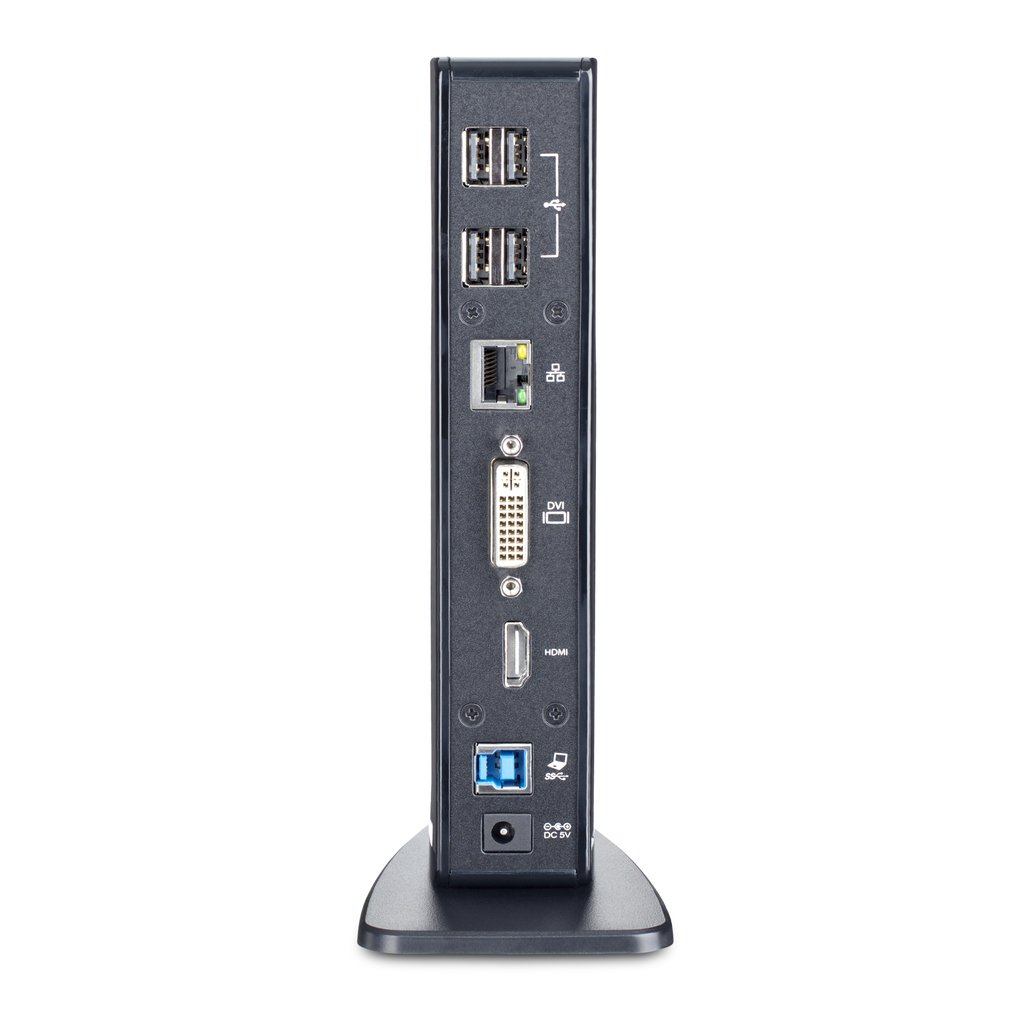

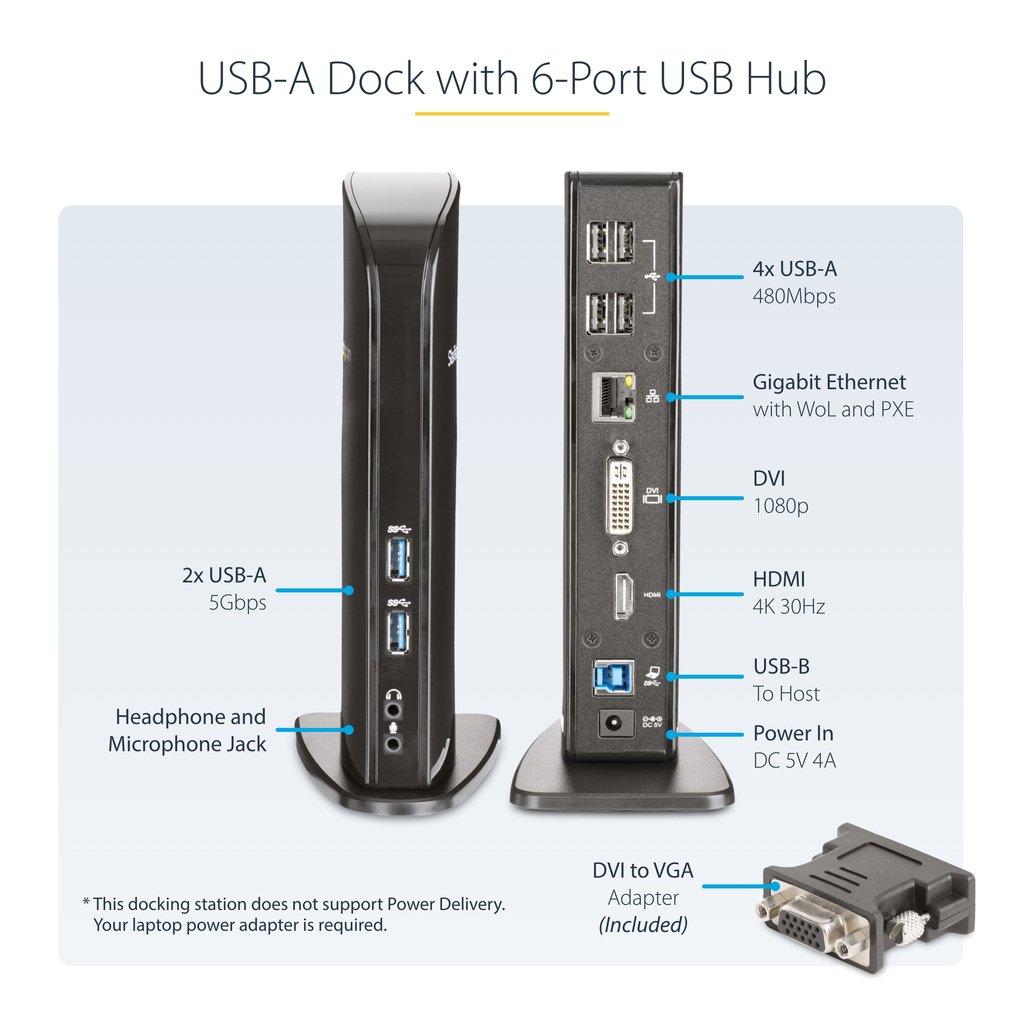

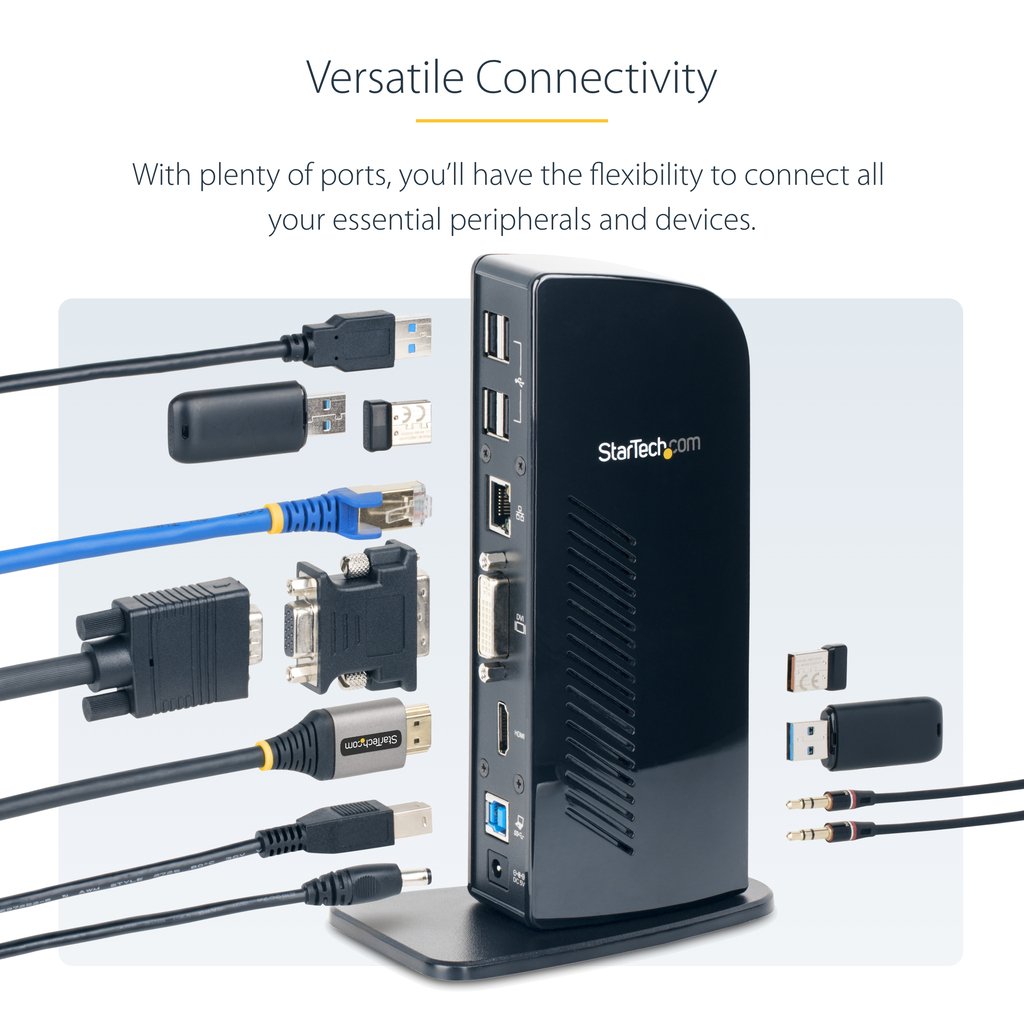

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.

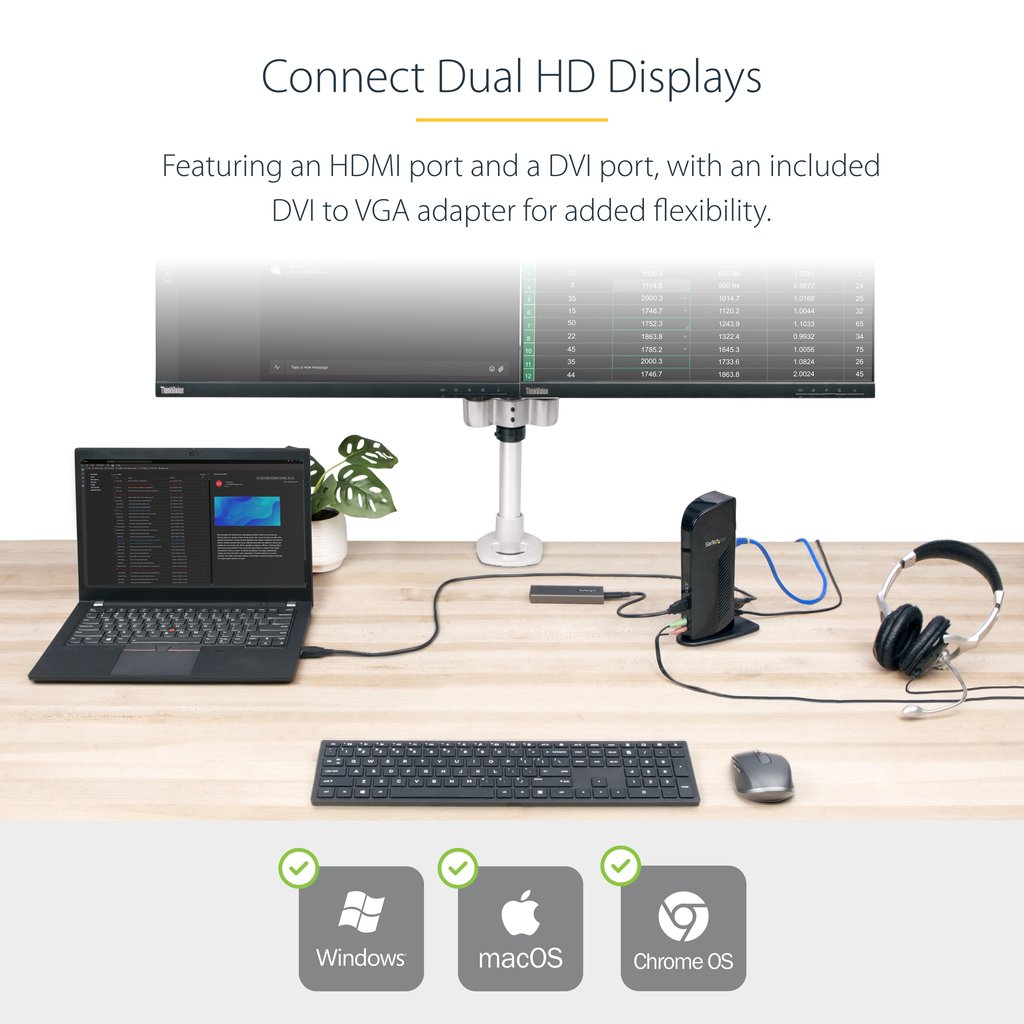

Display Adaptability

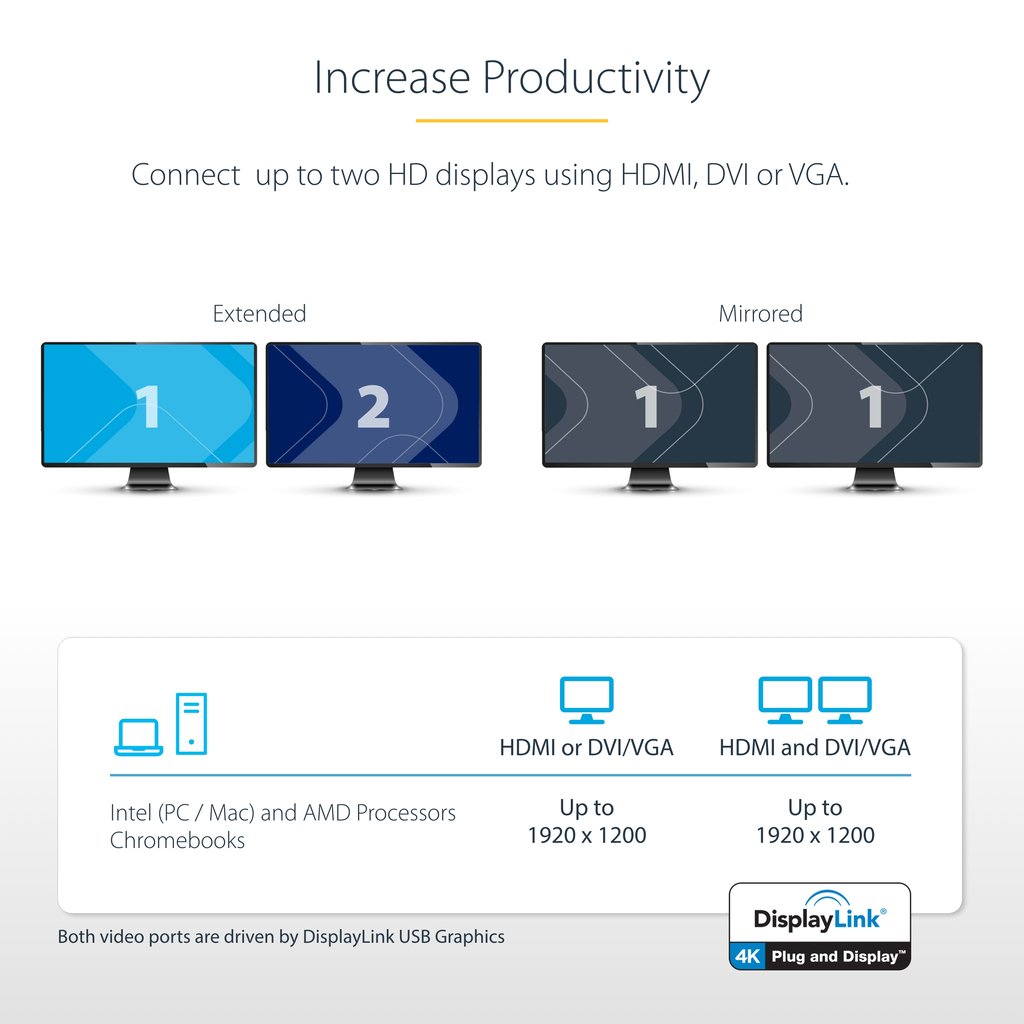

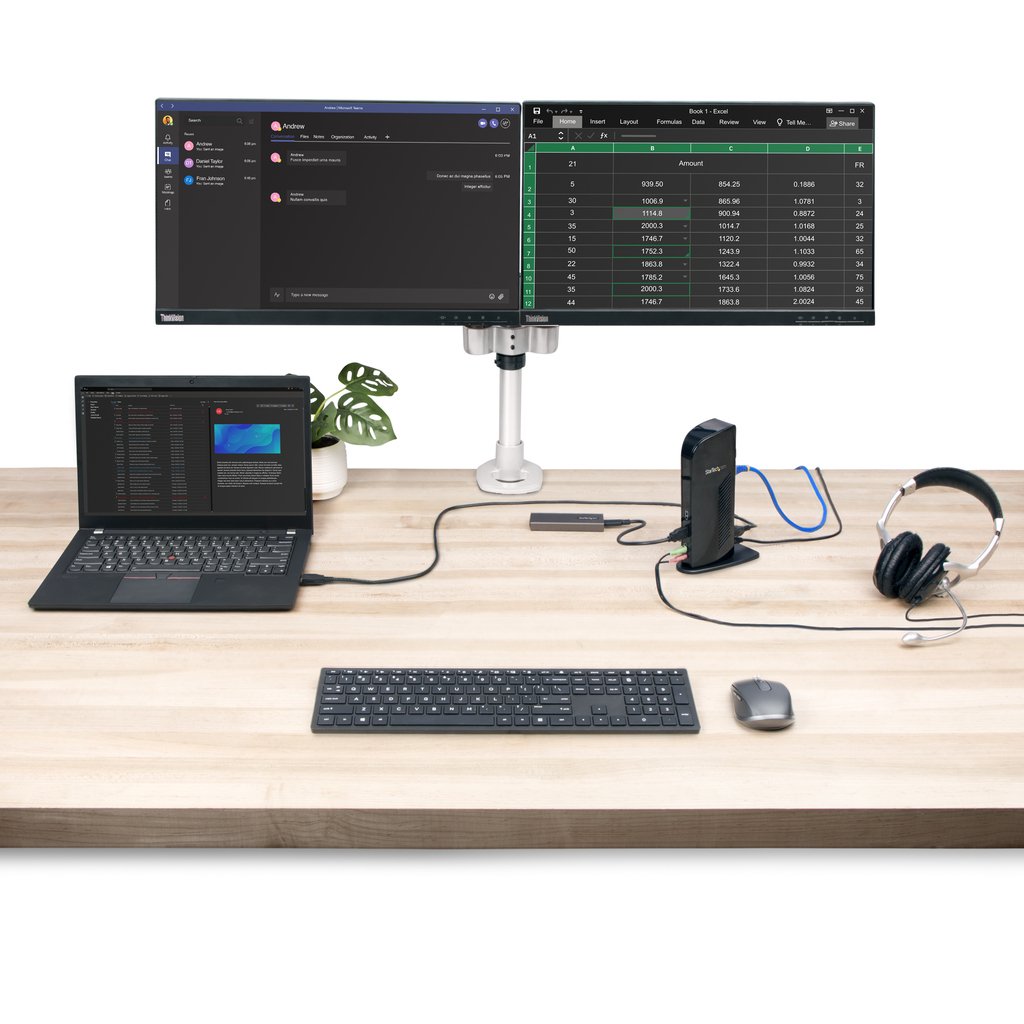

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub

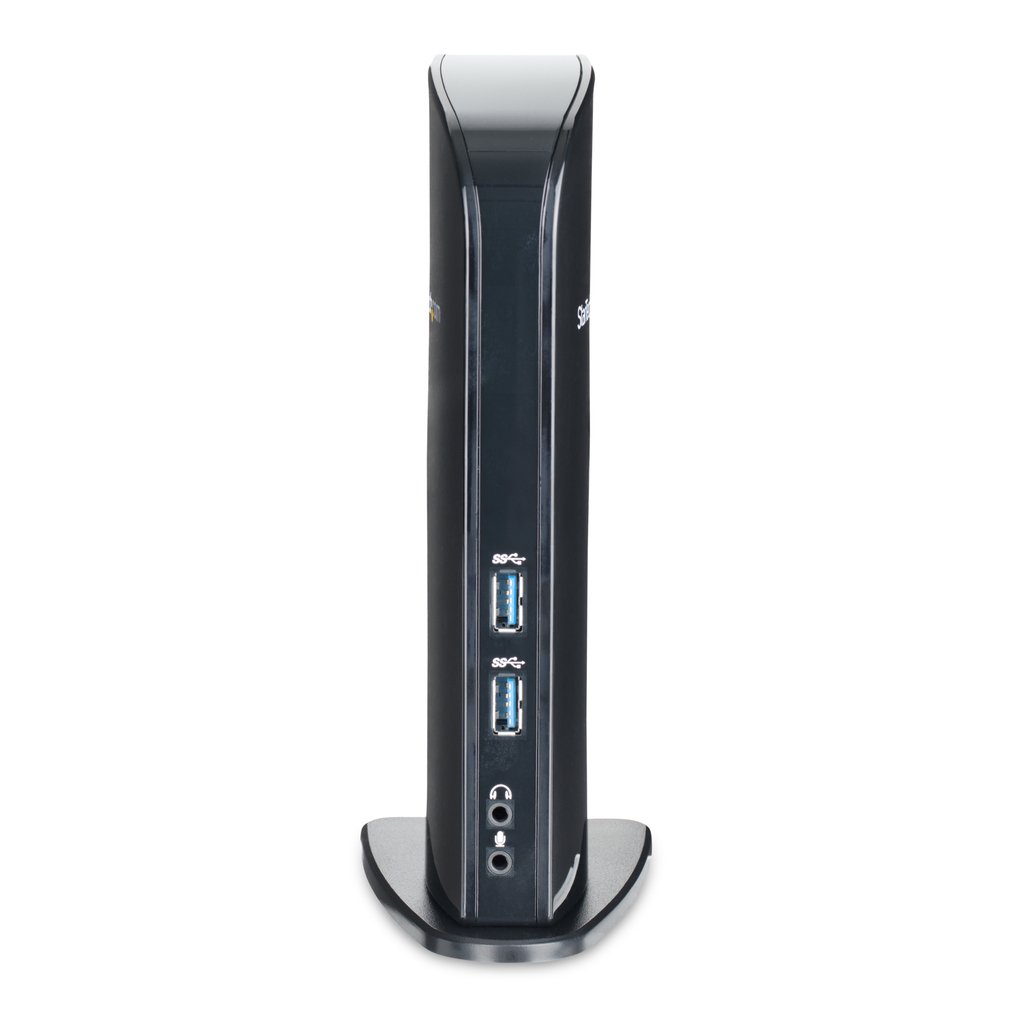

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.

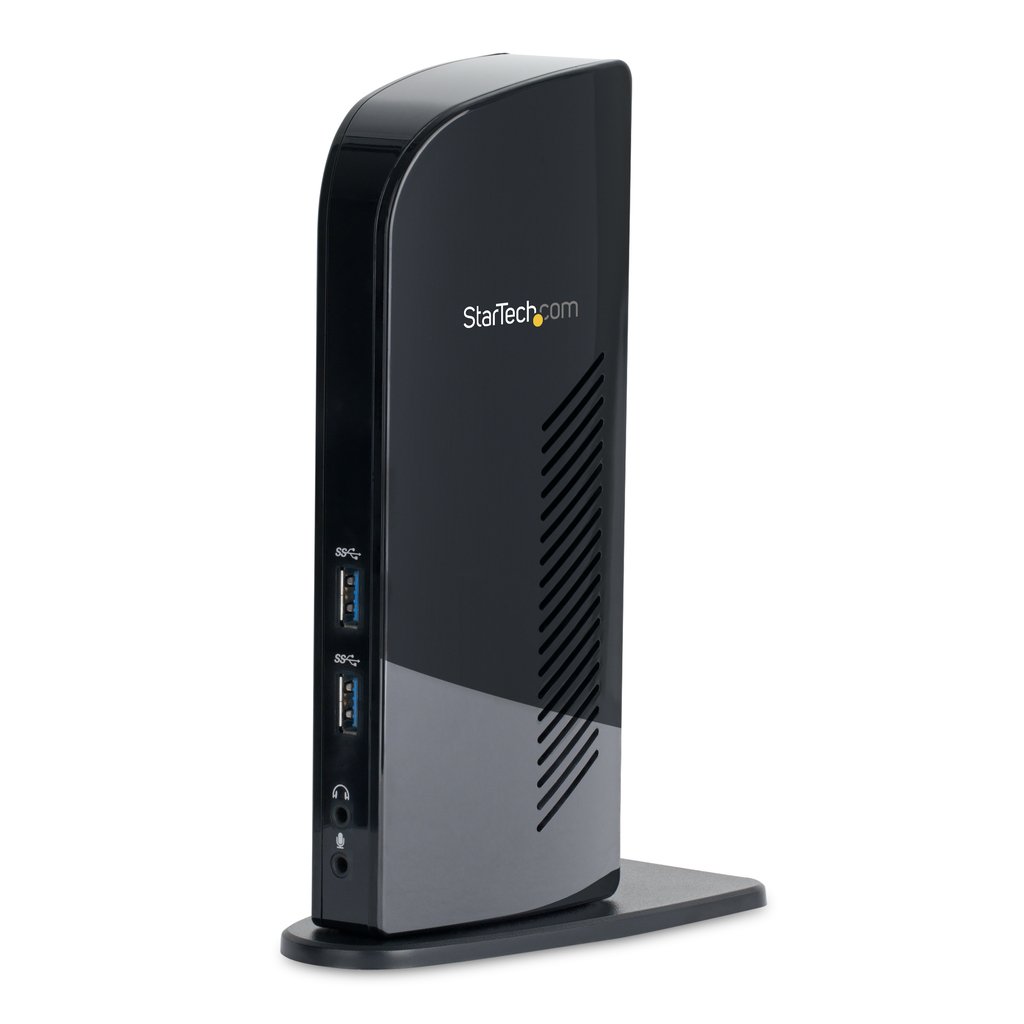

Versatile Design

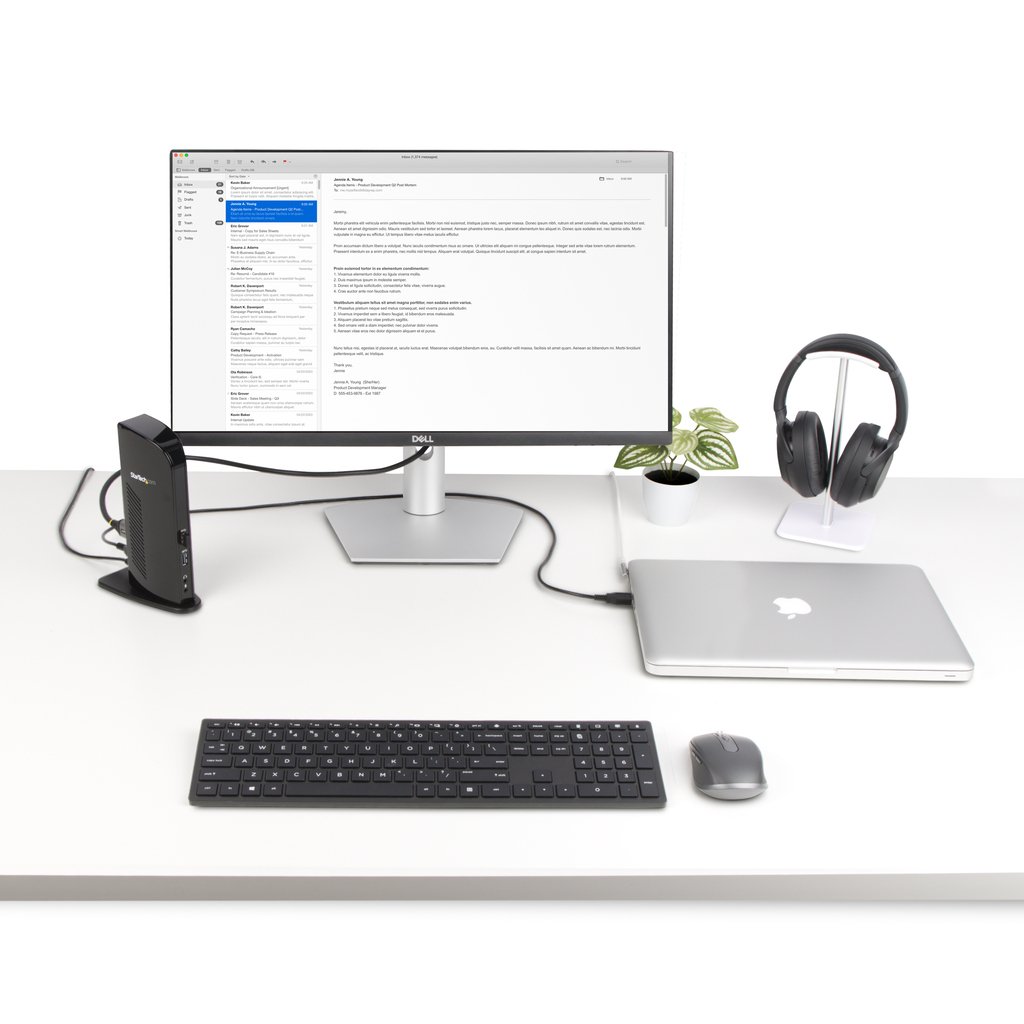

With an upright design, the dock occupies as little desk space as your smart phone, so it’s perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
Additional information
| Weight | 0.92 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Black |
| Card reader integrated | No |
| Power consumption (typical) | 20 W |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 10 – 40 °C |
| Width | 70 mm |
| Depth | 125 mm |
| Height | 195 mm |
| Weight | 370 g |
| Package width | 190 mm |
| Package depth | 273 mm |
| Package height | 109 mm |
| Package weight | 900 g |
| Storage temperature (T-T) | -10 – 80 °C |
| Headphone outputs | 1 |
| Combo headphone/mic port | No |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| LED indicators | Power, USB |
| Housing material | Plastic |
| AC input voltage | 100 – 240 V |
| Input current | 0.8 A |
| Output voltage | 5 V |
| Output current | 4 A |

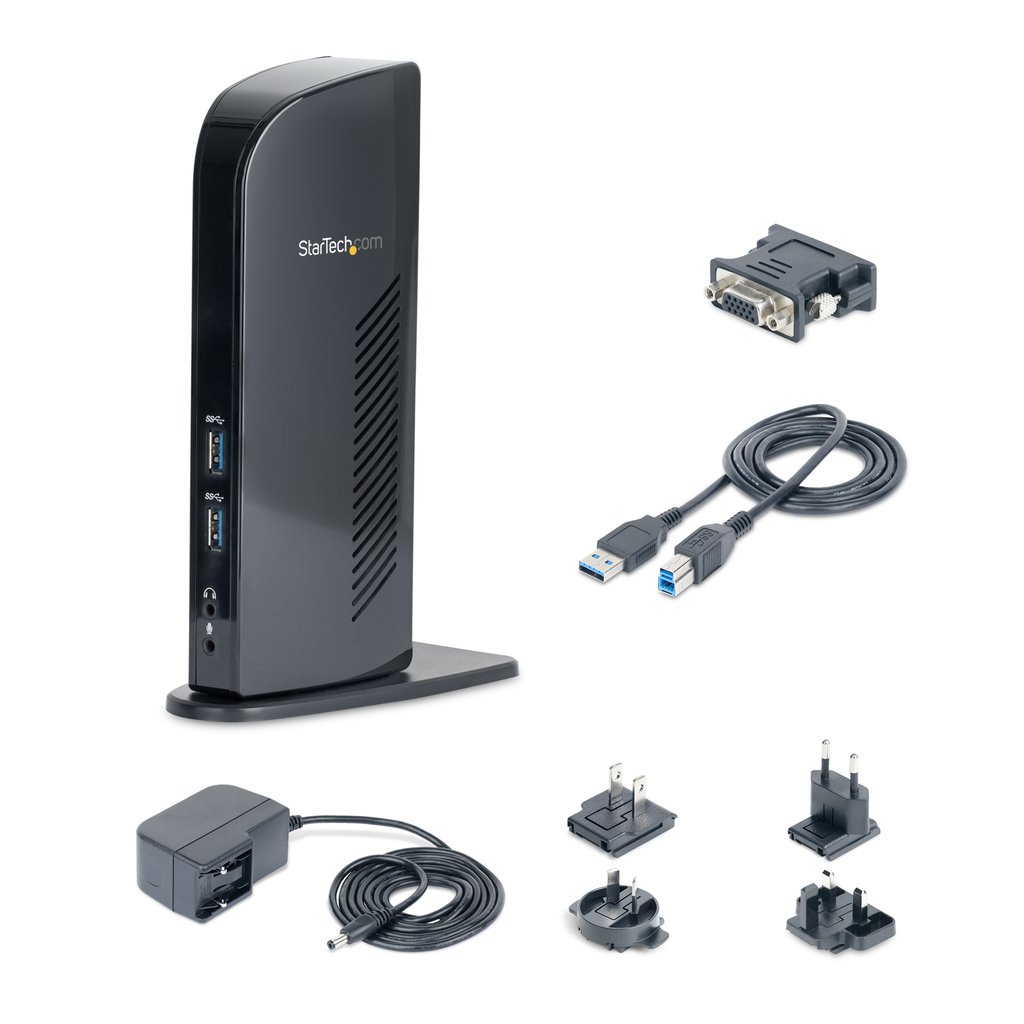

| Cables included | USB |
| AC adapter included | Yes |
| Compliance certificates | RoHS |
| Products per master (outer) case | 6 pc(s) |
| Minimum system requirements | CPU: i3 Dual core 2.8GHz +RAM: 2GB + |
| Data transfer rate | 5 Gbit/s |
| Other operating systems supported | ChromeOS |
| Microphone in | Yes |
| Full duplex | Yes |
| Power plug type | Type C |
| Compatible power plug types | AU, EU, JP, UK, US |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 360 mm |
| Chipset | DisplayLink – DL-3900, VLI – VL810, Terminus – FE1.1, Realtek – RTL8211E |
| Certification | CE, FCC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |

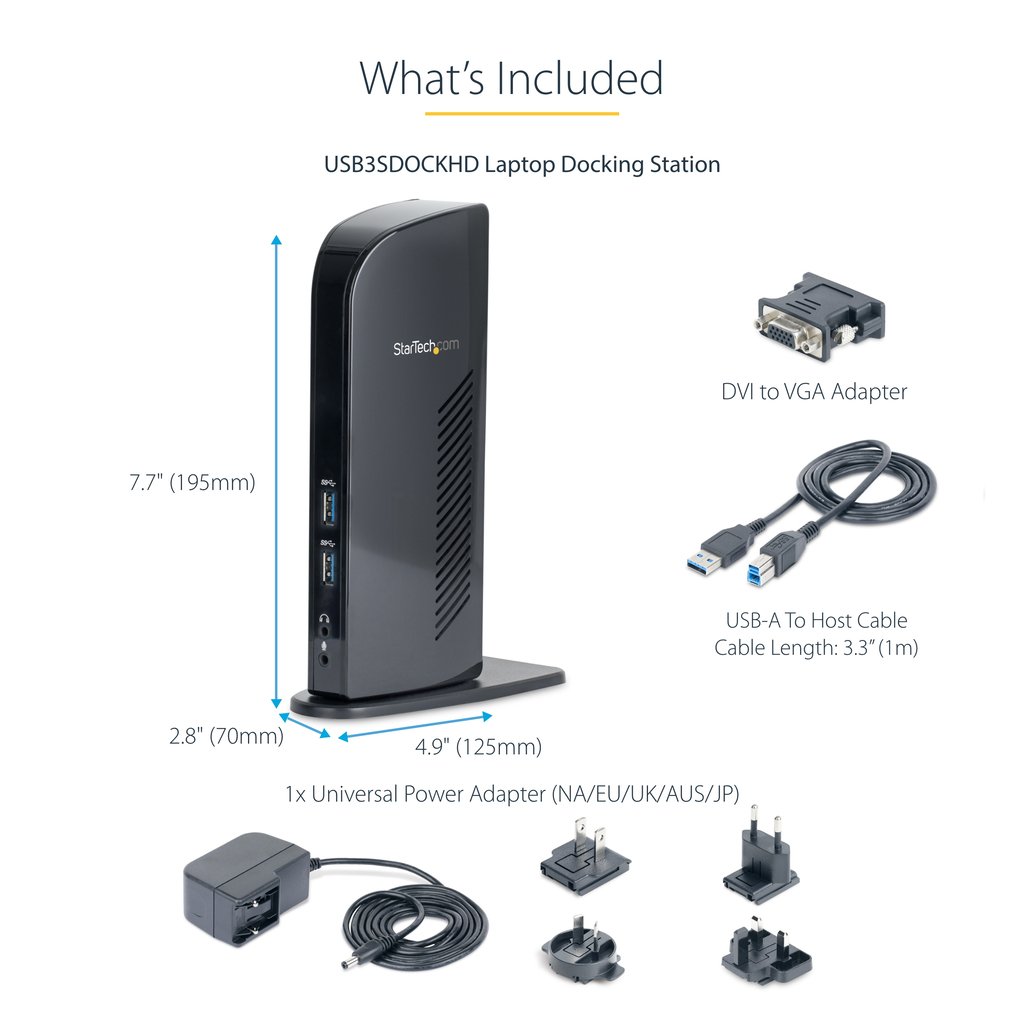

| Interface adapters included | DVI-I male – VGA female |
| Manual | Yes |
| Harmonized System (HS) code | 84733020 |
| Brand compatibility | Any brand |
| Mac compatibility | Yes |
| USB connector type | USB Type-A |
| DVI-I ports quantity | 1 |
| Drivers included | Yes |
| Number of microphone inputs | 1 |
