StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card – PCIe NIC
StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card – 1 Gbps PCIe NIC – Dual Port Server Adapter – 2 Port Ethernet Card
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

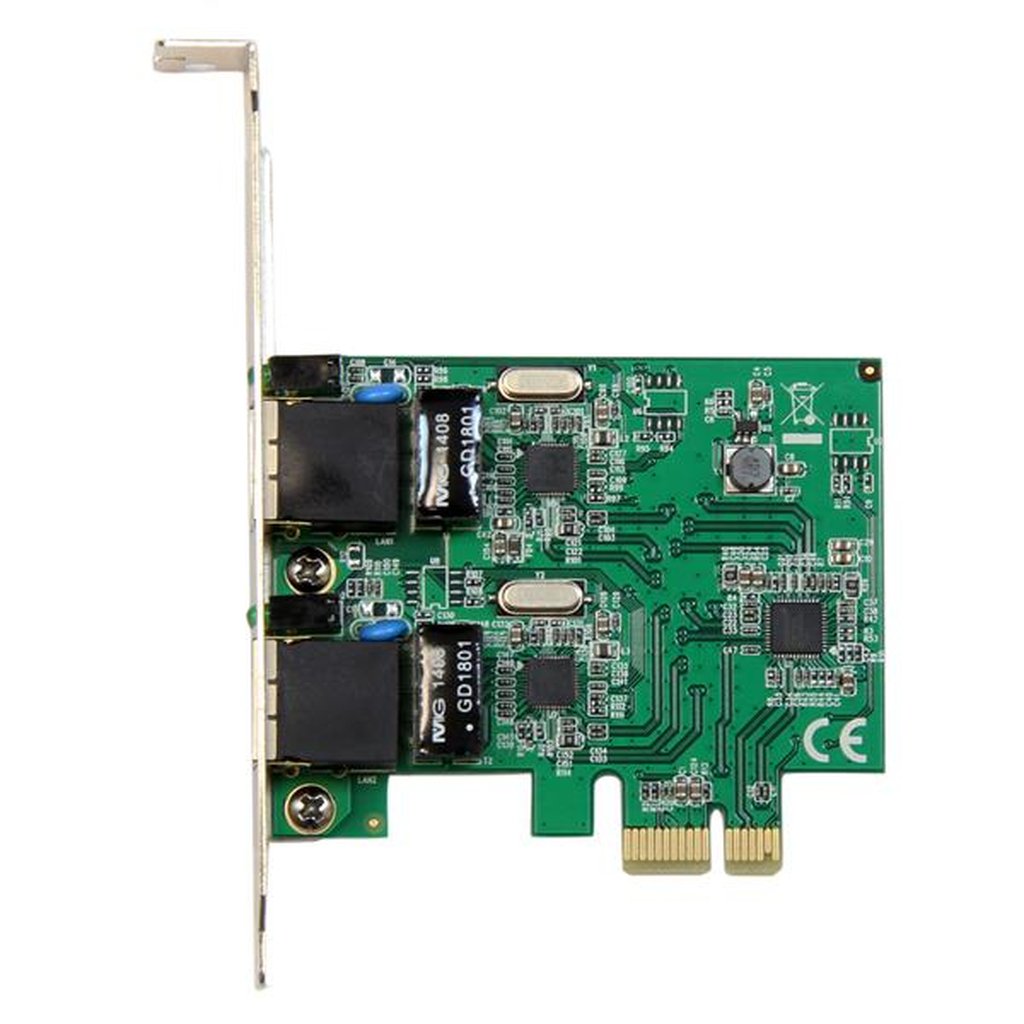

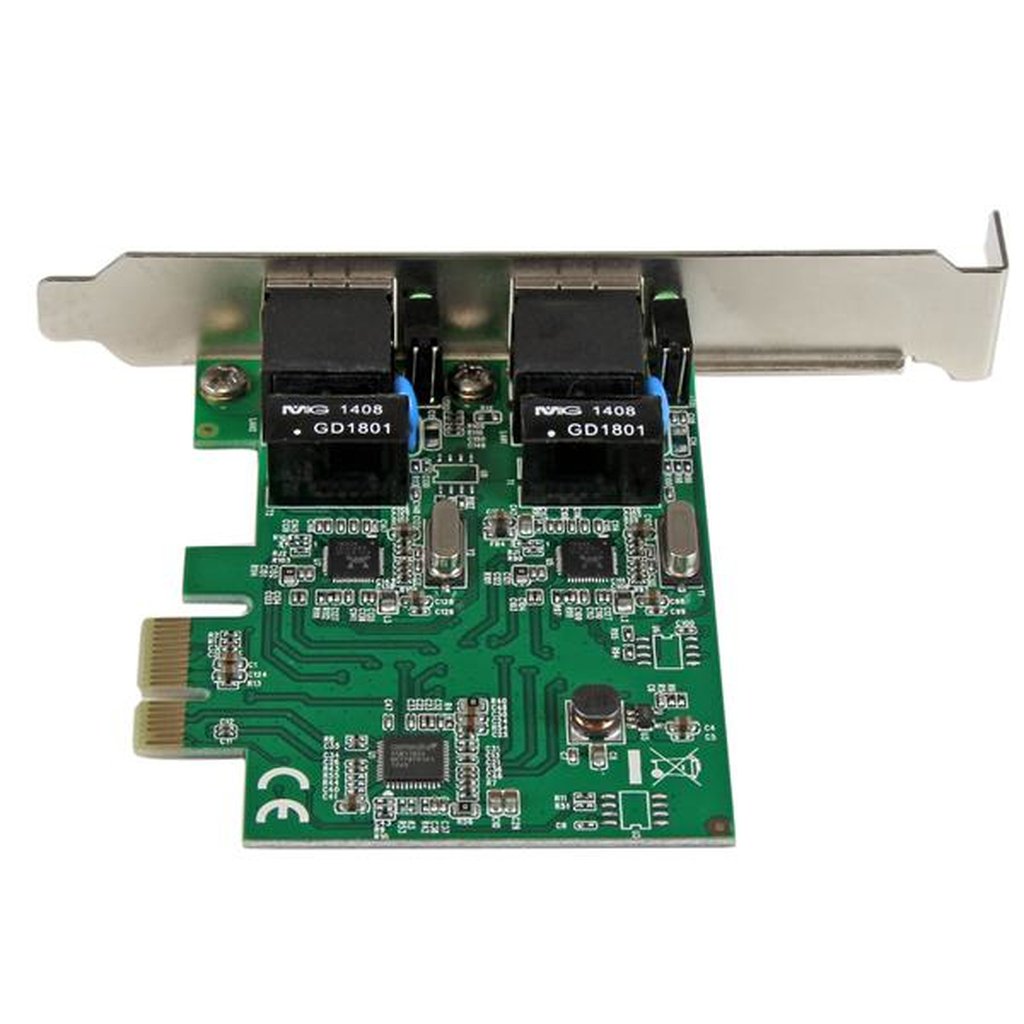

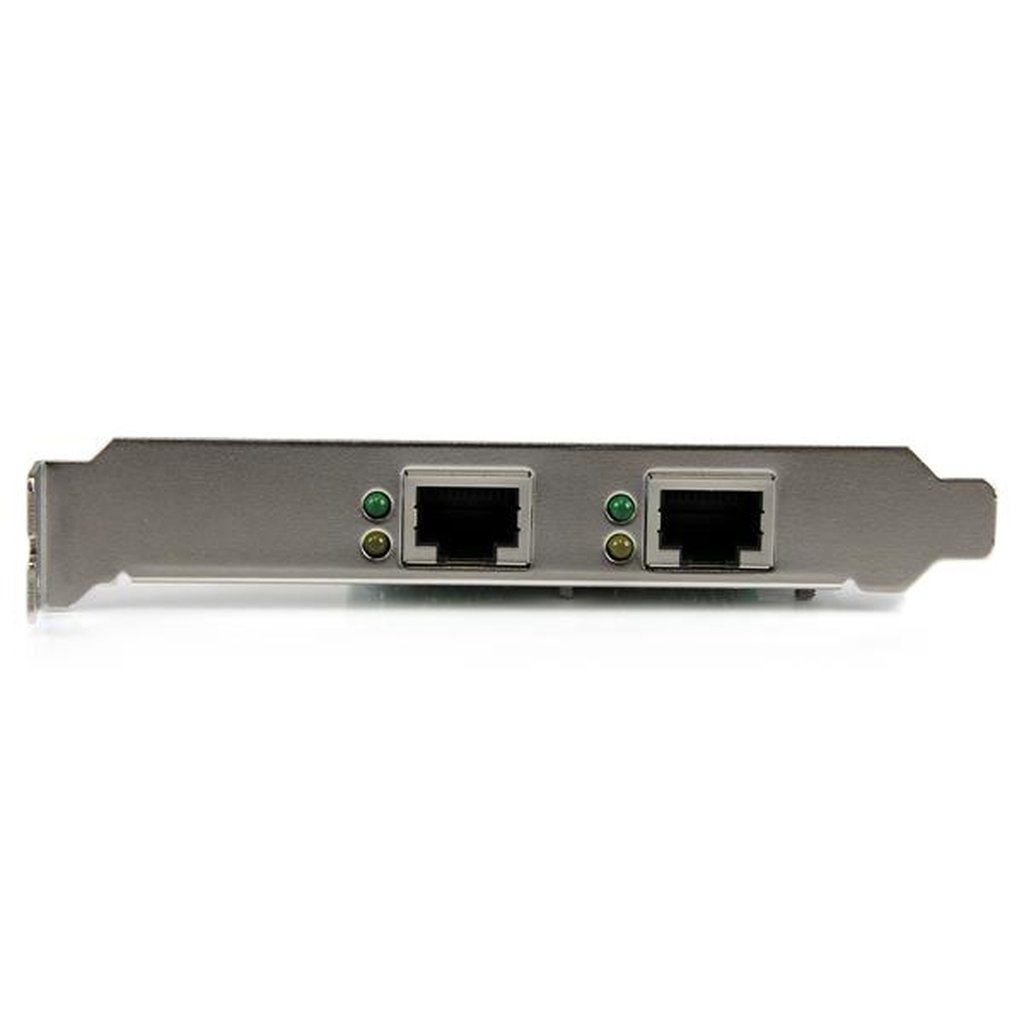

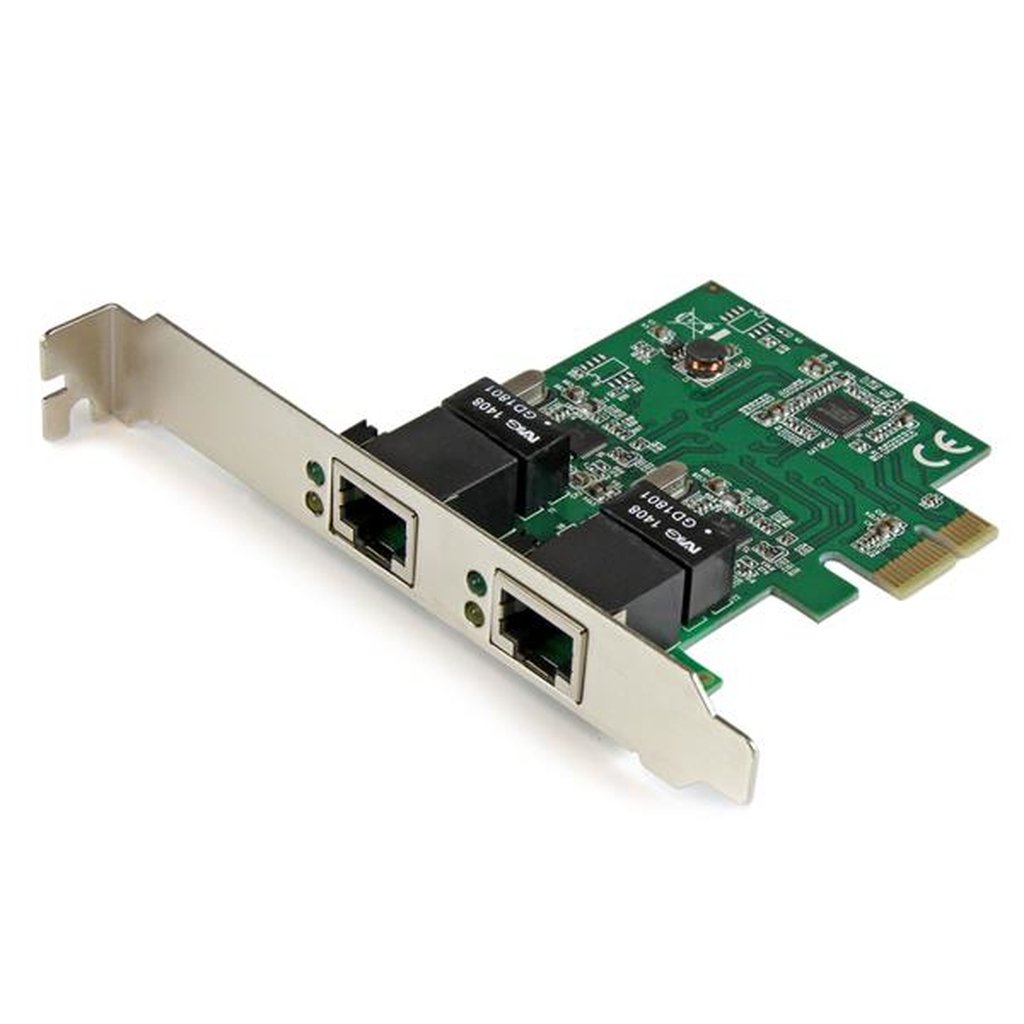

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps – an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

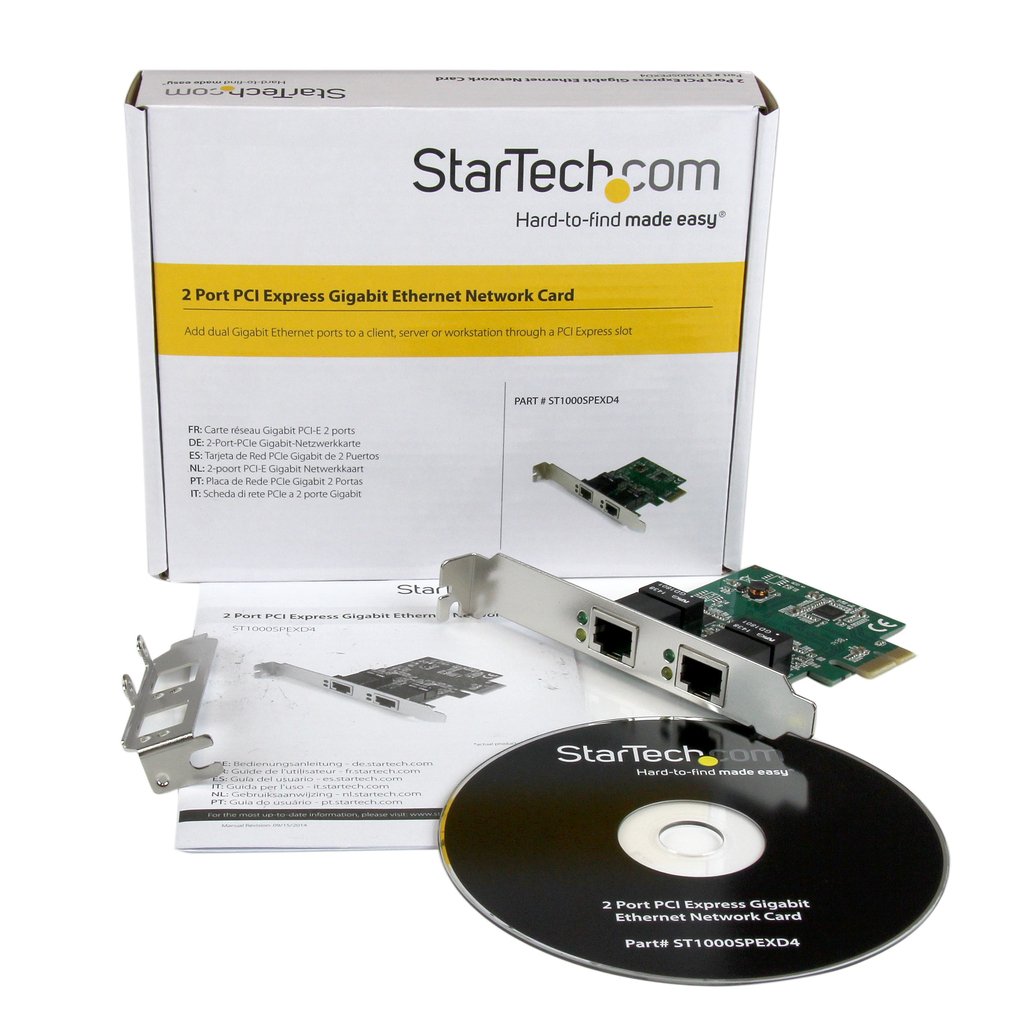

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
The StarTech.com Advantage
– Protect critical networked systems with a redundant and independent Gigabit port
– Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
– Maximize the networking efficiency of your virtualized server, with dedicated ports
Additional information
| Weight | 0.1 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Internal | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows |
| Width | 18 mm |
| Depth | 92.6 mm |
| Height | 120 mm |
| Weight | 51 g |
| PCI version | 2.0 |
| Maximum data transfer rate | 2000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | 0 – 100 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Chipset | Realtek – RTL8111E, Asmedia – ASM1182E |
| LED indicators | Activity, Link |
| Package width | 170 mm |
| Package depth | 143 mm |
| Package height | 30 mm |
| Package weight | 142 g |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Auto MDIX IEEE | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Manual | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Low-profile bracket | Yes |
| VLAN tagging | Yes |
| Drivers included | Yes |
