StarTech.com Dual Rail Rackmount KVM Console HD 1080p – Single Port DVI/VGA KVM w/17″ LCD Monitor for Server Rack – Fully Featu
StarTech.com Dual Rail Rackmount KVM Console HD 1080p – Single Port DVI/VGA KVM w/17″ LCD Monitor for Server Rack – Fully Featured 1U LCD KVM Drawer w/Cables – USB Support – 44230 MTBF (RKCOND17HD)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included
Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.
Dual Rail Design
The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.
High Definition LCD Monitor
The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920×1080 providing sharper video performance.
Digital & Analog Support
Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.
Simple Setup

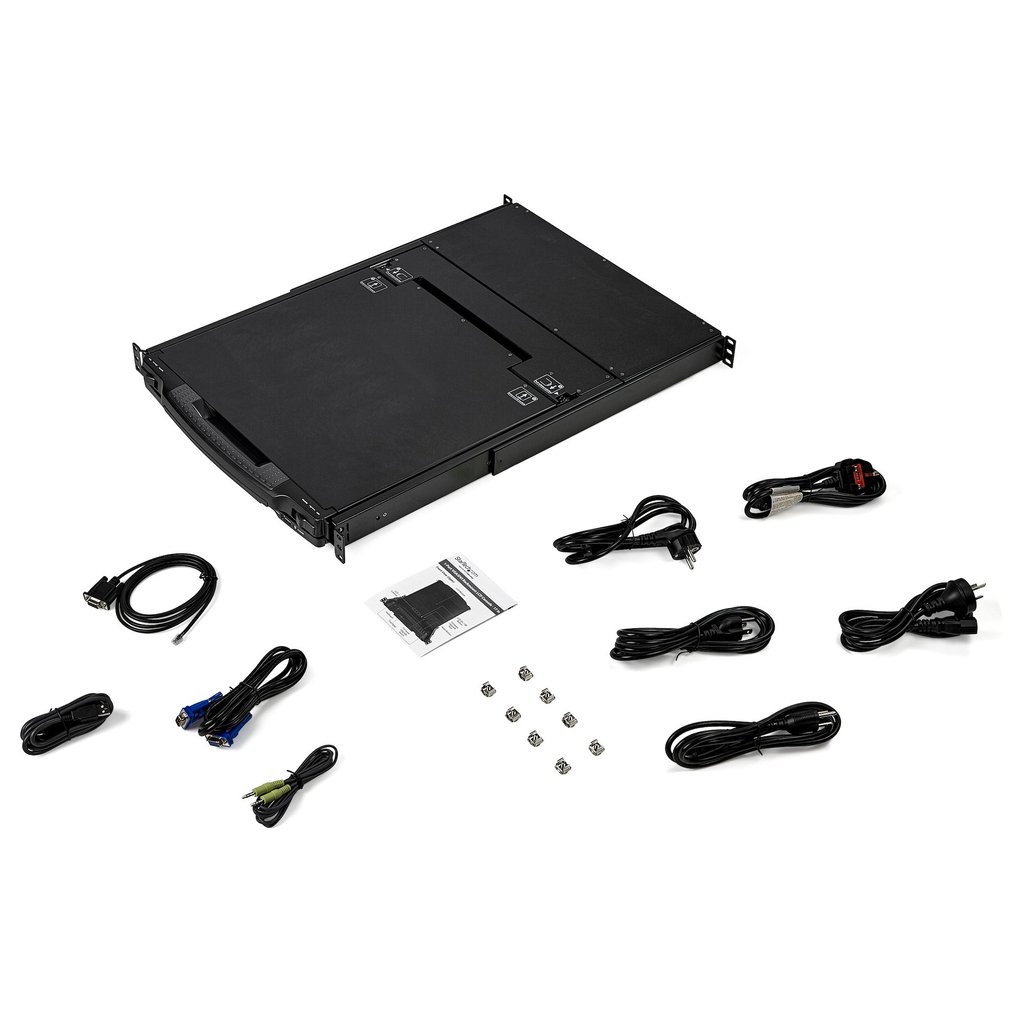

This KVM console comes with everything you need to set up:
✔ 1 Audio Cable
✔ 1 Set of KVM Cables (USB/VGA)
✔ 2 Rear Mounting Brackets
✔ M5 Cage Nuts and Screws
Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
Weight | 18.6 lbs |
---|---|
Display diagonal | 43.9 cm (17.3") |
Display | TFT LCD |
Product colour | Black |
Certification | CE, FCC, UL, REACH |
Power consumption (typical) | 19.4 W |
AC adapter input voltage | 100 – 240 V |
Weight | 13.6 kg |
Package weight | 18.9 kg |
Operating temperature (T-T) | 0 – 40 °C |
Display resolution | 1920 x 1080 pixels |
Display brightness | 250 cd/m² |
Contrast ratio (typical) | 650:1 |
Viewing angle, horizontal | 140° |
Viewing angle, vertical | 120° |
Pixel pitch | 0.199 x 0.199 mm |
Aspect ratio | 16:9 |
Display type | LCD |
Rack mounting | Yes |
USB 2.0 Type-A ports quantity | 2 |
Storage temperature (T-T) | -20 – 60 °C |
Cables included | Audio (3.5mm), KVM |
On Screen Display (OSD) | No |
Display number of colours | 262144 colours |
Material | Steel |
Mean time between failures (MTBF) | 44230 h |
Operating relative humidity (H-H) | 0 – 80% |
LED indicators | Yes |
Compliance certificates | RoHS |
Rack capacity | 1U |
Video port type | DVI/VGA |
Hot keys | Yes |
Width | 480 mm |
Height | 44 mm |
Depth | 727 mm |
Mounting depth (min) | 65 cm |
Mounting depth (max) | 100 cm |
Package width | 680 mm |
Package depth | 840 mm |
Package height | 133 mm |
Screws included | Yes |
Mounting brackets included | Yes |
Included power plug types | ANZ, EU, JP, NA, UK |
Quick installation guide | Yes |
Master (outer) case width | 680 mm |
Master (outer) case length | 840 mm |
Master (outer) case height | 133 mm |
Products per master (outer) case | 1 pc(s) |
Keyboard port type | USB |
Mouse port type | USB |
Input current | 1 A |
Number of screws | 8 |
Cage nuts included | Yes |
Number of cage nuts | 8 |
Response time | 8 ms |
Supported resolutions | 1024x5761152x6481280x7201366x761600x9001920x1080 |
3.5 mm (1/8-inch) out | Yes |
3.5 mm (1/8-inch) in | Yes |
DVI connector type | DVI-D |
DVI input ports | 1 |
DVI output ports | 1 |
USB 2.0 Type-B ports quantity | 1 |
