StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot
StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot – Fiber to Ethernet Converter – Gigabit Ethernet Media Converter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice

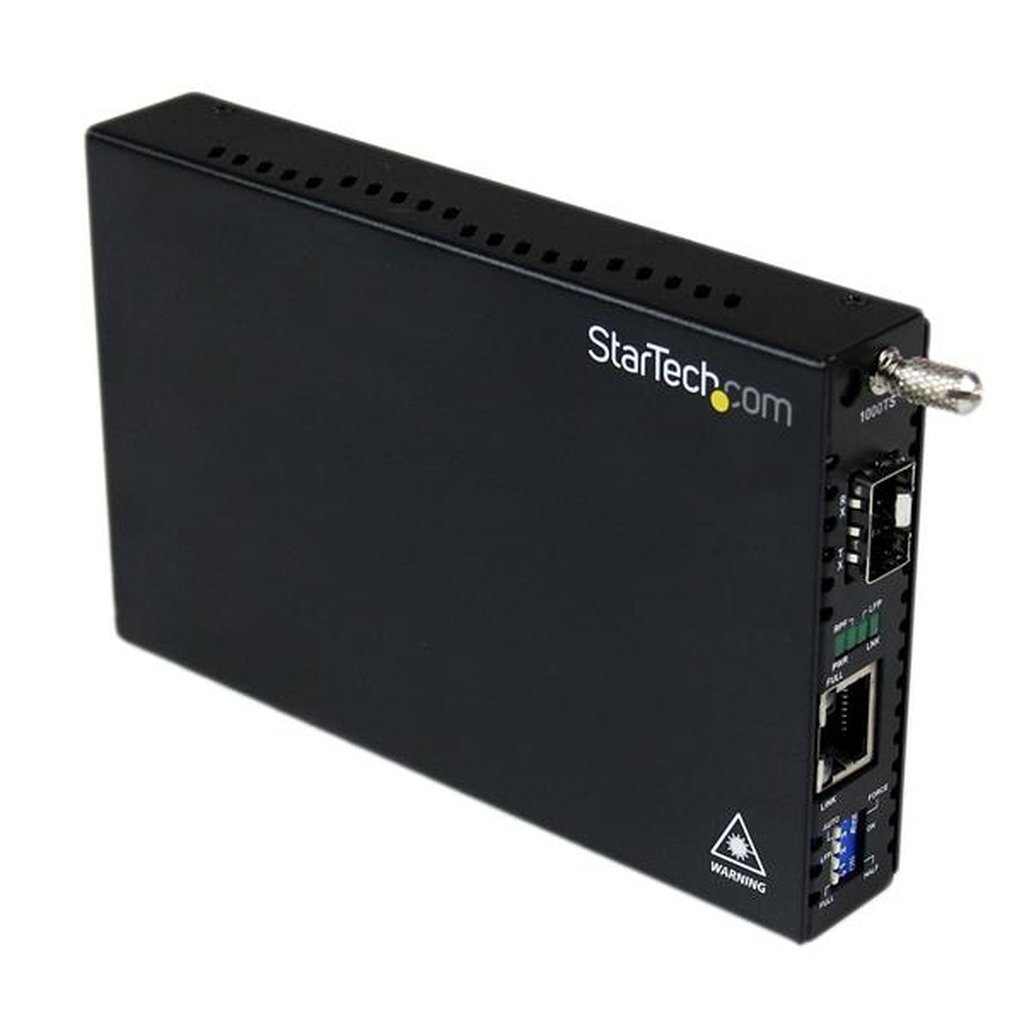

The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).
The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, ETCHS2U” text=”2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a ET91000SFP2C” text=”Card Module only (ET91000SFP2C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Install the SFP of your choice with the open SFP slot
– Operate as a standalone media converter or install into the ETCHS2U chassis

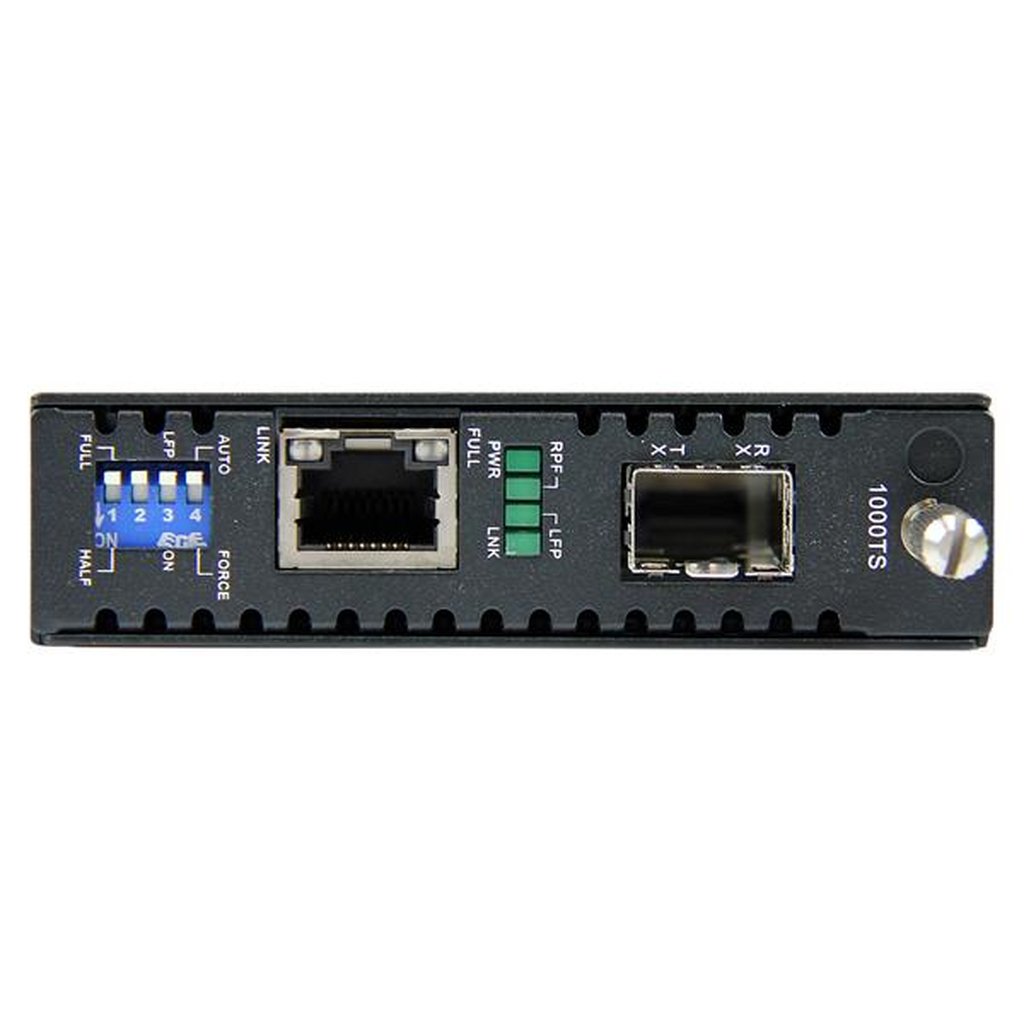

– Ensure maximum up-time with link-loss forwarding and remote status monitoring
Additional information
| Weight | 0.76 lbs |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Fiber optic connector | SFP |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Width | 95 mm |
| Depth | 160 mm |
| Height | 20 mm |
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Manual | Yes |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Weight | 400 g |
| Package width | 137 mm |
| Package depth | 208 mm |
| Package height | 92 mm |
| Package weight | 786 g |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Housing material | Steel |
| Power over Ethernet (PoE) | No |

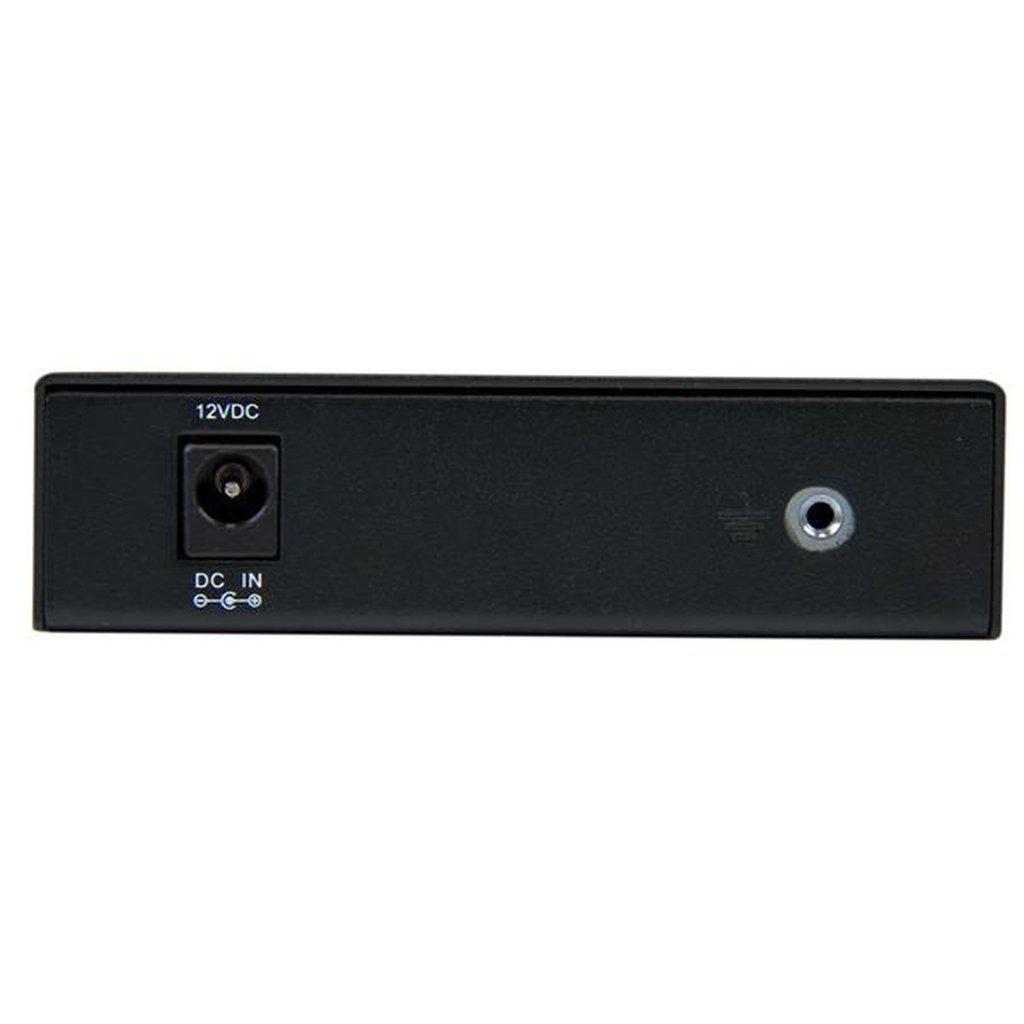

| Input voltage | 100 – 240 V |
| Input current | 0.36 A |
| Certification | FCC |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 8 W |
| External power adapter | Yes |
| Mean time between failures (MTBF) | 65000 h |
