Description
Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber
This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is PoE powered, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features

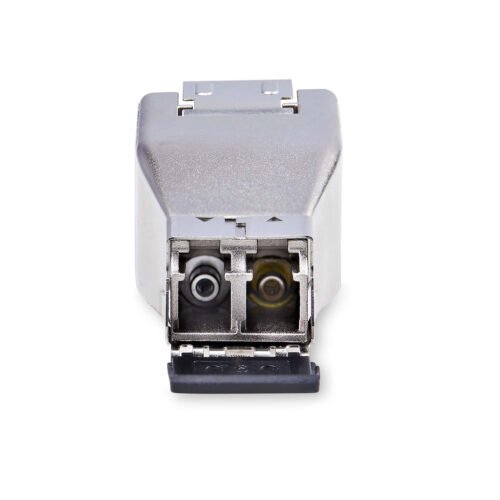

The PoE media converter is designed to work seamlessly with any networking equipment that is PoE-capable and supports the 802.3af standard or higher. It comes equipped with a range of PoE protection features, including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and 2KV Surge Protection. The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility
This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
The StarTech.com Advantage
Additional information
| Weight | 0.76 lbs |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode, Single-mode |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Silver |
| Fiber optic connector | LC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Width | 82 mm |
| Depth | 20 mm |
| Height | 17 mm |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Compliance certificates | Trade Agreements Act (TAA) |
| Copper ethernet cabling technology | 1000BASE-T |
| Weight | 42 g |
| Package width | 136 mm |
| Package depth | 80 mm |
| Package height | 32 mm |
| Package weight | 75 g |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX |
| Auto-negotiation | Yes |
| Chipset | Marvell – 88E1512 |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| Power over Ethernet (PoE) | Yes |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 126 mm |
| Products per master (outer) case | 24 pc(s) |
| Fiber ethernet cabling technology | 1000BASE-LX |
| Power consumption (typical) | 2.5 W |
| Quick installation guide | Yes |
