StarTech.com HDMI KVM Extender over IP Network – 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft)
StarTech.com HDMI KVM Extender over IP – 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) – Remote KVM Switch/Console Transmitter/Receiver Extender Kit (SV565HDIP)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation

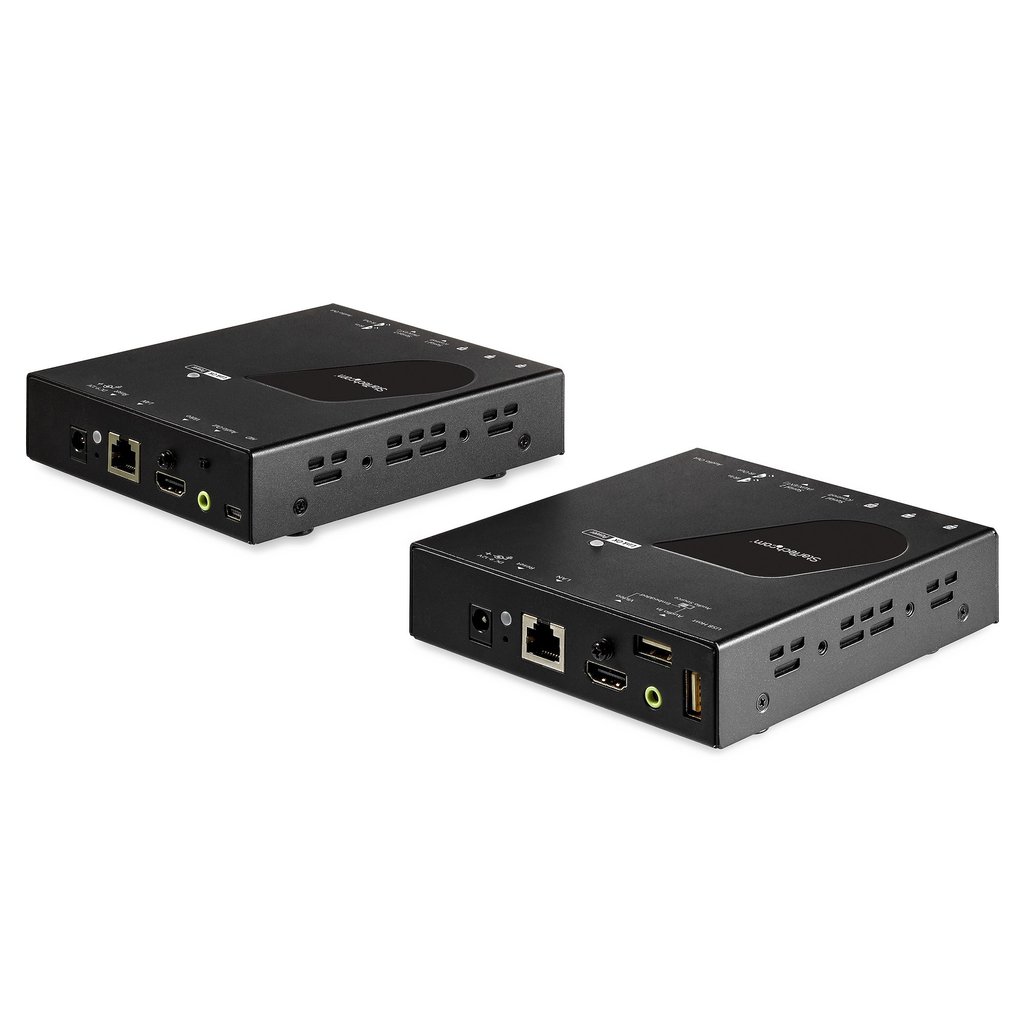

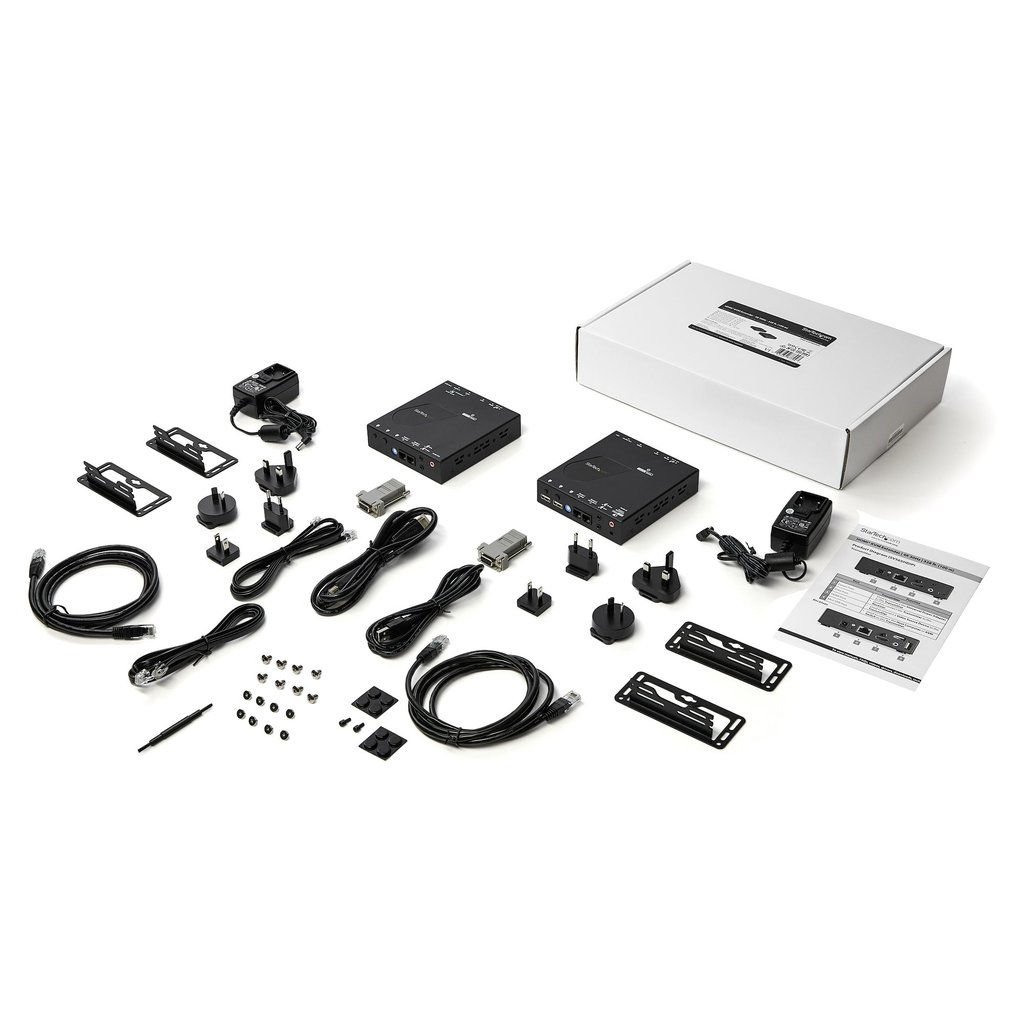

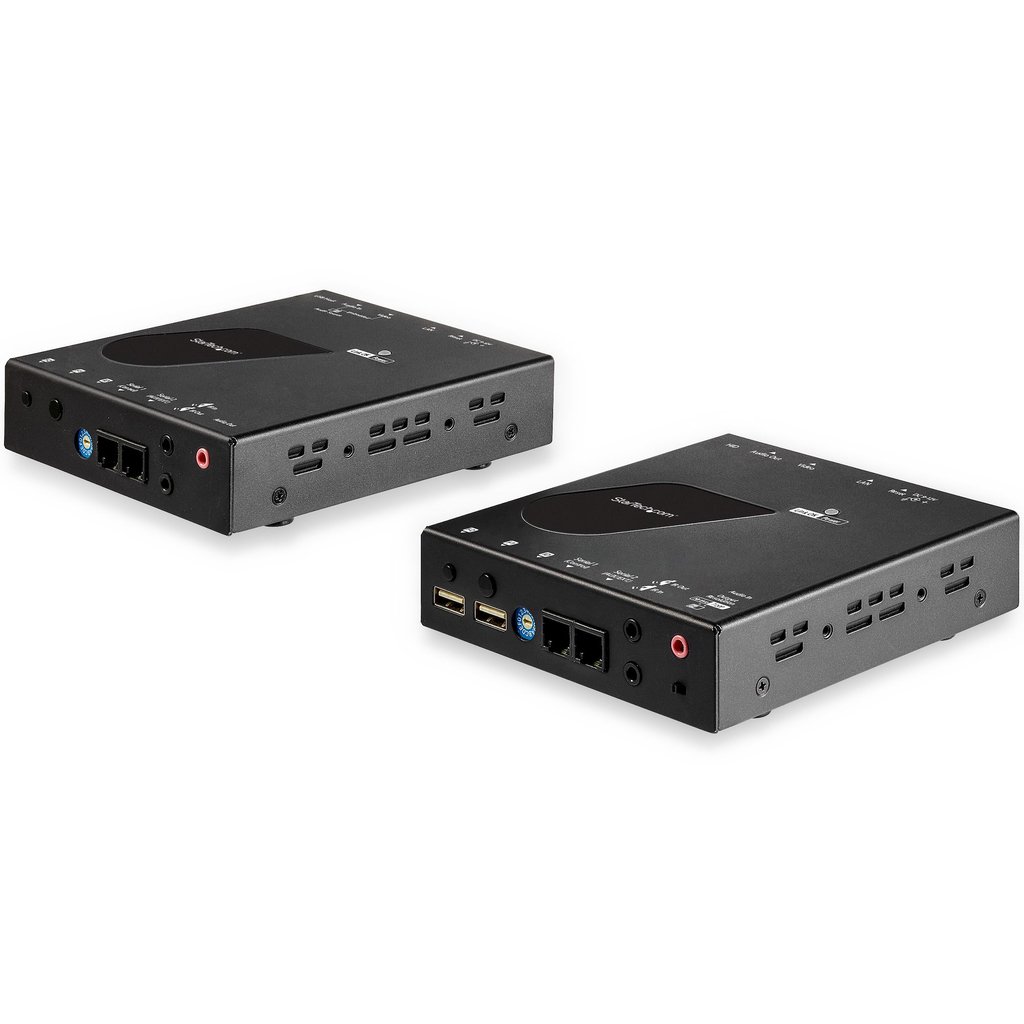

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 2.42 lbs |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| USB hub | Yes |
| Audio connections | Yes |
| Headphone outputs | 8 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Chipset | ASPEED – AST1520 |
| Audio channels | 7.1 |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | No |
| Mean time between failures (MTBF) | 60000 h |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Input voltage | 100 – 240 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 117 mm |
| Depth | 130 mm |
| Height | 28 mm |
| Weight | 610 g |
| Package width | 365 mm |
| Package depth | 195 mm |
| Package height | 235 mm |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| IP control | No |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 6 pc(s) |
| USB 2.0 Type-A hub ports quantity | 2 |
| Number of microphone inputs | 2 |
| Daisy chain | No |
| Output voltage | 12 V |
| External power adapter | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
| Video bandwidth | 30 Hz |
| HDMI ports quantity | 2 |
| Cables included | HDMI, LAN (RJ-45), Phone (RJ-11), USB |
| Ethernet LAN (RJ-45) ports | 2 |
| Certification | CE, FCC, TAA, REACH |
| Maximum operating distance | 100 m |
