StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable – 165 ft (50m)
StarTech.com HDMI Over CAT5e / CAT6 Extender with Power Over Cable – 165 ft (50m) HDMI Video/Audio Over Dual Ethernet Cable Extender (ST121SHD50)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920×1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

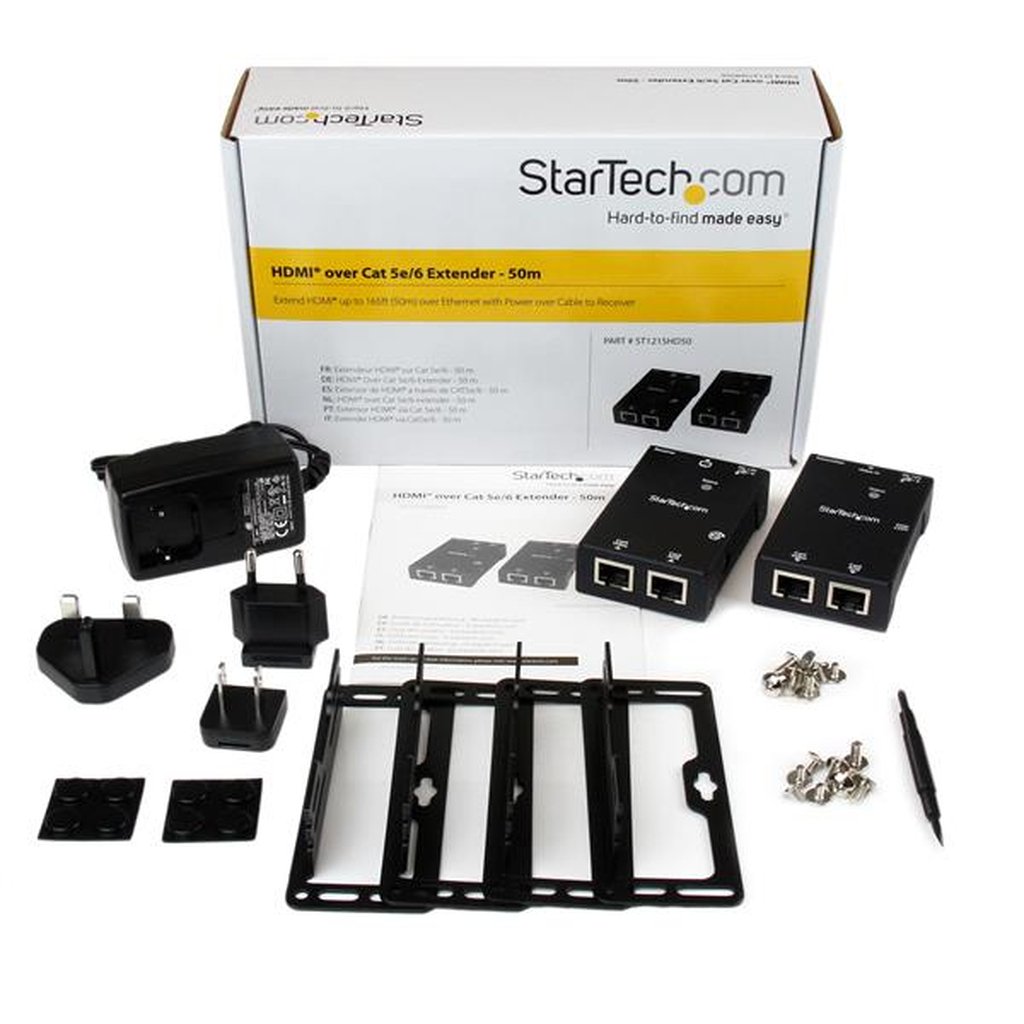

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
Additional information
Weight | 0.92 lbs |
---|---|
Type | AV transmitter & receiver |
Cable types supported | Cat5e, Cat6 |
Maximum transfer distance | 50 m |
LED indicators | Power |
Material | Aluminium |
Product colour | Black |
Connectivity technology | Wired |
Ethernet LAN | Yes |
RJ-45 input ports | 2 |
RJ-45 output ports | 2 |
DC-in jack | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -10 – 60 °C |
Operating relative humidity (H-H) | 0 – 80% |
Receiver dimensions (WxDxH) | 51 x 80 x 21 mm |
Transmitter dimensions (WxDxH) | 51 x 80 x 21 mm |
Compliance certificates | RoHS |
Maximum resolution | 1920 x 1080 pixels |
Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Input current | 0.5 A |
Mounting brackets included | Yes |
AC input voltage | 100-240 V |
Operating voltage | 12 V |
Package width | 157 mm |
Package depth | 237 mm |
Package height | 65 mm |
Package weight | 935 g |
AC adapter included | Yes |
Manual | Yes |
Supported video modes | 1080i, 1080p |
Cables included | HDMI |
Certification | CE, FCC, REACH, TAA |
HDMI in | 1 |
Receiver weight | 157 g |
Transmitter weight | 157 g |
Number of HDMI outputs | 1 |
Output current | 1.5 A |
External power adapter | Yes |
Rack mounting | Yes |
Daisy chain | No |
Master (outer) case width | 320 mm |
Master (outer) case length | 410 mm |
Master (outer) case height | 260 mm |
Products per master (outer) case | 12 pc(s) |
Power plug type | Type M |
Power consumption (typical) | 18 W |
