Description
1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

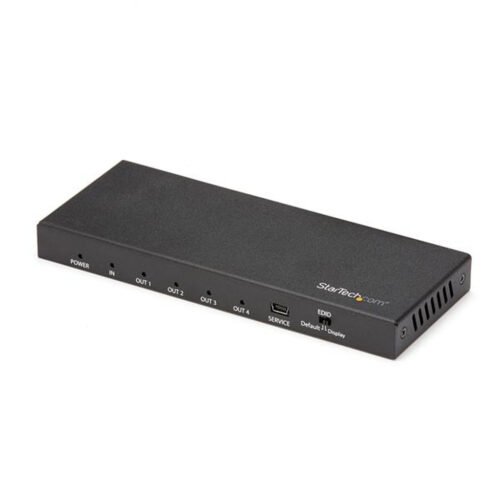

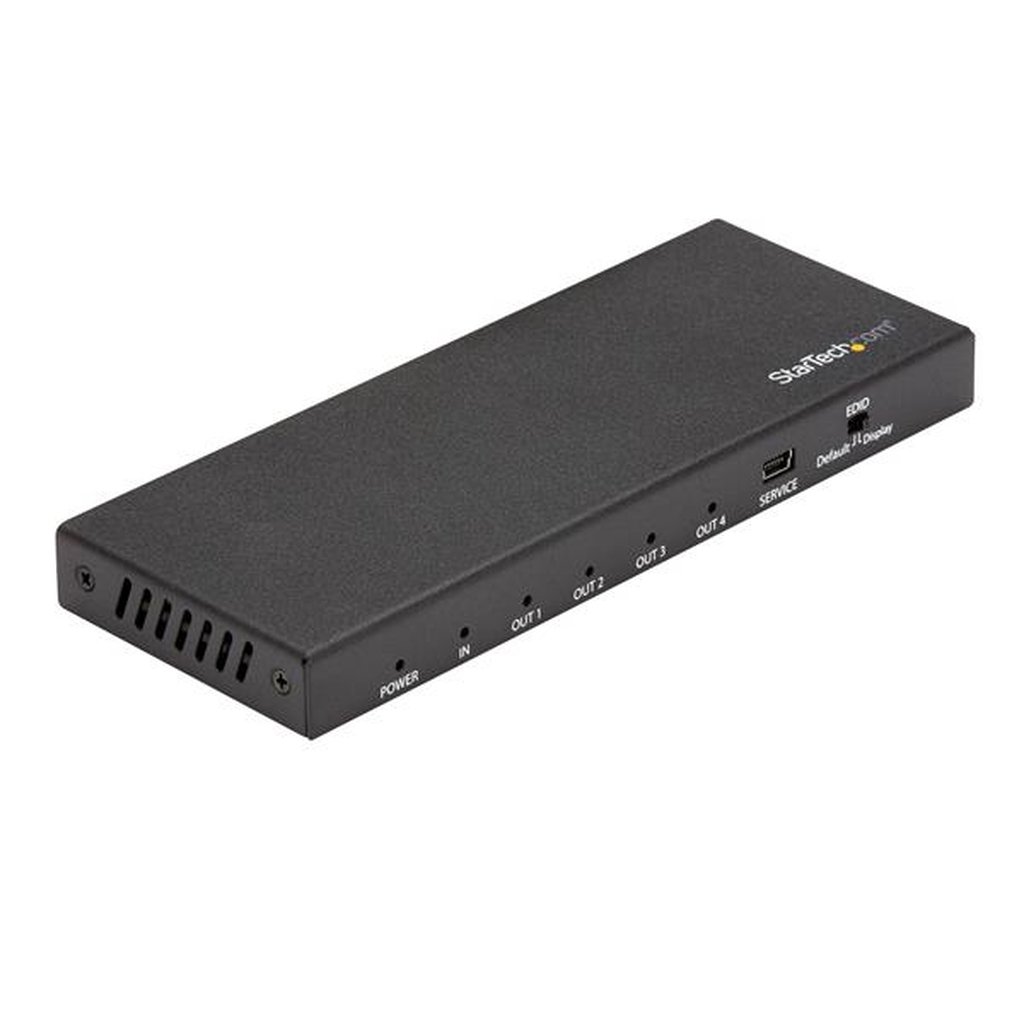

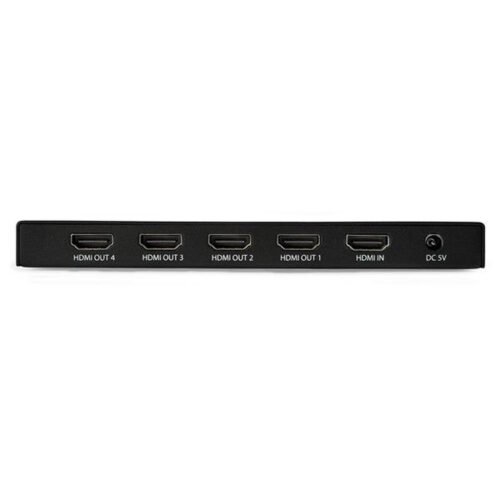

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

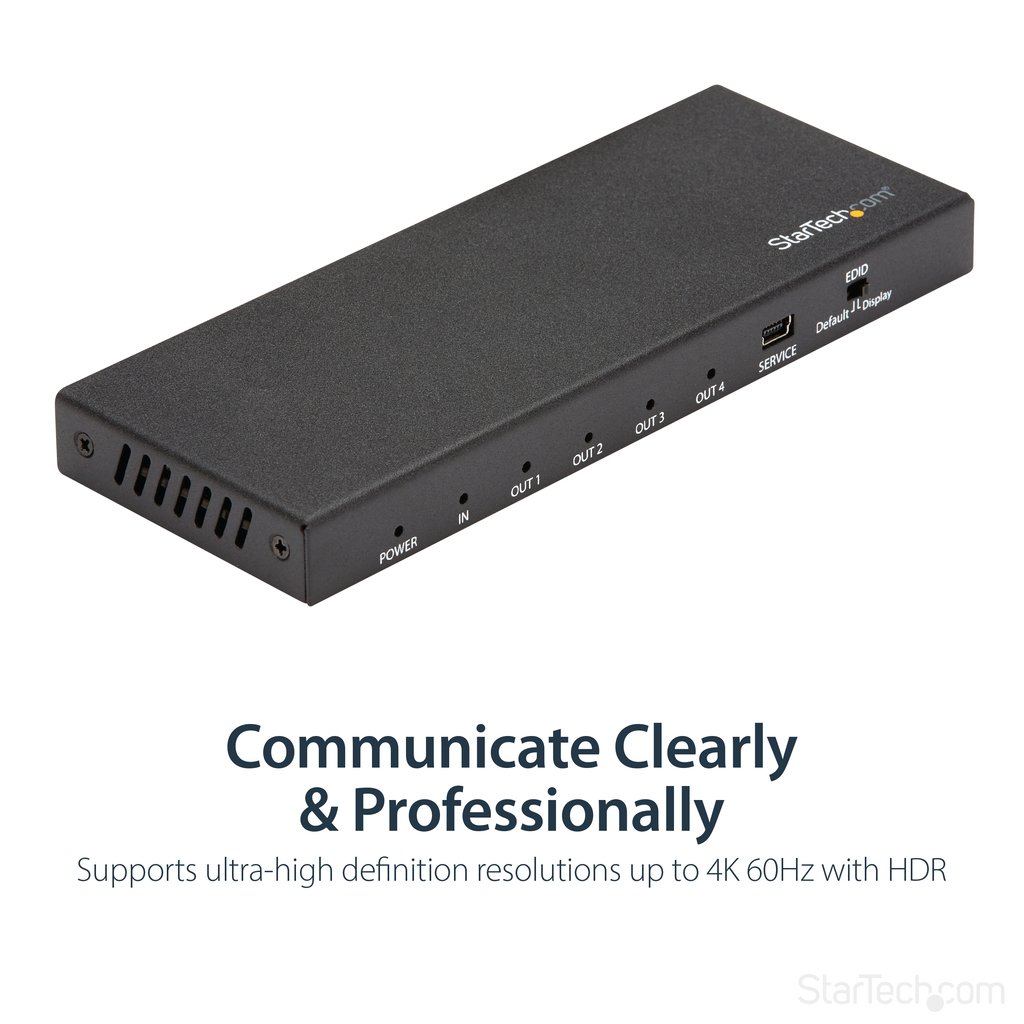

True 4K at 60Hz and HDR

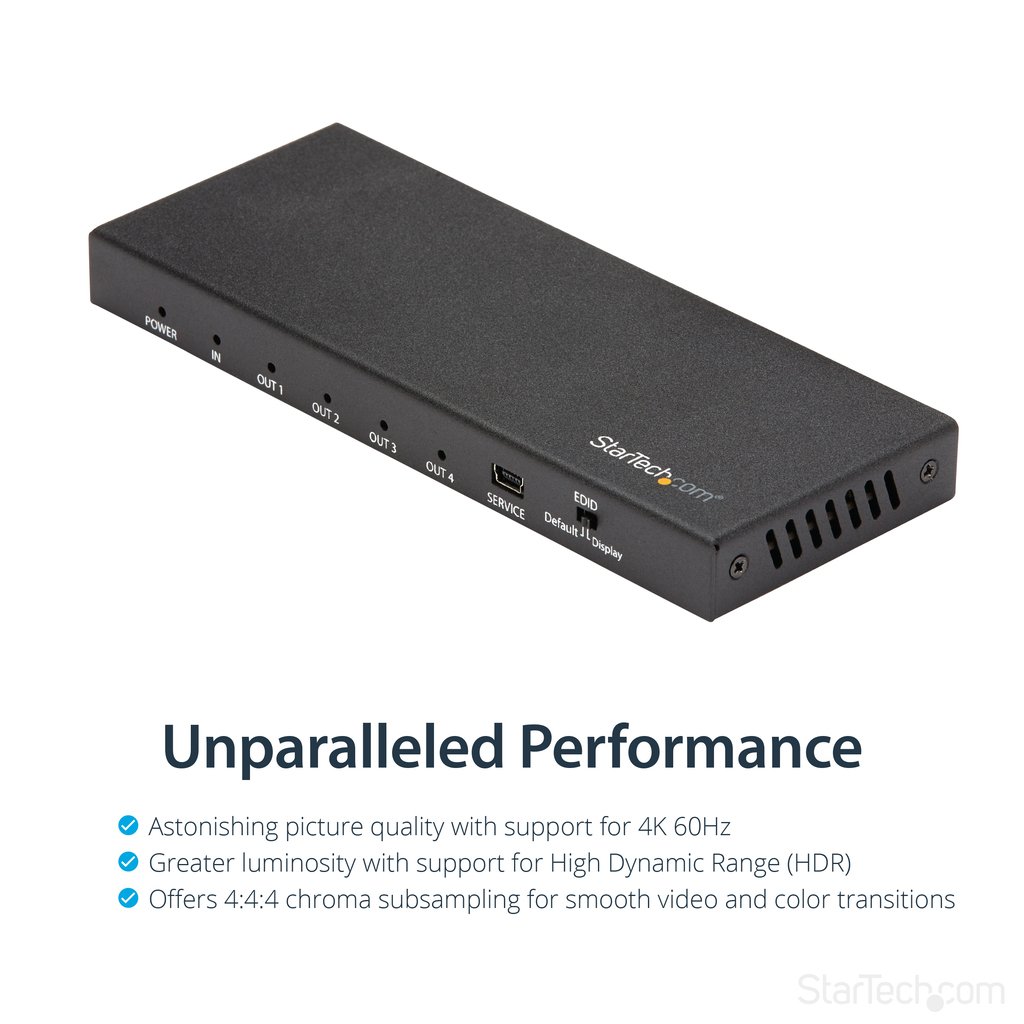

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096×2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

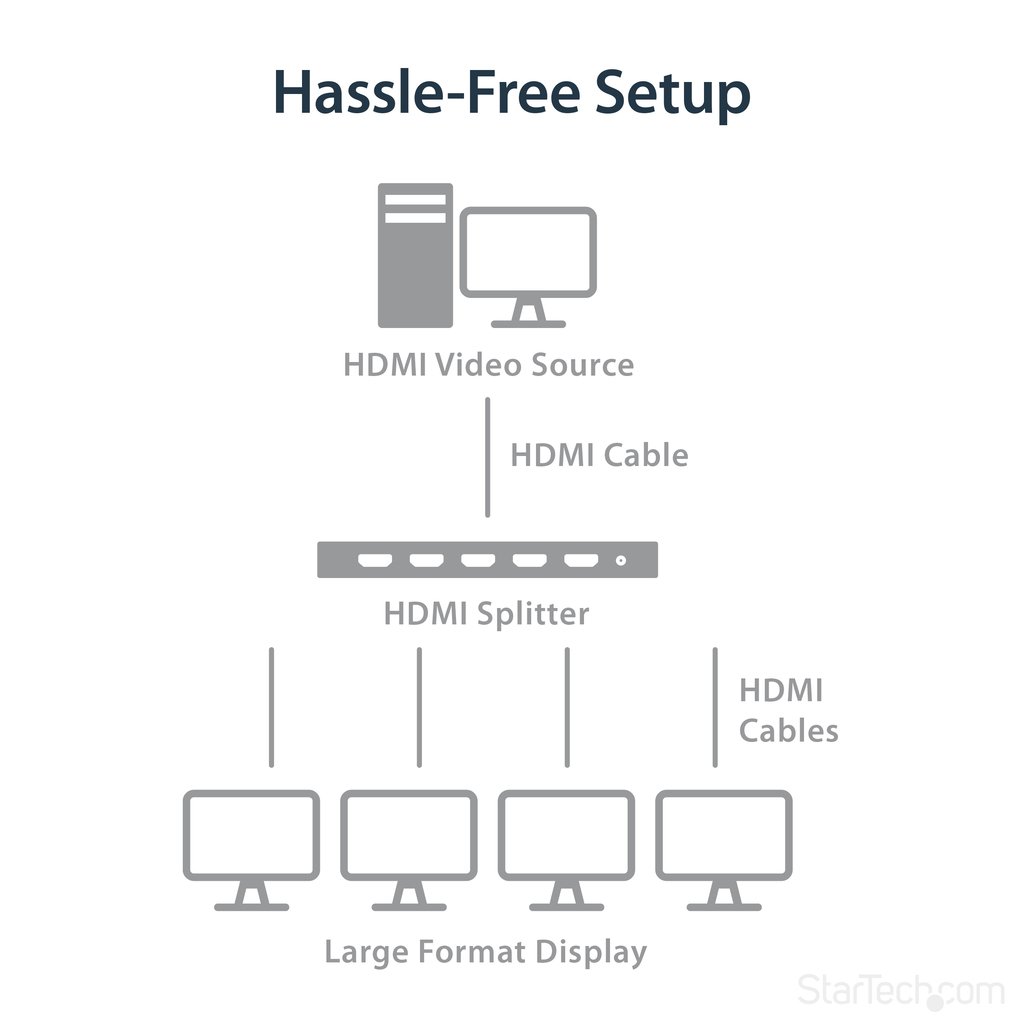

Easy Installation
For hassle-free setup, the 1×4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.5 lbs |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Maximum resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Package width | 148 mm |
| Package depth | 212 mm |
| Package height | 55 mm |
| Video out | 4x HDMI |
| Full HD | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Power LED | Yes |
| AC input voltage | 100 – 240 V |
| Weight | 506 g |
| Harmonized System (HS) code | 85176990 |
| HDMI version | 2.0 |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Output voltage | 5 V |
| Output current | 0.2 A |

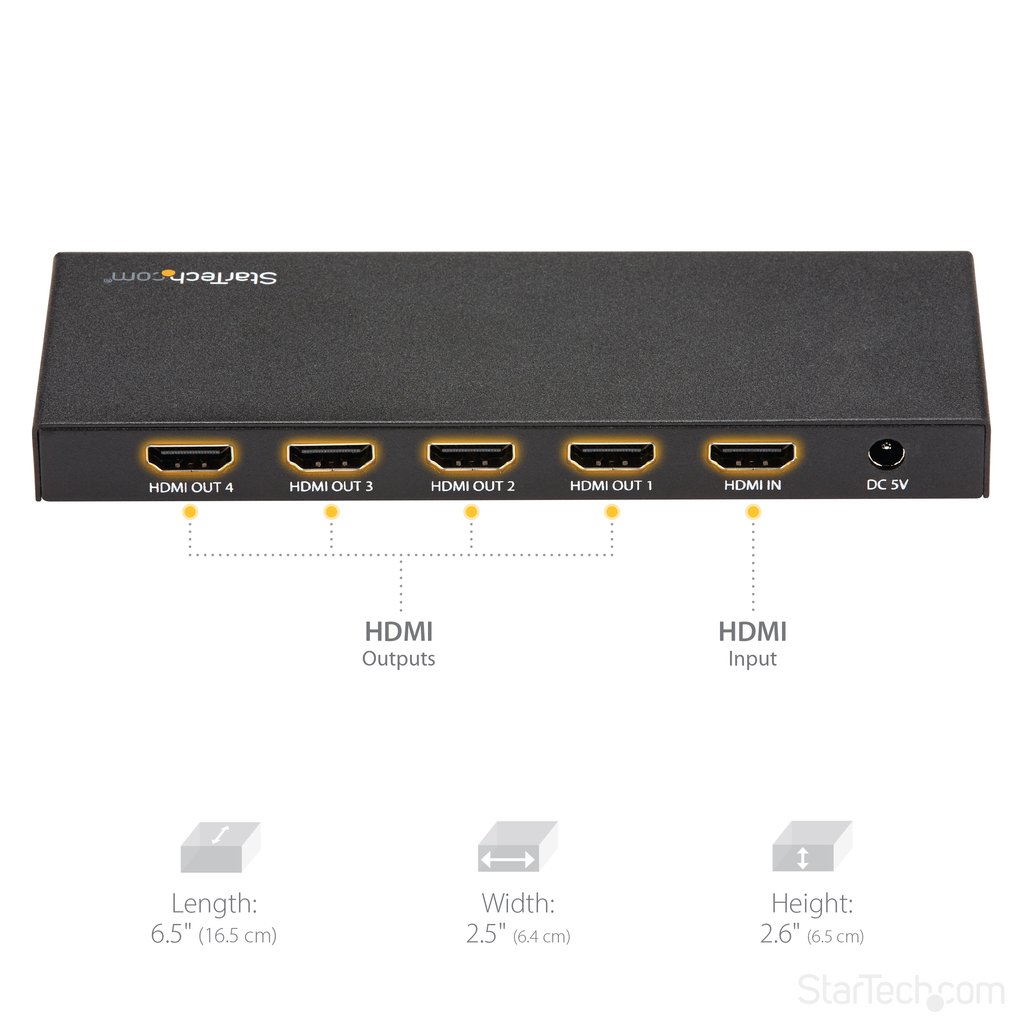

| Width | 64 mm |
| Depth | 165 mm |
| Height | 65 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| HDCP | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Input current | 1 A |
| Power consumption (typical) | 5 W |
| Supported audio channels | 7.1 |
| Compliance certificates | RoHS |
| Certification | CE, FCC, REACH |
| Maximum cable length | 5 m |
| Supported video modes | 720p, 1080p |

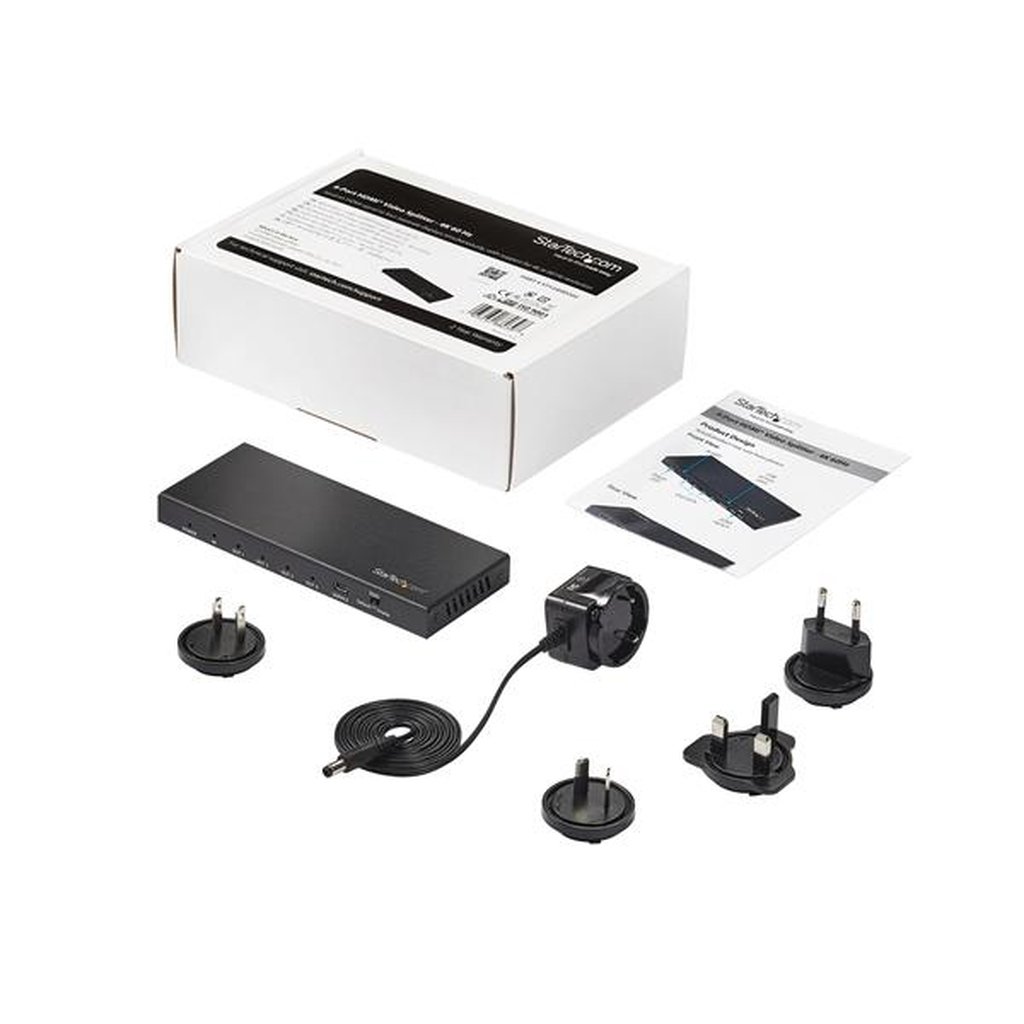

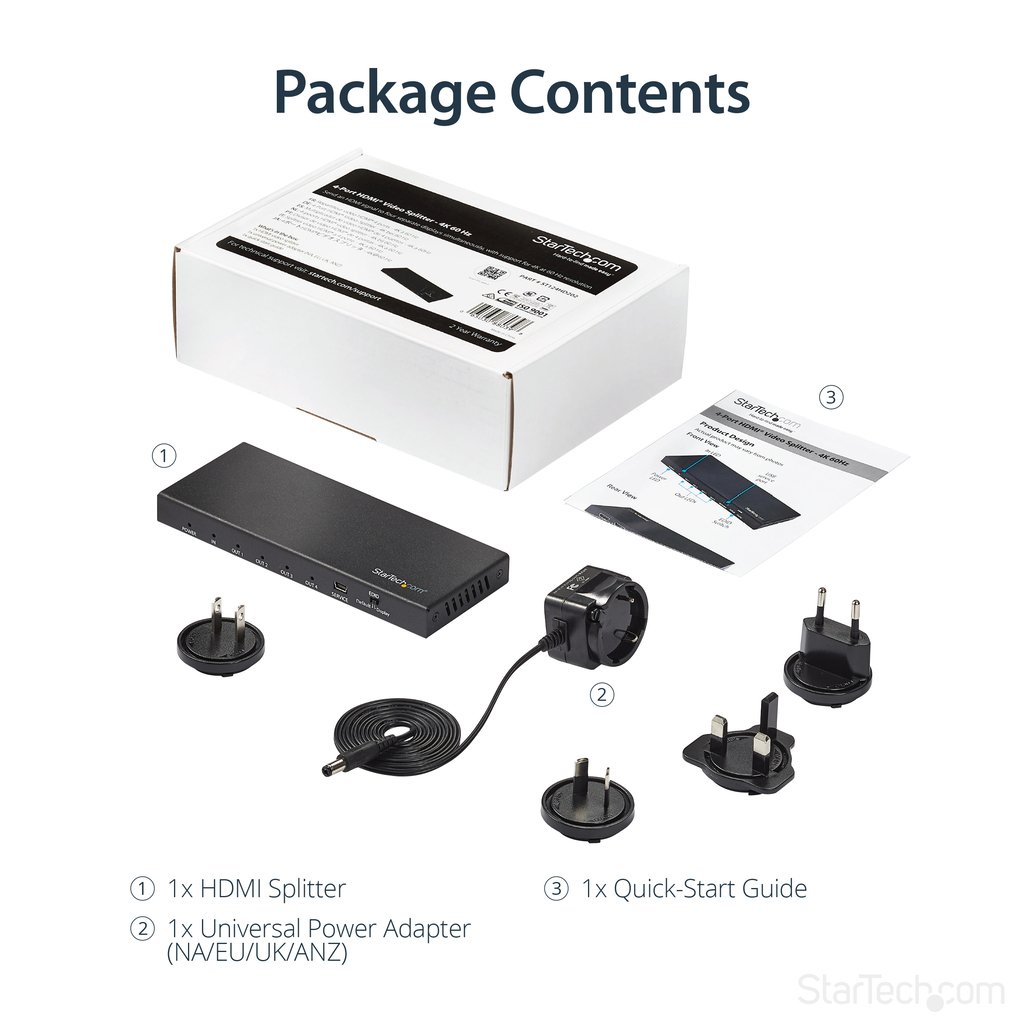

| Included power plug types | AU, EU, NA, UK |
| User guide | Yes |
