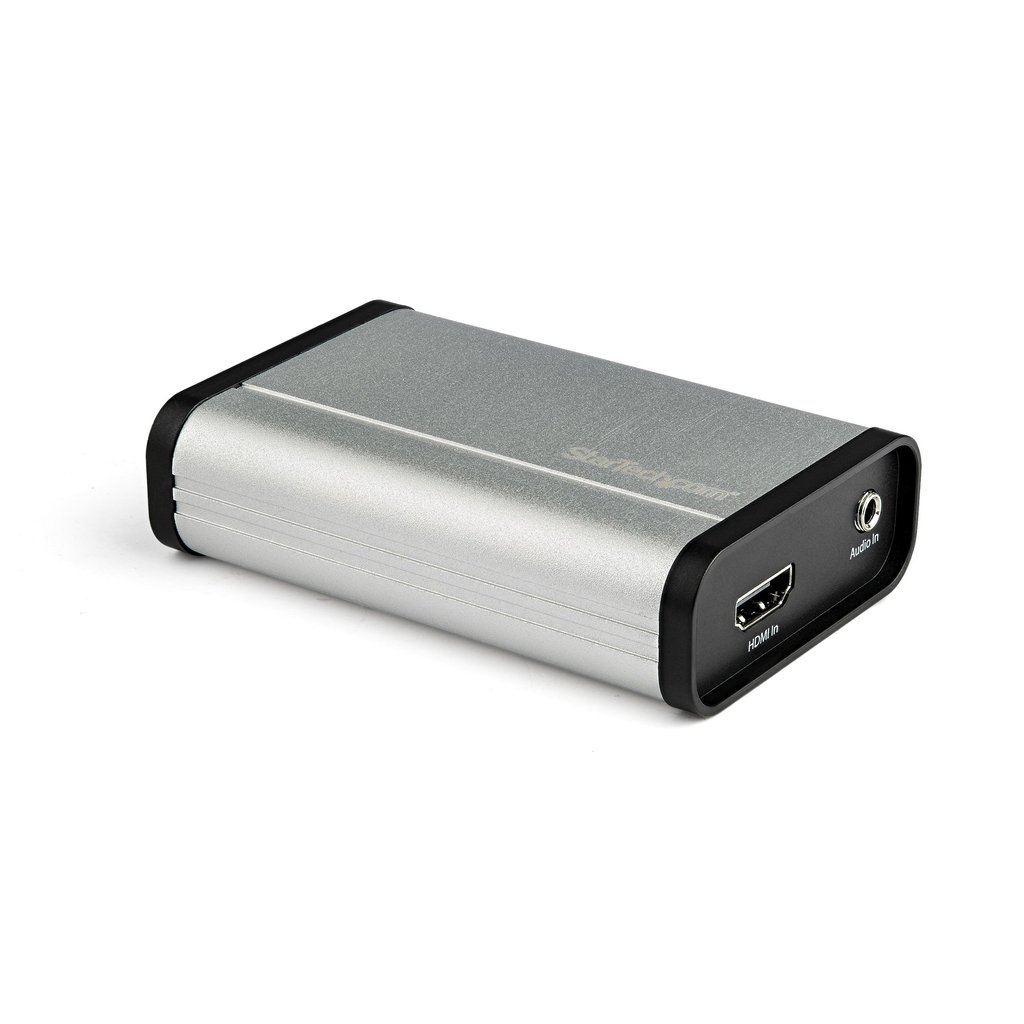

StarTech.com HDMI to USB C Video Capture Device 1080p 60fps – UVC – External USB 3.0 Type-C Capture/Live Streaming – HDMI Audio
StarTech.com HDMI to USB C Video Capture Device 1080p 60fps – UVC – External USB 3.0 Type-C Capture/Live Streaming – HDMI Audio/Video Recorder Adapter – comp with USB-C/USB-A/Thunderbolt 3 (UVCHDCAP)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included
This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.
Easy Setup, Easy Capture
For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you’re not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
Capture HD Video
Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.
Stream Your 1080p Content
Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.
Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
The StarTech.com Advantage
Additional information
Weight | 0.4 lbs |
---|---|
Internal | No |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
Video capture resolution (max) | 1920 x 1080 pixels |
Audio (L/R) in | 1 |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -5 – 40 °C |
Operating relative humidity (H-H) | 20 – 80% |
Compliance certificates | CE, RoHS |
Width | 60 mm |
Depth | 92 mm |
Height | 23 mm |
Master (outer) case width | 470 mm |
Master (outer) case height | 470 mm |
Package weight | 470 g |
Package height | 215 mm |
Package width | 470 mm |
Package depth | 215 mm |
Products per master (outer) case | 48 pc(s) |
Master (outer) case length | 470 mm |
Product colour | Black, Silver |
Chipset | Mstar MST3363CNK-170 |
Maximum frame rate | 60 fps |
Supported video modes | 1080p |
Supported audio channels | 2 |
USB port | Yes |
USB connector type | USB Type-B |
USB version | 3.2 Gen 1 (3.1 Gen 1) |
HDMI in | 1 |
Power supply type | USB |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
Mac compatibility | Yes |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, |
Linux operating systems supported | Yes |
Weight | 86 g |

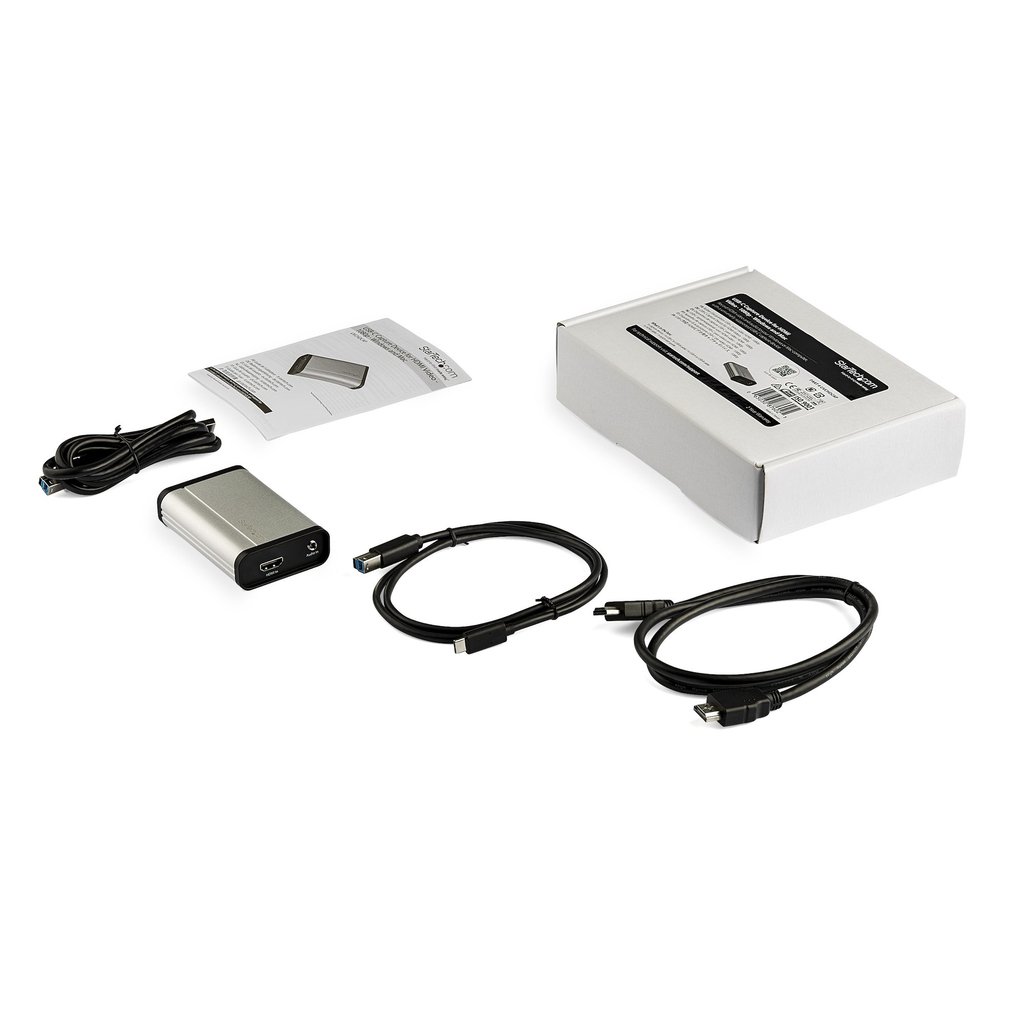

Cables included | HDMI, USB |
Harmonized System (HS) code | 85176990 |
Audio support | Yes |
Supported resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 |
Number of HDMI outputs | 1 |
User guide | Yes |
