StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
StarTech.com Industrial RS232 to RS422/485 Serial Port Converter w/ 15KV ESD Protection – RS232 to RS 422 RS485 Converter Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter
The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

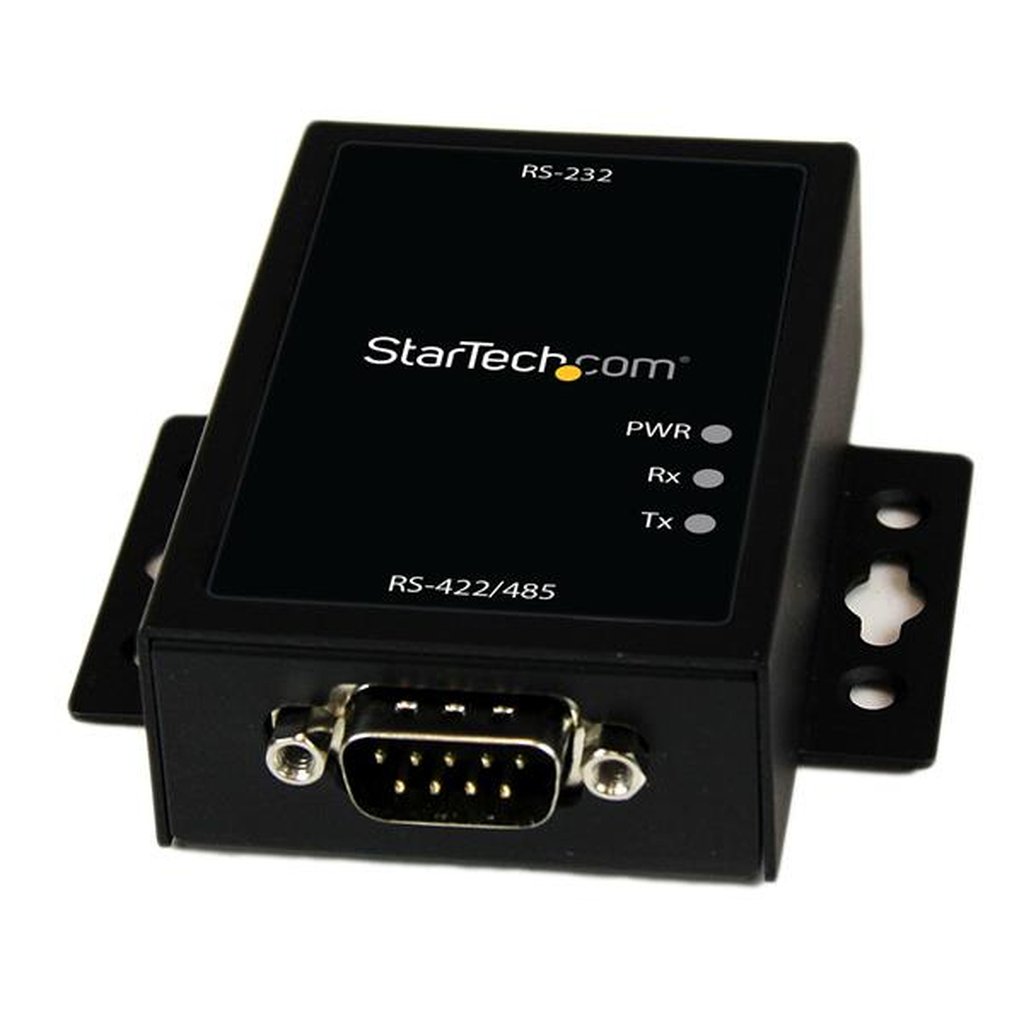

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
– Protect sensitive industrial equipment with integrated ESD protection
– Communicate efficiently with connected devices through high-speed 921Kbps support
– Suitable for industrial environments with a rugged, wall-mountable enclosure
Additional information
| Weight | 0.32 lbs |
|---|---|
| Host interface | RS-232 |
| Output interface | RS-232 |

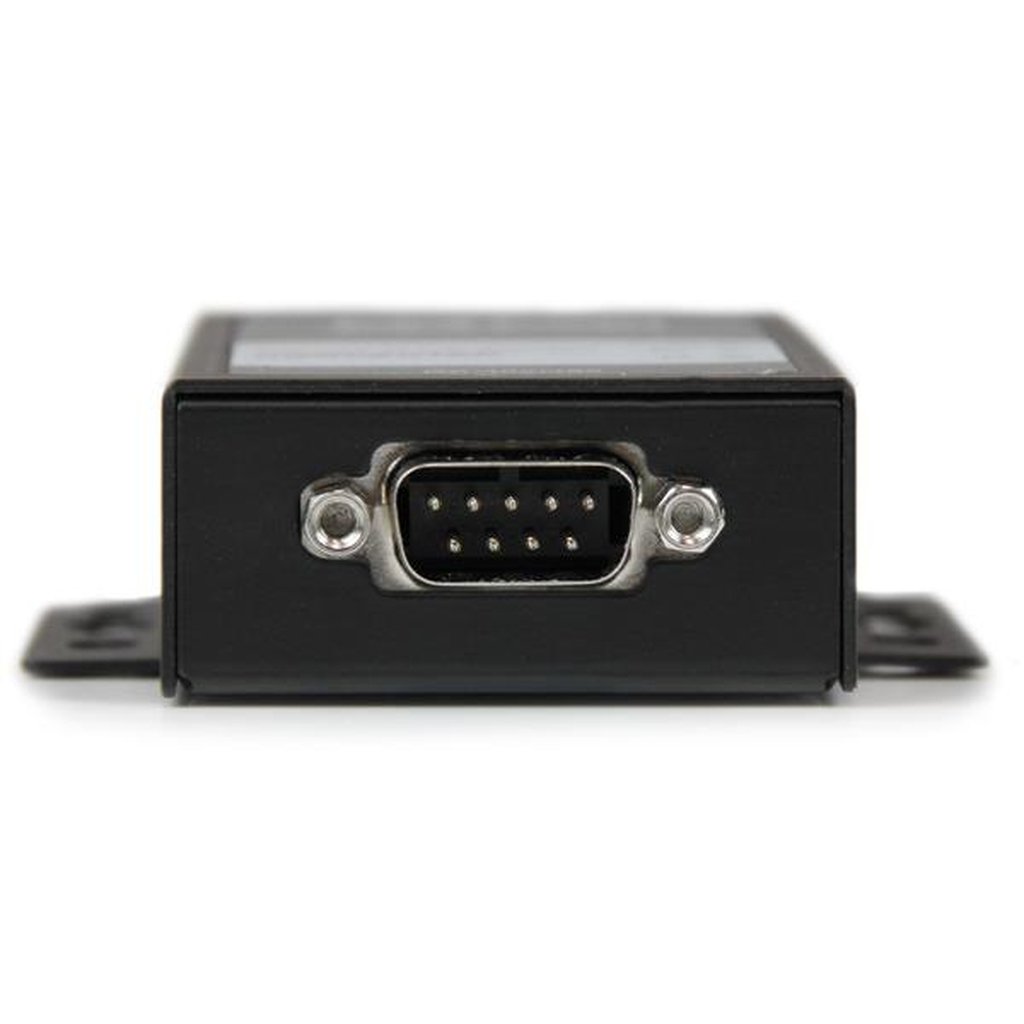

| Connector 1 | DB-9 |

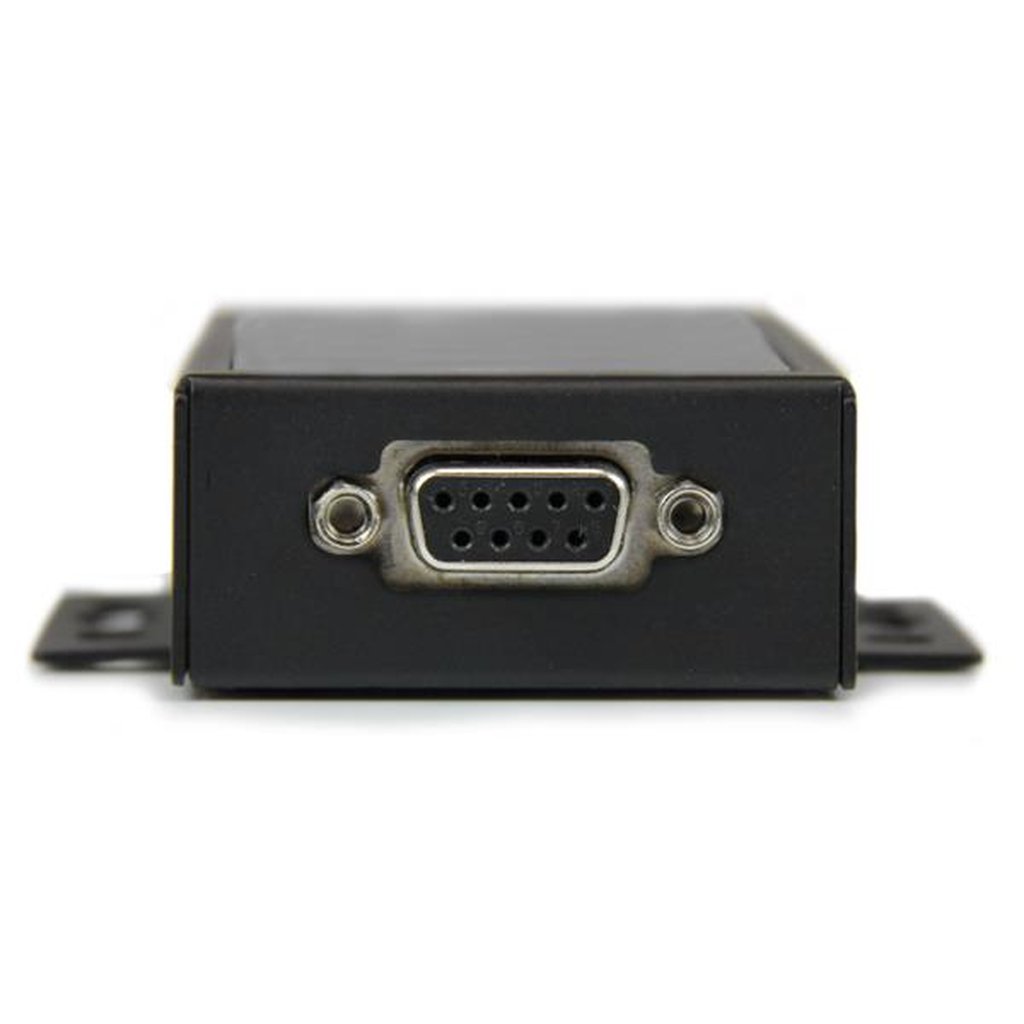

| Connector 2 | DB-9 |
| Connector gender | Male/Female |
| Product colour | Black |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Width | 59 mm |
| Depth | 117 mm |
| Height | 22 mm |
| Weight | 143 g |
| Package width | 208 mm |
| Package depth | 146 mm |
| Package height | 41 mm |
| Package weight | 351 g |
| Housing material | Steel |
| Manual | Yes |
| Input voltage | 110 – 240 V |
| Input current | 0.3 A |
| Maximum cable length | 1200 m |
| Certification | CE, FCC, REACH |
