StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Instal
StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock (M2-REMOVABLE-PCIE-N1)
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description

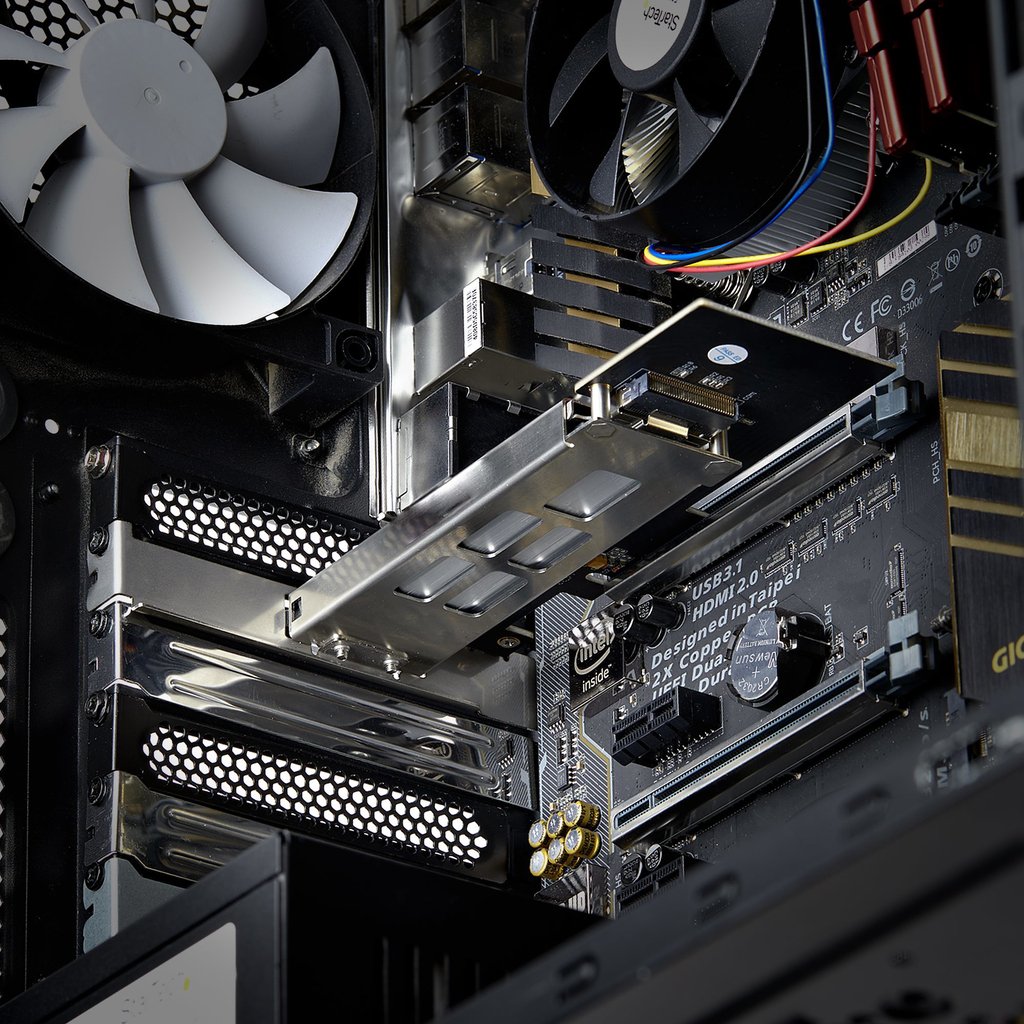

Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included)
Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.
Toolless Installation
Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.
Optimal Performance
The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems.
Hot-Swappable
Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature.
The StarTech.com Advantage
Additional information
| Weight | 0.259 lbs |
|---|---|
| Product colour | Black, Silver |
| Operating temperature (T-T) | 0 – 65 °C |
| Storage temperature (T-T) | -35 – 70 °C |
| Weight | 65 g |
| Plug and Play | Yes |
| Host interface | PCIe |
| Output interface | M.2 |
| Data transfer rate (max) | 64 Gbit/s |
| Compliance certificates | RoHS |
| Depth | 167 mm |
| Expansion card standard | PCIe 4.0 |
| Internal | Yes |
| Purpose | PC |
| Width | 120 mm |
| Height | 19 mm |
| Number of fans | 0 fan(s) |
| Mounting brackets included | Yes |
| LED indicators | Yes |
| Operating relative humidity (H-H) | 0 – 90% |
| Quick installation guide | Yes |
| Package width | 151 mm |
| Package depth | 230 mm |
| Package height | 46 mm |
| Package weight | 215 g |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case height | 270 mm |
| Mean time between failures (MTBF) | 10000 h |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Sustainability compliance | Yes |
