StarTech.com Quad Port 10G SFP+ Network Card – Intel XL710 Open SFP+ Converged Adapter – PCIe 10 Gigabit Ethernet Server NIC –
StarTech.com Quad Port 10G SFP+ Network Card – Intel XL710 Open SFP+ Converged Adapter – PCIe 10 Gigabit Ethernet Server NIC – 10GbE Fiber Optic LAN Card – Dell PowerEdge HPE ProLiant (PEX10GSFP4I)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add four 10 Gigabit fiber Ethernet ports to your server or workstation, using the SFP+ transceiver of your choice
This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
Add redundant connections in zero-downtime environments
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.
Increase your network speed
This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
Add scalable network connections to your server or workstation
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.

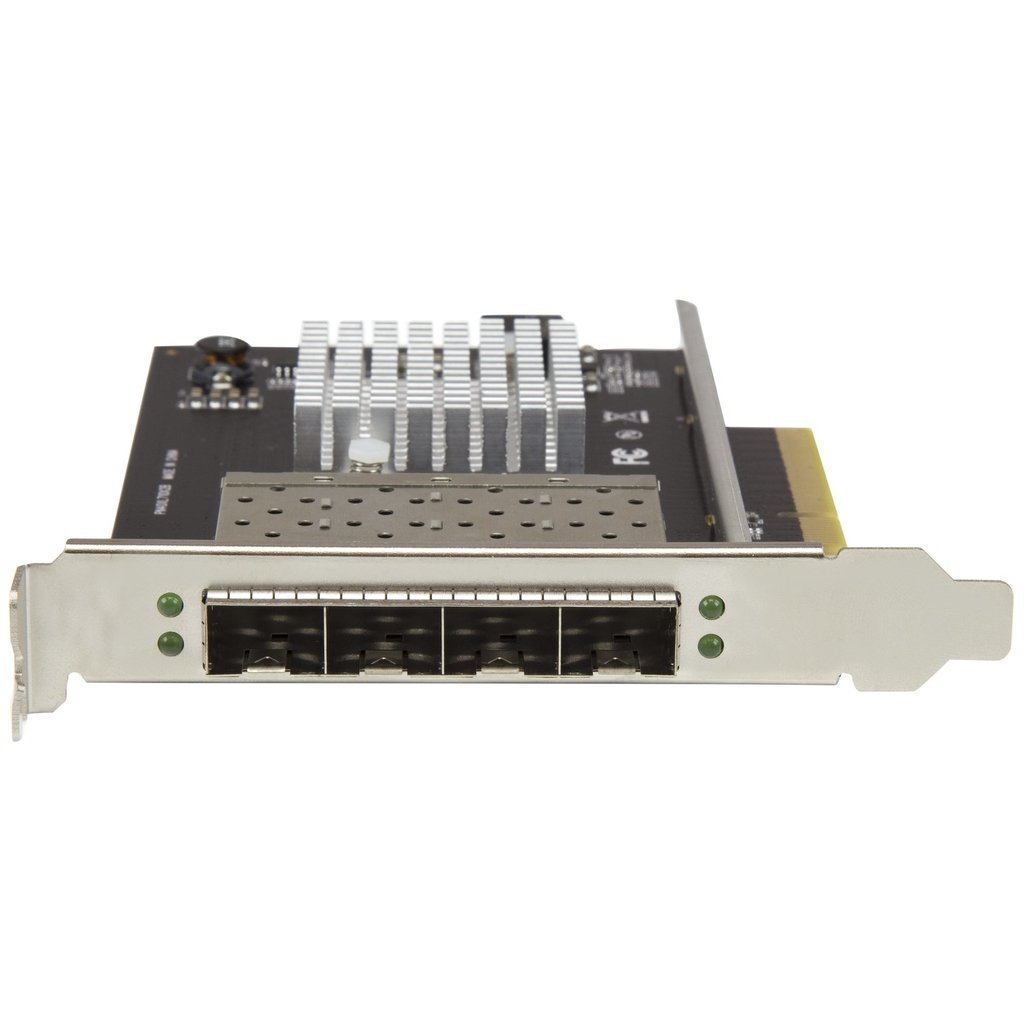

The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities
The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
Weight | 0.1 lbs |
---|---|
Connectivity technology | Wired |
Host interface | PCI Express |
Interface | Fiber |
Internal | Yes |
Product colour | Black |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
Width | 15 mm |
Depth | 139 mm |
Height | 100 mm |
Weight | 122 g |
PCI version | 3.0 |
Maximum data transfer rate | 20000 Mbit/s |
Harmonized System (HS) code | 85176990 |
Operating temperature (T-T) | 5 – 50 °C |
Storage temperature (T-T) | -20 – 60 °C |
Operating relative humidity (H-H) | 20 – 80% |
Linux operating systems supported | Yes |
Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Fiber ports quantity | 4 |
Fiber optic connector | SFP+ |
Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ae, IEEE 802.3x |
Jumbo frames support | Yes |
Jumbo frames | 9000 |
Chipset | Intel® XL710 |
LED indicators | Activity, Link |
Package width | 142 mm |
Package depth | 170 mm |
Package height | 30 mm |
Package weight | 182 g |
Compliance certificates | RoHS |
Master (outer) case width | 305 mm |
Master (outer) case length | 580 mm |
Master (outer) case height | 360 mm |
Products per master (outer) case | 80 pc(s) |
Certification | CE, FCC, REACH |
Full duplex | Yes |
Flow control support | Yes |
VLAN tagging | Yes |
Quick start guide | Yes |
