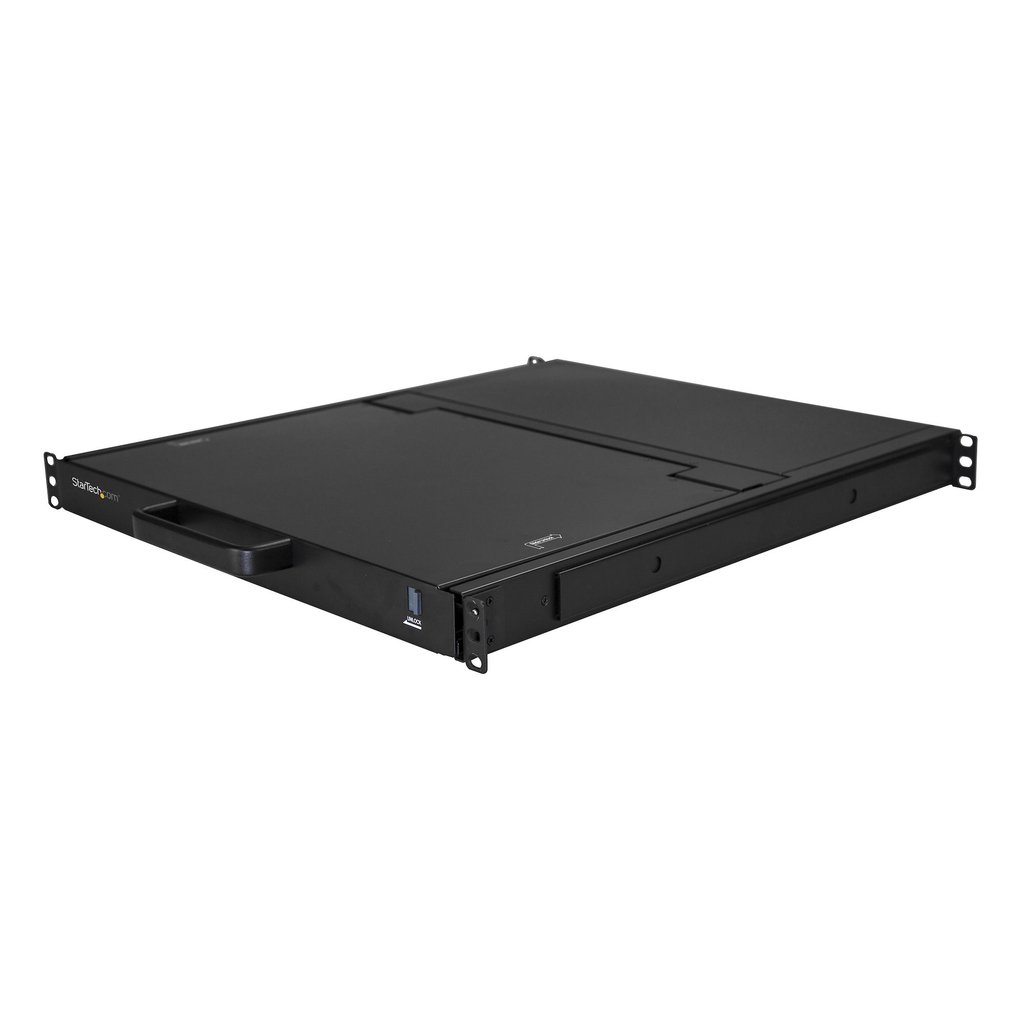

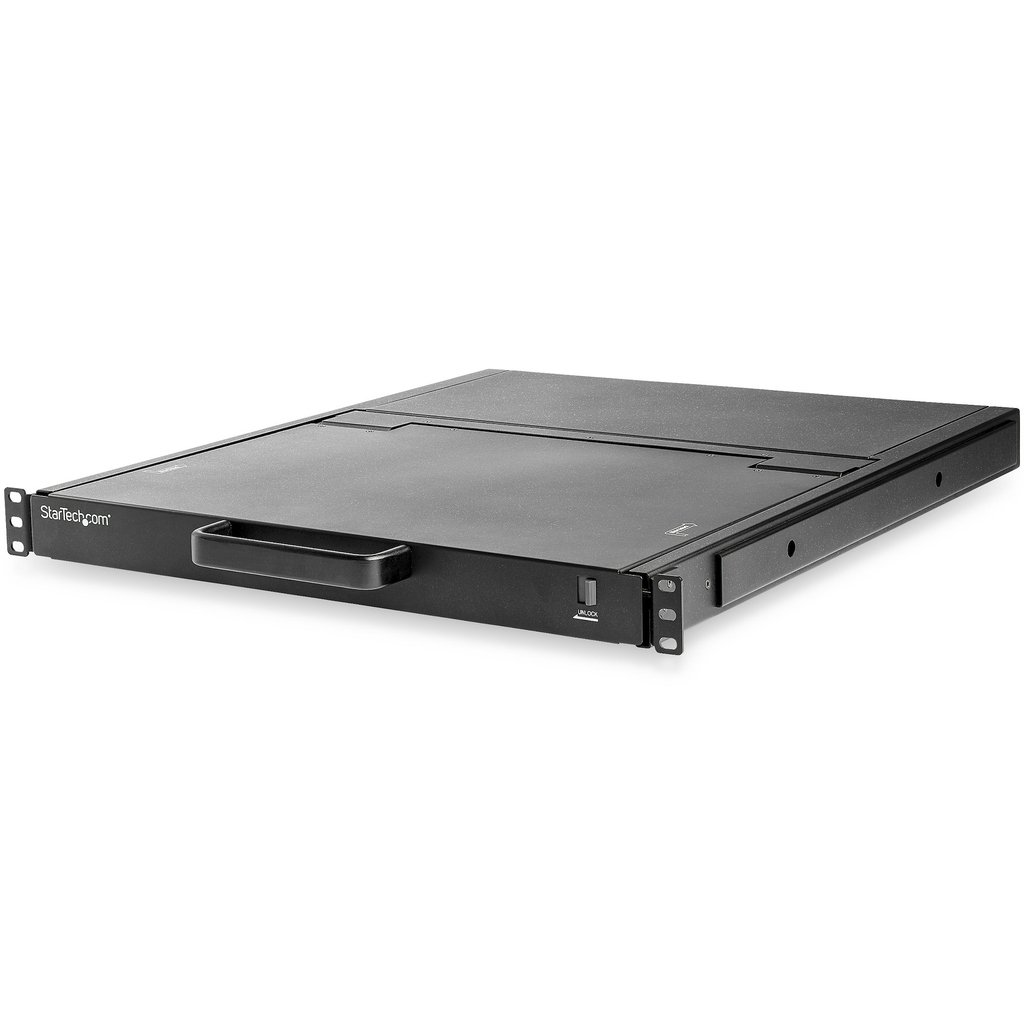

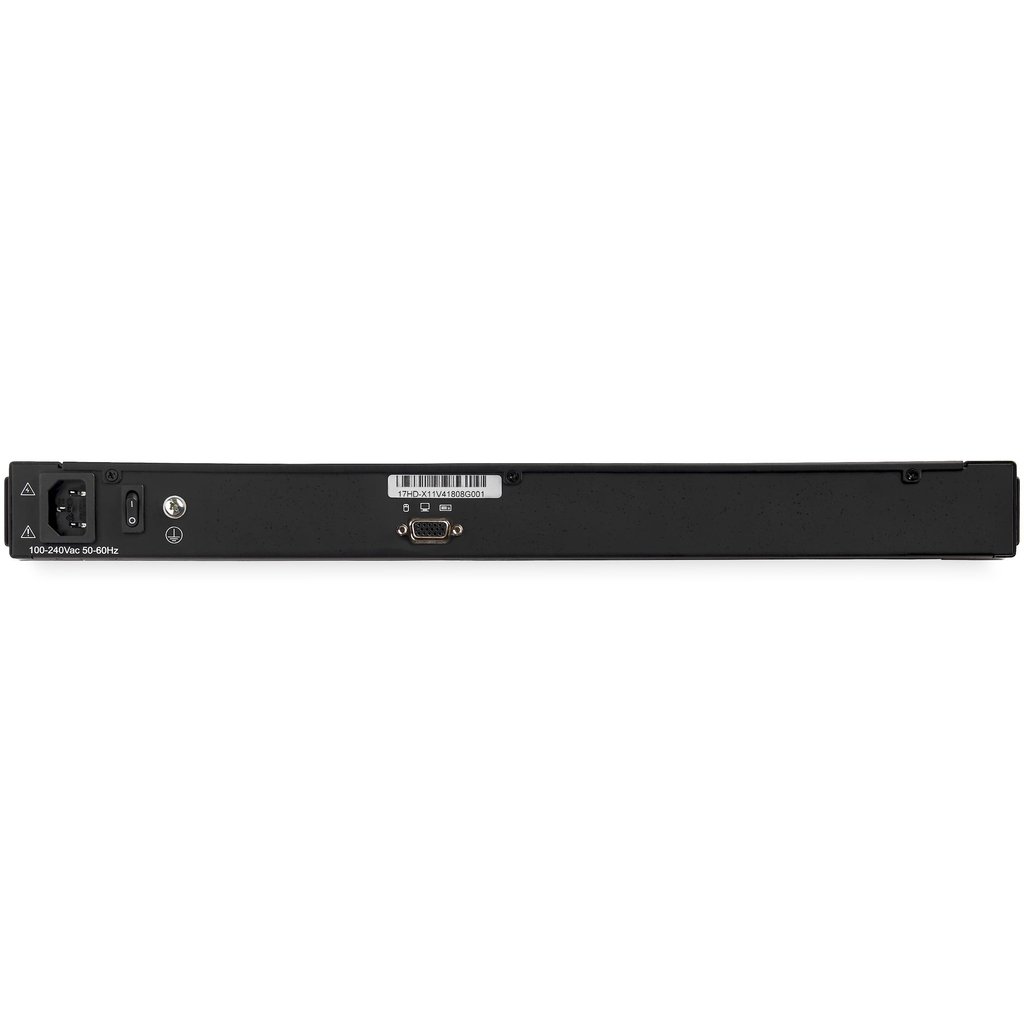

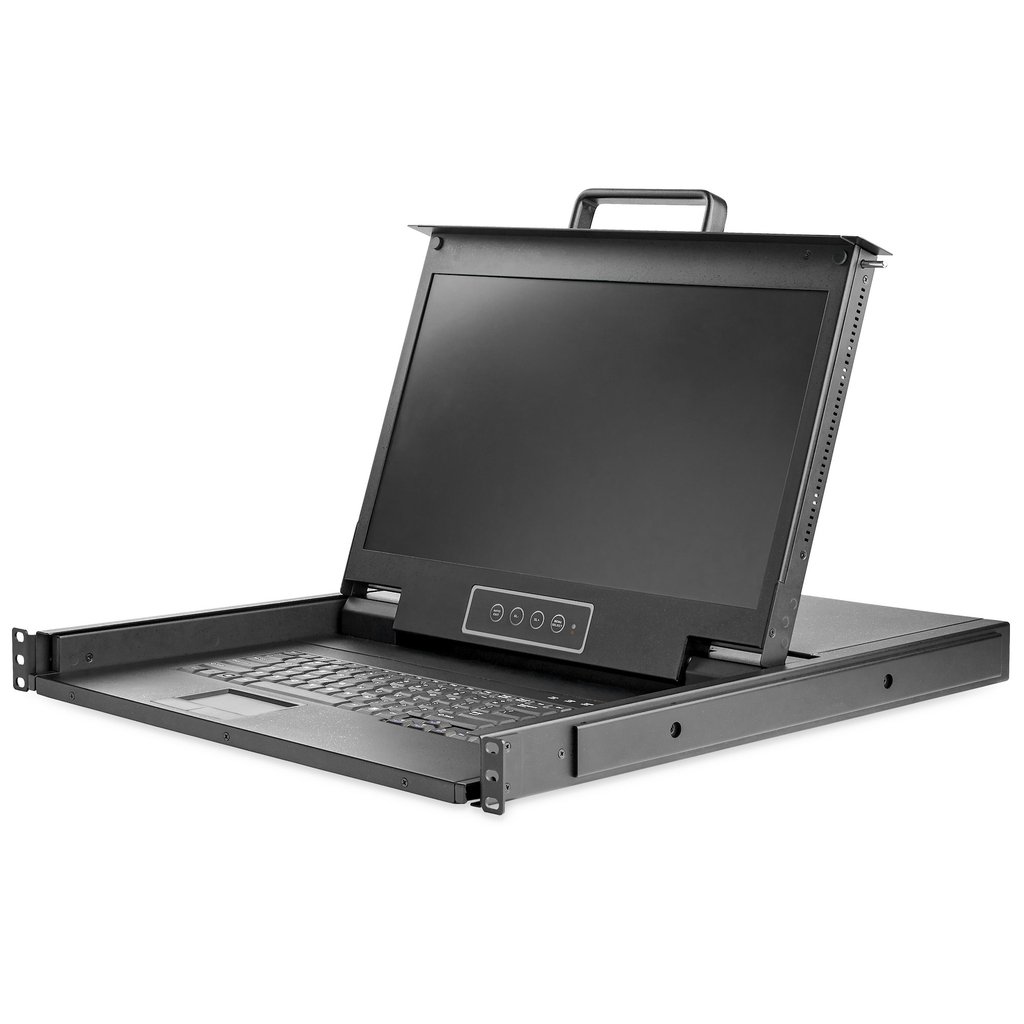

StarTech.com Rackmount KVM Console HD 1080p – Single Port VGA KVM with 17″ LCD Monitor for Server Rack – Fully Featured 1U LCD
StarTech.com Rackmount KVM Console HD 1080p – Single Port VGA KVM with 17″ LCD Monitor for Server Rack – Fully Featured 1U LCD KVM Drawer w/Cables & Hardware – USB Support – 50,000 MTBF (RKCONS17HD)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Control your server or KVM switch from a centralized HD KVM console
Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920×1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring

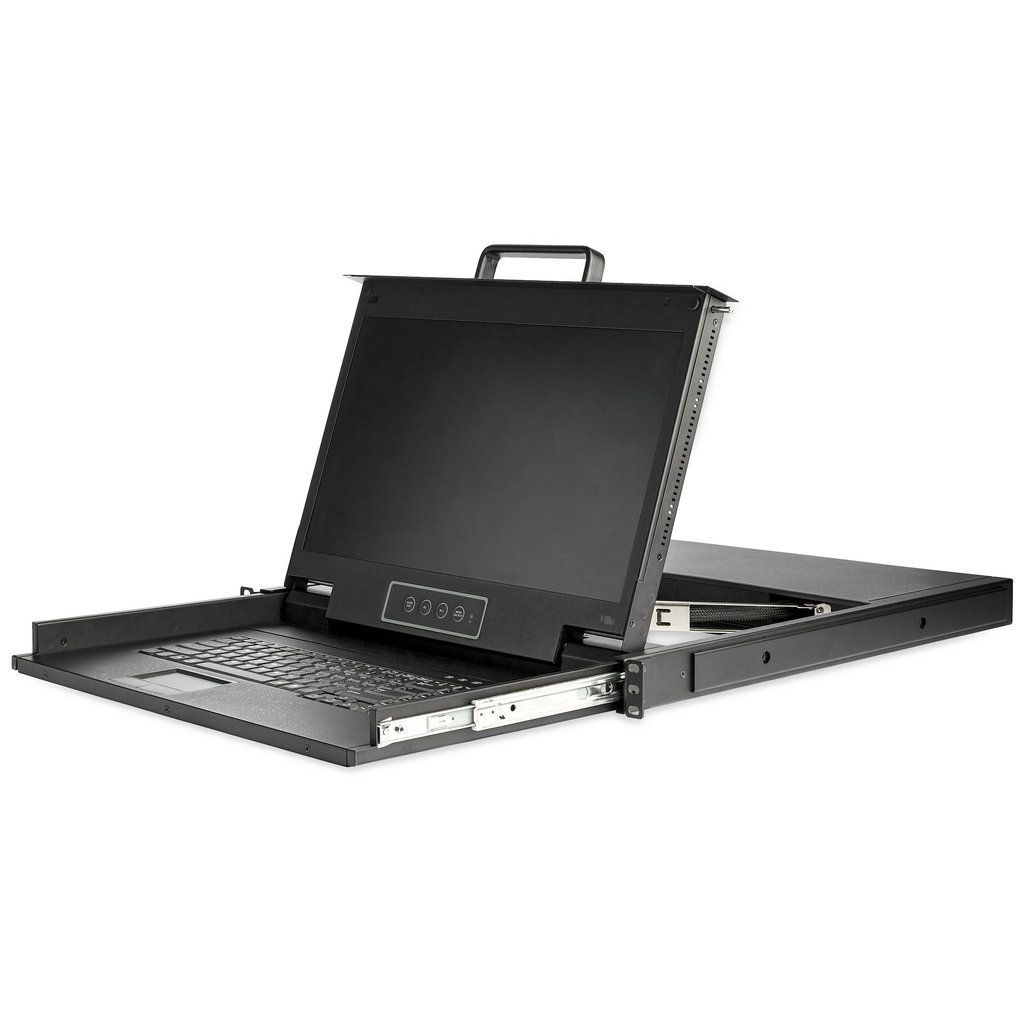

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup

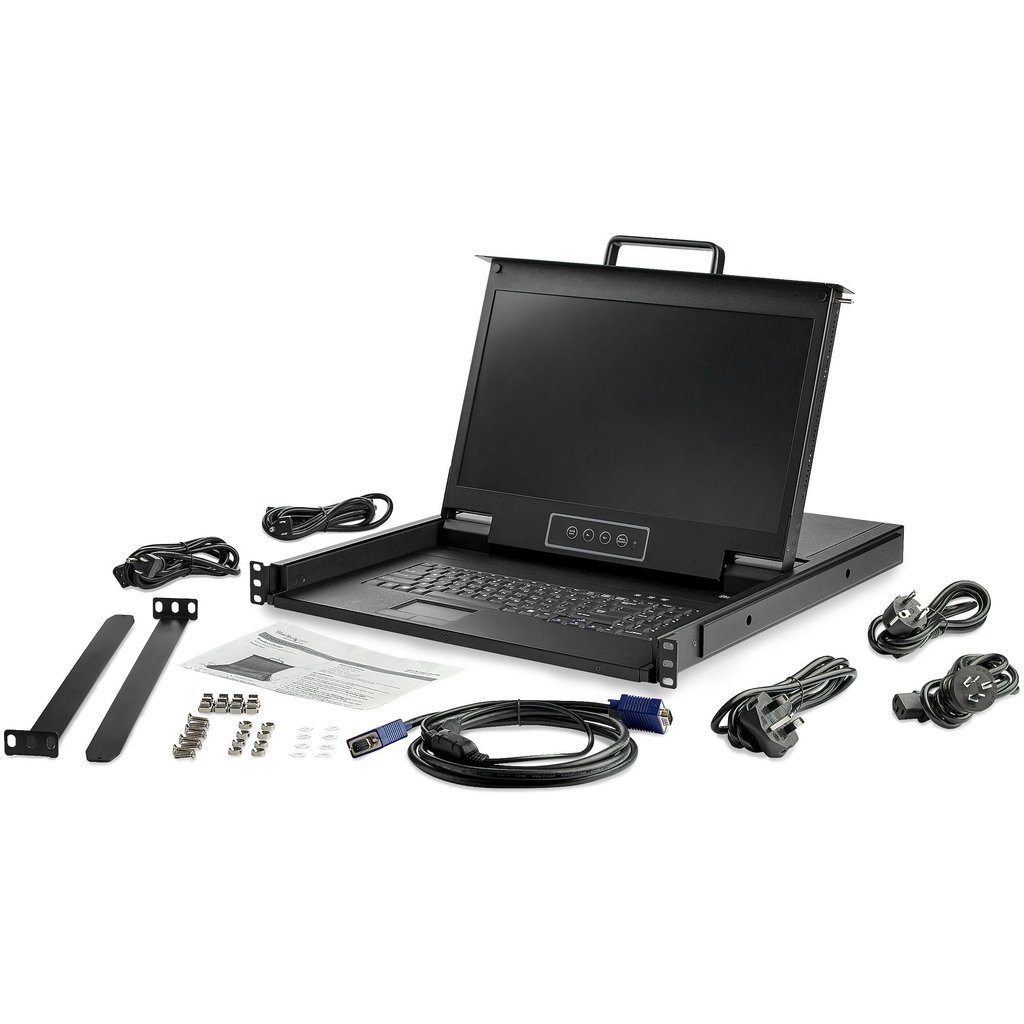

This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
Weight | 16.44 lbs |
---|---|
Display diagonal | 43.9 cm (17.3") |
Display | TFT LCD |
Product colour | Black |
Certification | CE, FCC, PSE, UL, REACH |
Power consumption (typical) | 13 W |
AC adapter input voltage | 100 – 240 V |
Weight | 11.2 kg |
Package weight | 16 kg |
Operating temperature (T-T) | 0 – 40 °C |
Built-in touchpad | Yes |
Display resolution | 1920 x 1080 pixels |
Display brightness | 300 cd/m² |
Contrast ratio (typical) | 800:1 |
Viewing angle, horizontal | 170° |
Viewing angle, vertical | 170° |
Pixel pitch | 0.1989 x 0.1989 mm |
Aspect ratio | 16:9 |
Display type | LCD |
Rack mounting | Yes |
Cable length | 1.8 m |
Storage temperature (T-T) | -20 – 60 °C |
Cables included | KVM |
Display number of colours | 262144 colours |
Material | Steel |
Mean time between failures (MTBF) | 50000 h |
Operating relative humidity (H-H) | 10 – 80% |
Daisy chain | No |
LED indicators | Power, Status |
Compliance certificates | RoHS |
Rack capacity | 1U |
Audio support | No |
IP control | No |
Video port type | VGA |
Width | 483 mm |
Height | 565 mm |
Depth | 43 mm |
Mounting depth (min) | 51 cm |
Mounting depth (max) | 85 cm |
Package width | 615 mm |
Package depth | 765 mm |
Package height | 185 mm |
Screws included | Yes |
Included power plug types | ANZ, EU, JP, NA, UK |
Quick installation guide | Yes |
Master (outer) case width | 615 mm |
Master (outer) case length | 765 mm |
Master (outer) case height | 185 mm |
Products per master (outer) case | 1 pc(s) |
Colour depth | 6 bit |
Input current | 1.5 A |
Number of screws | 8 |
Cage nuts included | Yes |
Number of cage nuts | 8 |
