StarTech.com SATA PCIe Card – 4 Port PCIe SATA Expansion Card – 6Gbps – Low Profile Bracket – Stacked SATA Connectors – ASM1164
StarTech.com SATA PCIe Card – 4 Port PCIe SATA Expansion Card – 6Gbps – Low Profile Bracket – Stacked SATA Connectors – ASM1164 Non-Raid – PCI Express to SATA Converter (4P6G-PCIE-SATA-CARD)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
SATA III (6Gbps) | PCI Express 3.0 | PCIe x2 Slot | 4x SATA Connectors | 2-Year Warranty
This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

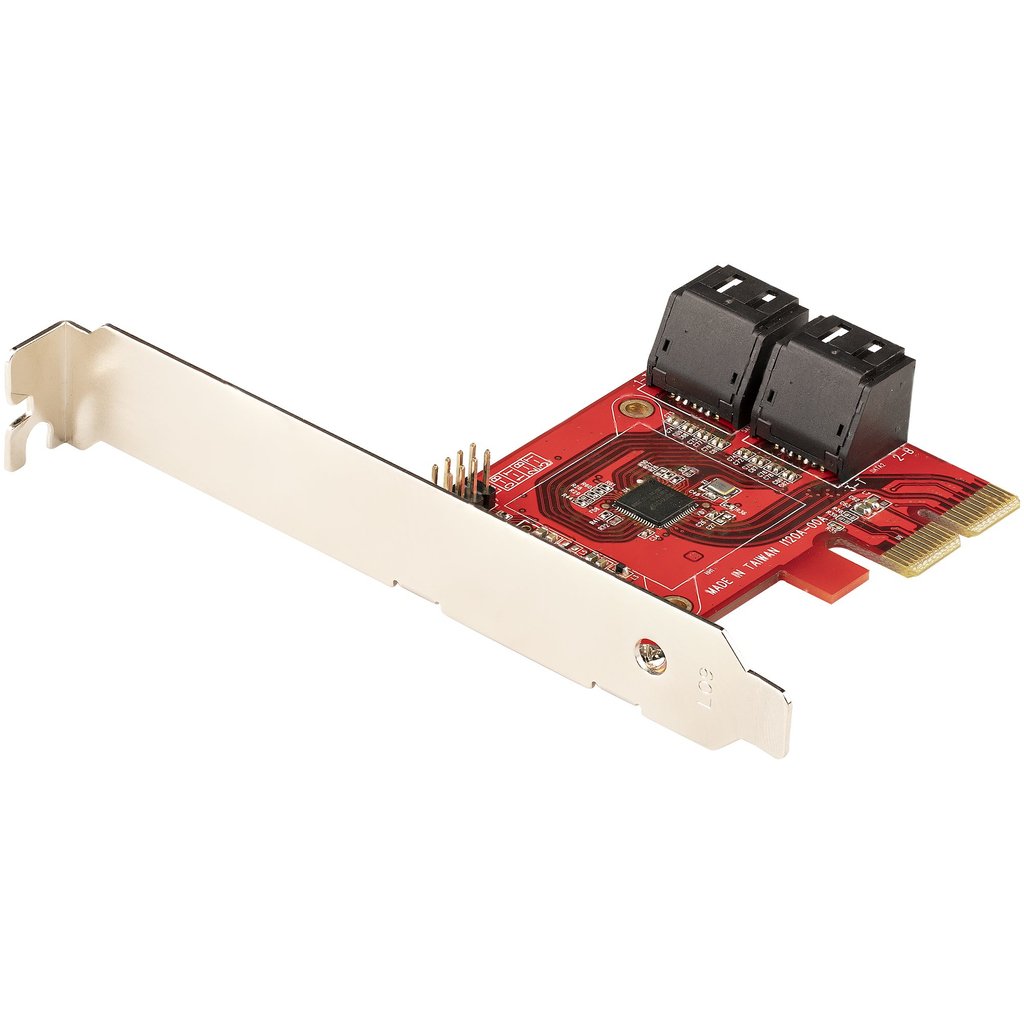

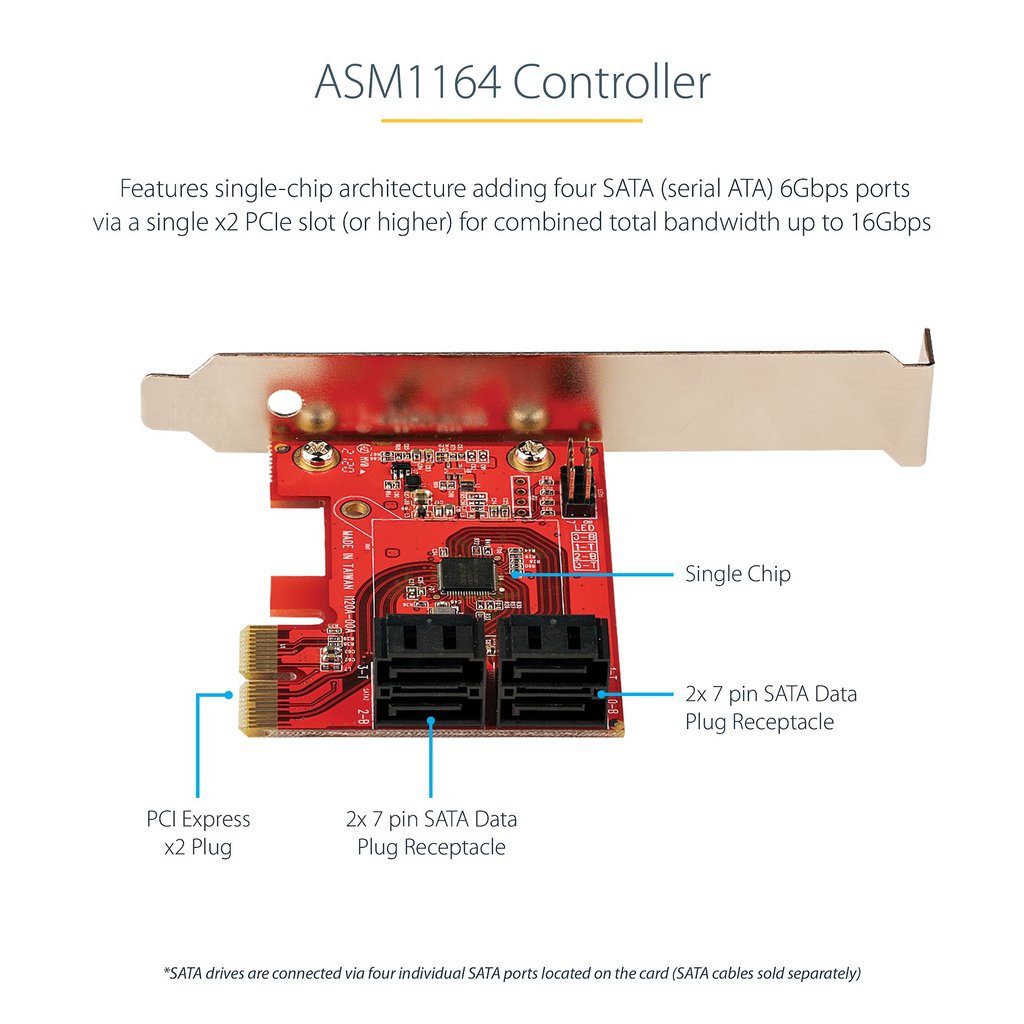

ASM1164 to Deliver 4-Port SATA 6Gbps Performance

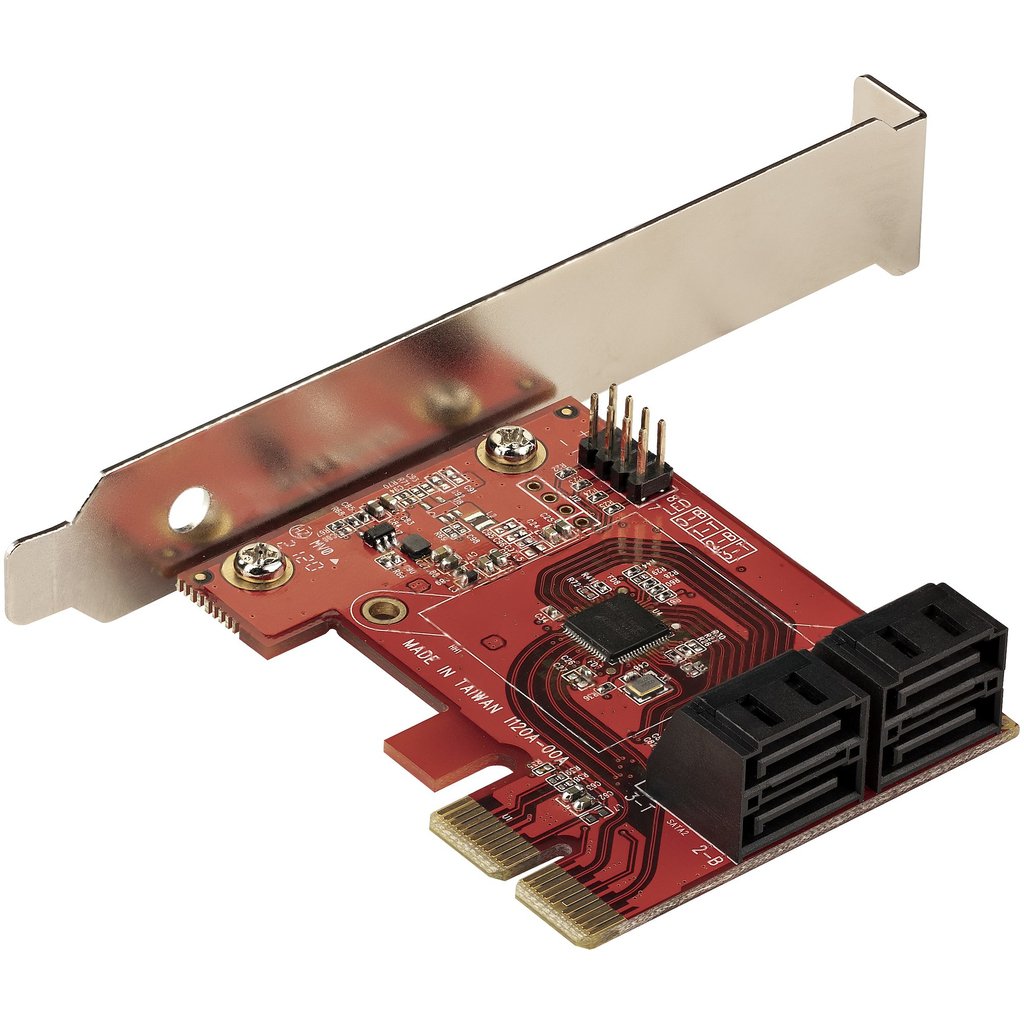

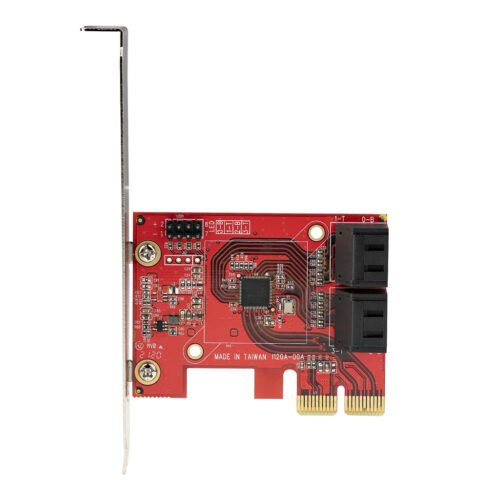

Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

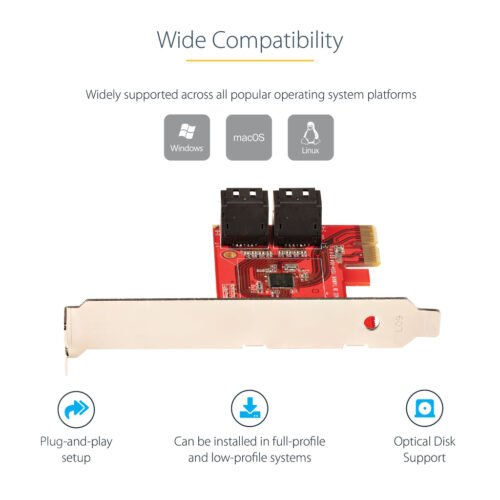

Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.

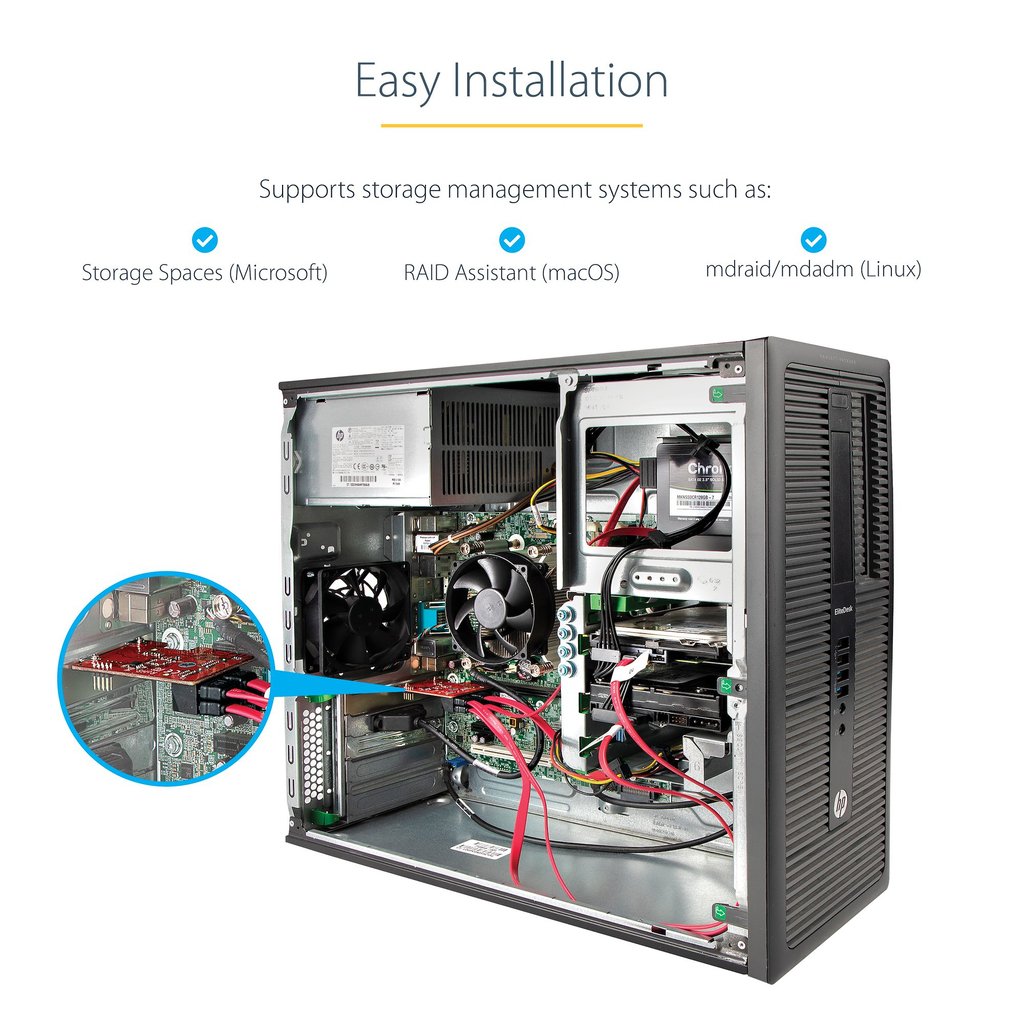

Hassle-Free Installation

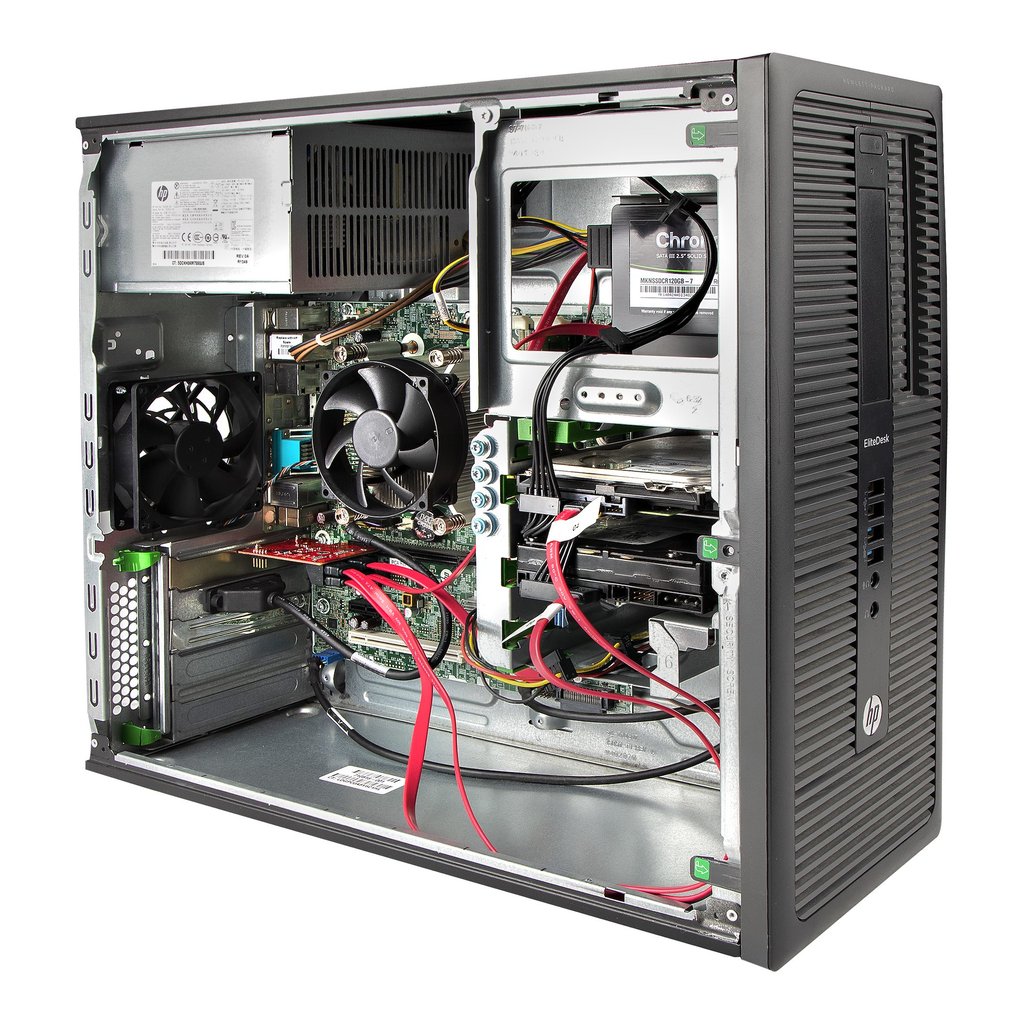

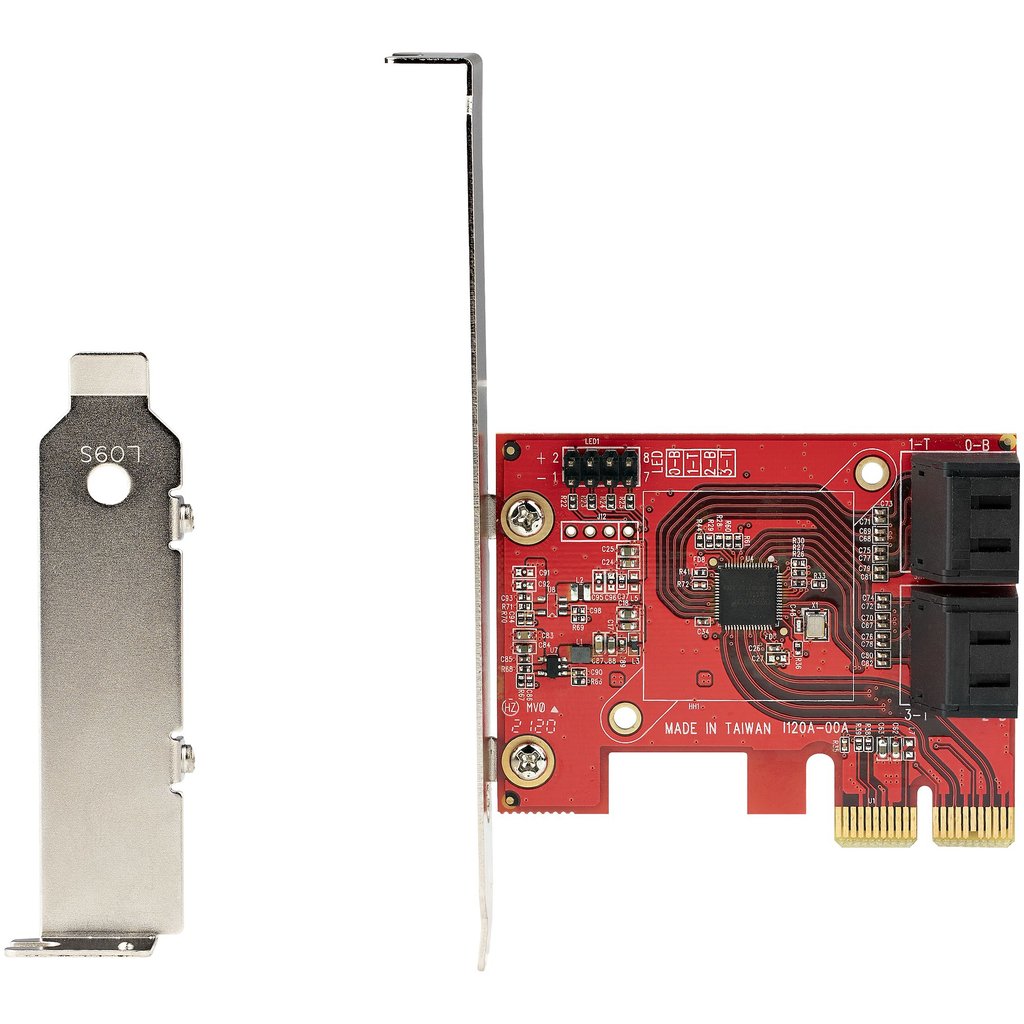

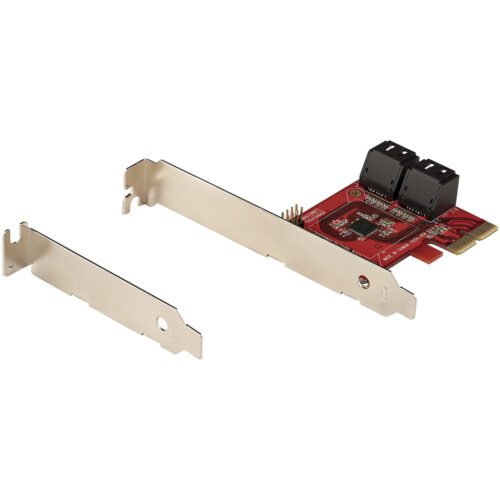

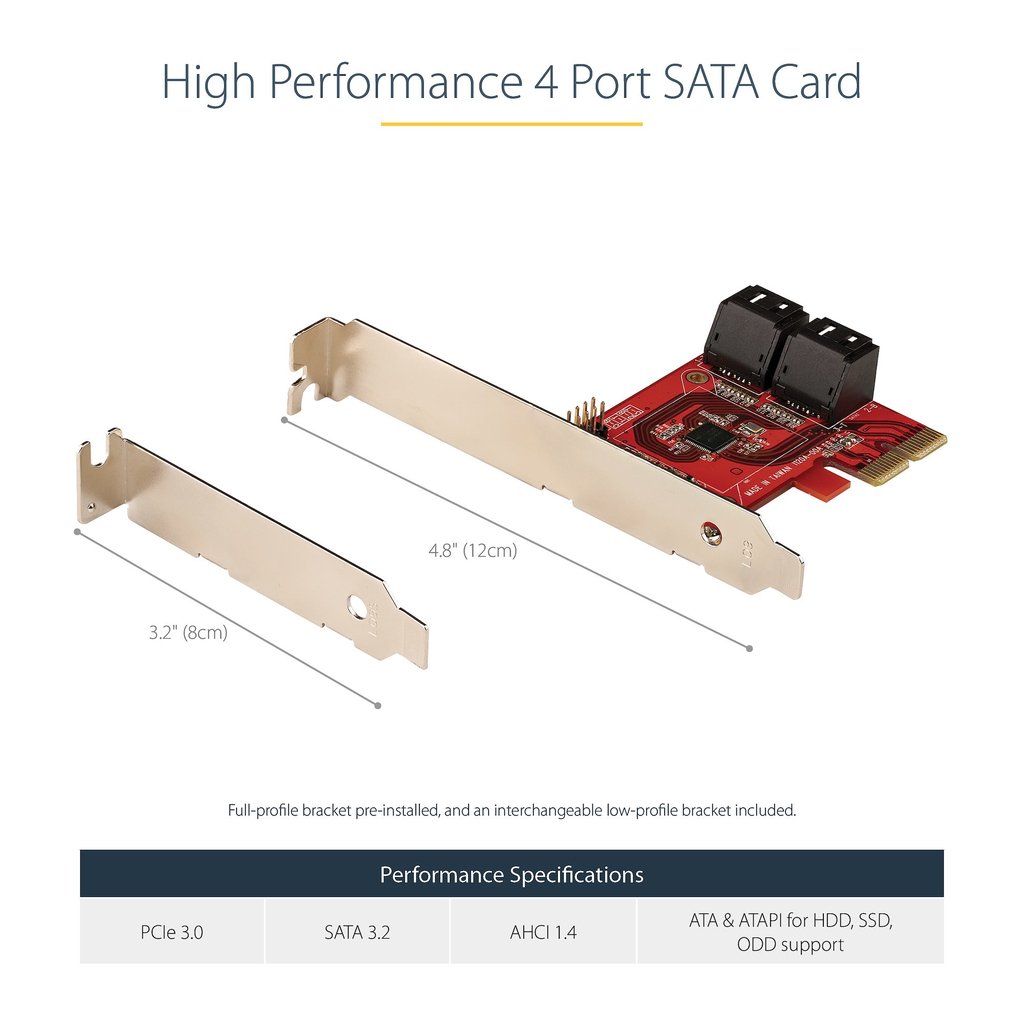

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
Additional information
| Weight | 0.12 lbs |
|---|---|
| Product colour | Red |
| Operating temperature (T-T) | 0 – 85 °C |
| Storage temperature (T-T) | -25 – 85 °C |
| Weight | 75 g |
| Chipset | ASMedia – ASM1164 |
| Host interface | PCIe |
| Output interface | SATA |
| Data transfer rate (max) | 6 Gbit/s |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Compliance certificates | CE, RoHS |

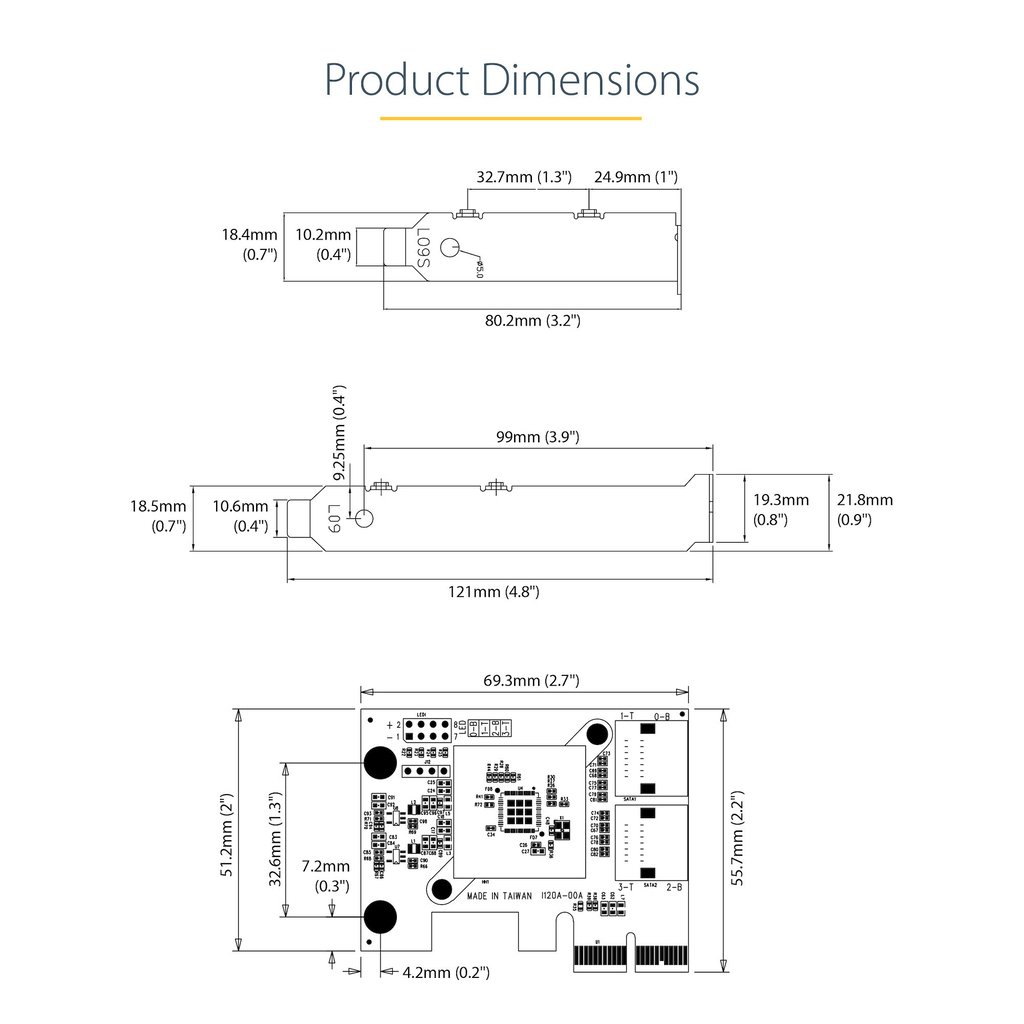

| Depth | 70 mm |
| Expansion card standard | PCIe 3.0 |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 56 mm |
| Height | 16 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Operating relative humidity (H-H) | 20 – 80% |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 115 g |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 365 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 510 mm |
| Internal SATA ports quantity | 4 |
| Port multiplier | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| SATA revision | 3.0 |
