StarTech.com Thunderbolt 3 Dock – Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort – 85W Power Delivery Charging – 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio – Windows & Mac (TB3DOCK2DPPU)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD
Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

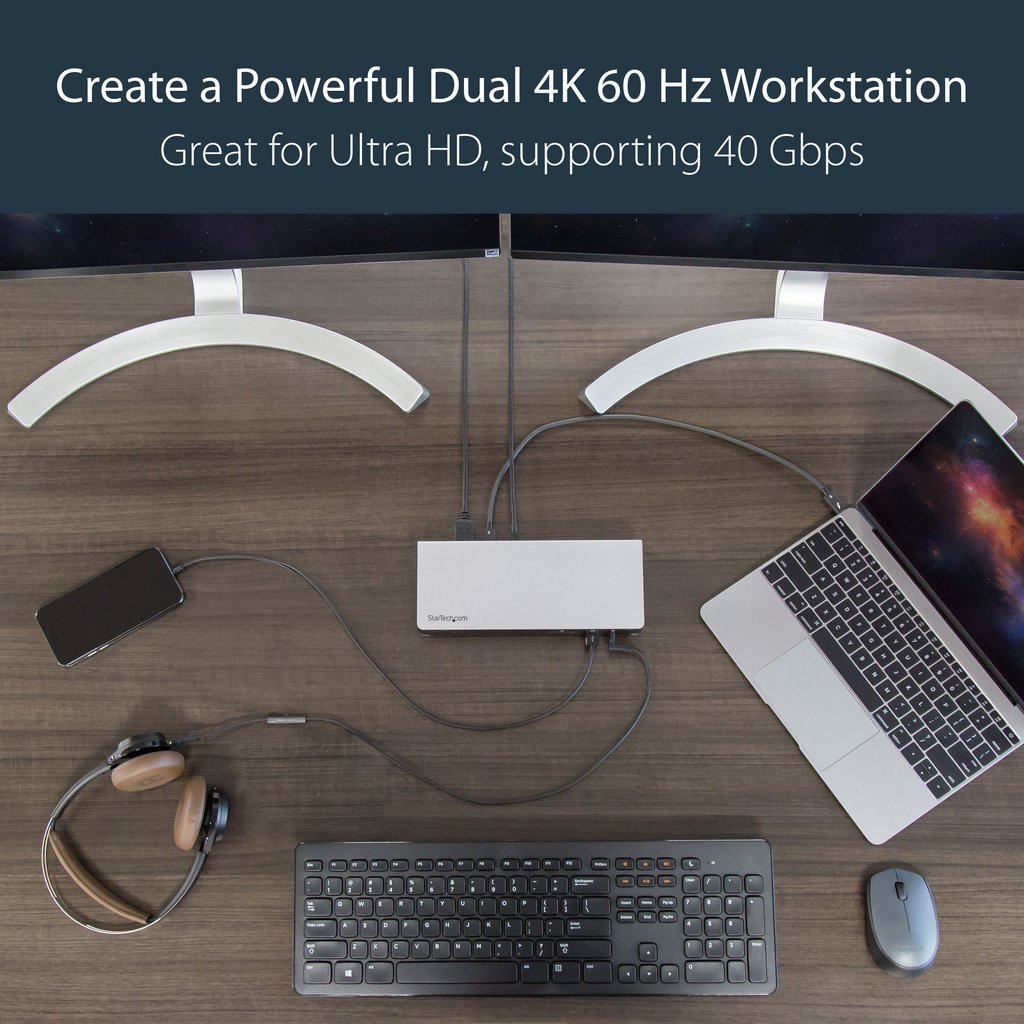

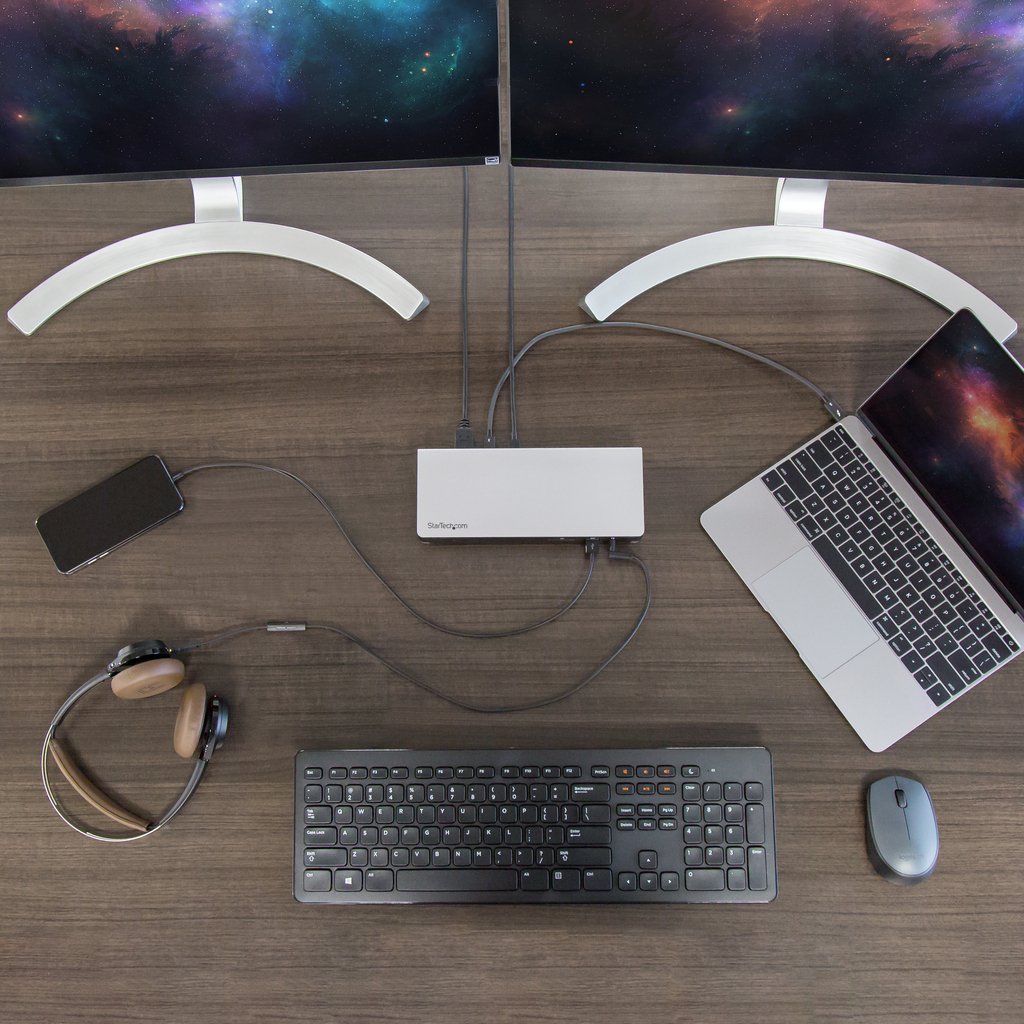

Create a Dual-4K 60Hz Workstation
This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.
Connect your laptop to:
• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
• 1 x 5K monitor via the DP and TB3 USB-C ports
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

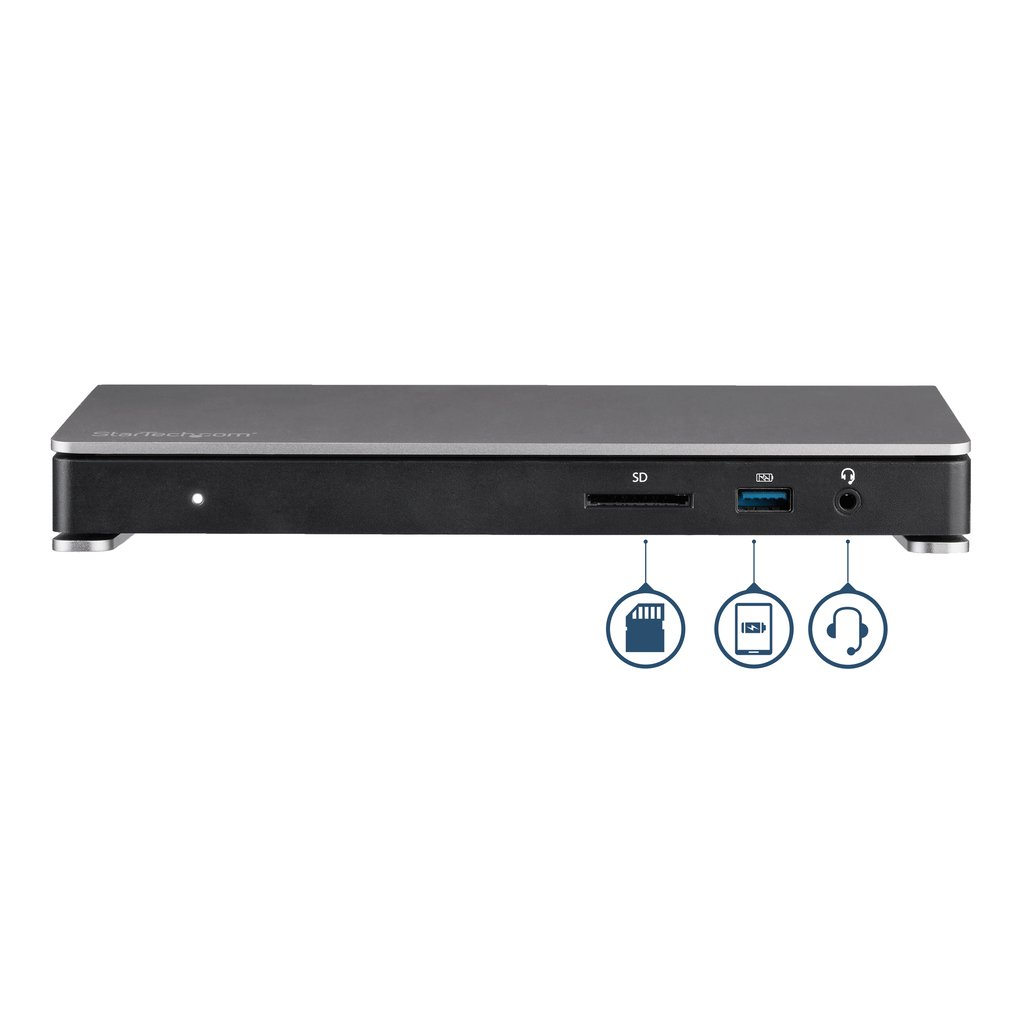

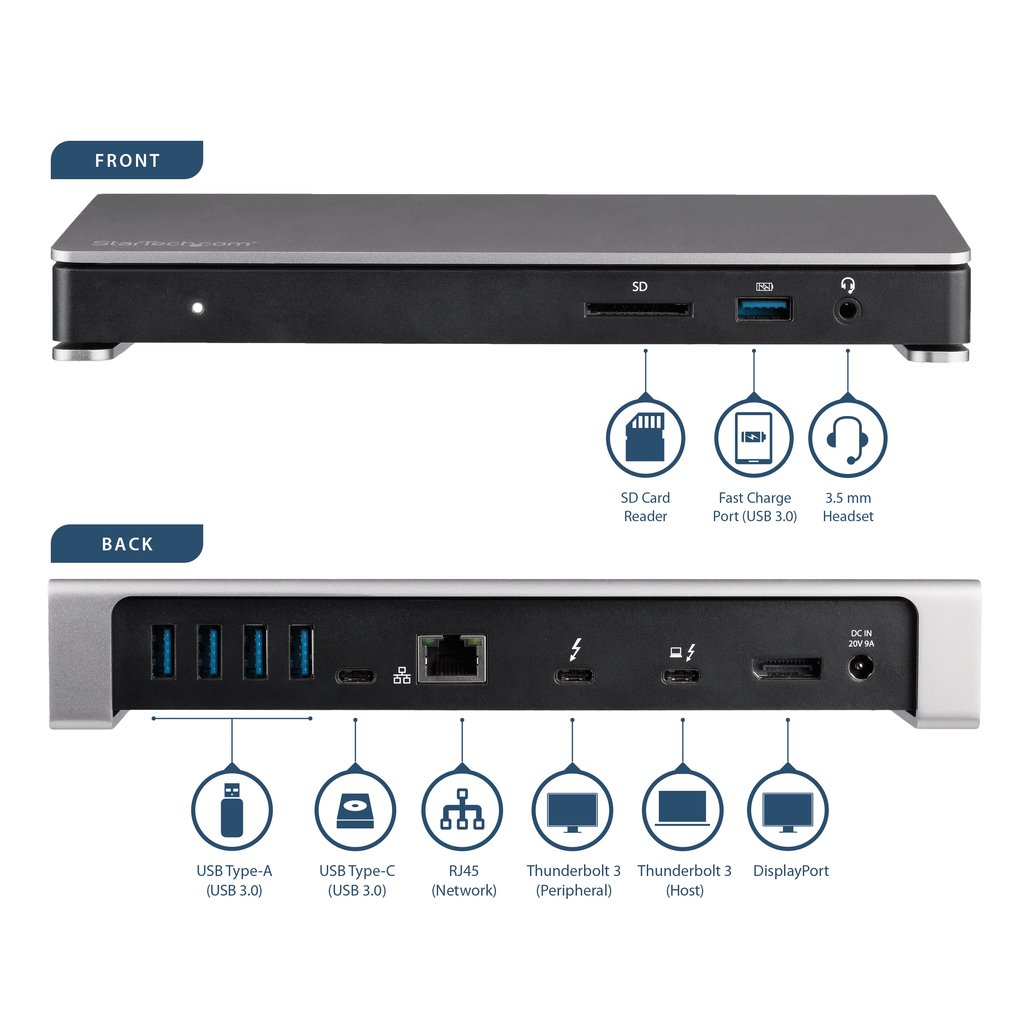

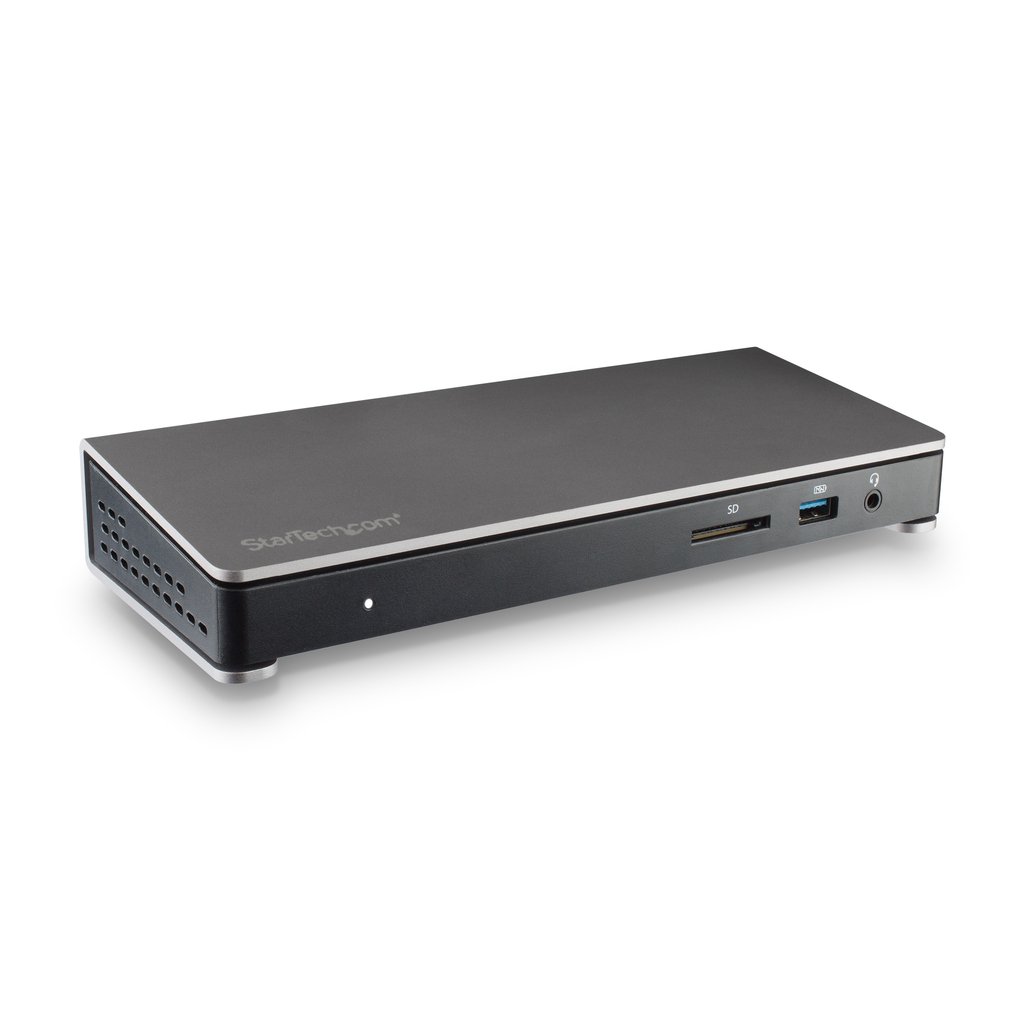

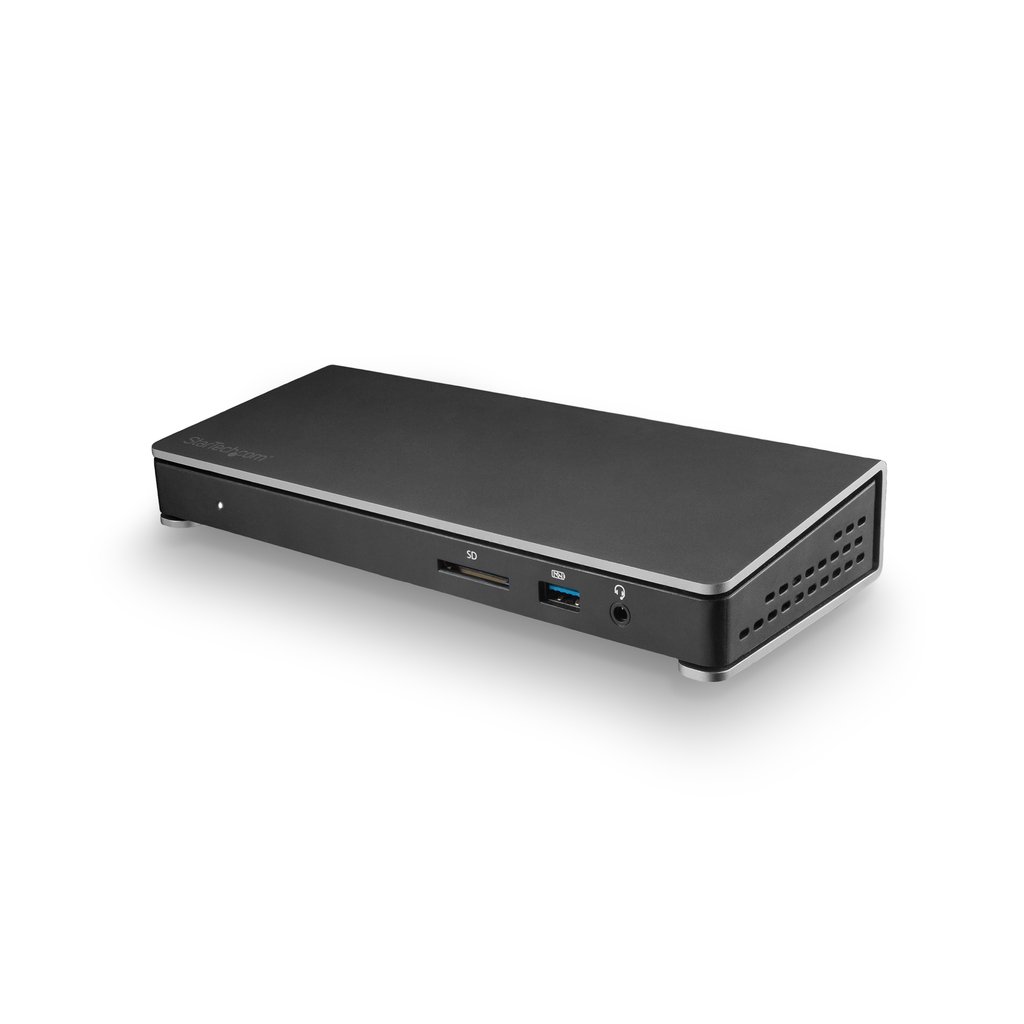

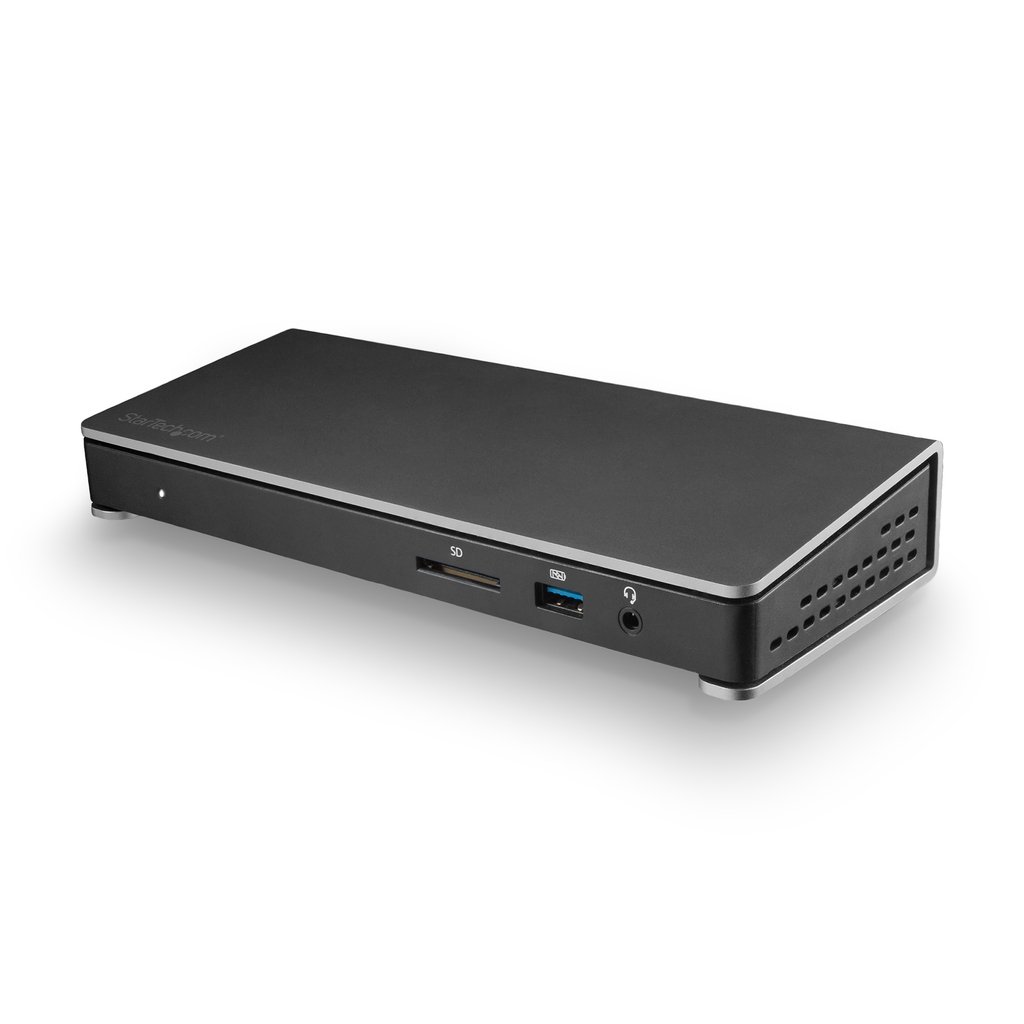

Plenty of Ports Including SD Card Reader

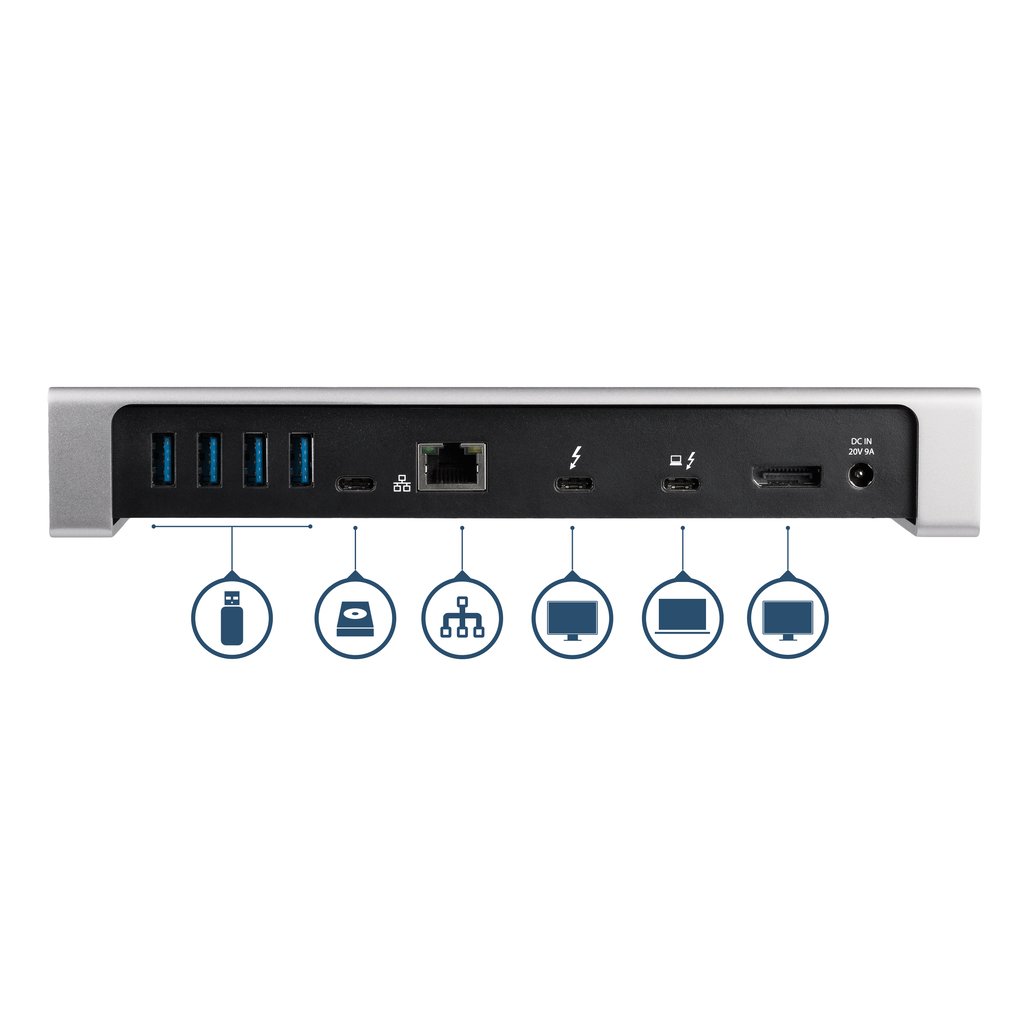

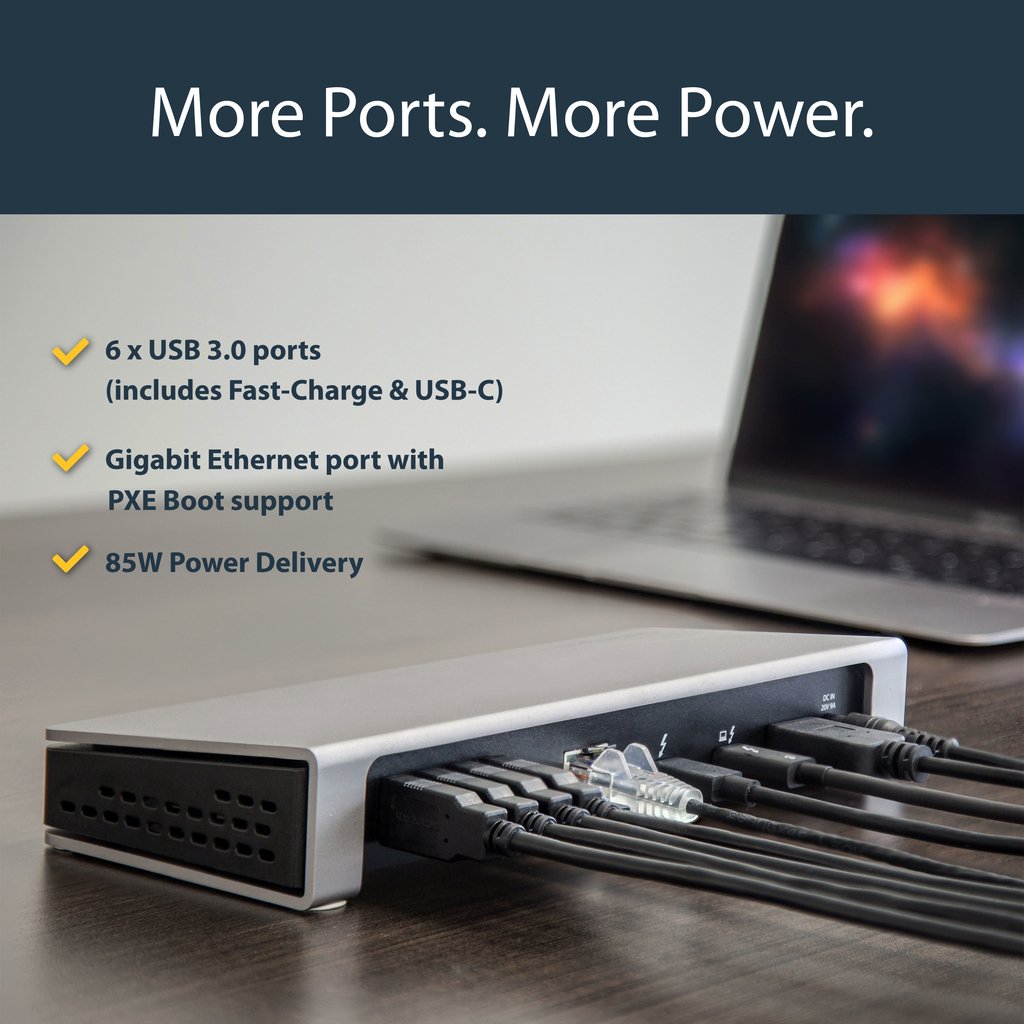

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
TB3DOCK2DPPU is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 1.78 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Black |
| Card reader integrated | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 0 – 95% |

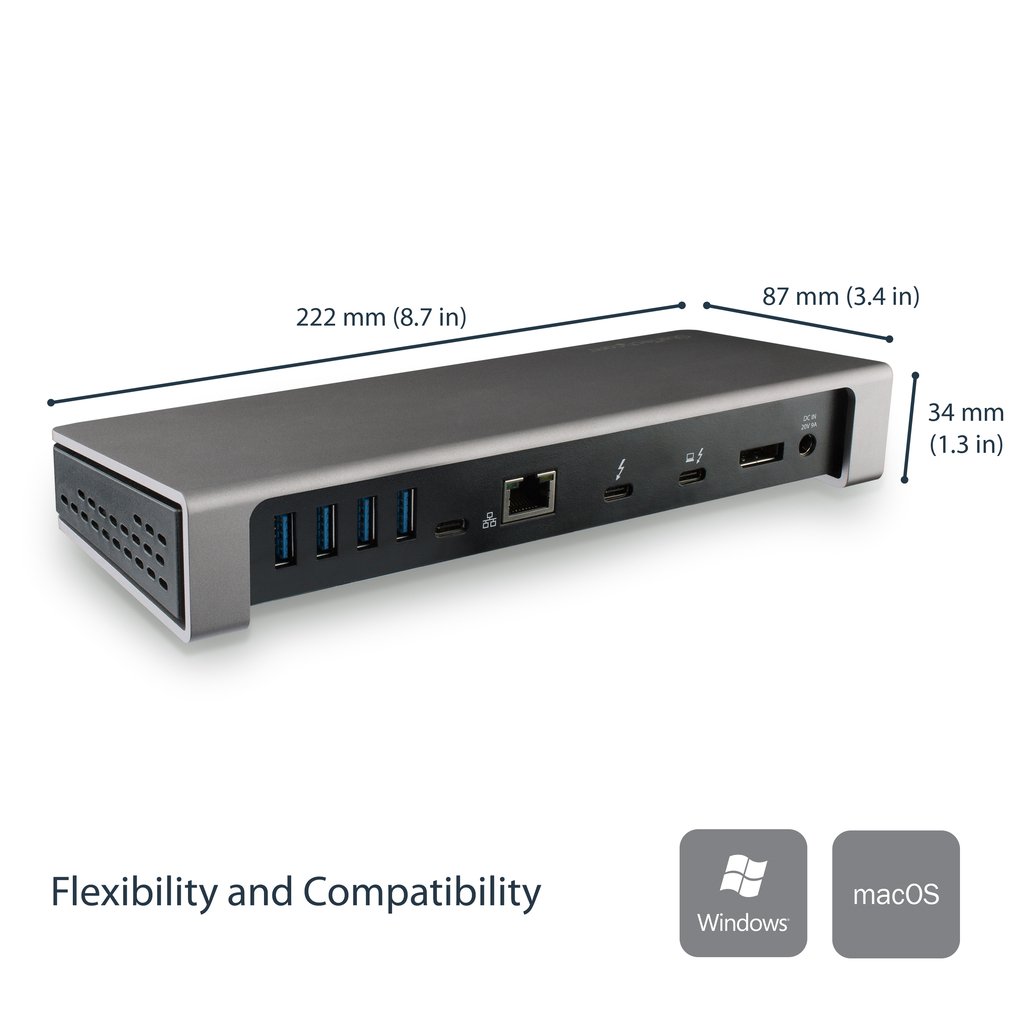

| Width | 87 mm |
| Depth | 222 mm |
| Height | 34 mm |
| Weight | 489 g |
| Package width | 145 mm |
| Package depth | 295 mm |
| Package height | 90 mm |
| Package weight | 1.5 kg |
| Storage temperature (T-T) | -20 – 70 °C |
| Headphone outputs | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| Compatible memory cards | MMC, MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum digital resolution | 5120 x 2880 pixels |
| Housing material | Aluminium |
| AC input voltage | 100 – 240 V |
| Input current | 2.5 A |
| Output voltage | 20 V |
| Output current | 9 A |

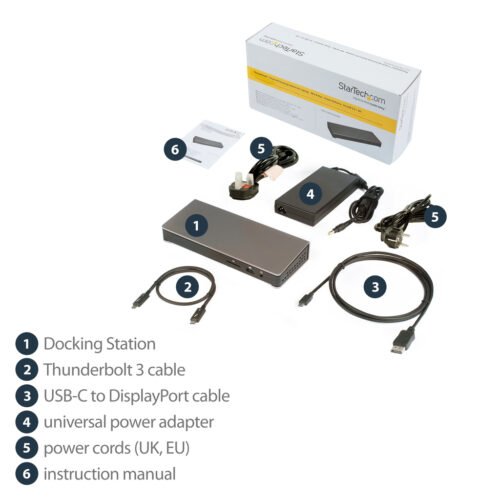

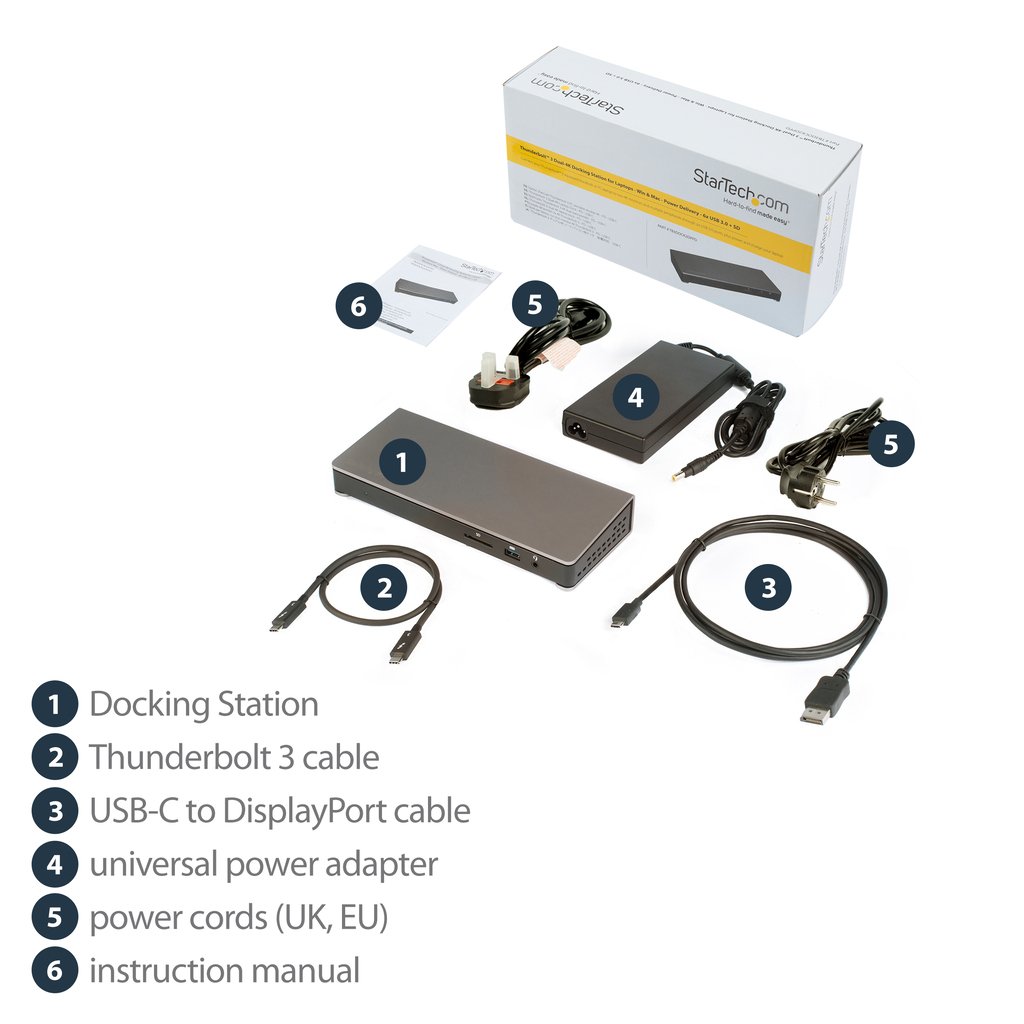

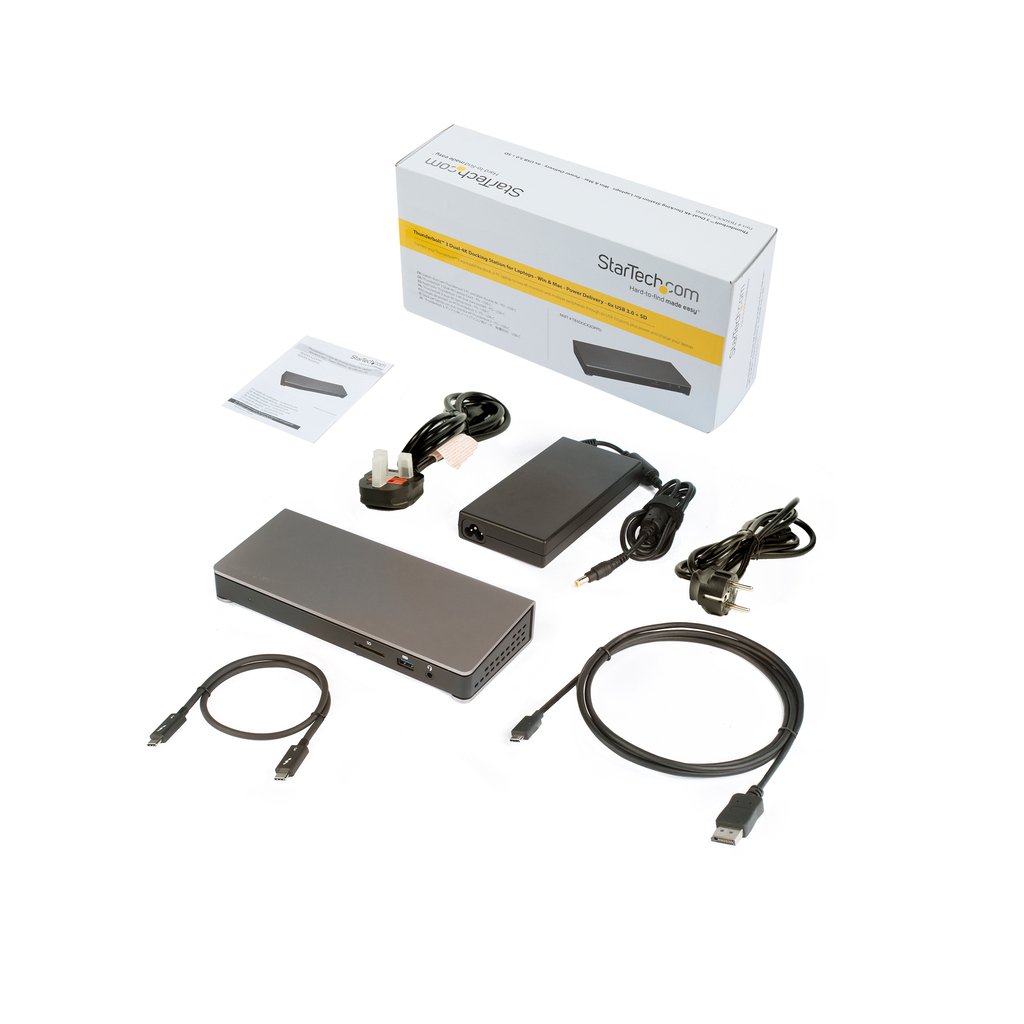

| Cables included | AC, Thunderbolt, USB Type-C |
| AC adapter included | Yes |
| Products per master (outer) case | 10 pc(s) |
| Data transfer rate | 40 Gbit/s |
| Full duplex | Yes |
| UASP support | Yes |
| Power plug type | Type N |
| Compatible power plug types | EU, UK |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 314 mm |
| Chipset | Intel – Alpine Ridge JHL6540, Texas Instruments – TPS65983, Fresco – FL1100EX, Intel – WGI210AT, C-Media – CM6533, Genesys Logic – GL3226 |
| Certification | CE, FCC, REACH |
| Auto MDI/MDI-X | Yes |
| Manual | Yes |
| Harmonized System (HS) code | 84733020 |
| Thunderbolt 3 ports quantity | 2 |
| Mac compatibility | Yes |
| Power consumption (standby) | 180 W |
