StarTech.com Triple-Monitor USB 3.0 Docking Station – 1x HDMI – 2x DisplayPort
StarTech.com Triple Monitor USB 3.0 Laptop Docking Station – 4K HDMI, 2x DisplayPort – Universal USB Dock for Windows & Mac OS (USB3DOCKH2DP)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

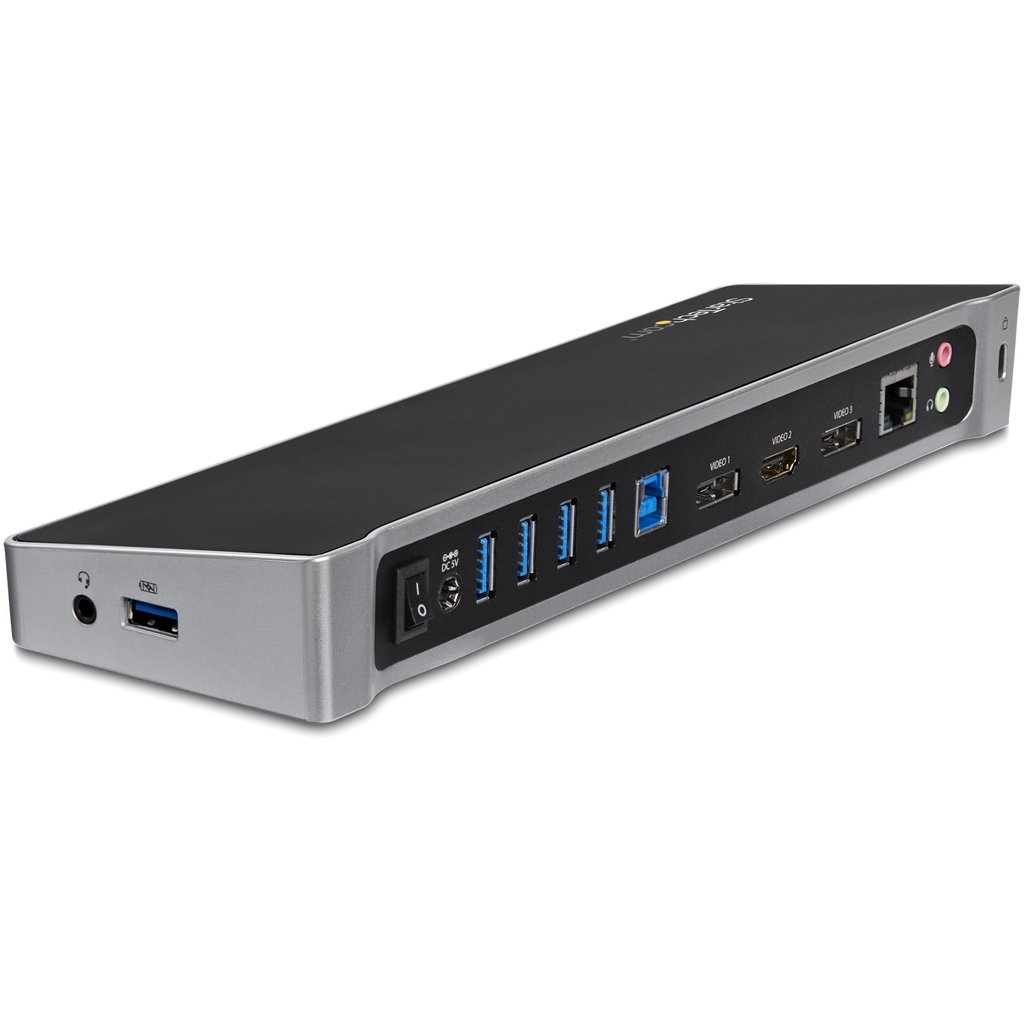

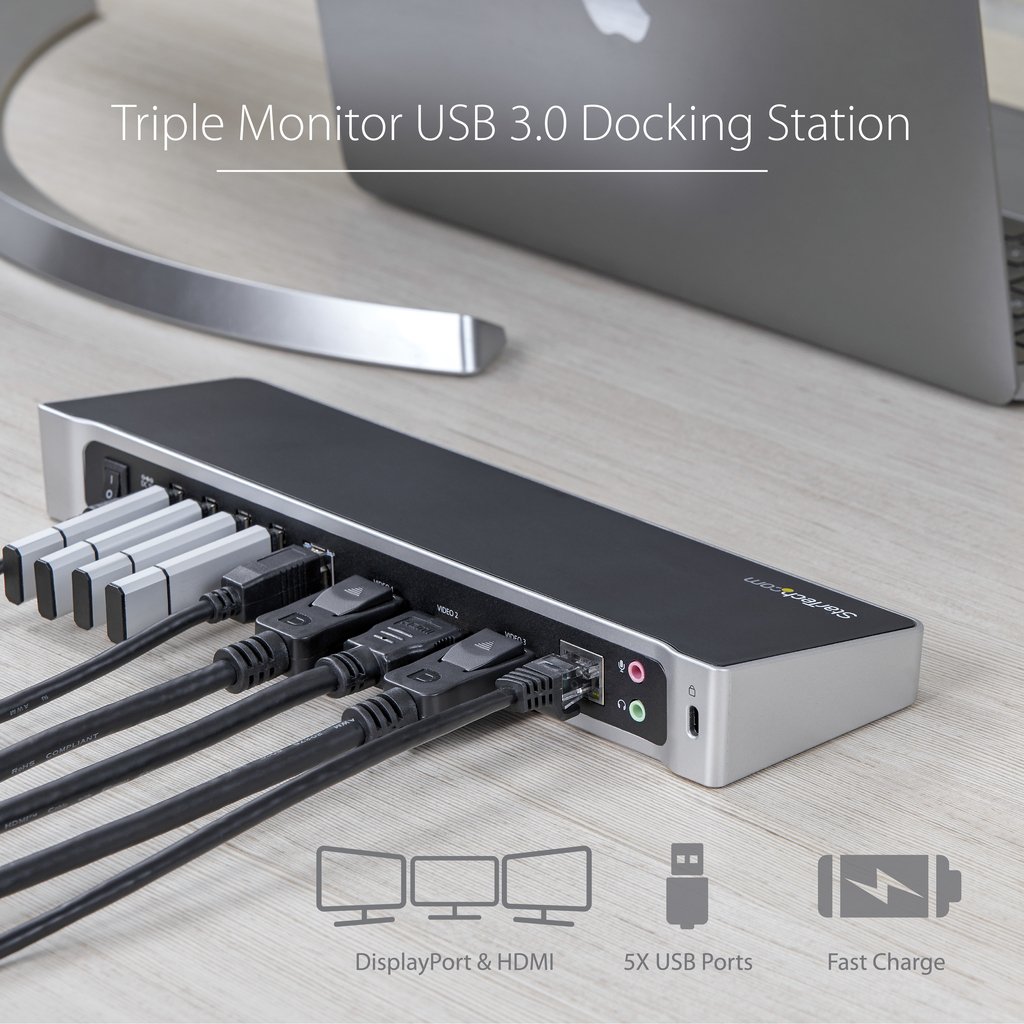

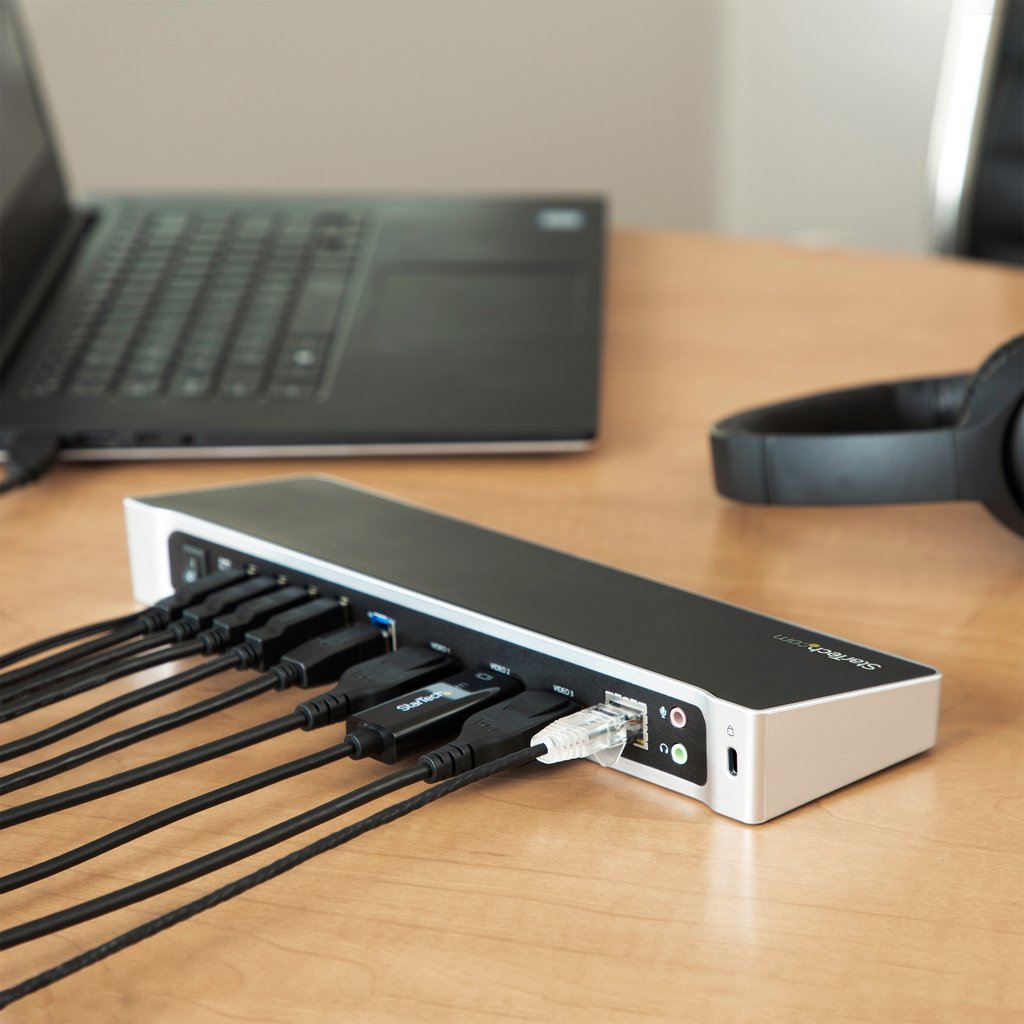

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.
Triple Display Flexibility
The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048×1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.
Powerful Connections and Fast Device Charging

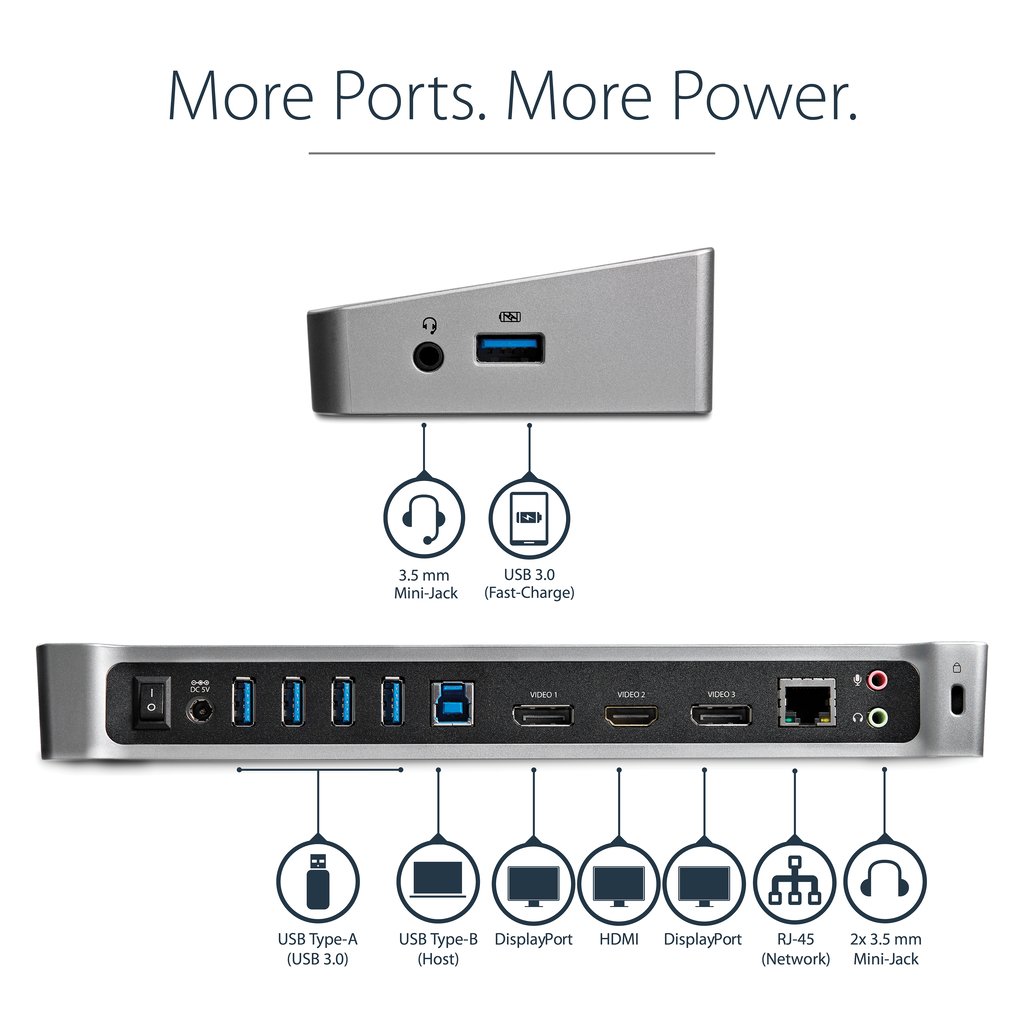

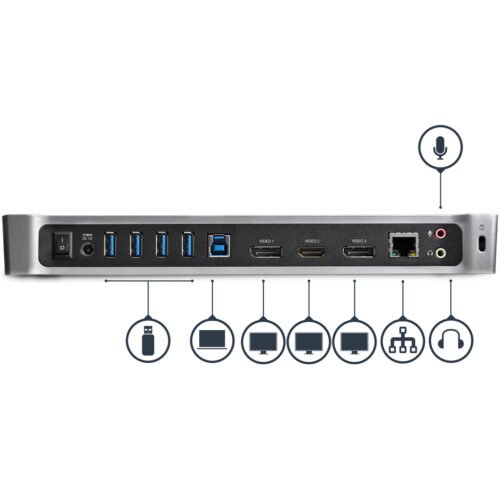

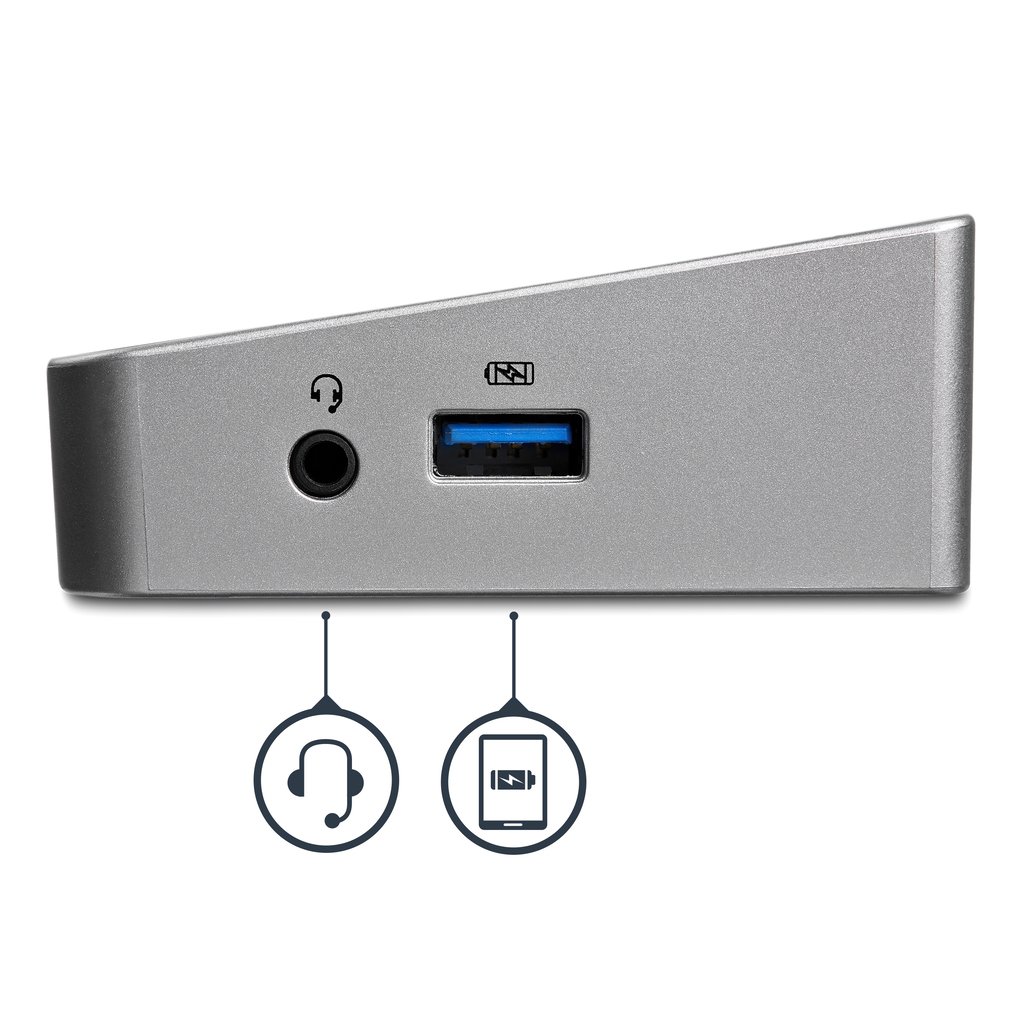

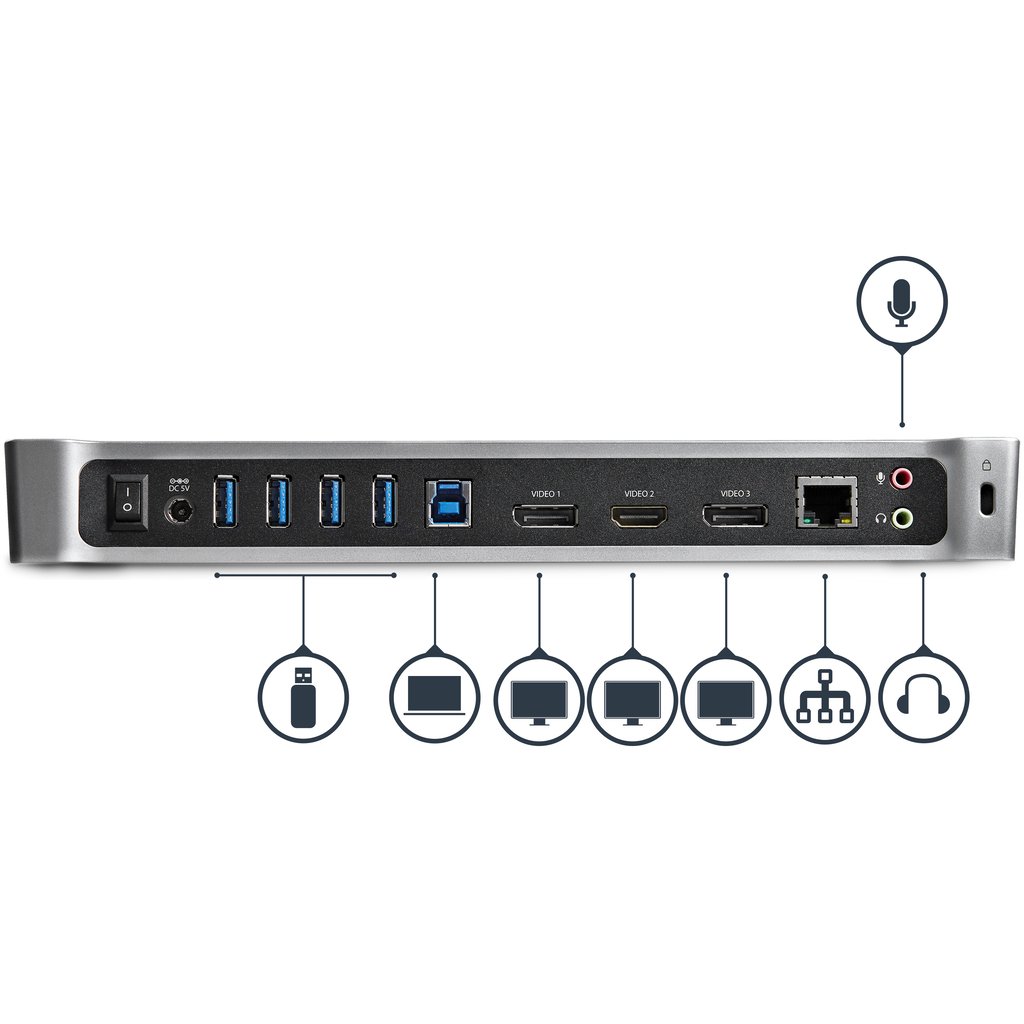

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.
The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 1.02 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Black, Silver |
| Card reader integrated | No |
| Power consumption (typical) | 32.5 W |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windo |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 0 – 90% |

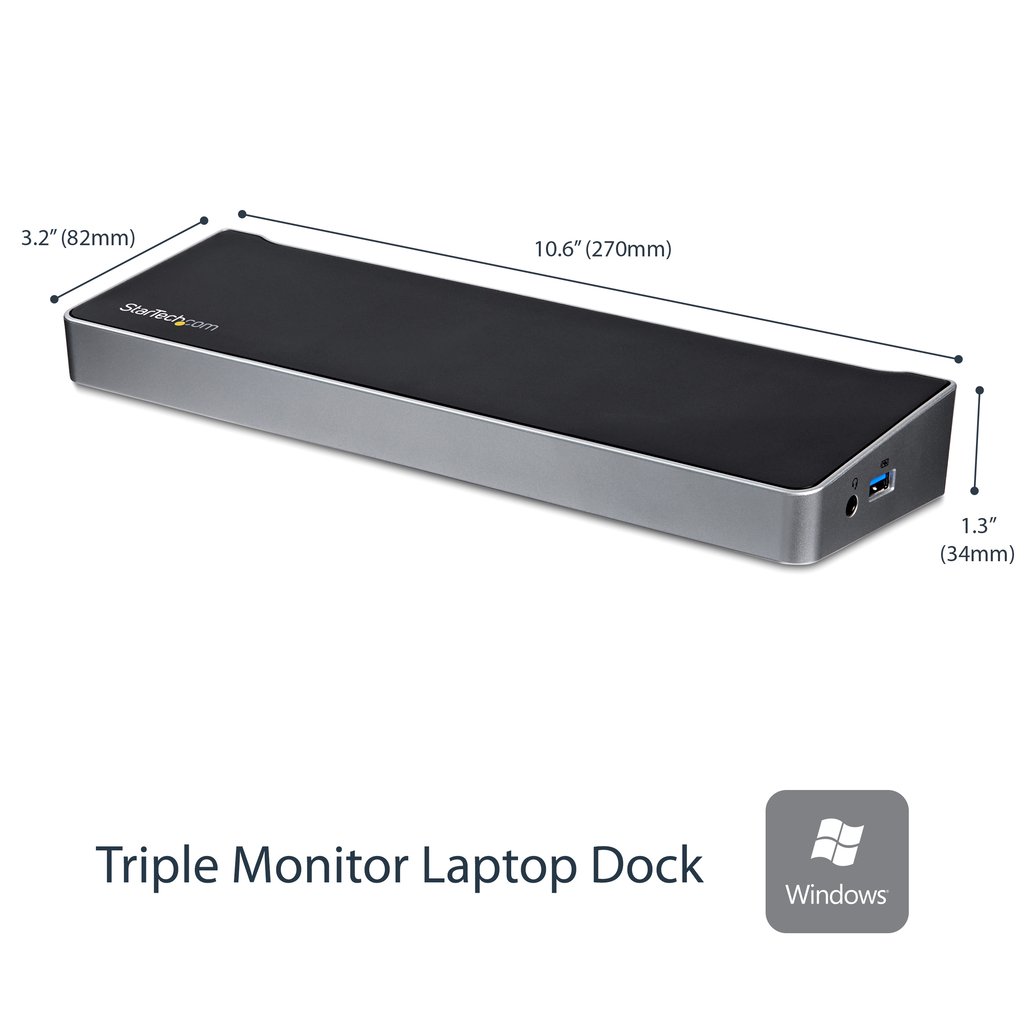

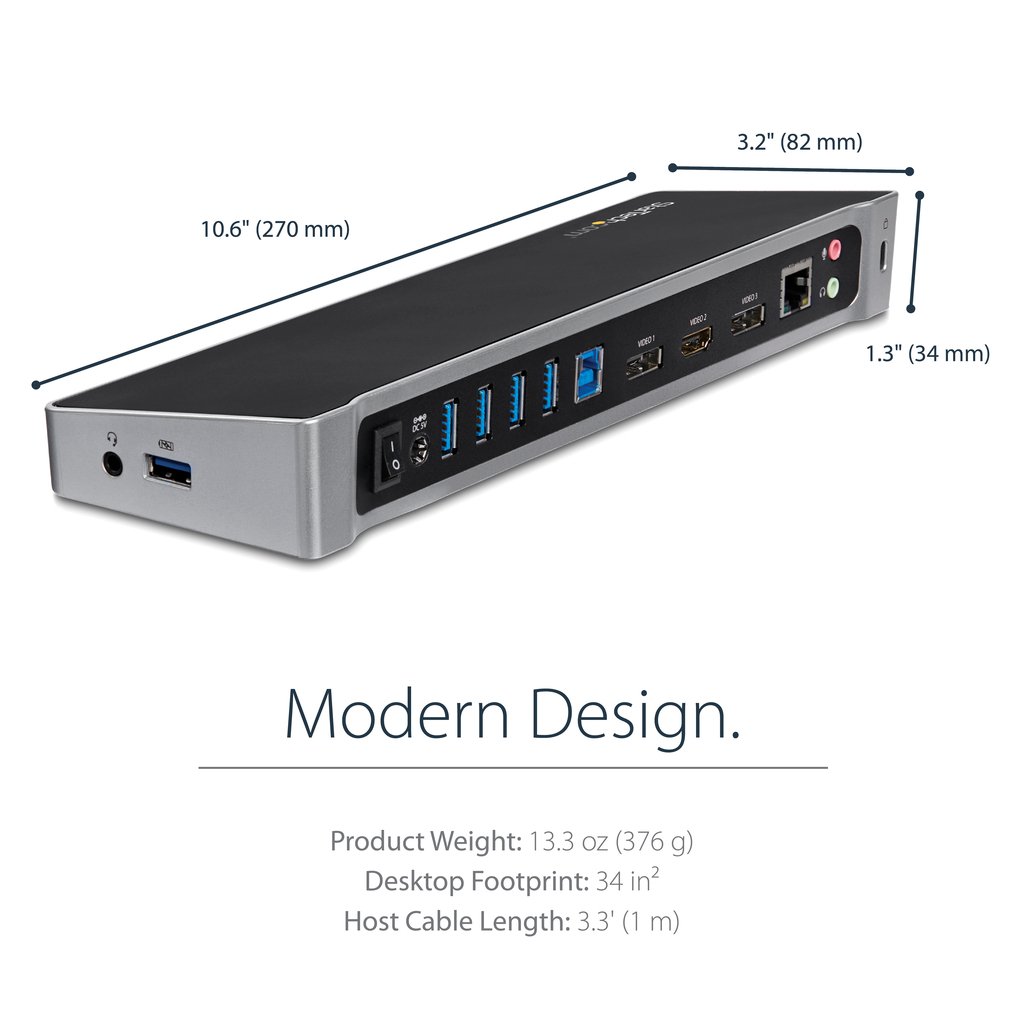

| Width | 82 mm |
| Depth | 270 mm |
| Height | 34 mm |
| Weight | 376 g |
| Package width | 296 mm |
| Package depth | 164 mm |
| Package height | 71 mm |
| Package weight | 1.03 kg |
| Storage temperature (T-T) | -10 – 80 °C |
| Headphone outputs | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| LED indicators | Activity, Link |
| Housing material | Plastic |
| AC input voltage | 100-240 V |
| Input current | 1.5 A |
| Output voltage | 5 V |
| Output current | 6.5 A |

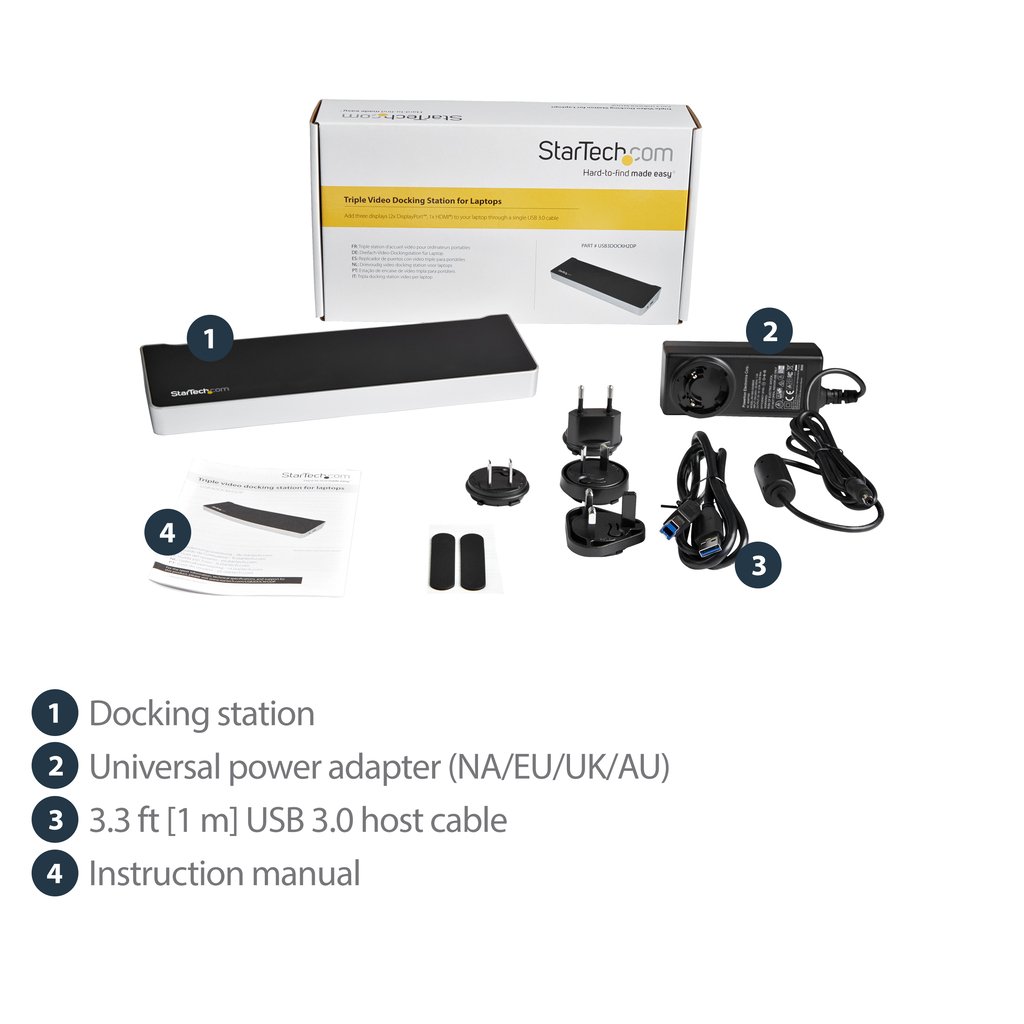

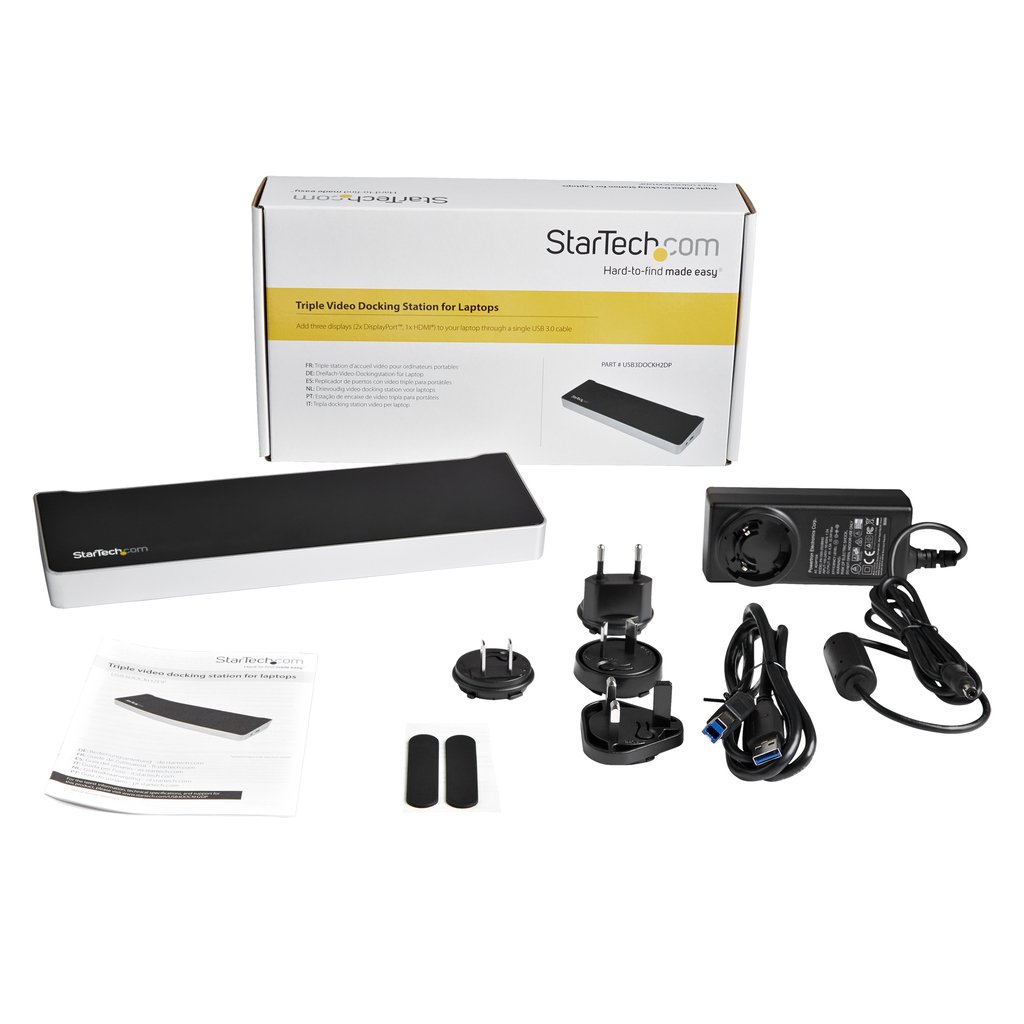

| Cables included | USB |
| AC adapter included | Yes |
| Compliance certificates | RoHS |
| Products per master (outer) case | 10 pc(s) |
| Data transfer rate | 5 Gbit/s |
| Other operating systems supported | ChromeOS |
| Microphone in | Yes |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| UASP support | Yes |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, UK, US |
| Master (outer) case width | 363 mm |
| Master (outer) case length | 373 mm |
| Master (outer) case height | 395 mm |
| Chipset | DisplayLink – DL-5910, VLI – VL812 |
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Manual | Yes |
| Harmonized System (HS) code | 84733020 |
| Brand compatibility | Any brand |
| Mac compatibility | Yes |
| USB connector type | USB Type-A |
| Number of microphone inputs | 1 |
| USB data transfer rates | 5000 Mbit/s |
